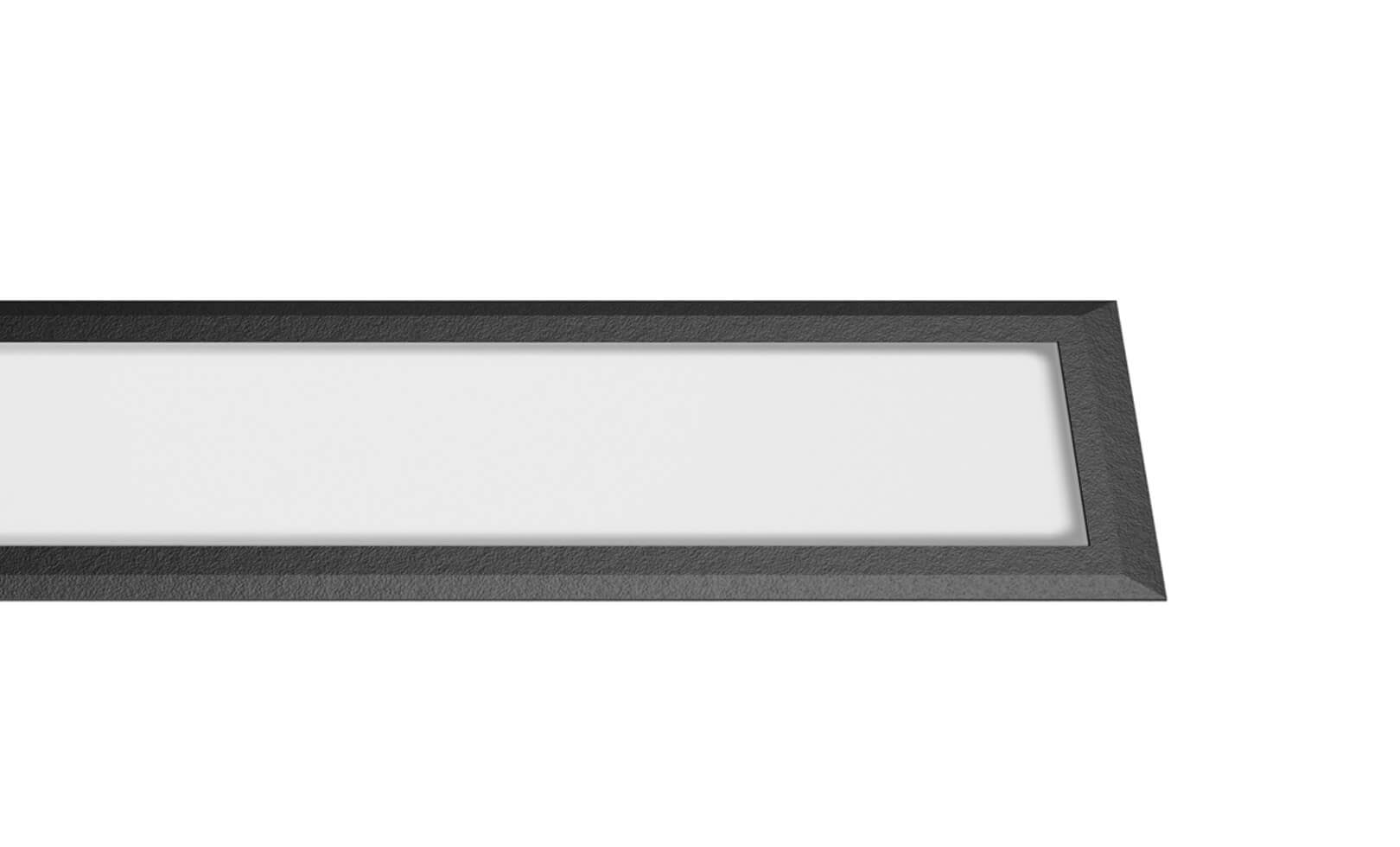

201104 201108 201112 201116 LINEAGROUND DIFFUSED

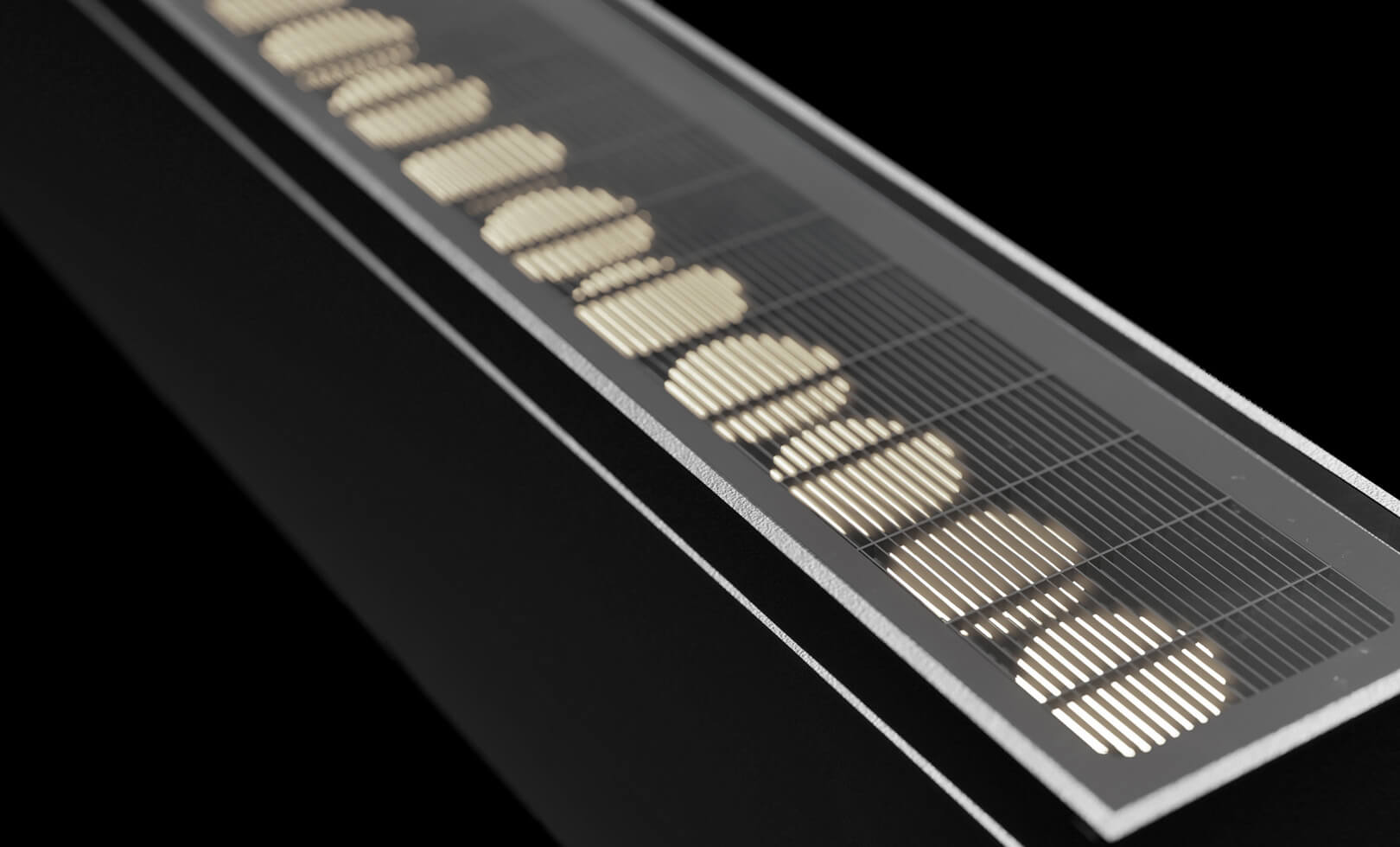

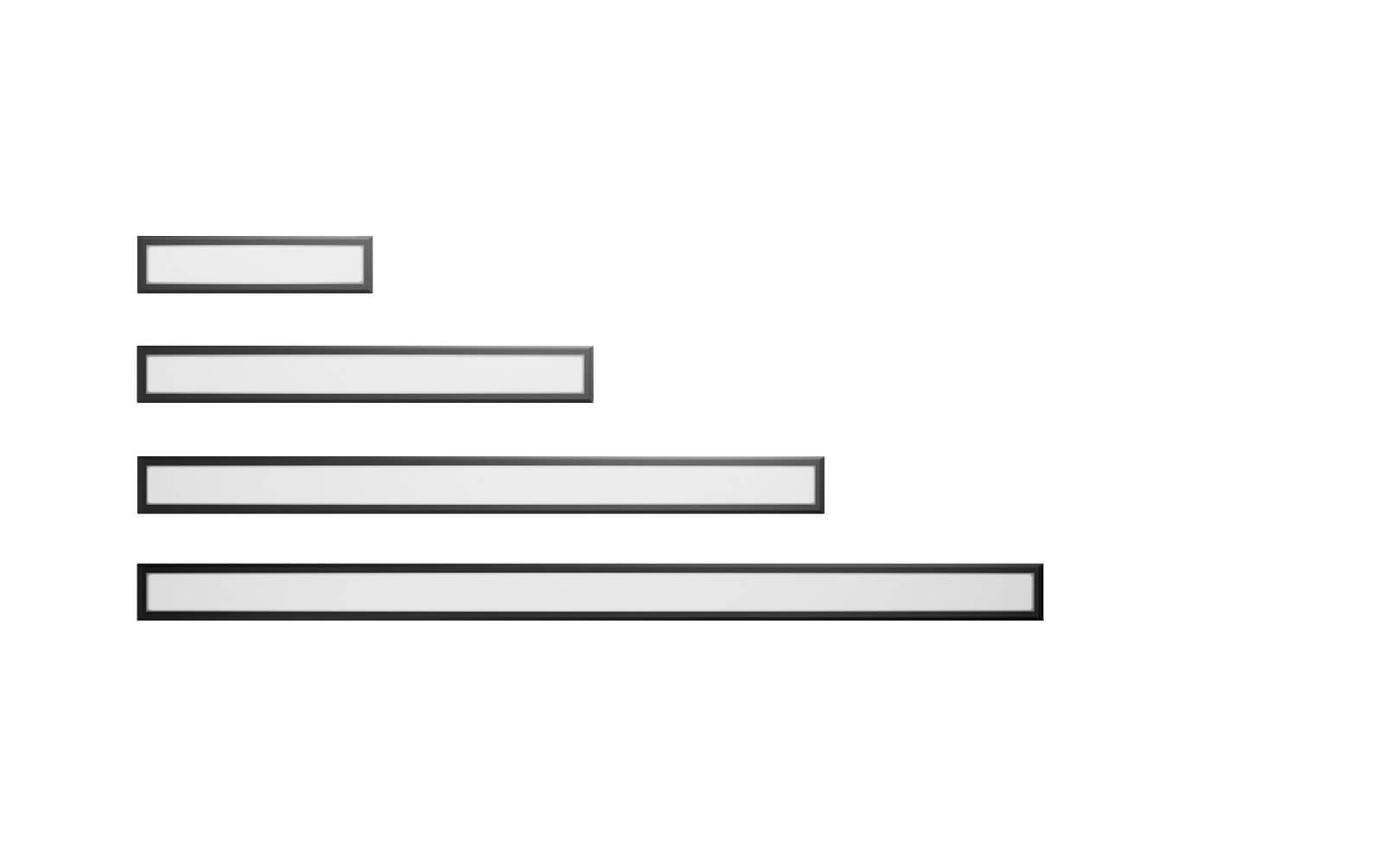

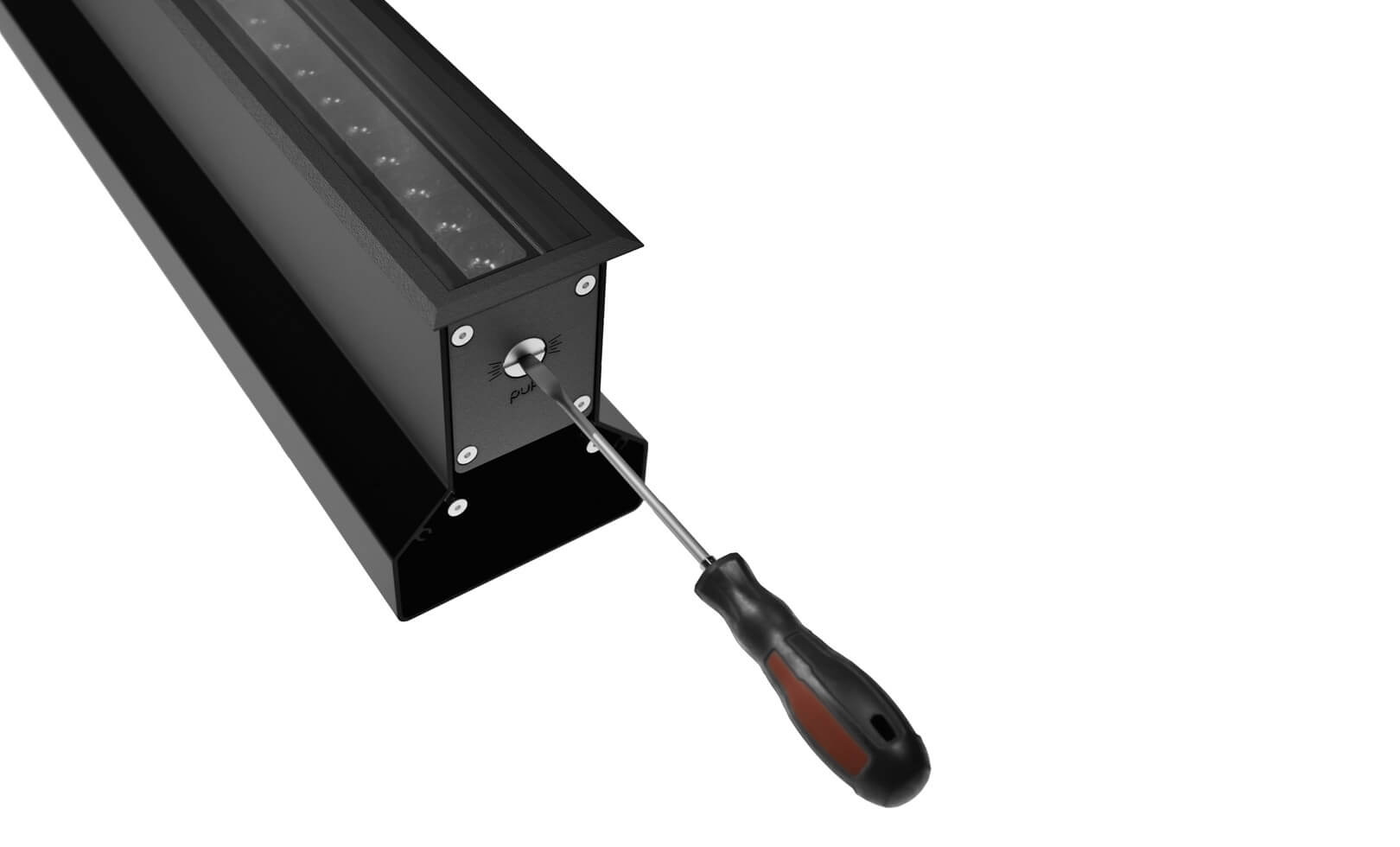

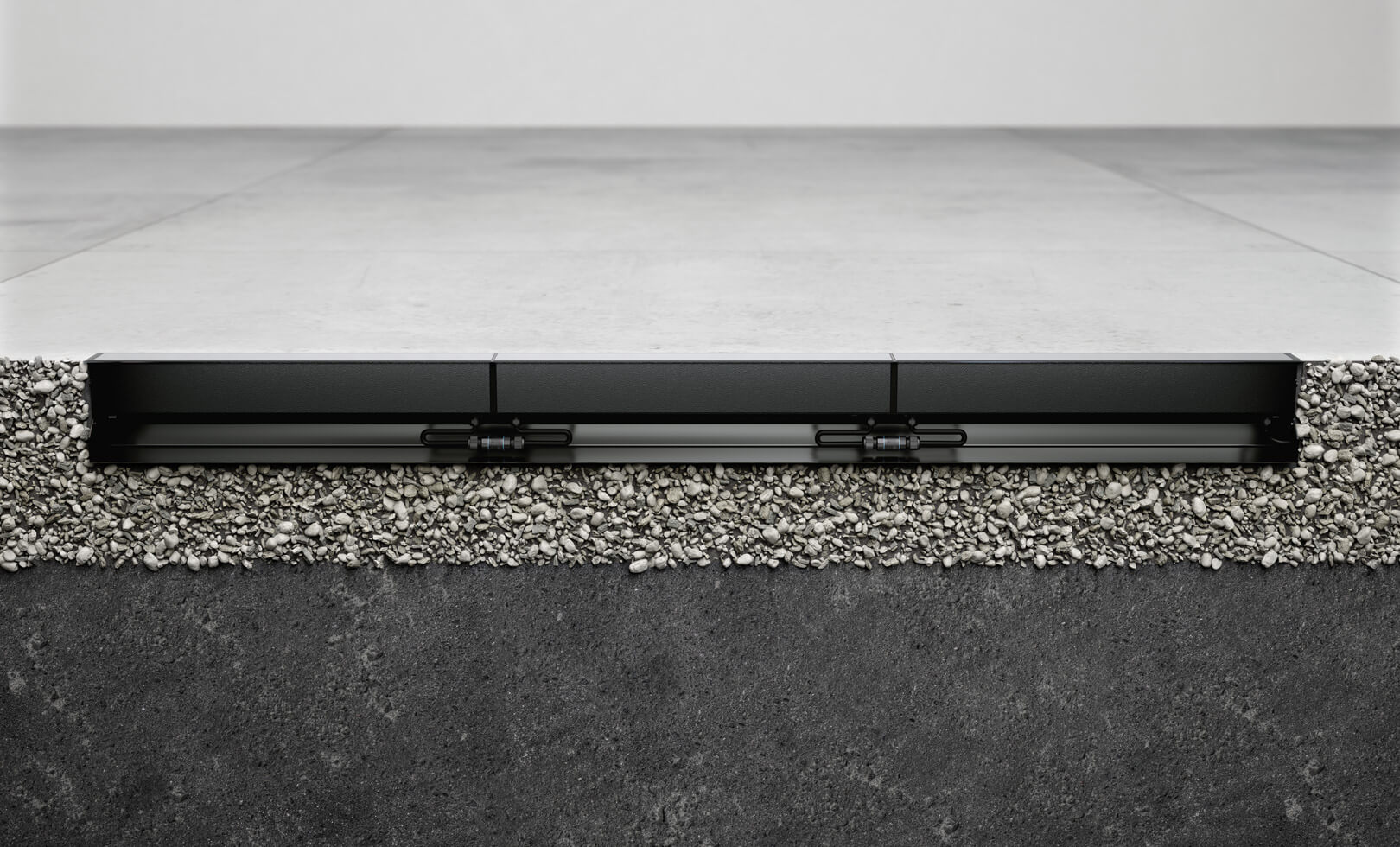

Linear shape ground-recessed luminaire for outdoor installation, four available lengths (310mm, 600mm, 900mm, 1200mm) made in phospho-chromatised, anodized and polyester powder coated extruded copper-free aluminium, with tempered safety glass, moulded silicone gaskets, extruded aluminum back box. Light source tilt system +/- 15deg from outside. Built-in LED driver 220-240V 50-60Hz, with SAMSUNG 3030 LED. IP67 rating.
201104 - LINEAGROUND 300
8 WATT
Nr. 12 SAMSUNG 3030 LED
IP67
IK10
3,00 Kg
201108 - LINEAGROUND 600
12 WATT
Nr. 24 SAMSUNG 3030 LED
IP67
IK10
5,50 Kg
201112 - LINEAGROUND 900
17 WATT
Nr. 36 SAMSUNG 3030 LED
IP67
IK10
7,00 Kg
201116 - LINEAGROUND 1200
24 WATT
Nr. 48 SAMSUNG 3030 LED
IP67
IK10
9,50 Kg
· Material: high corrosion resistance extruded copper-free aluminum
· Coating: anodizing treatment + protective powder coating
· Screws: Stainless steel
· Power supply: 220/240V 50/60Hz built-in
· Gasket: Silicone rubber
· Glass: Tempered
· Cable gland: PG9 cable gland
· Power cable: 1 mt. neoprene power cable included, in & out cable for loop-in loop-out connection available on request

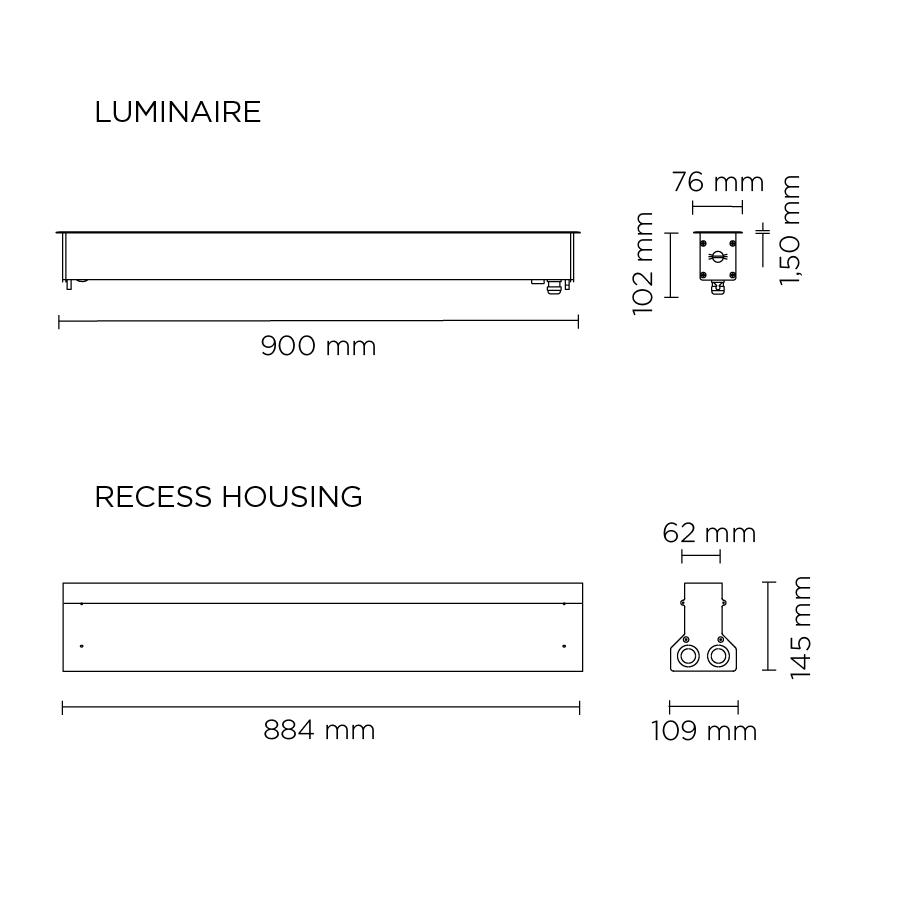

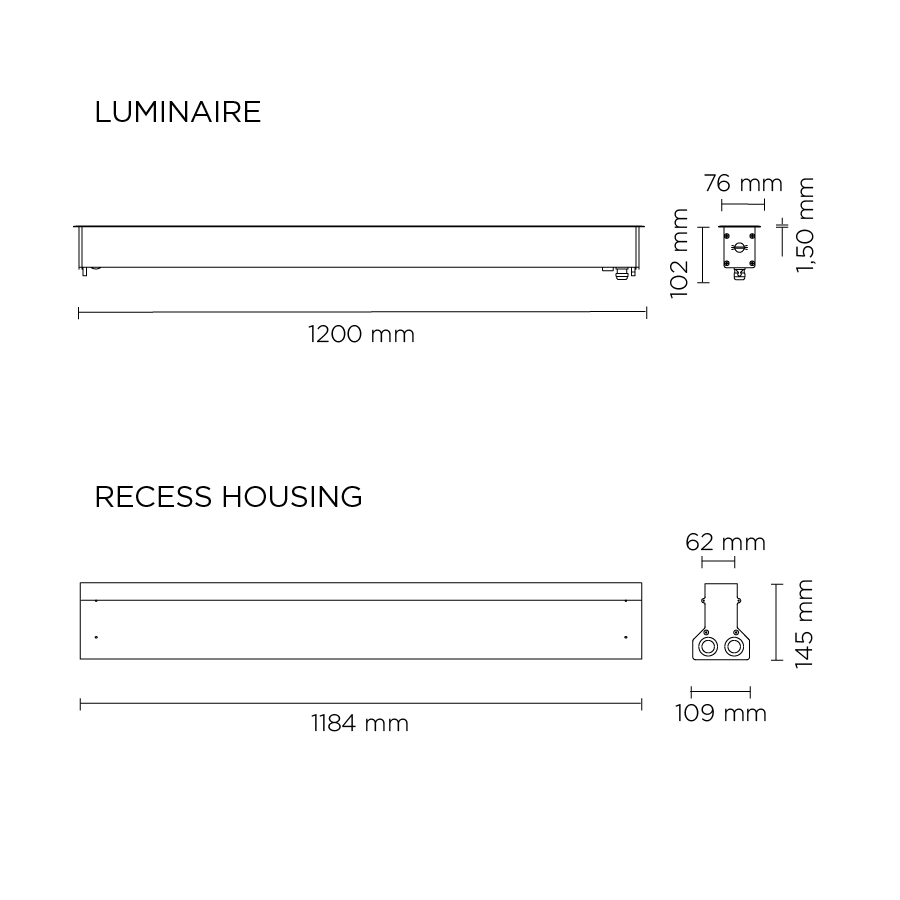

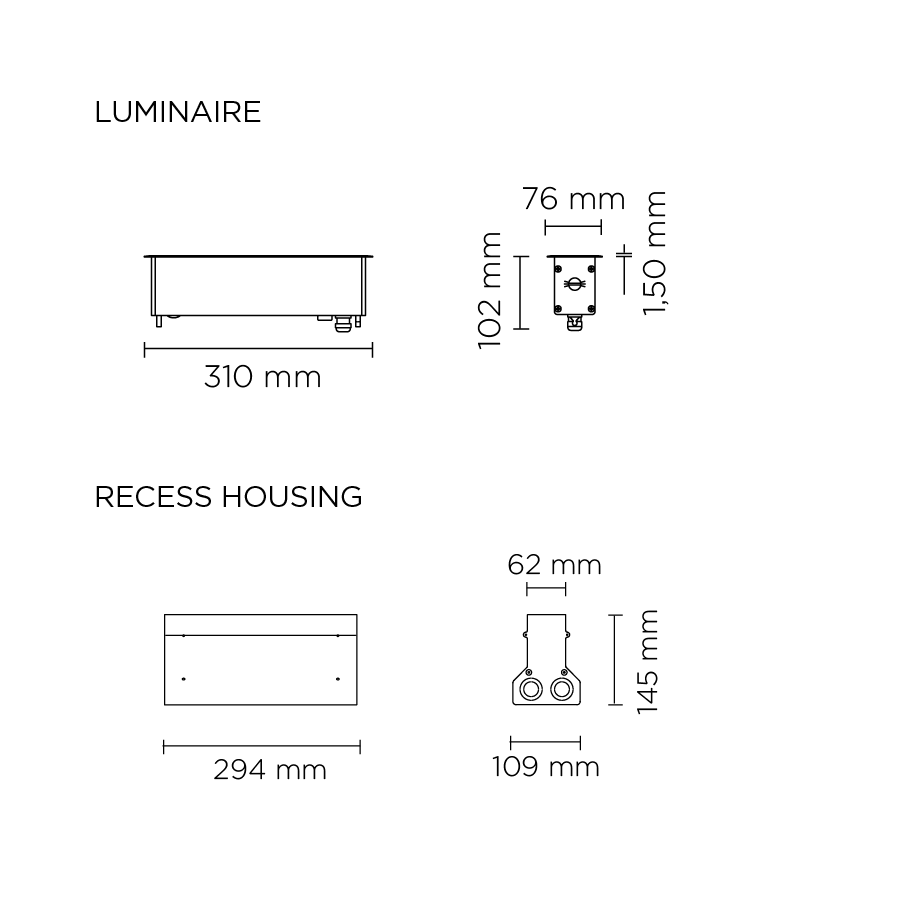

SIZE AND FINISHING
201104
201108
201112
201116
| LIGHT TECNOLOGY | high-power led |
| AVAILABLE COLOURS | Matt Black |
| LIGHT BEAM OPTIONS | DIFFUSED |
| LIGHT COLOURS | 2700°K warm-white | 3000°K warm-white | 4000°K neutral-white |
| IP RATING | IP67 |
| WARRANTY | 5 years |
