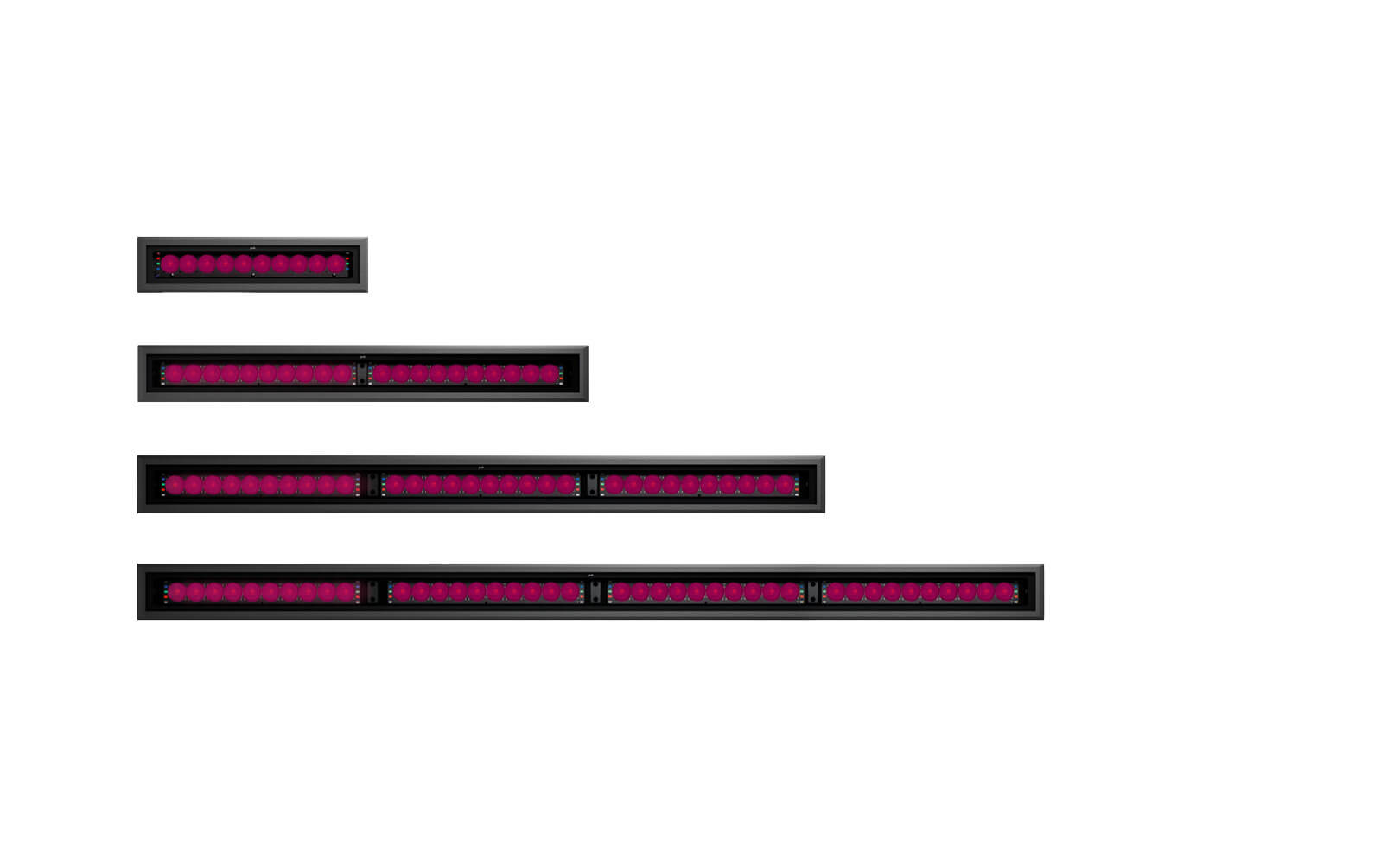

201102 201106 201110 201114 LINEAGROUND HP DMX RGBW
Linear shape ground-recessed luminaire for outdoor installation, four available lengths (310mm, 600mm, 900mm, 1200mm) made in phospho-chromatised, anodized and polyester powder coated extruded copper-free aluminium, with tempered safety glass, moulded silicone gaskets, extruded aluminum back box. Light source tilt system +/- 15deg from outside. Built-in LED driver 220-240V 50-60Hz (except for smaller length 310mm which requires remote constant voltage 24V DC power supply), DMX interface integrated, with RGBW(3000K) 3535 LED. IP67 rating.
201102 - LINEAGROUND 300
10 WATT
Nr. 12 RGBW 3535 LED
24V DC remote driver needed
IP67
IK10
3,00 Kg
201106 - LINEAGROUND 600
20 WATT
Nr. 24 RGBW 3535 LED
220/240V 50/60Hz built-in
IP67
IK10
5,50 Kg
201110 - LINEAGROUND 900
30 WATT
NR. 36 RGBW 3535 LED
220/240V 50/60Hz built-in
IP67
IK10
7,00 Kg
201114 - LINEAGROUND 1200
40 WATT
Nr. 48 RGBW 3535 LED
220/240V 50/60Hz built-in
IP67
IK10
9,50 Kg
· Material: high corrosion resistance extruded copper-free aluminum
· Coating: anodizing treatment + protective powder coating
· Screws: Stainless steel
· Gasket: Silicone rubber
· Glass: Tempered
· Power cable: 1 mt. neoprene power cable included
· DMX cable: DMX in & DMX out cables included

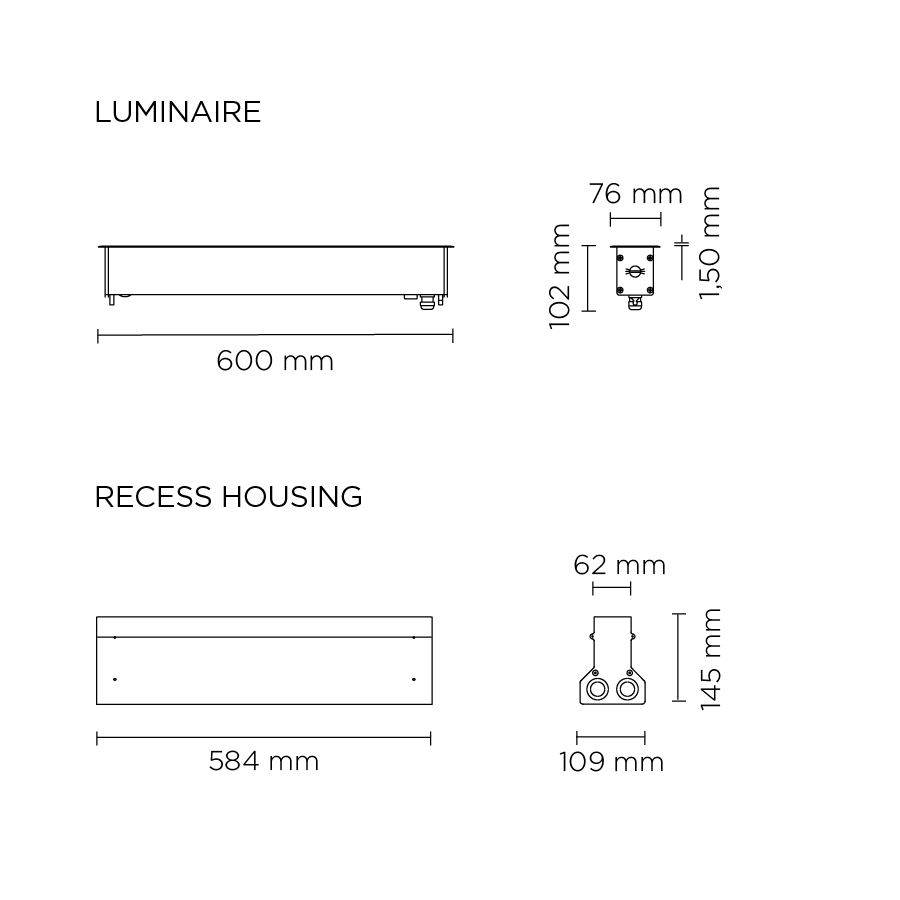

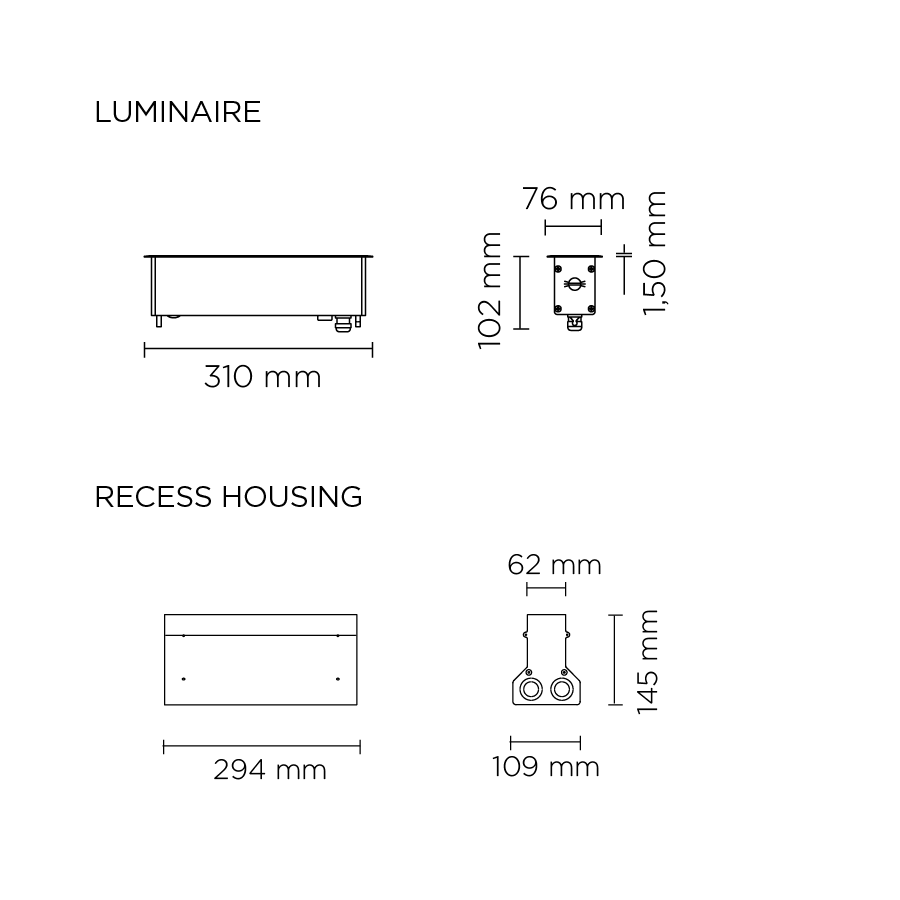

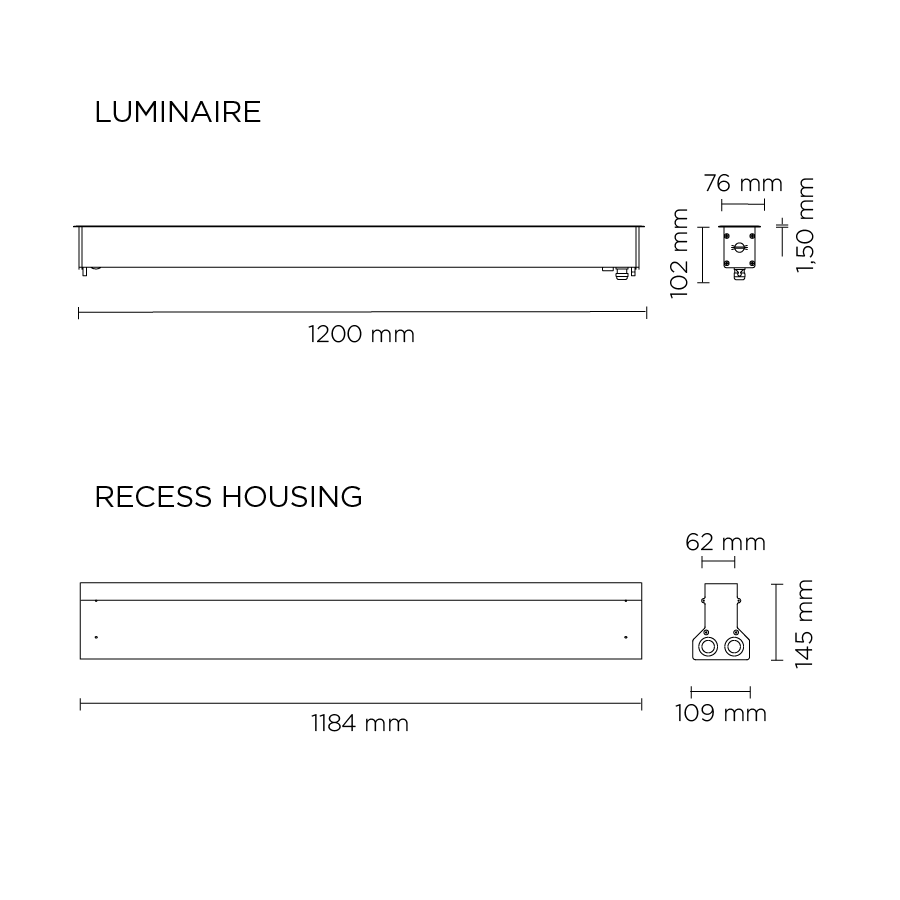

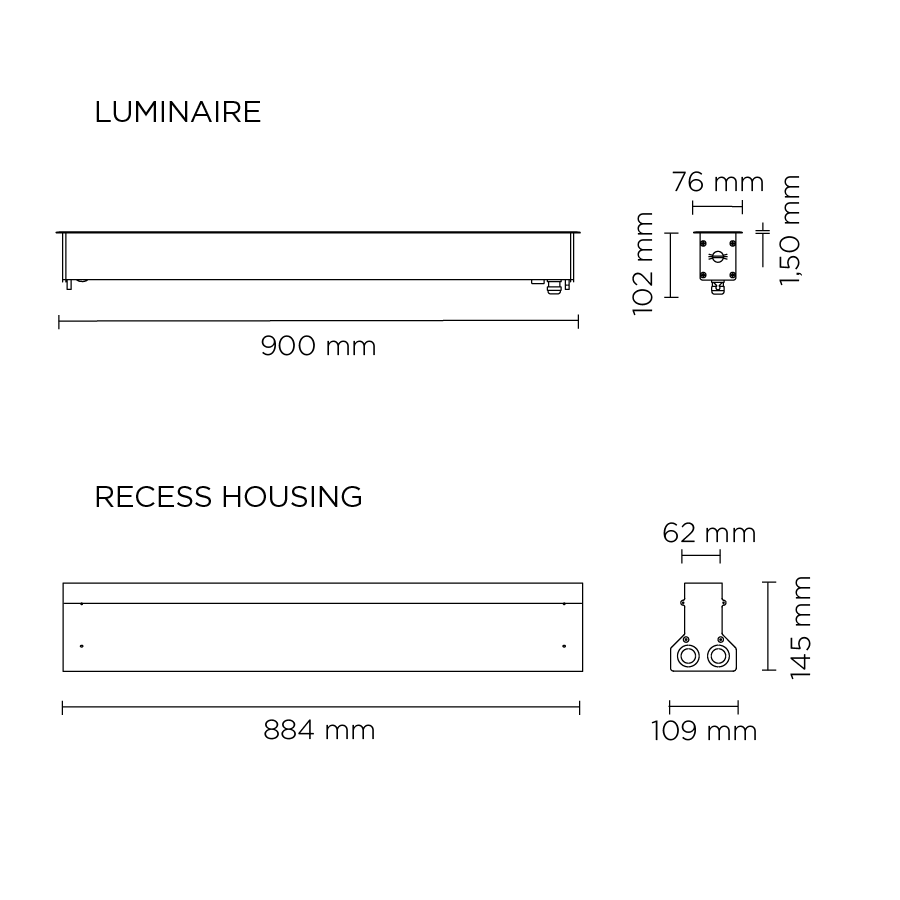

SIZE AND FINISHING
201102
201106
201110
201114
| LIGHT TECNOLOGY | high-power led |
| AVAILABLE COLOURS | Matt Black |
| LIGHT BEAM OPTIONS | narrow 15º | medium 30º | wide 60º | 10x60° ELLIPTICAL |
| LIGHT COLOURS | RGBW 3000K |
| IP RATING | IP67 |
| WARRANTY | 5 years |
