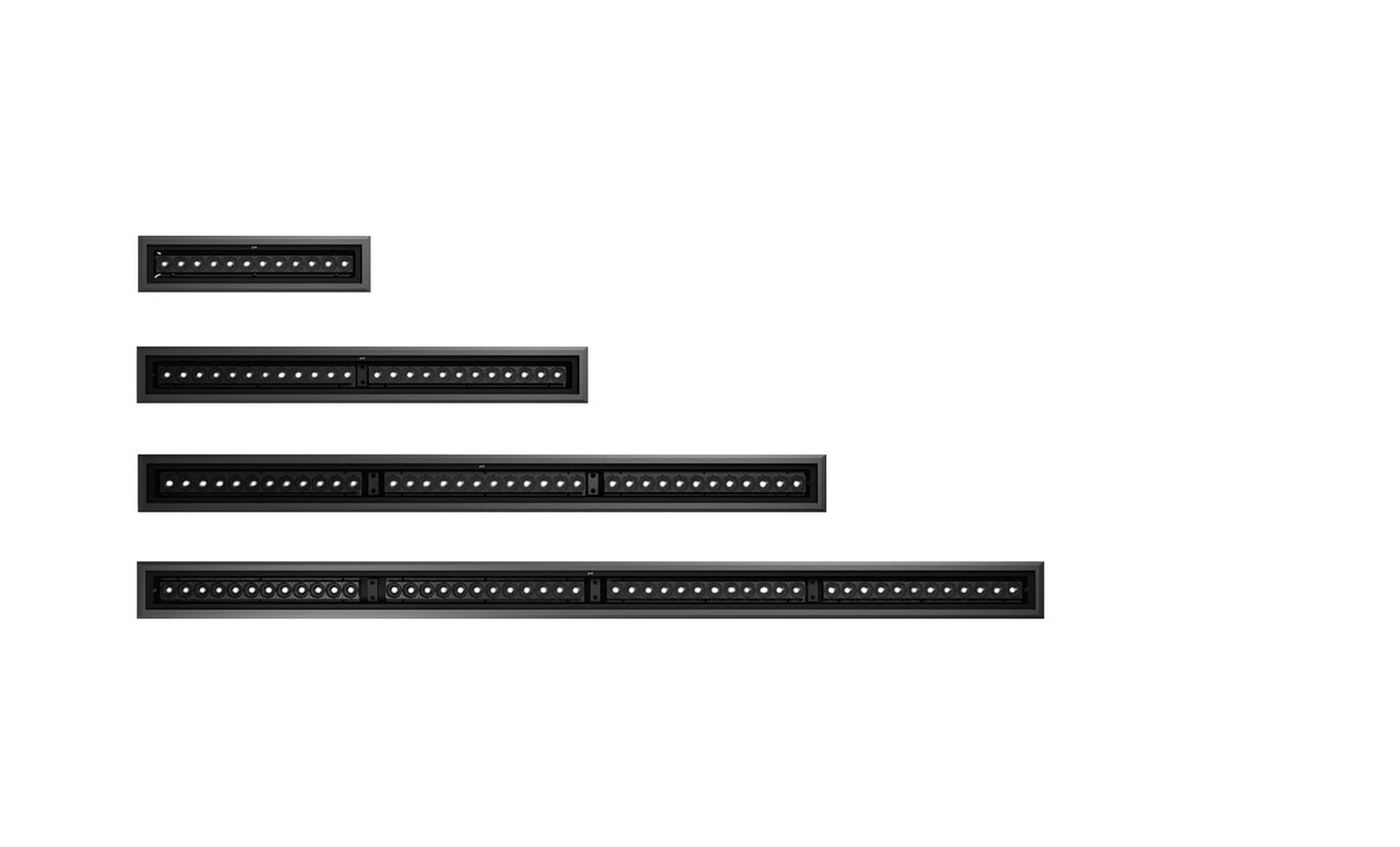

201101 201105 201109 201113 LINEAGROUND HP
Linear shape ground-recessed luminaire for outdoor installation, four available lengths (310mm, 600mm, 900mm, 1200mm) made in phospho-chromatised, anodized and polyester powder coated extruded copper-free aluminium, with tempered safety glass, moulded silicone gaskets, extruded aluminum back box. Light source tilt system +/- 15deg from outside. Built-in LED driver 220-240V 50-60Hz, with SAMSUNG 3030 LED. IP67 rating.
201101 - LINEAGROUND 300
12 WATT
Nr. 12 SAMSUNG 3030 LED
IP67
IK10
3,00 Kg
201105 - LINEAGROUND 600
24 WATT
Nr. 24 SAMSUNG 3030 LED
IP67
IK10
5,50 Kg
201109 - LINEAGROUND 900
36 WATT
Nr. 36 SAMSUNG 3030 LED
IP67
IK10
7,00 Kg
201113 - LINEAGROUND 1200
48 WATT
Nr. 48 SAMSUNG 3030 LED
IP67
IK10
9,50 Kg
· Material: high corrosion resistance extruded copper-free aluminum
· Coating: anodizing treatment + protective powder coating
· Screws: Stainless steel
· Power supply: 220/240V 50/60Hz built-in
· Gasket: Silicone rubber
· Glass: Tempered
· Cable gland: PG9 cable gland
· Power cable: 1 mt. neoprene power cable included, in & out cable for loop-in loop-out connection available on request
SIZE AND FINISHING

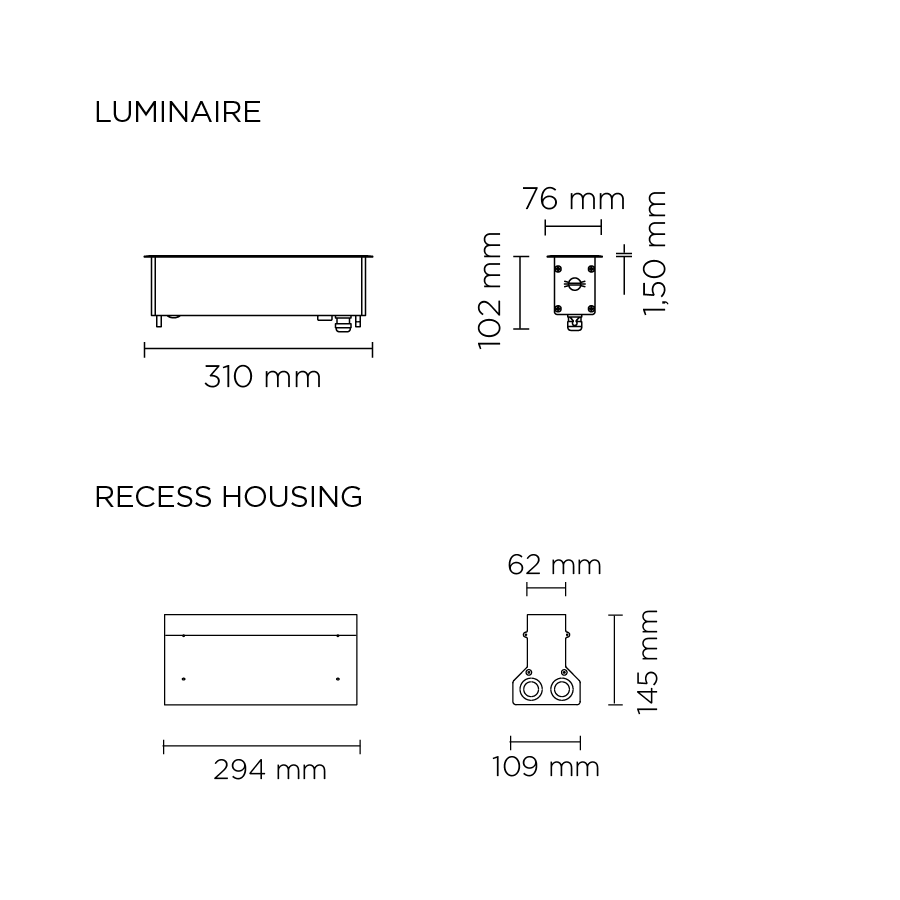

201101

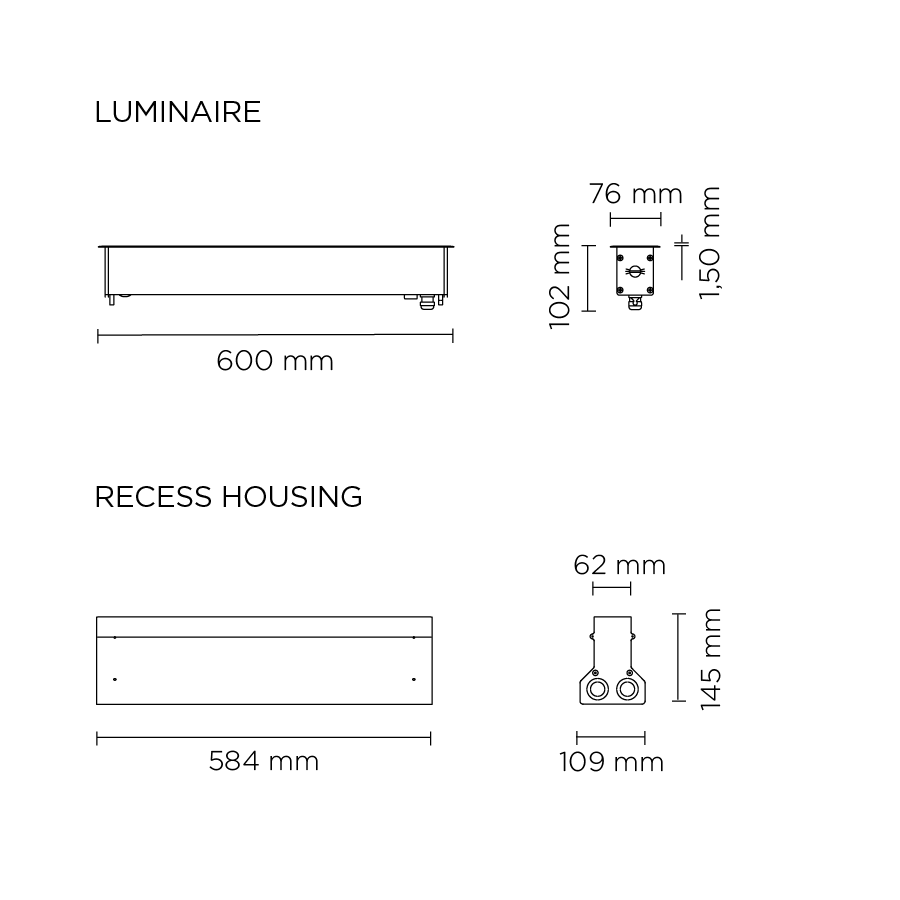

201105

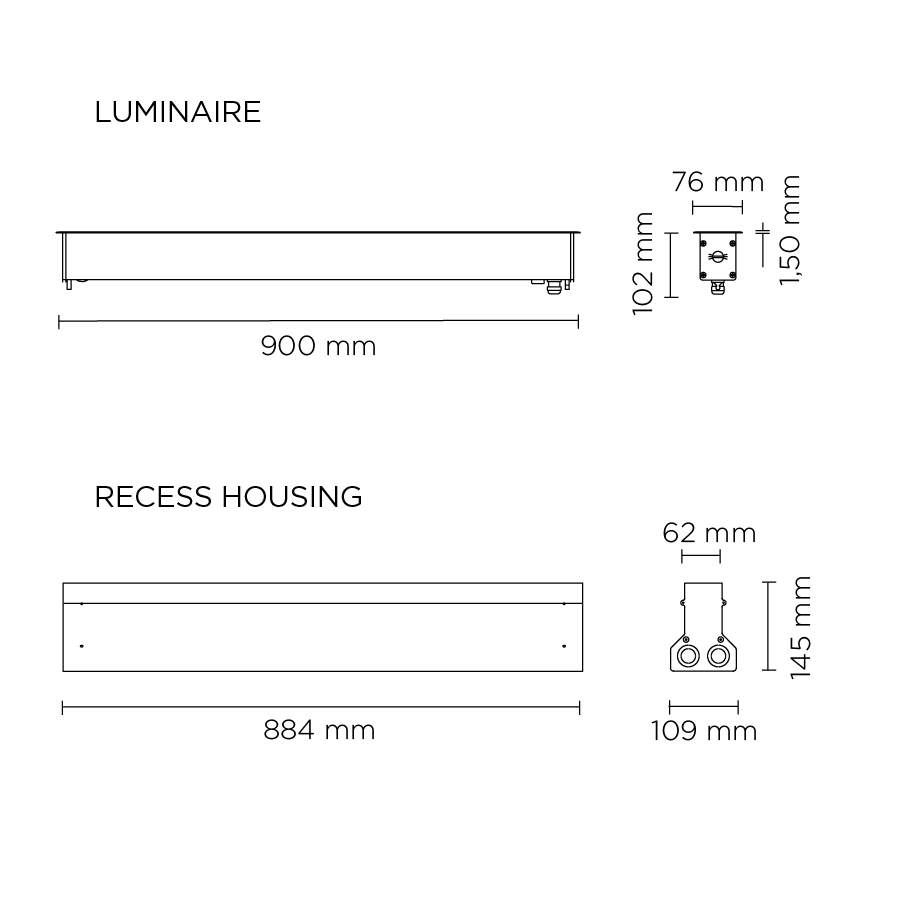

201109

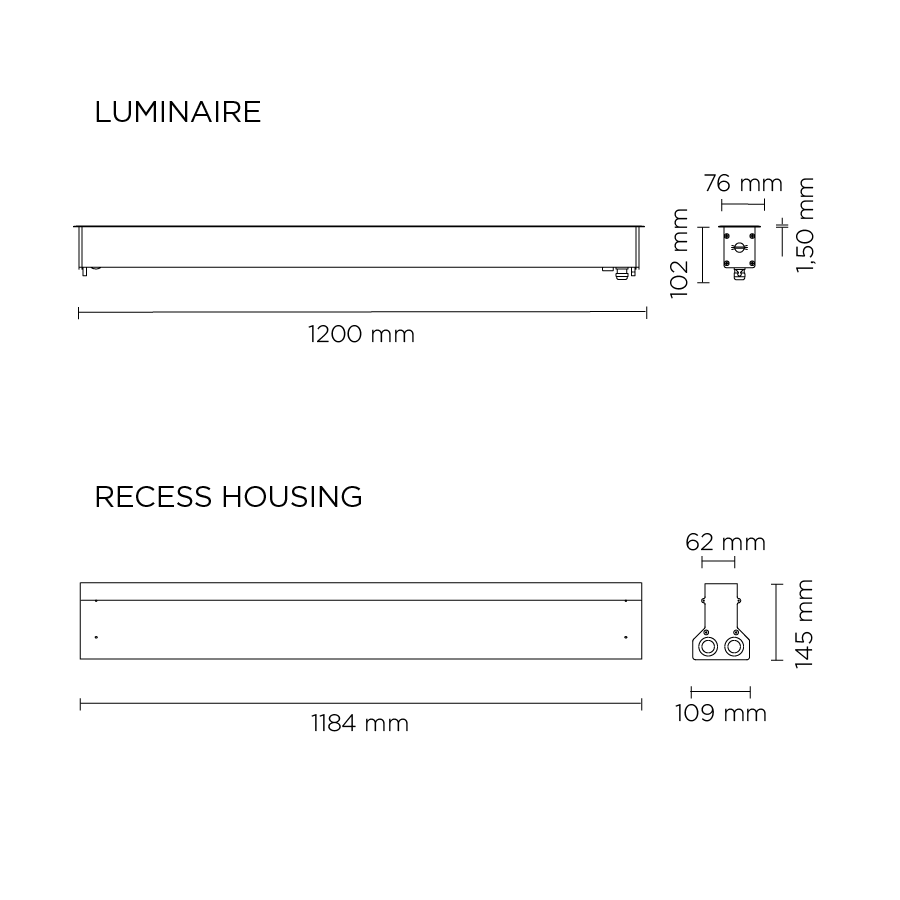

201113
| LIGHT TECNOLOGY | high-power led |
| AVAILABLE COLOURS | Matt Black |
| LIGHT BEAM OPTIONS | narrow 15º | medium 35º | wide 55º | Asymmetric Wall-Washer |
| LIGHT COLOURS | 2700°K warm-white | 3000°K warm-white | 4000°K neutral-white |
| IP RATING | IP67 |
| WARRANTY | 5 years |
