701501 701505 701509 701513 LINEACEILING HP

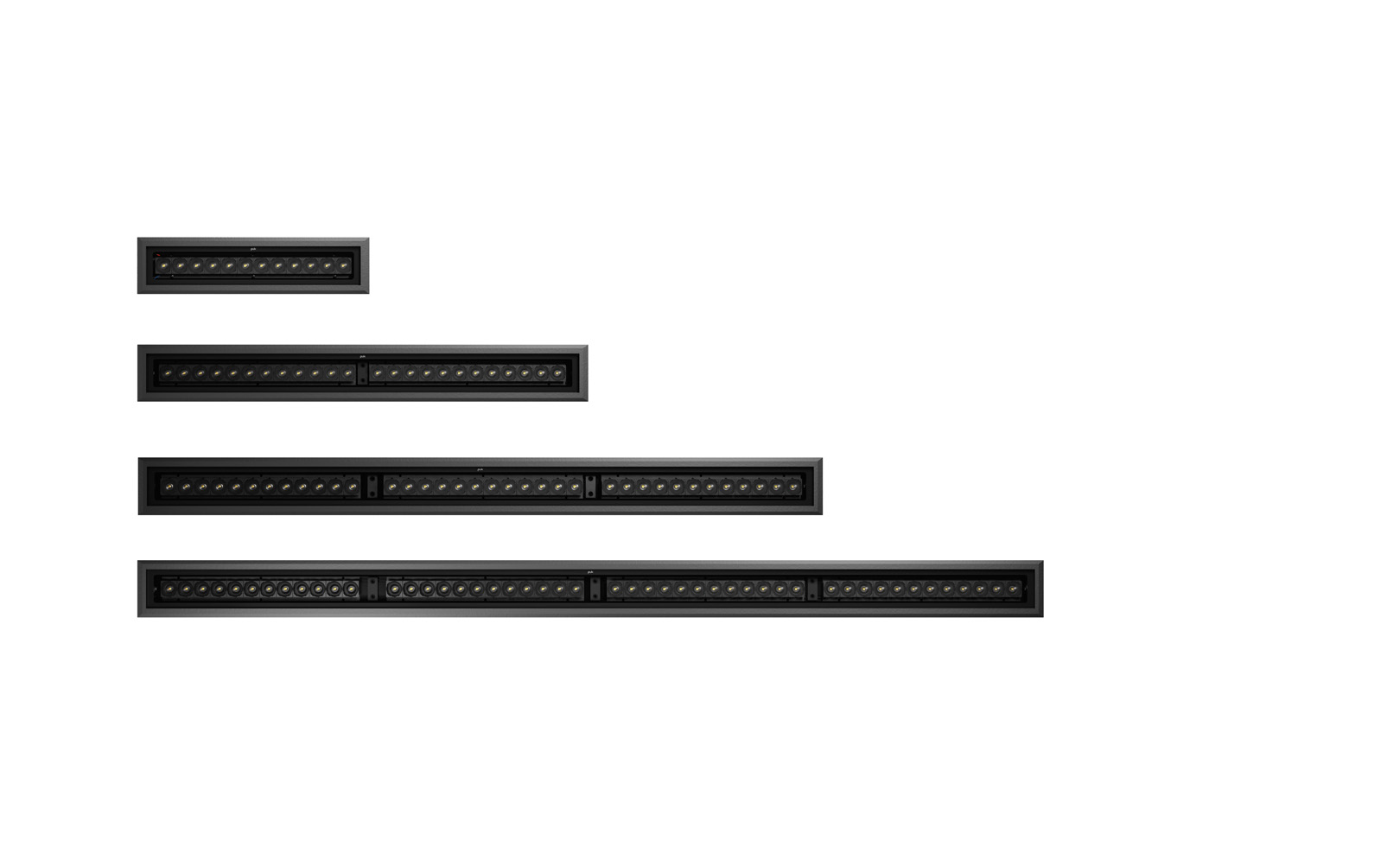

Linear shape ceiling-recessed luminaire for outdoor installation, four available lengths (310mm, 600mm, 900mm, 1200mm) made in phospho-chromatised, anodized and polyester powder coated extruded copper-free aluminium, with tempered safety glass, moulded silicone gaskets, stainless steel springs. Light source tilt system +/- 15deg from outside. Built-in LED driver 220-240V 50-60Hz, with SAMSUNG 3030 LED. IP67 rating.

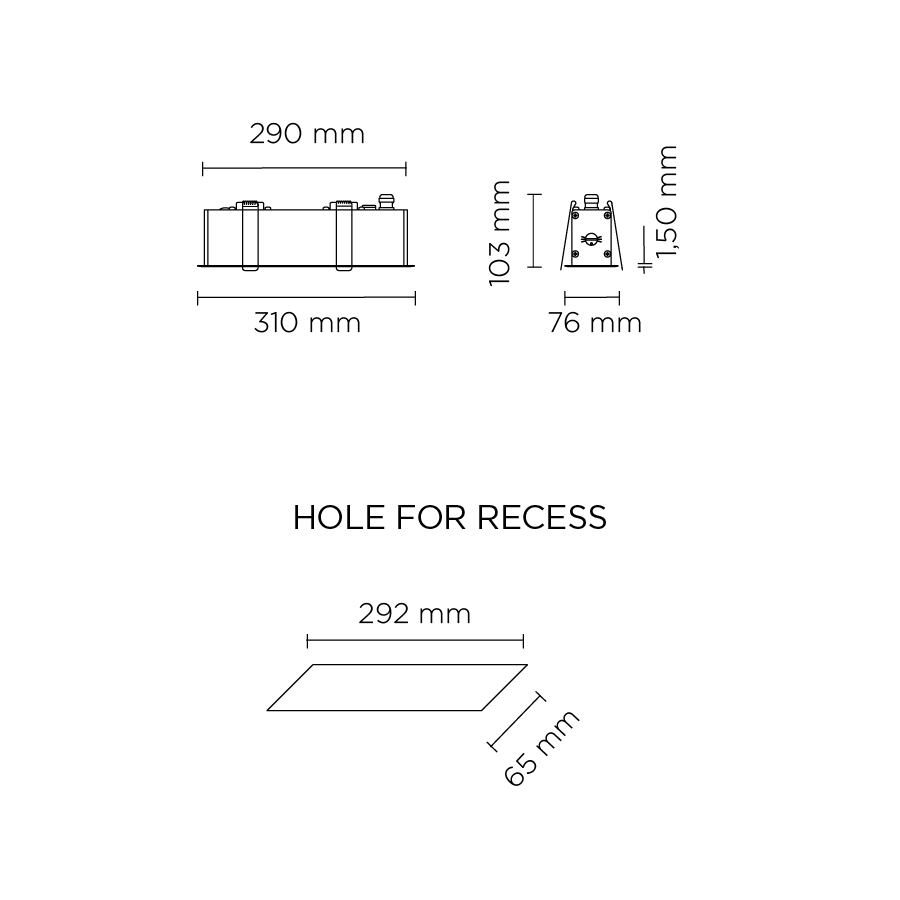

701501 - LINEACEILING 300
12 WATT
Nr. 12 SAMSUNG 3030 LED
IP67
IK10
1,70 Kg

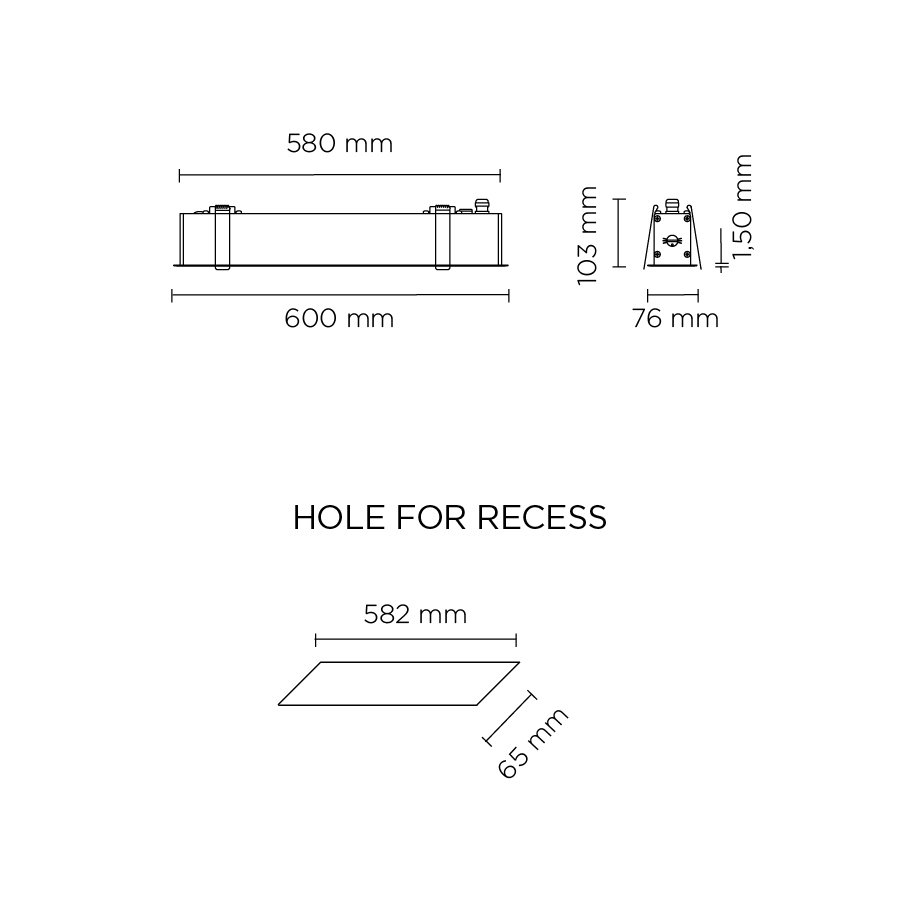

701505 - LINEACEILING 600
24 WATT
Nr. 24 SAMSUNG 3030 LED
IP67
IK10
3,00 Kg

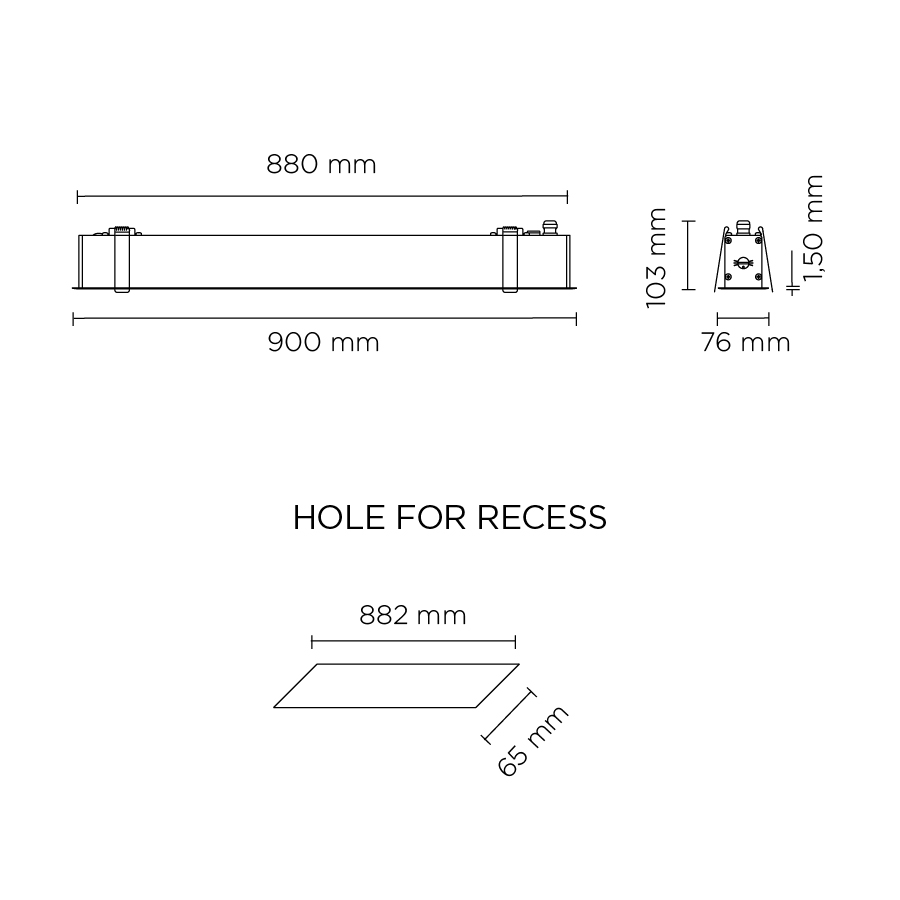

701509 - LINEACEILING 900
36 WATT
Nr. 36 SAMSUNG 3030 LED
IP67
IK10
4,50 Kg

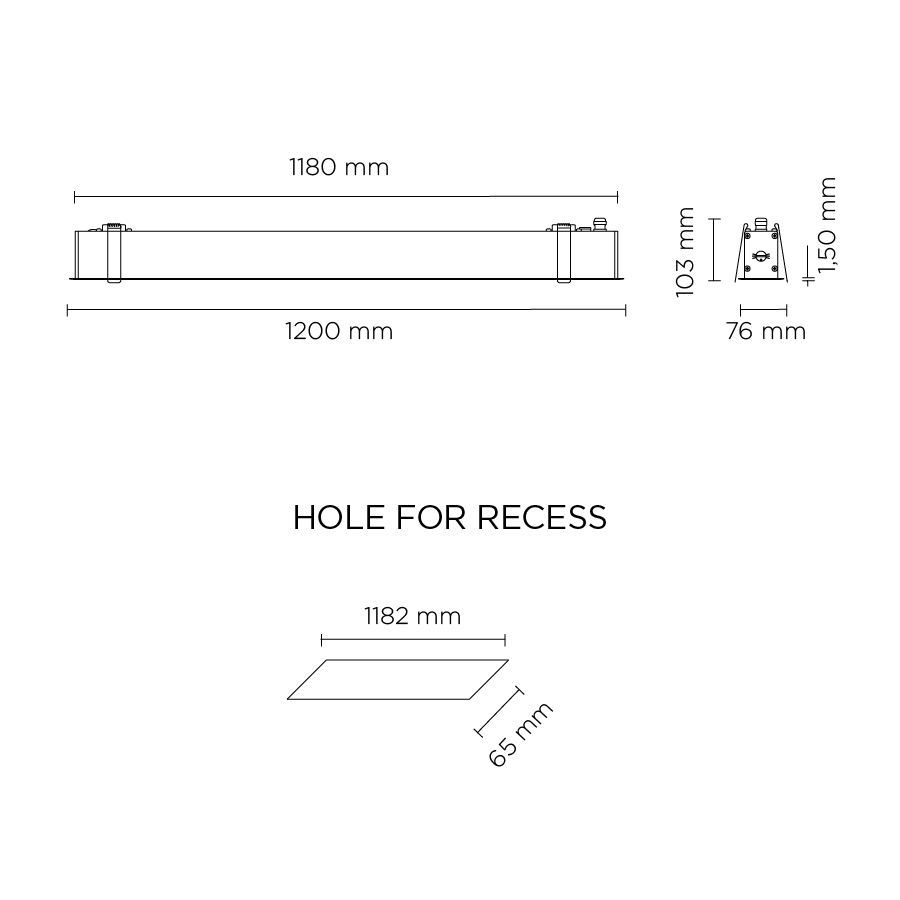

701513 - LINEACEILING 1200
48 WATT
Nr. 48 SAMSUNG 3030 LED
IP67
IK10
6,00 Kg
· Material: high corrosion resistance extruded copper-free aluminum
· Coating: anodizing treatment + protective powder coating
· Screws: Stainless steel
· Power supply: 220/240V 50/60Hz built-in
· Gasket: Silicone rubber
· Glass: Tempered
· Cable gland: PG9
· Power cable: 1 mt. neoprene power cable included, in & out cable for loop-in loop-out connection available on request
SIZE AND FINISHING
701501
701505
701509
701513
| LIGHT TECNOLOGY | high-power led |
| AVAILABLE COLOURS | Matt Black |
| LIGHT BEAM OPTIONS | narrow 15º | medium 35º | wide 55º | Asymmetric Wall-Washer |
| LIGHT COLOURS | 2.700ºk warm-white | 3.000ºk warm-white | 4.000ºk neutral-white |
| IP RATING | IP67 |
| WARRANTY | 5 years |
