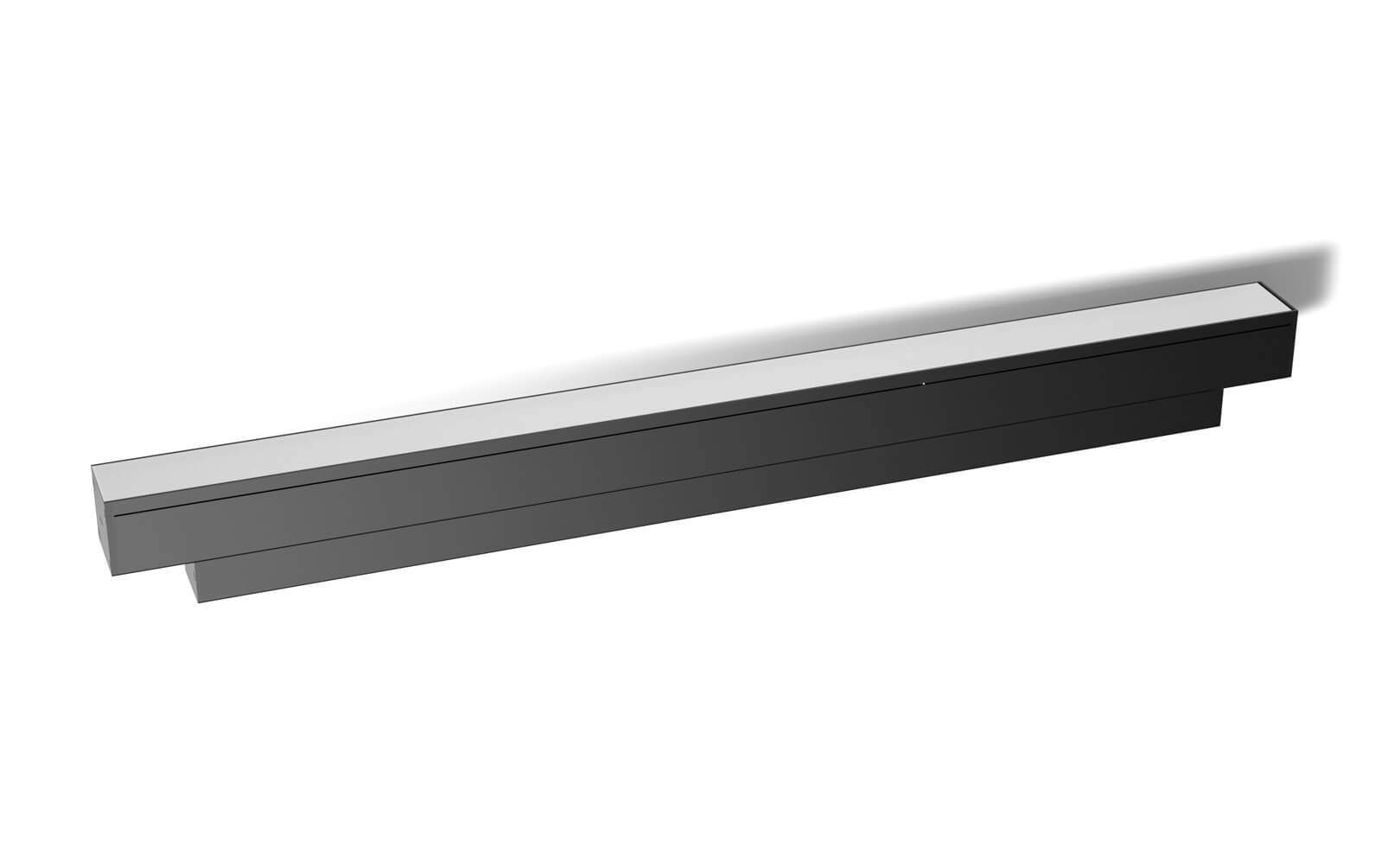

403304 403308 403312 403316 LINEAFACADE DIFFUSED
Linear shape luminaire for outdoor installation, surface mounted on a façade/wall with brackets, four available lengths (290mm, 580mm, 880mm, 1180mm) made in phospho-chromatised and polyester powder coated extruded copper-free aluminium, with tempered safety glass, moulded silicone gaskets. Built-in LED driver 220-240V 50-60Hz, with SAMSUNG 3030 LED. IP67 rating.

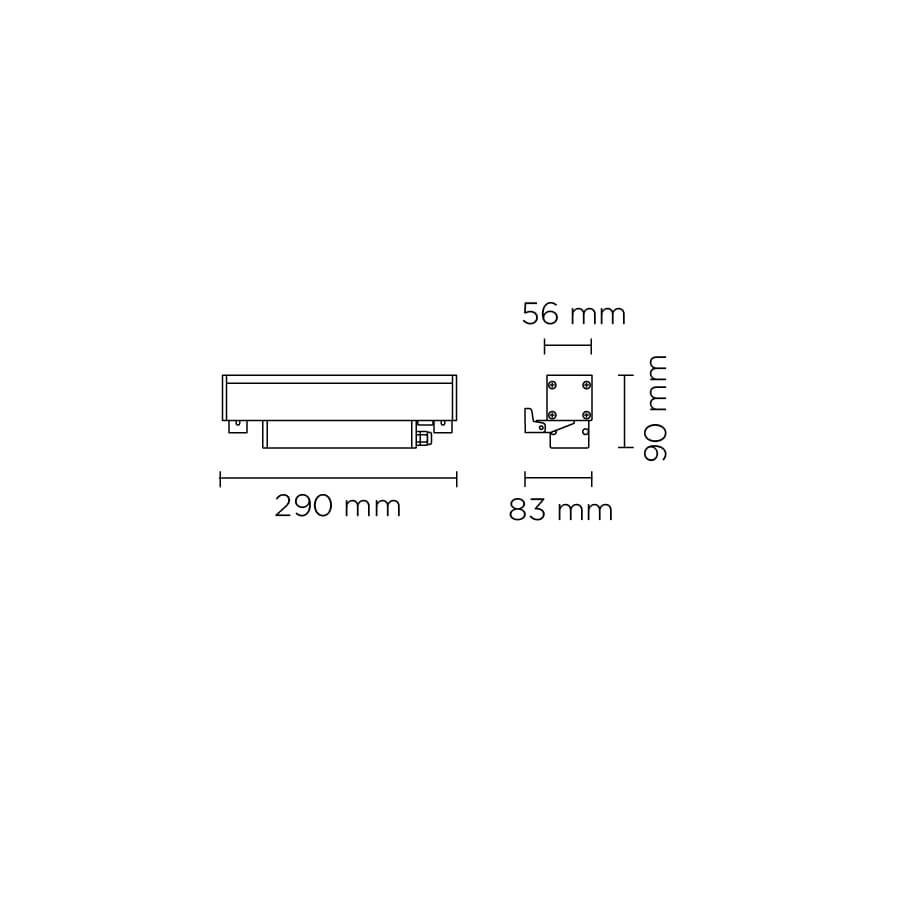

403304 - LINEAFACADE 300
8 WATT
Nr. 12 SAMSUNG 3030 LED
IP67
IK08
1,70 Kg

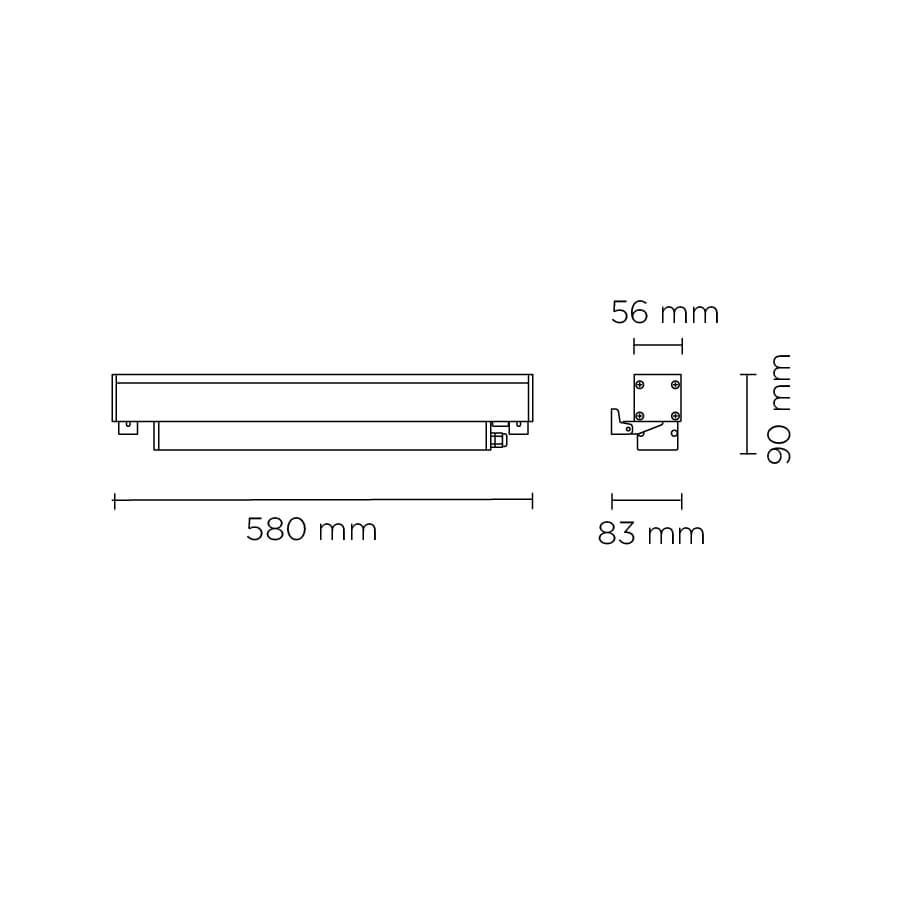

403308 - LINEAFACADE 600
12 WATT
Nr. 24 SAMSUNG 3030 LED
IP67
IK08
3,00 Kg

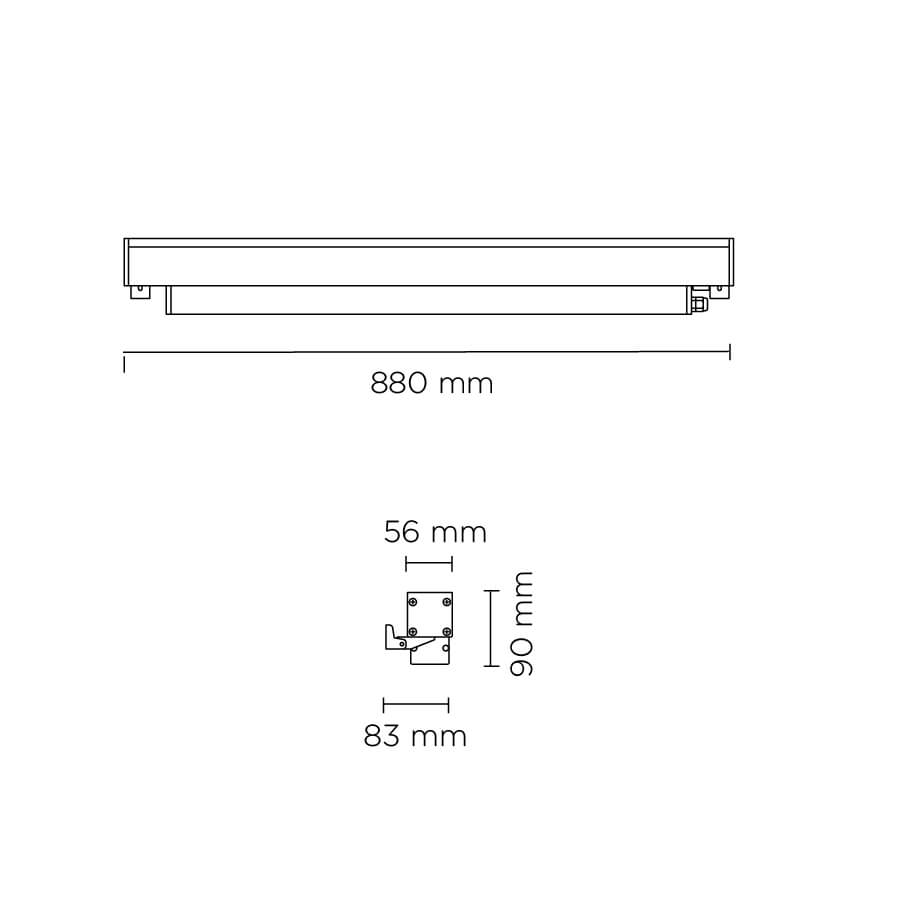

403312 - LINEAFACADE 900
17 WATT
Nr. 36 SAMSUNG 3030 LED
IP67
IK08
4,50 Kg

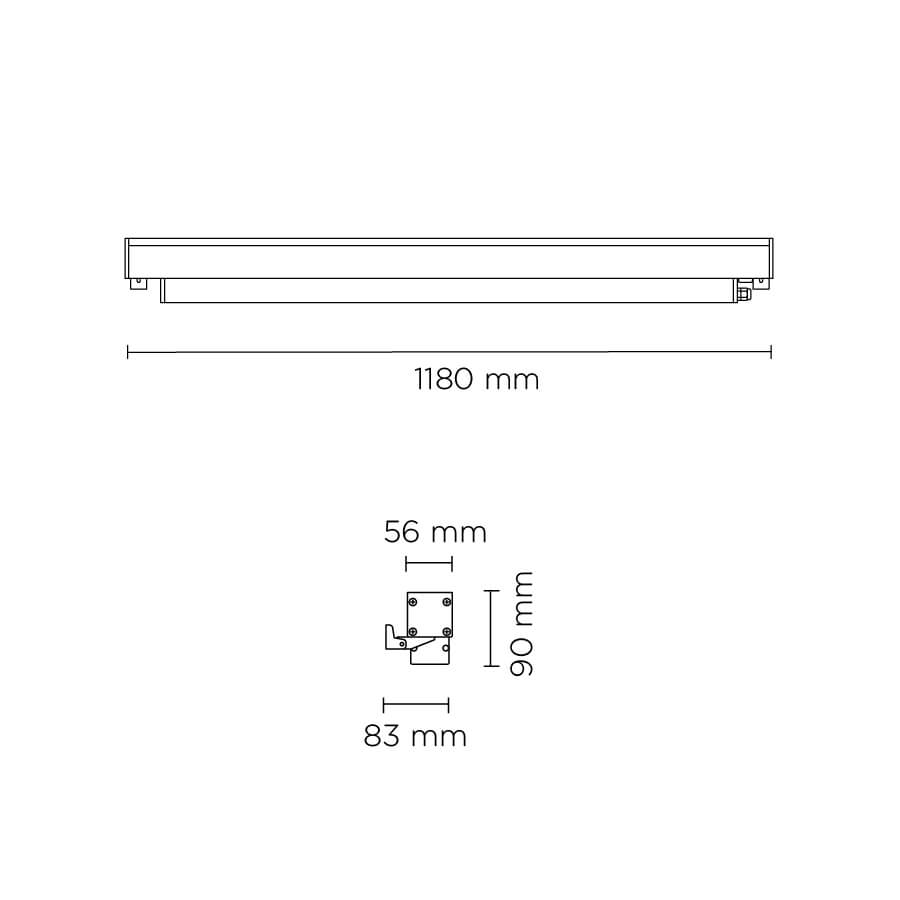

403316 - LINEAFACADE 1200
24 WATT
Nr. 48 SAMSUNG 3030 LED
IP67
IK08
6,00 Kg
· Material: high corrosion resistance extruded copper-free aluminum
· Coating: anodizing treatment + protective powder coating
· Screws: Stainless steel
· Power supply: Electrical power supply 220/240V 50/60Hz built-in
· Gasket: Silicone rubber
· Glass: Tempered
· Cable gland: PG9 cable gland
· Power cable: 1 mt. neoprene power cable included, in & out cable for loop-in loop-out connection available on request

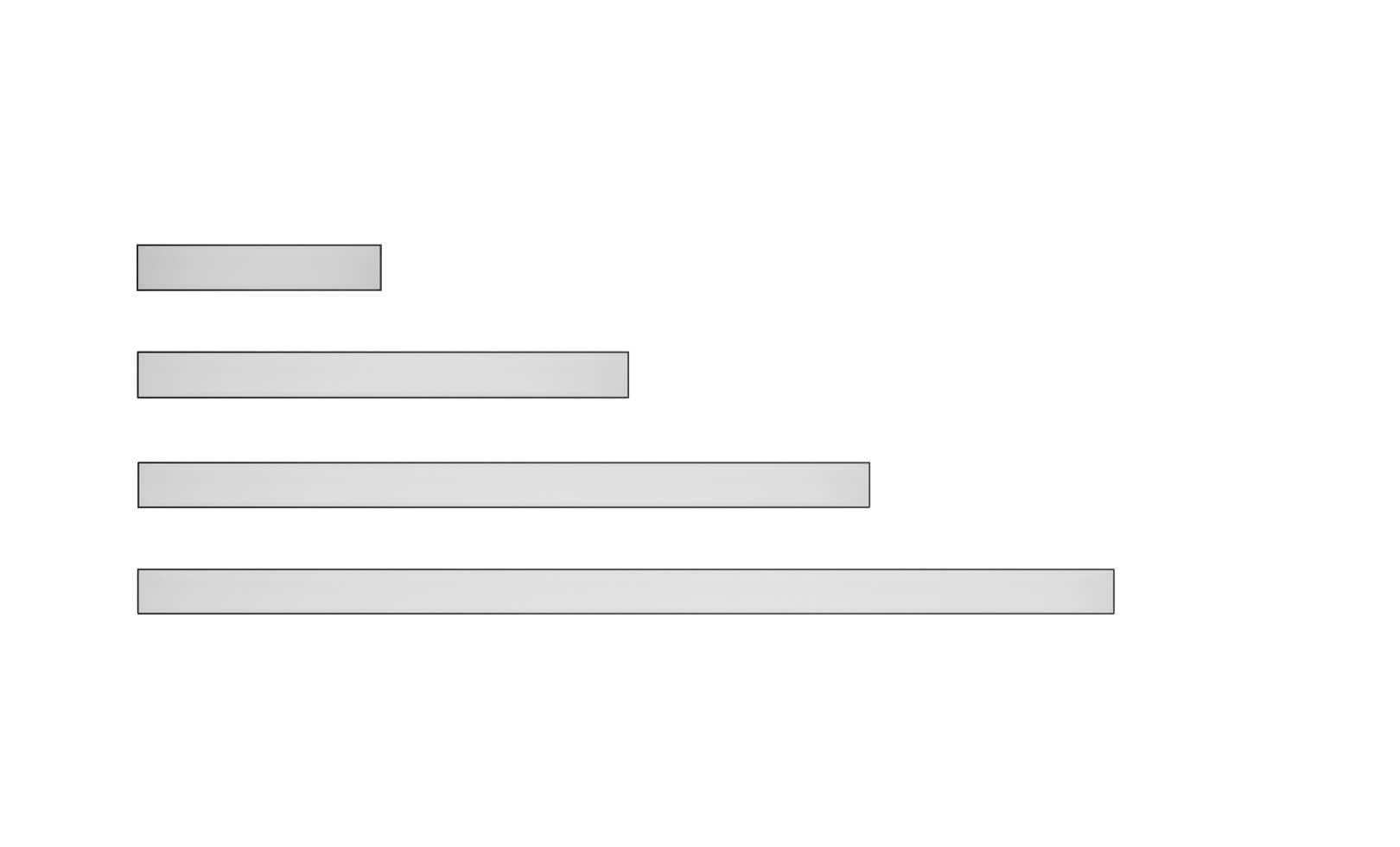

SIZE AND FINISHING
403304
403308
403312
403316
| LIGHT TECNOLOGY | high-power led |
| AVAILABLE COLOURS | Textured Grey RAL 9006 | Anthracite Grey RAL 7016 | Matt Black (on request) |
| LIGHT BEAM OPTIONS | DIFFUSED |
| LIGHT COLOURS | 2700°K warm-white | 3000°K warm-white | 4000°K neutral-white |
| IP RATING | IP67 |
| WARRANTY | 5 years |
