403301 403305 403309 403313 LINEAFACADE HP

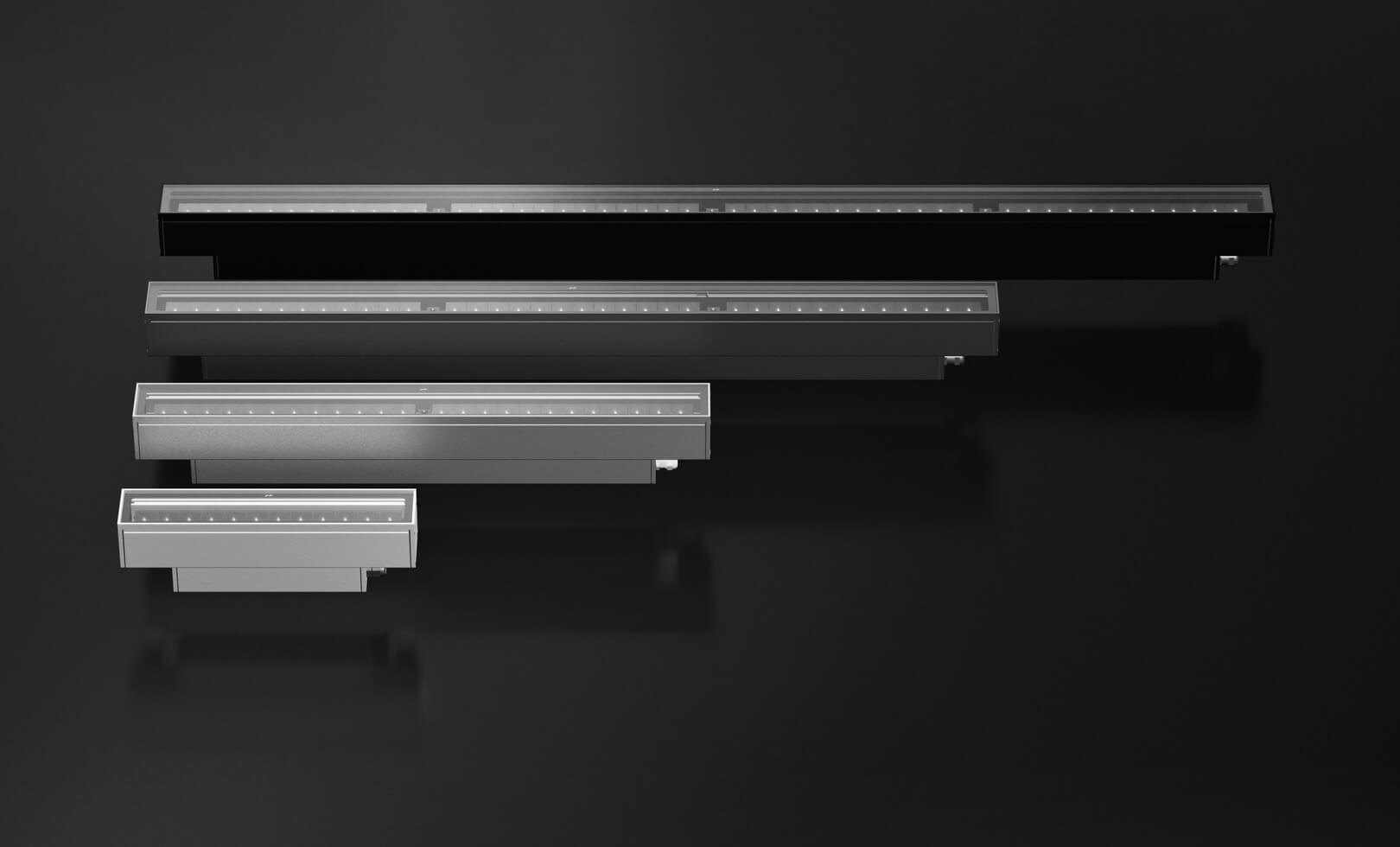

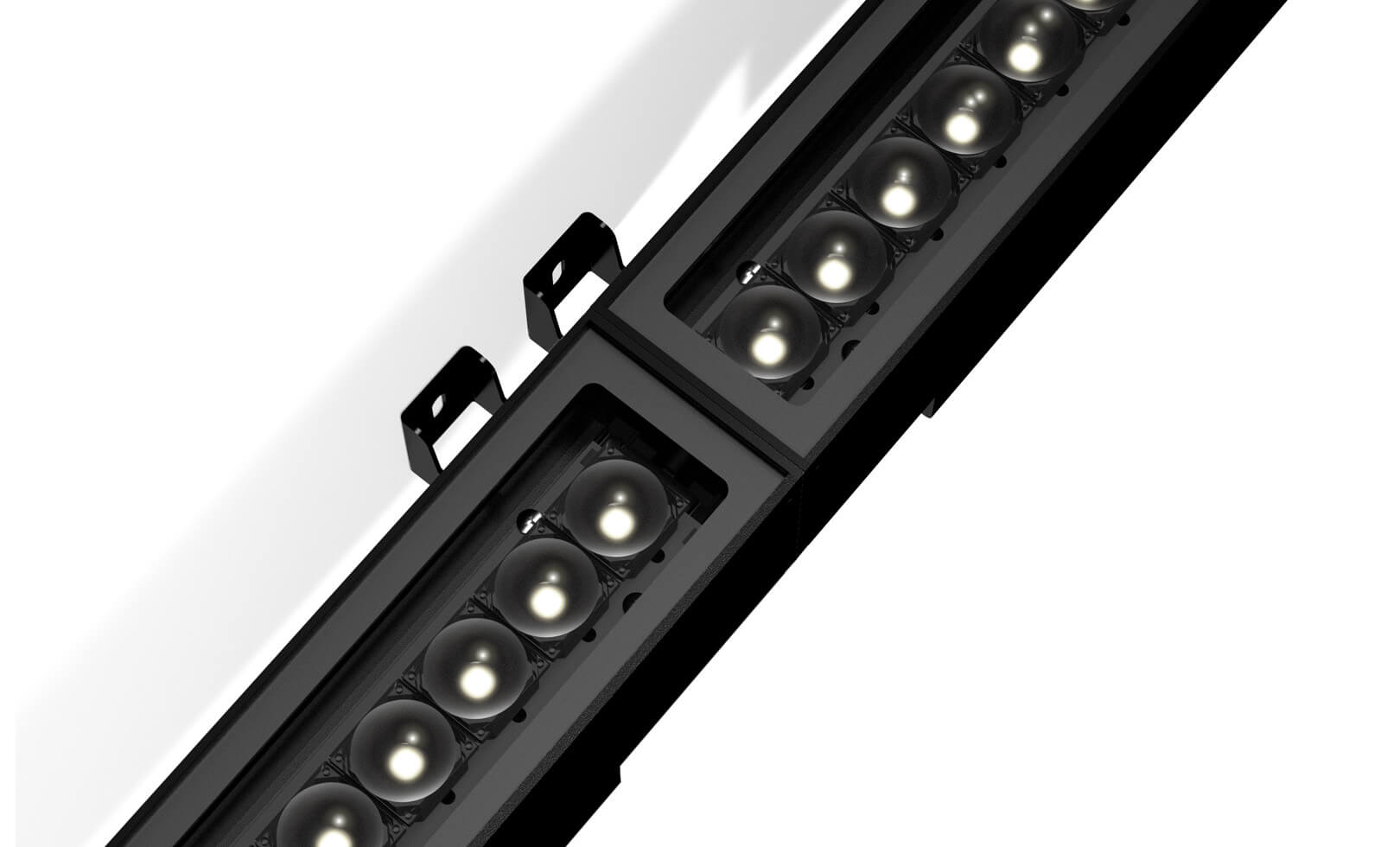

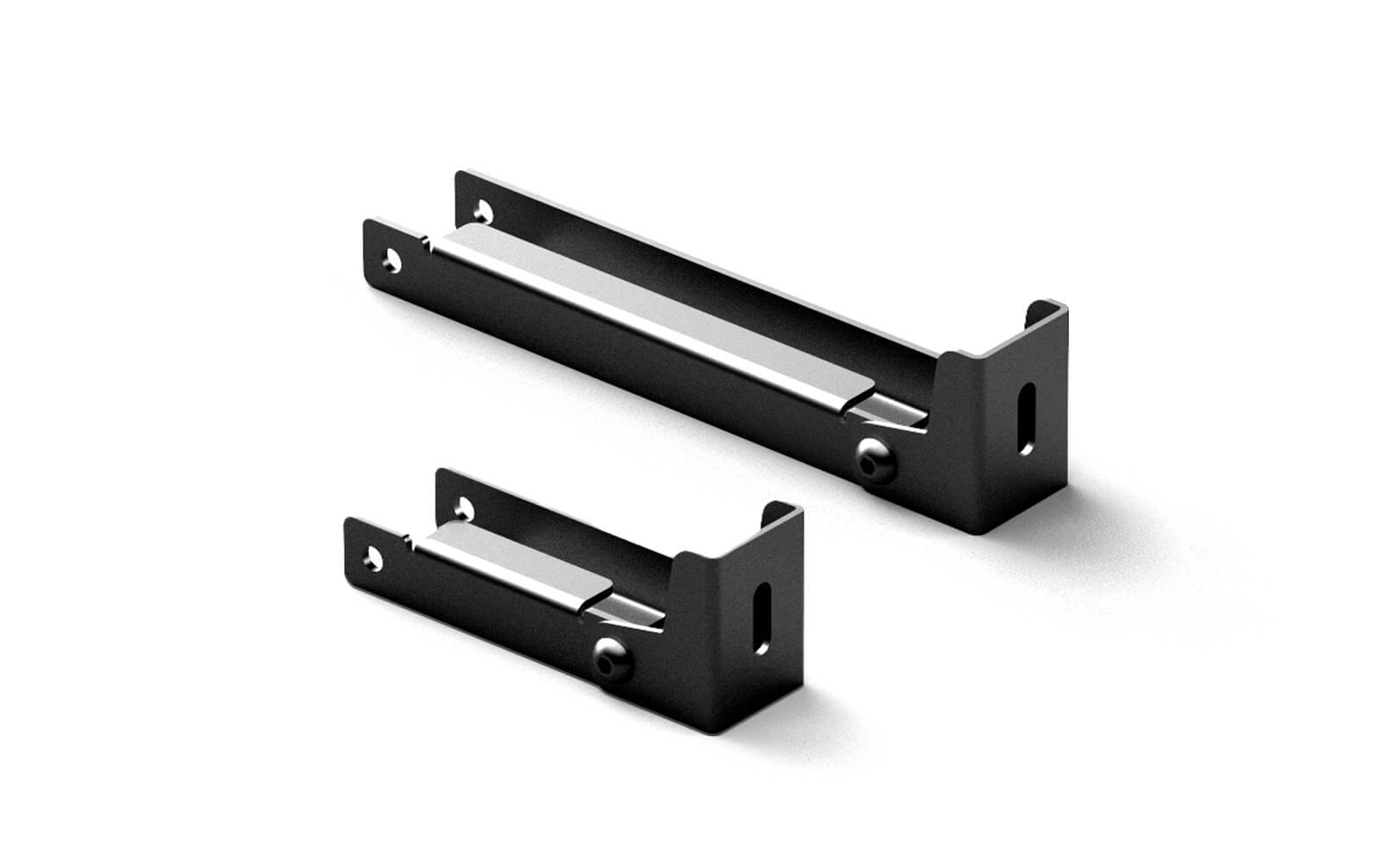

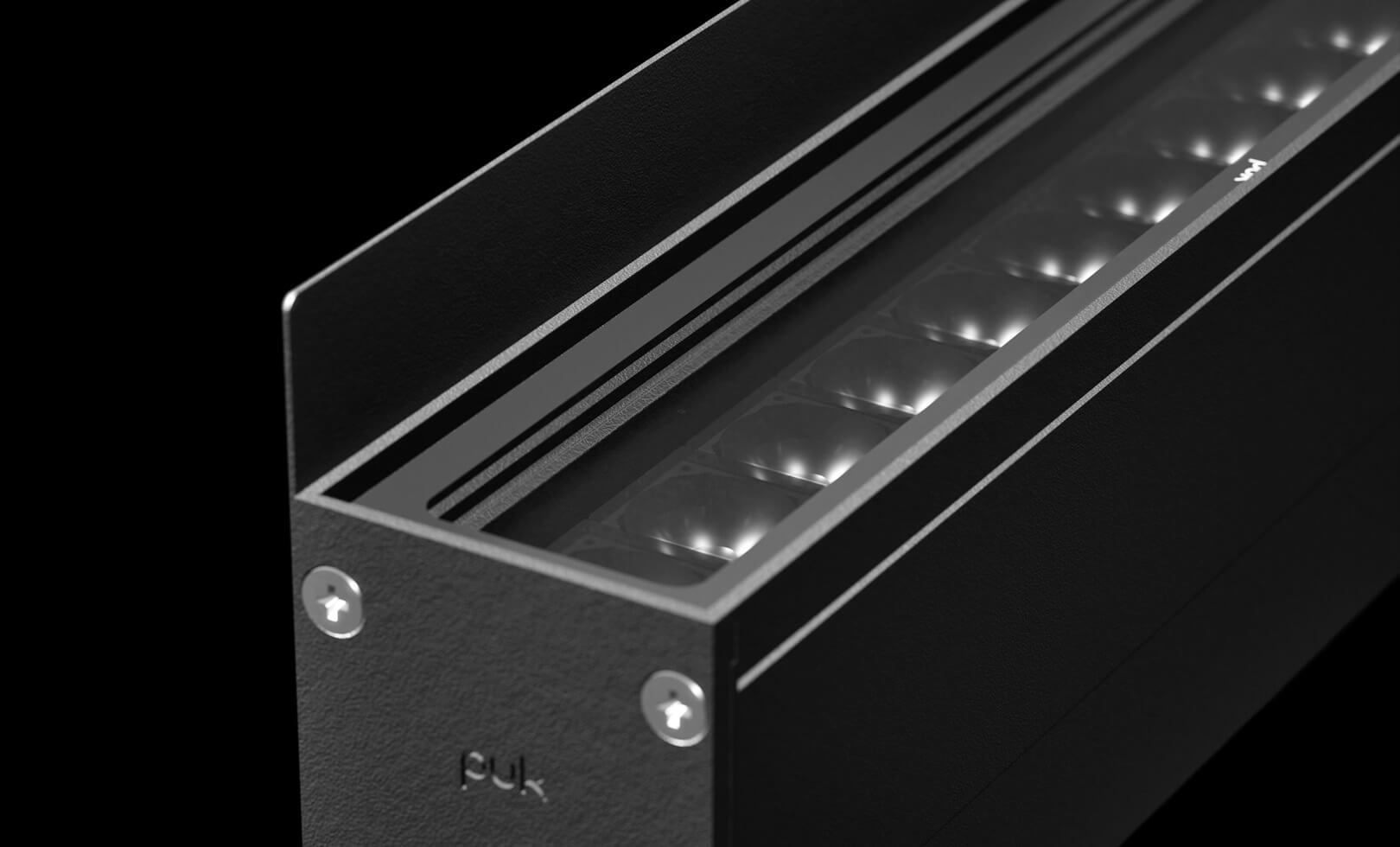

Linear shape luminaire for outdoor installation, surface mounted on a façade/wall with brackets, four available lengths (290mm, 580mm, 880mm, 1180mm) made in phospho-chromatised and polyester powder coated extruded copper-free aluminium, with tempered safety glass, moulded silicone gaskets. Built-in LED driver 220-240V 50-60Hz, with SAMSUNG 3030 LED. IP67 rating.
403301 - LINEAFACADE 300
12 WATT
Nr. 12 SAMSUNG 3030 LED
IP67
IK08
1,70 Kg
403305 - LINEAFACADE 600
24 WATT
Nr. 24 SAMSUNG 3030 LED
IP67
IK08
3,00 Kg
403309 - LINEAFACADE 900
36 WATT
Nr. 36 SAMSUNG 3030 LED
IP67
IK08
4,50 Kg
403313 - LINEAFACADE 1200
48 WATT
Nr. 48 SAMSUNG 3030 LED
IP67
IK08
6,00 Kg
· Material: high corrosion resistance extruded copper-free aluminum
· Coating: anodizing treatment + protective powder coating
· Screws: Stainless steel
· Power supply: 220/240V 50/60Hz built-in
· Gasket: Silicone rubber
· Glass: Tempered
· Cable gland: PG9 cable gland
· Power cable: 1 mt. neoprene power cable included, in & out cable for loop-in loop-out connection available on request

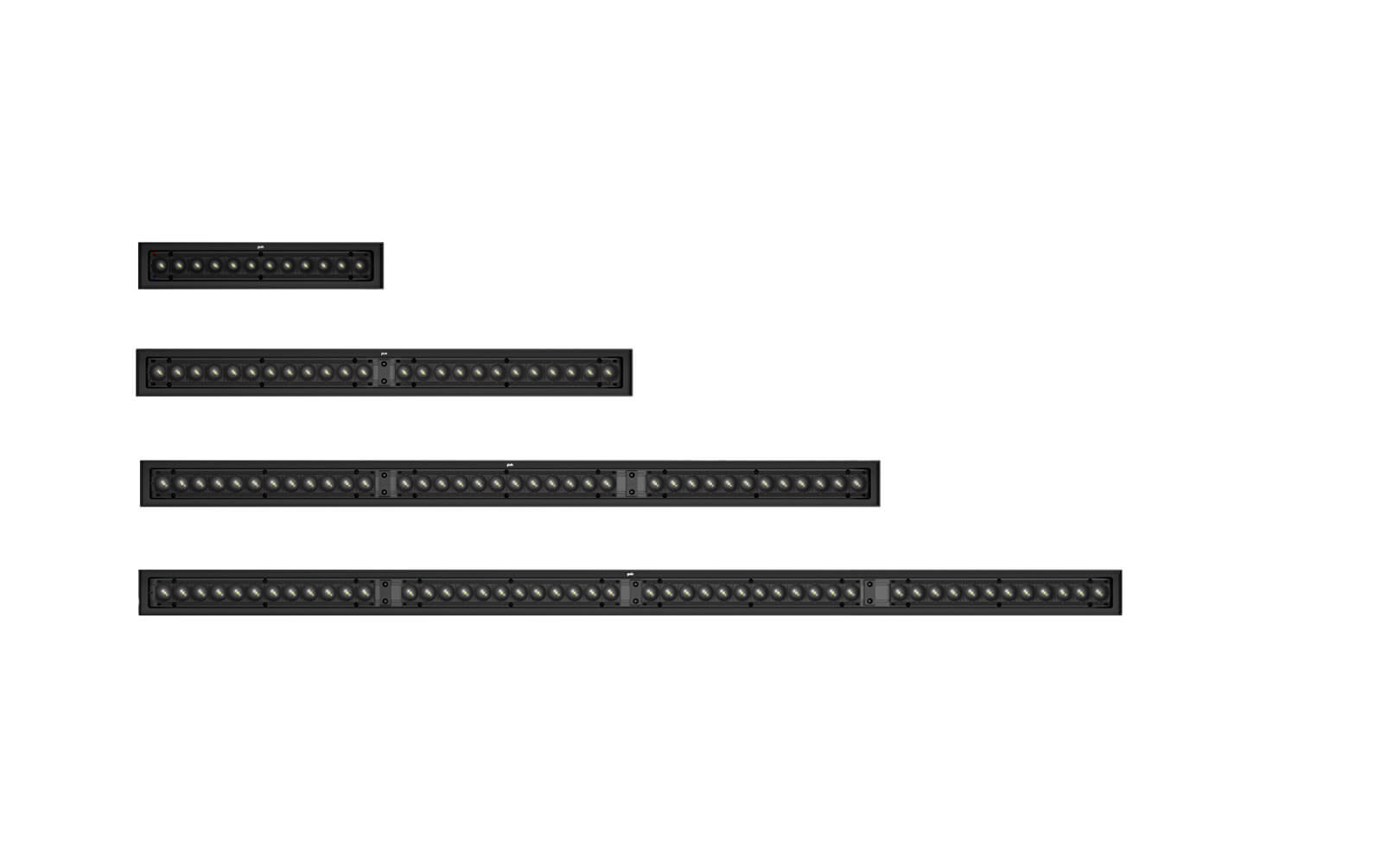

SIZE AND FINISHING

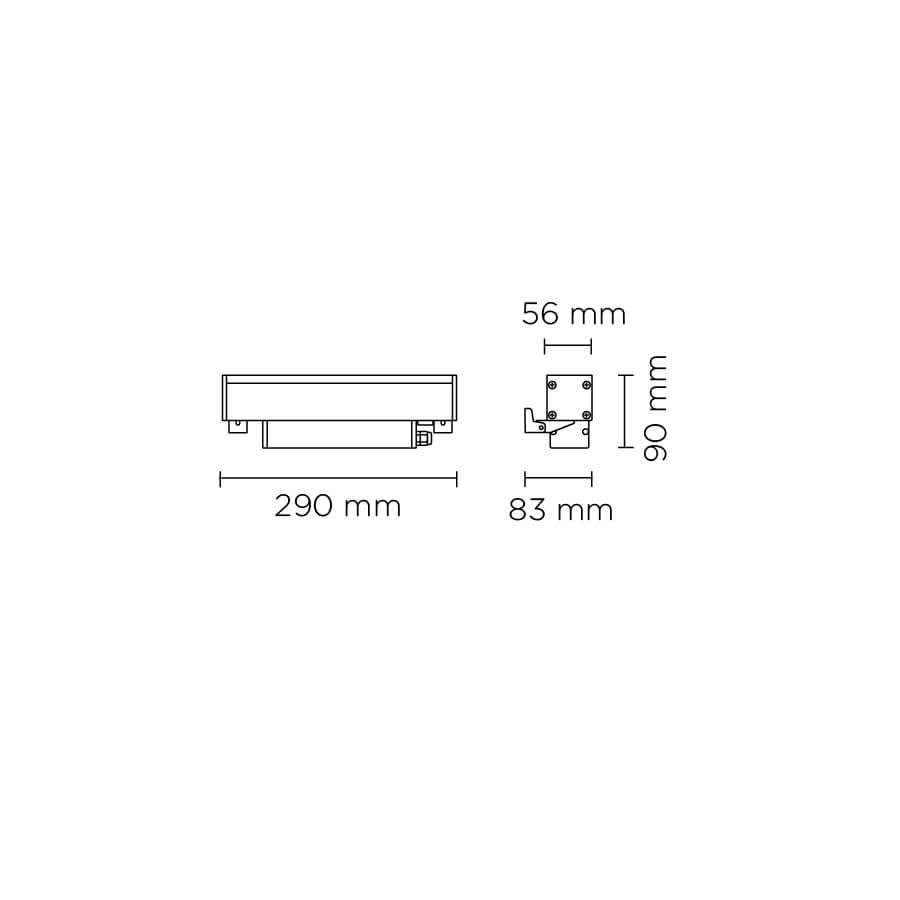

403301

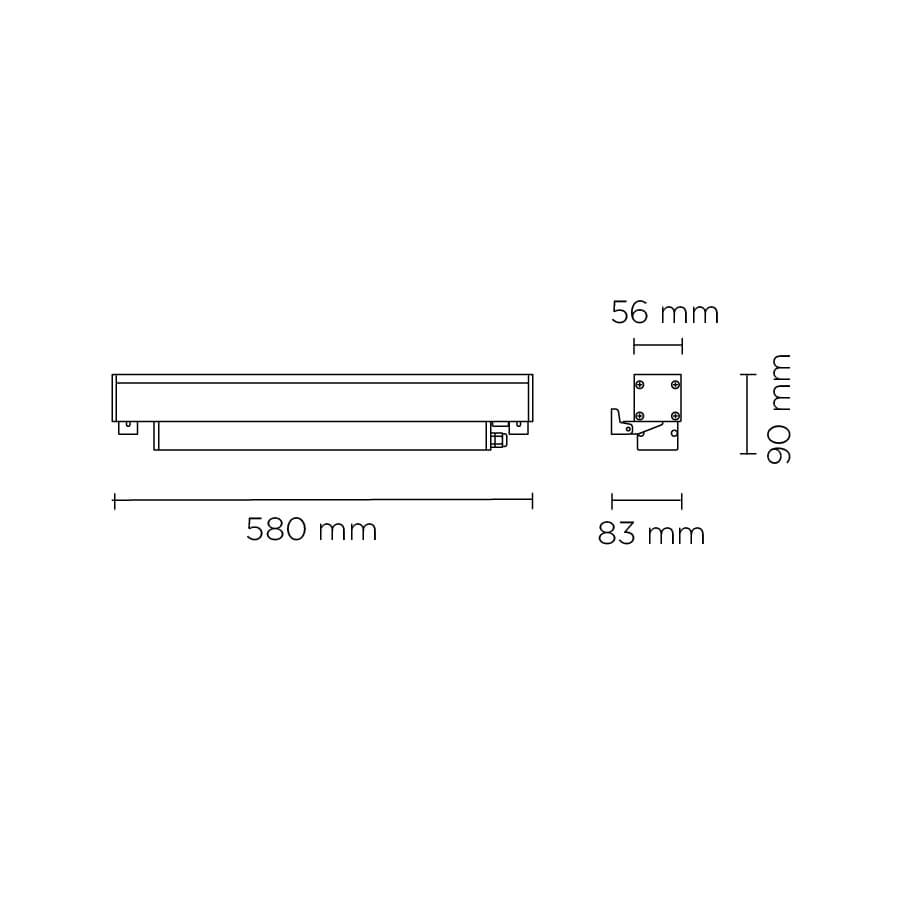

403305

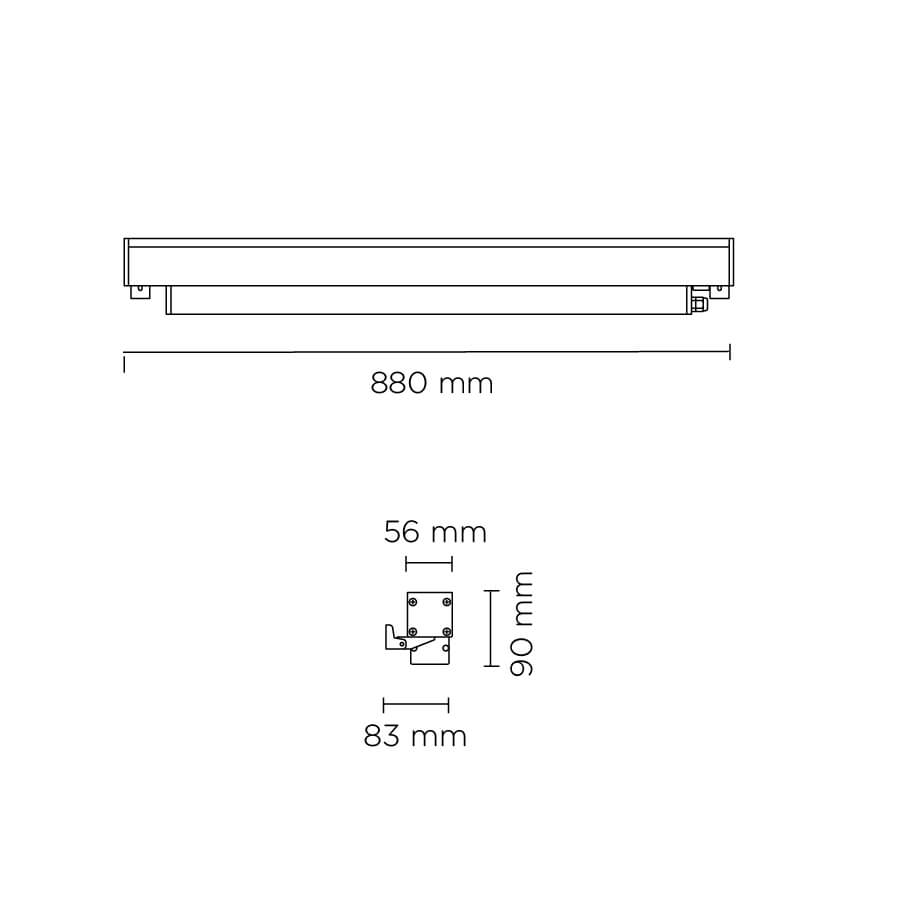

403309

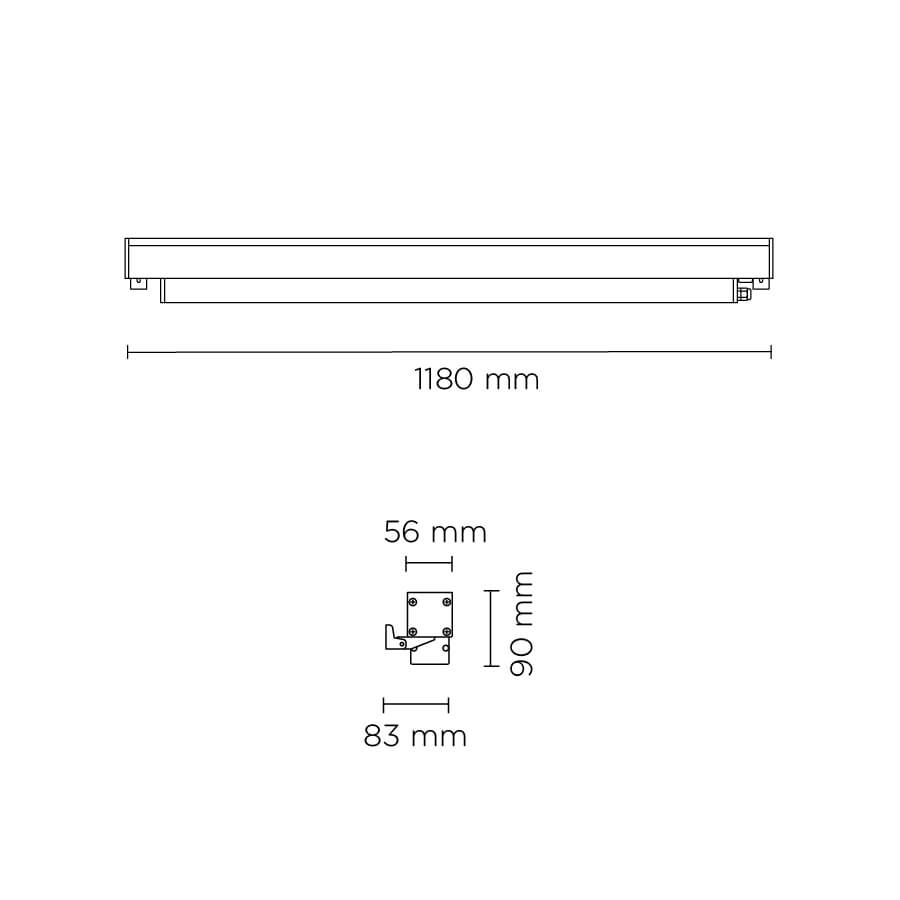

403313
| LIGHT TECNOLOGY | high-power led |

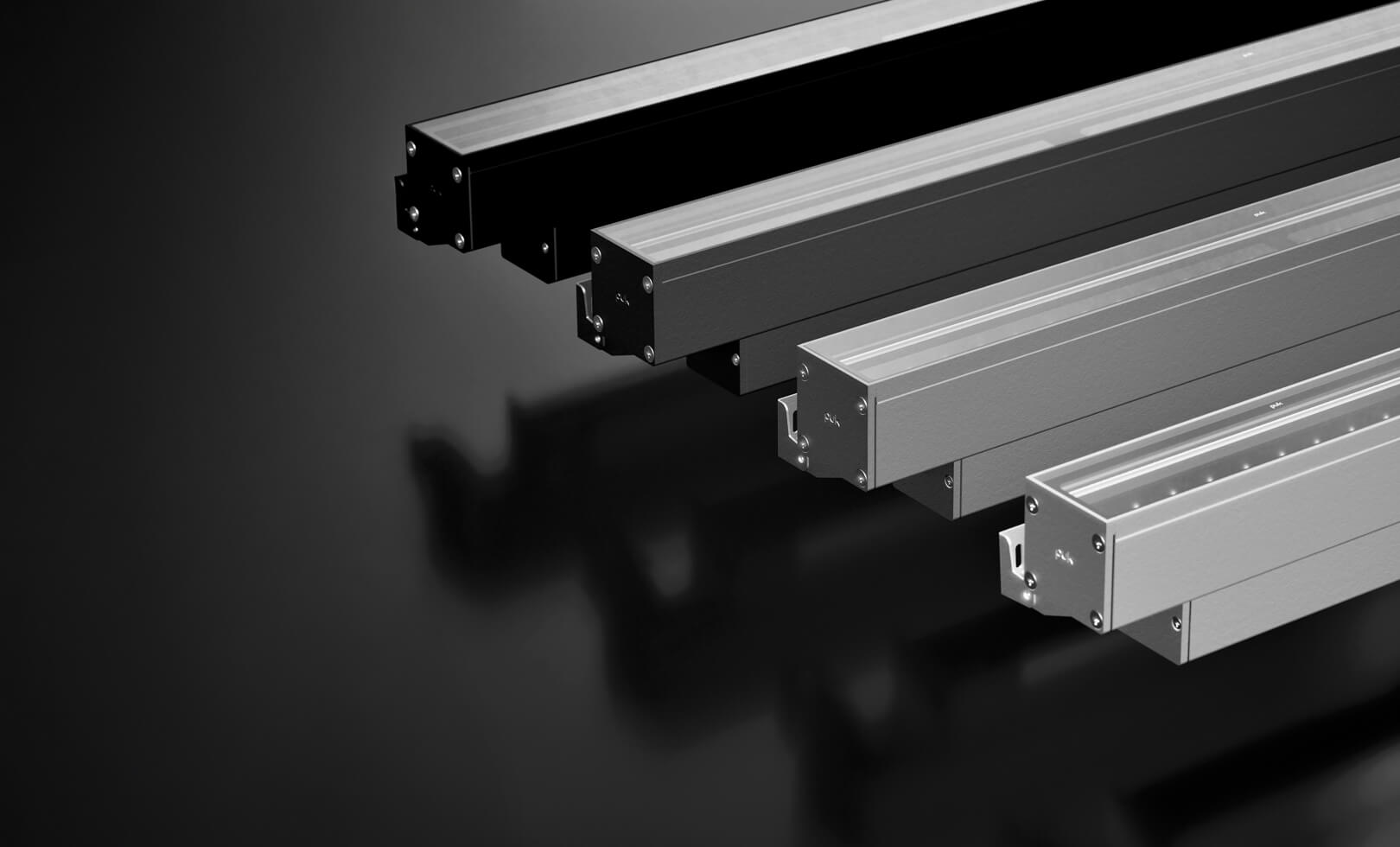

| AVAILABLE COLOURS | Textured Grey RAL 9006 | Anthracite Grey RAL 7016 | Matt Black (on request) |
| LIGHT BEAM OPTIONS | narrow 15º | medium 35º | wide 55º | Asymmetric Wall-Washer |
| LIGHT COLOURS | 2.700ºk warm-white | 3.000ºk warm-white | 4.000ºk neutral-white |
| IP RATING | IP67 |
| WARRANTY | 5 years |
