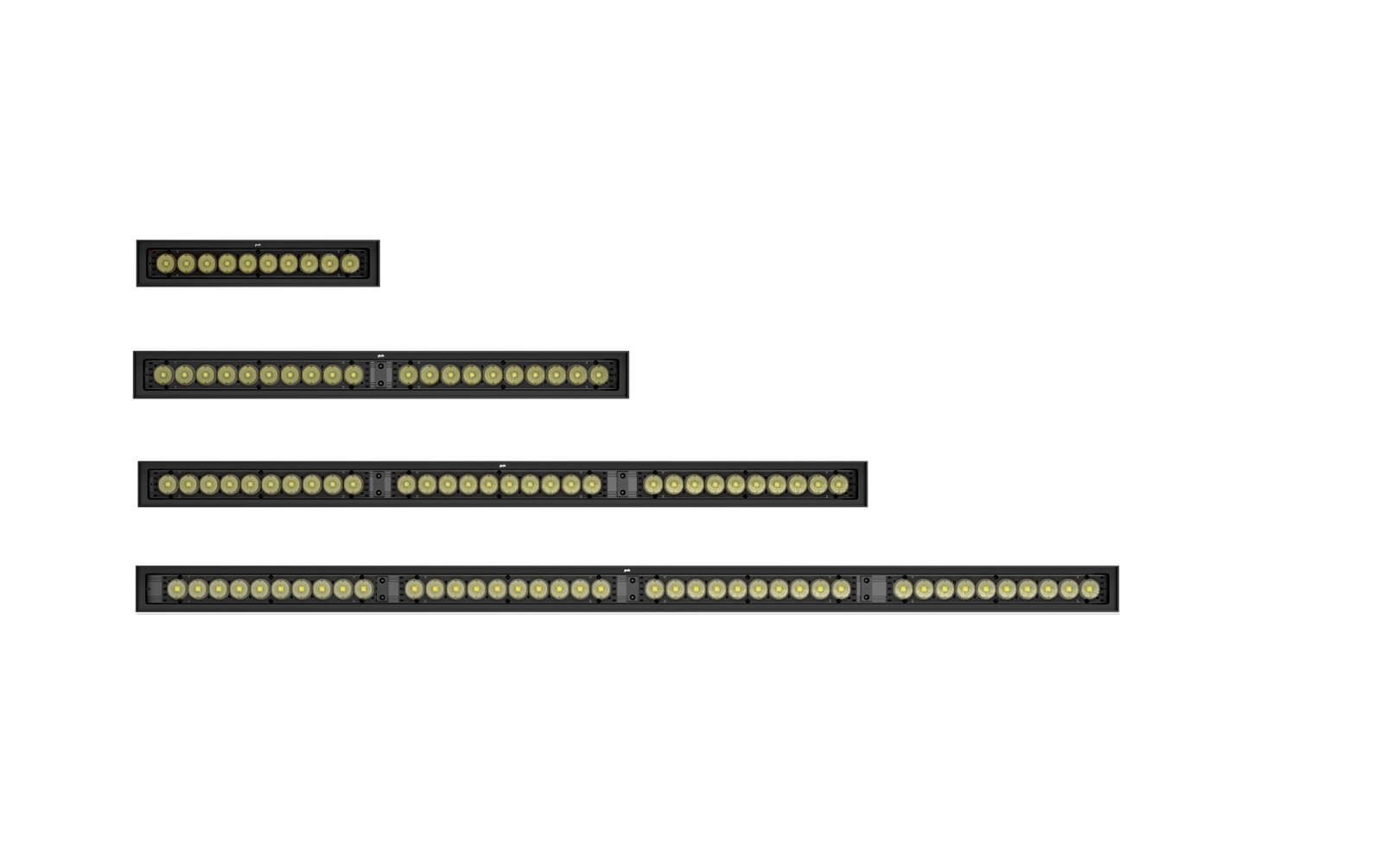

403303 403307 403311 403315 LINEAFACADE HP DMX TUNABLE WHITE

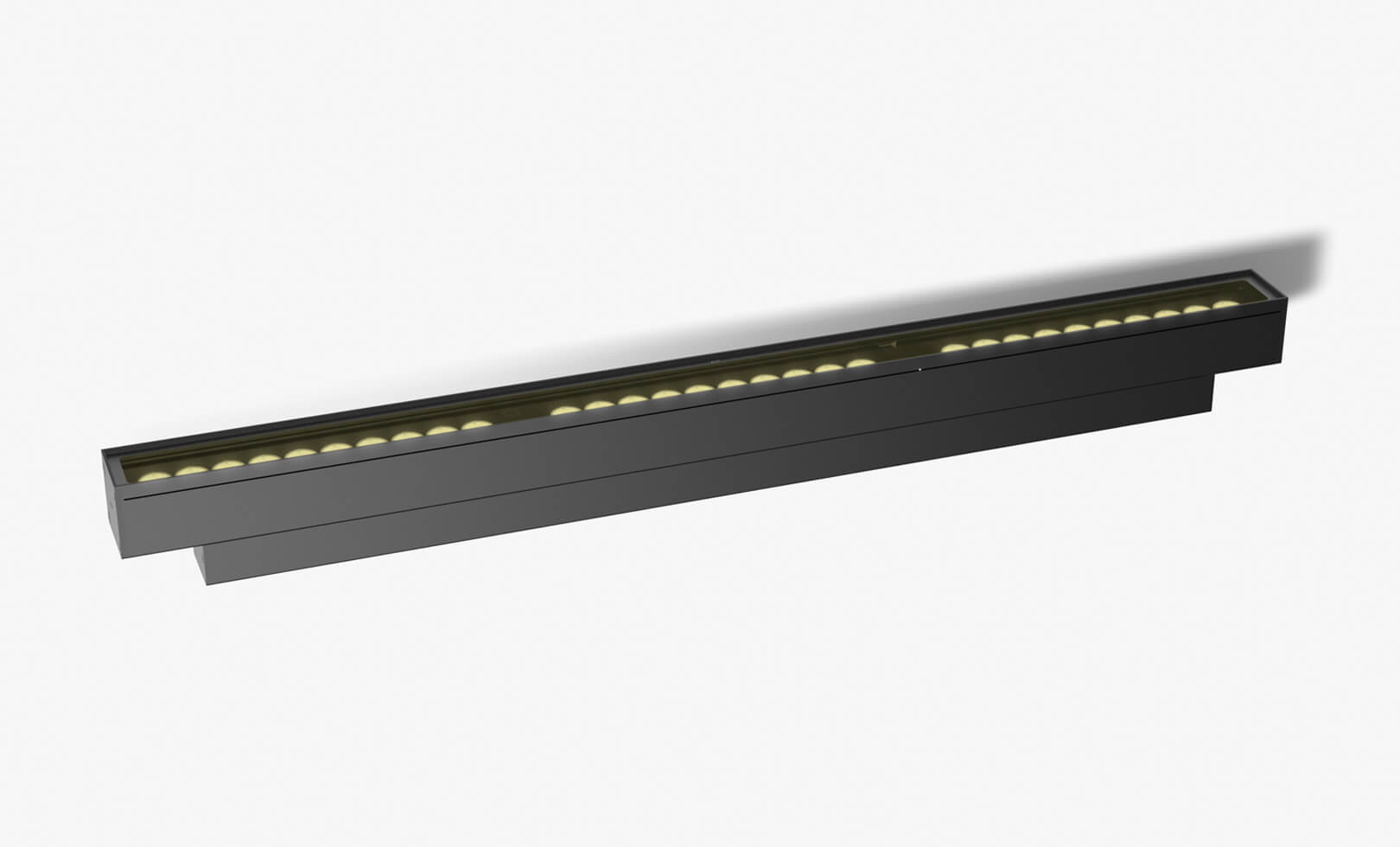

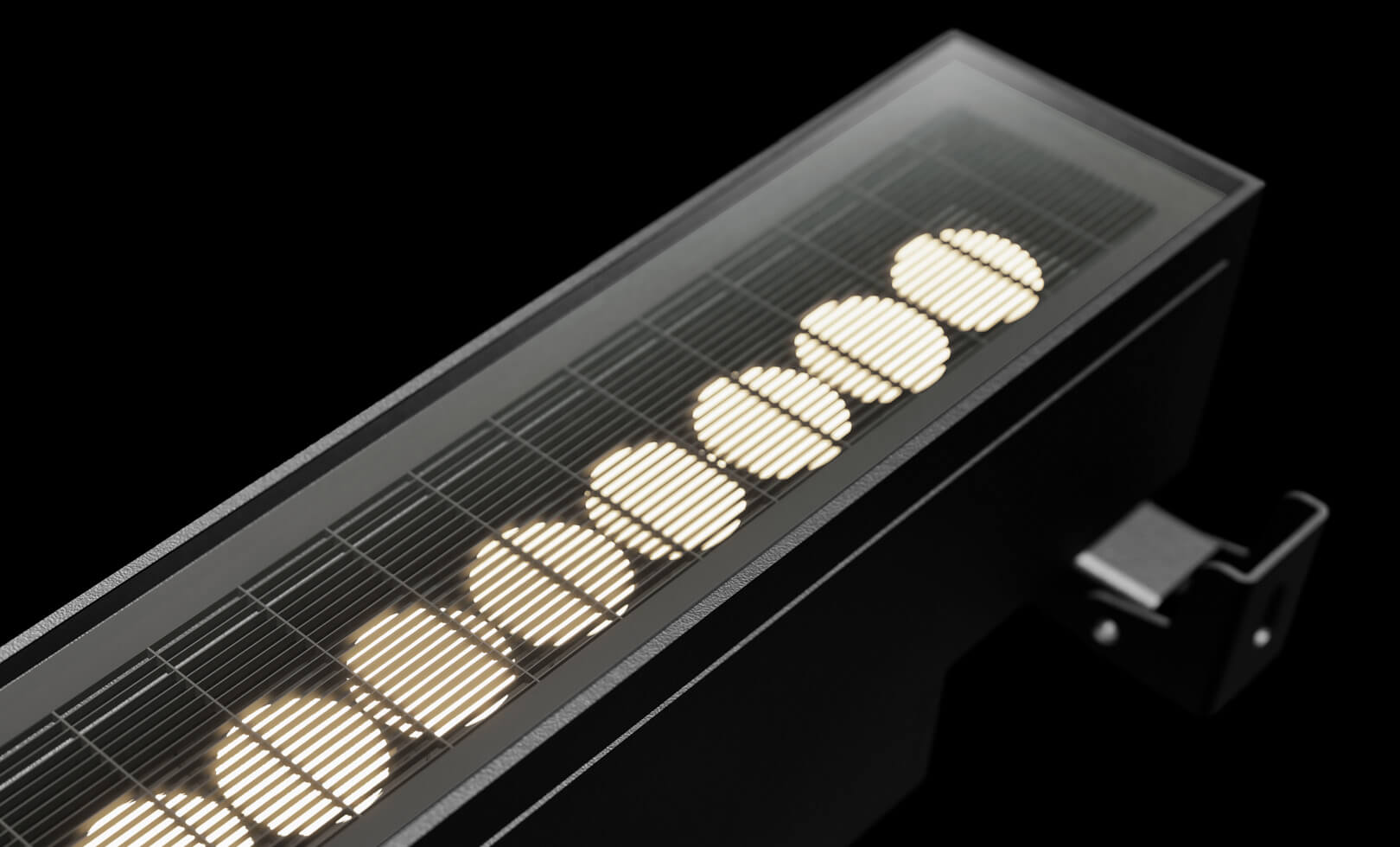

Linear shape luminaire for outdoor installation, surface mounted on a façade/wall with brackets, four available lengths (290mm, 580mm, 880mm, 1180mm) made in phospho-chromatised, anodized and polyester powder coated extruded copper-free aluminium, with tempered safety glass, moulded silicone gaskets. Built-in LED driver 220-240V 50-60Hz (except for smaller length 290mm which requires remote constant voltage 24V DC power supply), DMX interface integrated, with Tunable-White 3535 LED (2700K-5700K). IP67 rating.
403303 - LINEAFACADE 300
10 WATT
Nr. 12 TUNABLE WHITE 3535 LED
24V DC remote driver needed
IP67
IK08
1,70 Kg
403305 - LINEAFACADE 600
20 WATT
Nr. 24 TUNABLE-WHITE 3535 LED
220/240V 50/60Hz built-in
IP67
IK08
3,00 Kg
403311 - LINEAFACADE 900
30 WATT
NR. 36 NR. 36 TUNABLE-WHITE 3535 LED
220/240V 50/60Hz built-in
IP67
IK08
4,50 Kg
403315 - LINEAFACADE 1200
40 WATT
Nr. 48 TUNABLE-WHITE 3535 LED
220/240V 50/60Hz built-in
IP67
IK08
6,00 Kg
· Material: high corrosion resistance extruded copper-free aluminum
· Coating: anodizing treatment + protective powder coating
· Screws: Stainless steel
· Gasket: Silicone rubber
· Glass: Tempered
· Power cable: Power cable 1 mt. neoprene power cable included
· DMX cable: DMX in & DMX out cables included

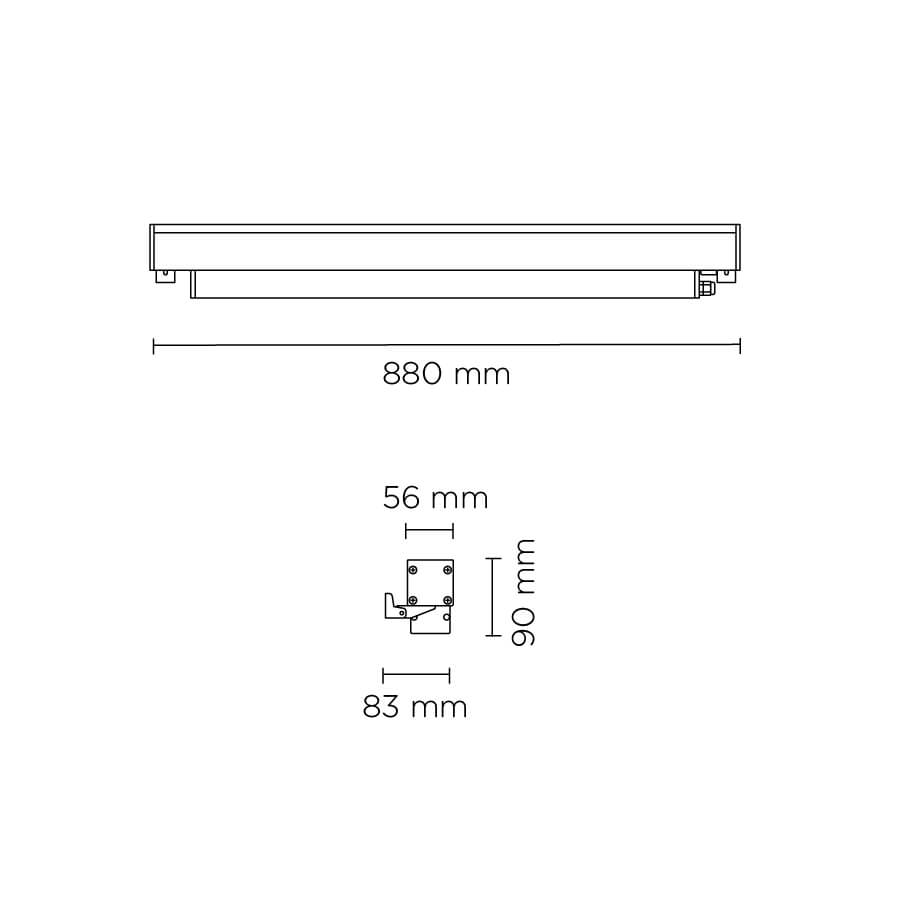

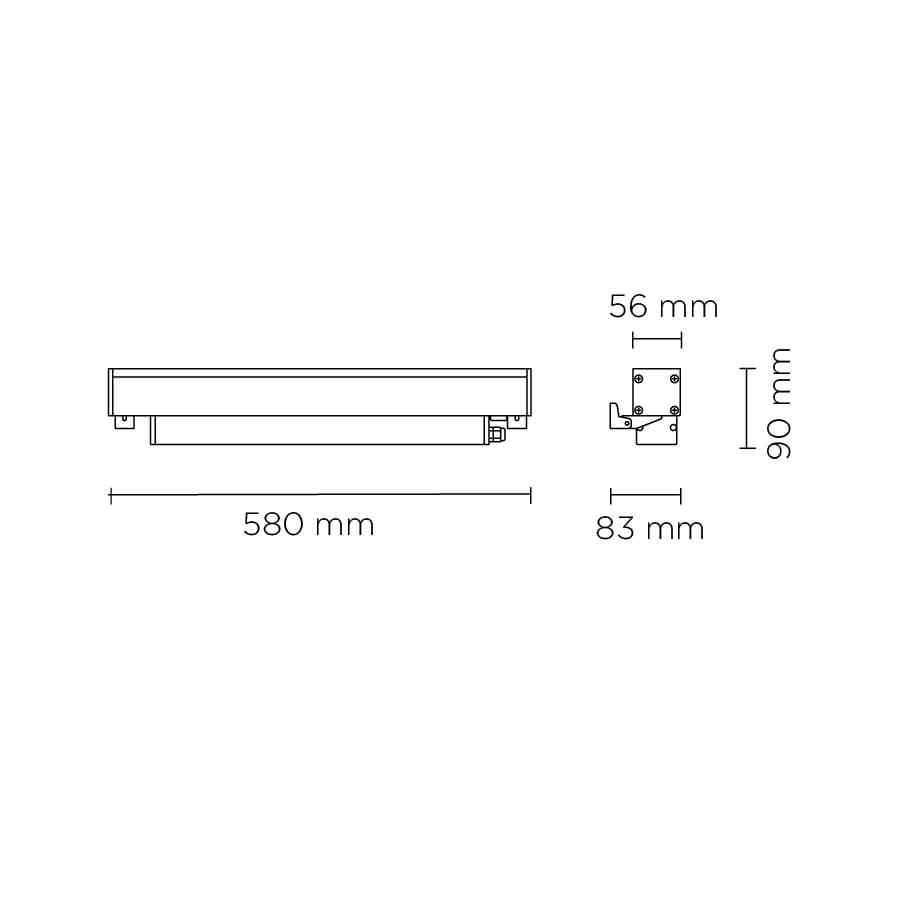

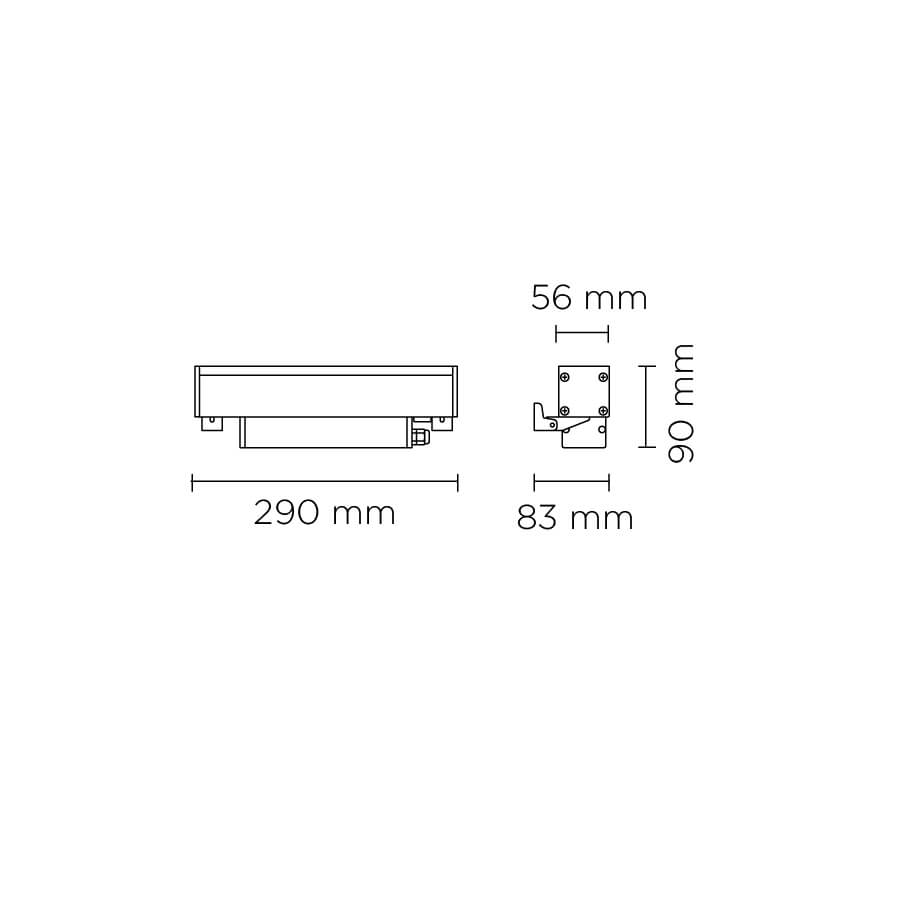

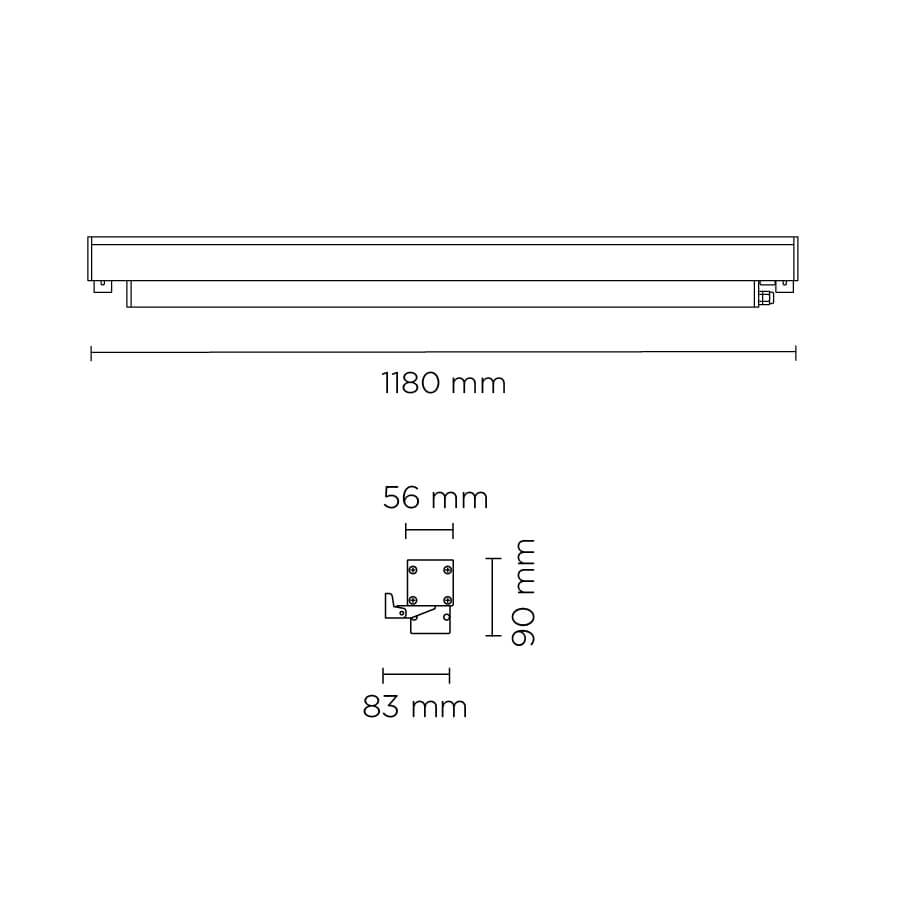

SIZE AND FINISHING
403303
403307
403311
403315
| LIGHT TECNOLOGY | high-power led |
| AVAILABLE COLOURS | Textured Grey RAL 9006 | Anthracite Grey RAL 7016 | Matt Black (on request) |
| LIGHT BEAM OPTIONS | narrow 15º | medium 30º | wide 60º | 10x60° ELLIPTICAL |
| LIGHT COLOURS | 2700K-5600K TUNABLE WHITE |
| IP RATING | IP67 |
| WARRANTY | 5 years |
