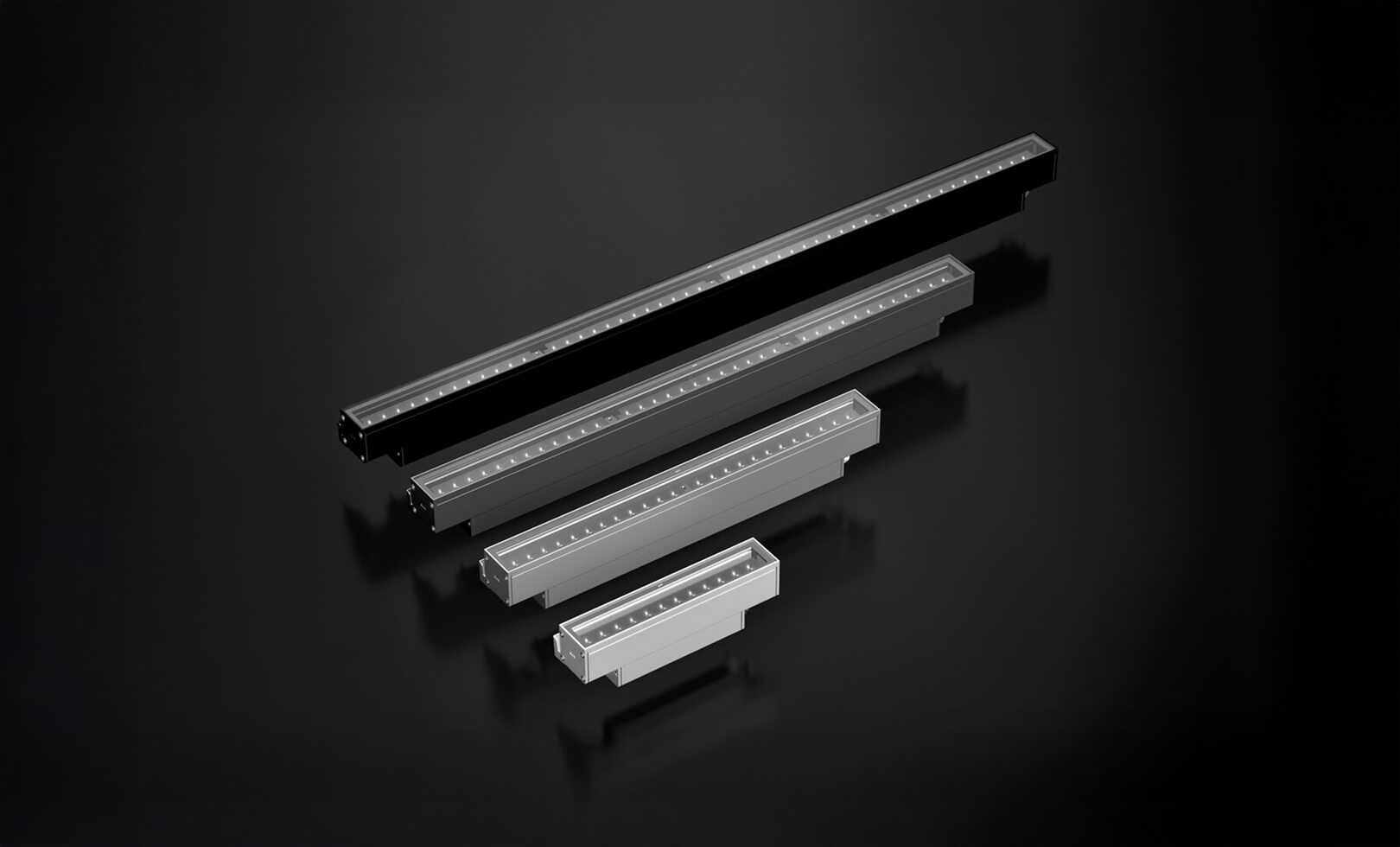

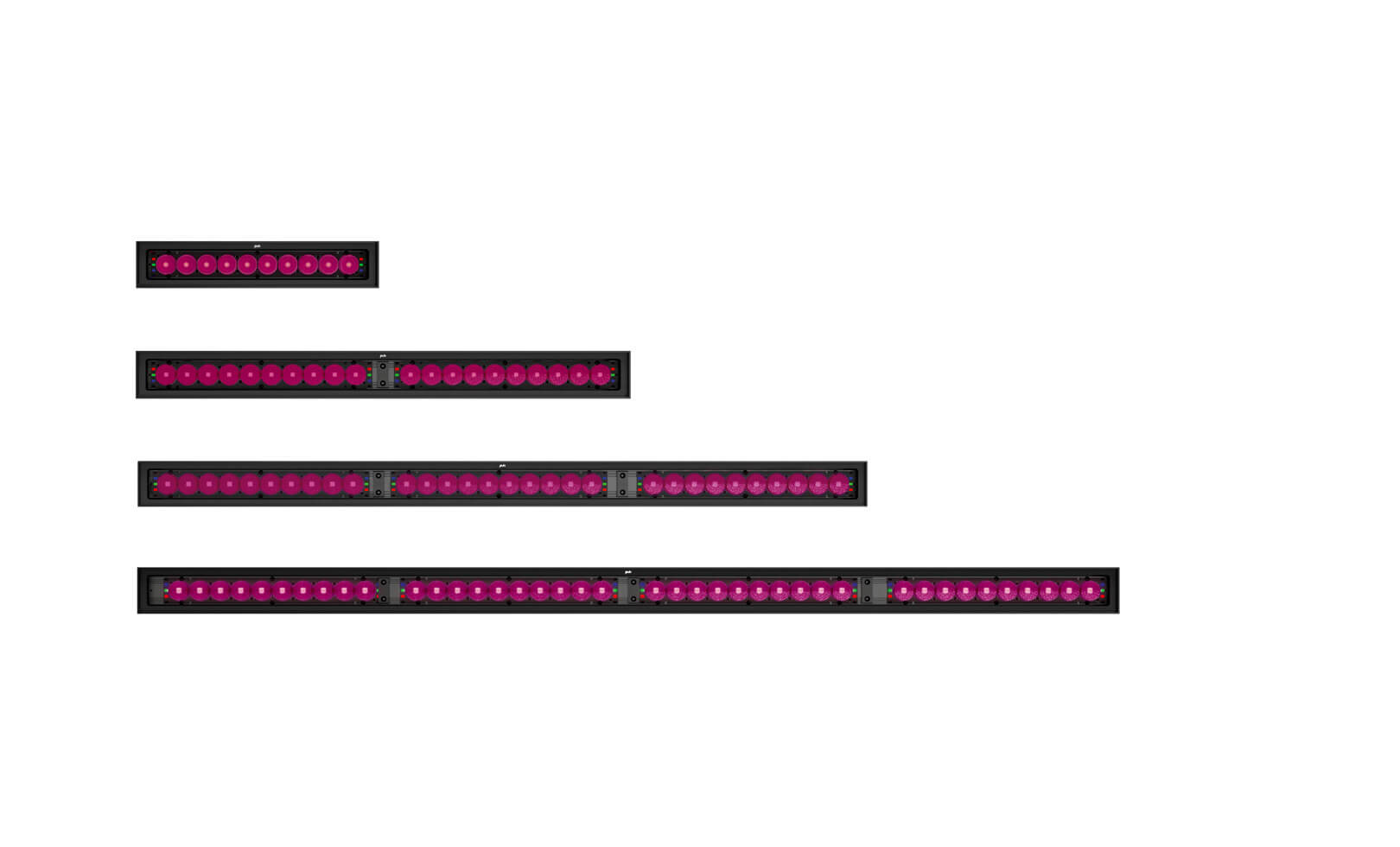

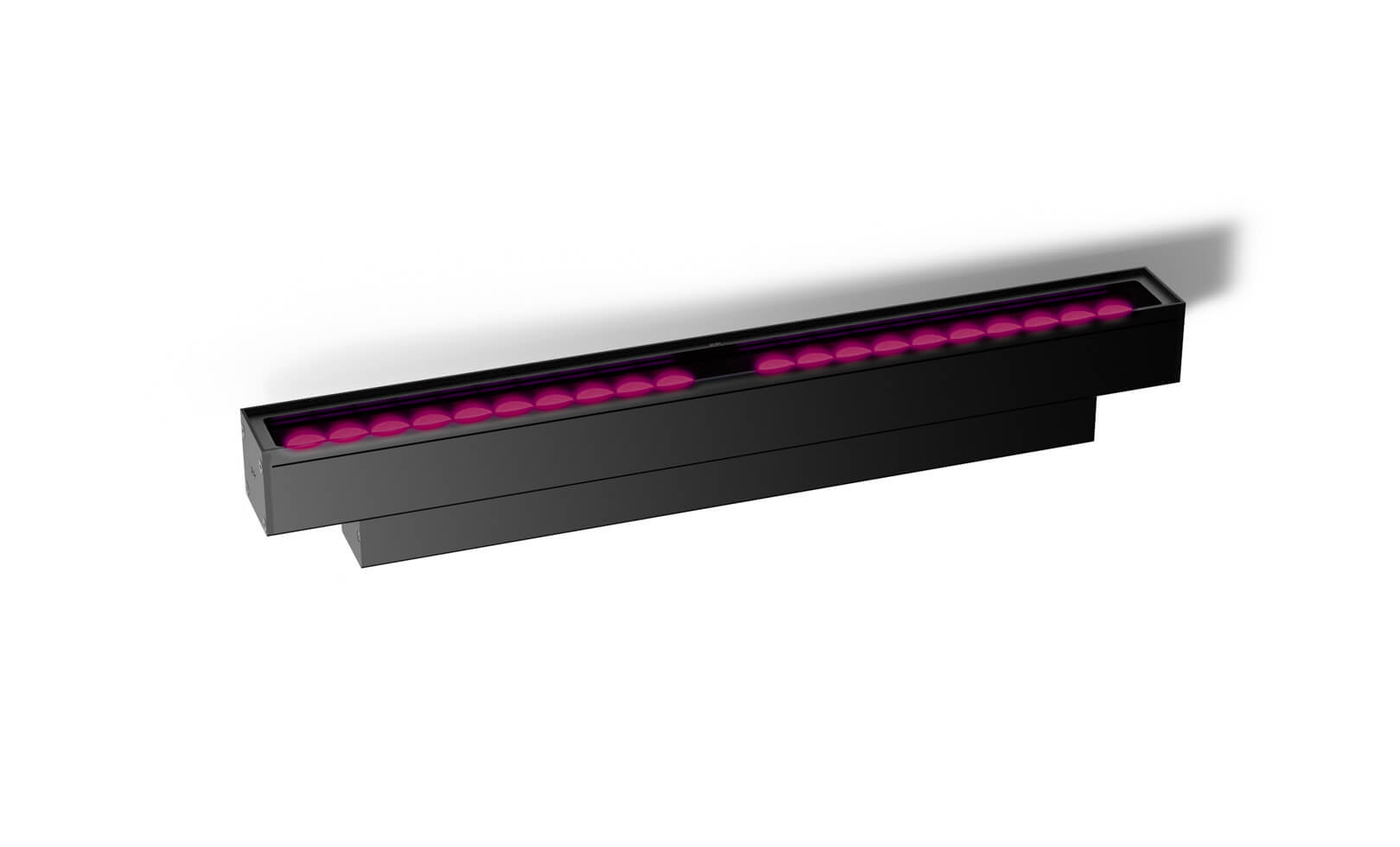

403302 403306 403310 403314 LINEAFACADE HP DMX RGBW
Linear shape luminaire for outdoor installation, surface mounted on a façade/wall with brackets, four available lengths (290mm, 580mm, 880mm, 1180mm) made in phospho-chromatised, anodized and polyester powder coated extruded copper-free aluminium, with tempered safety glass, moulded silicone gaskets. Built-in LED driver 220-240V 50-60Hz (except for smaller length 290mm which requires remote constant voltage 24V DC power supply), DMX interface integrated, with RGBW(3000K) 3535 LED. IP67 rating.

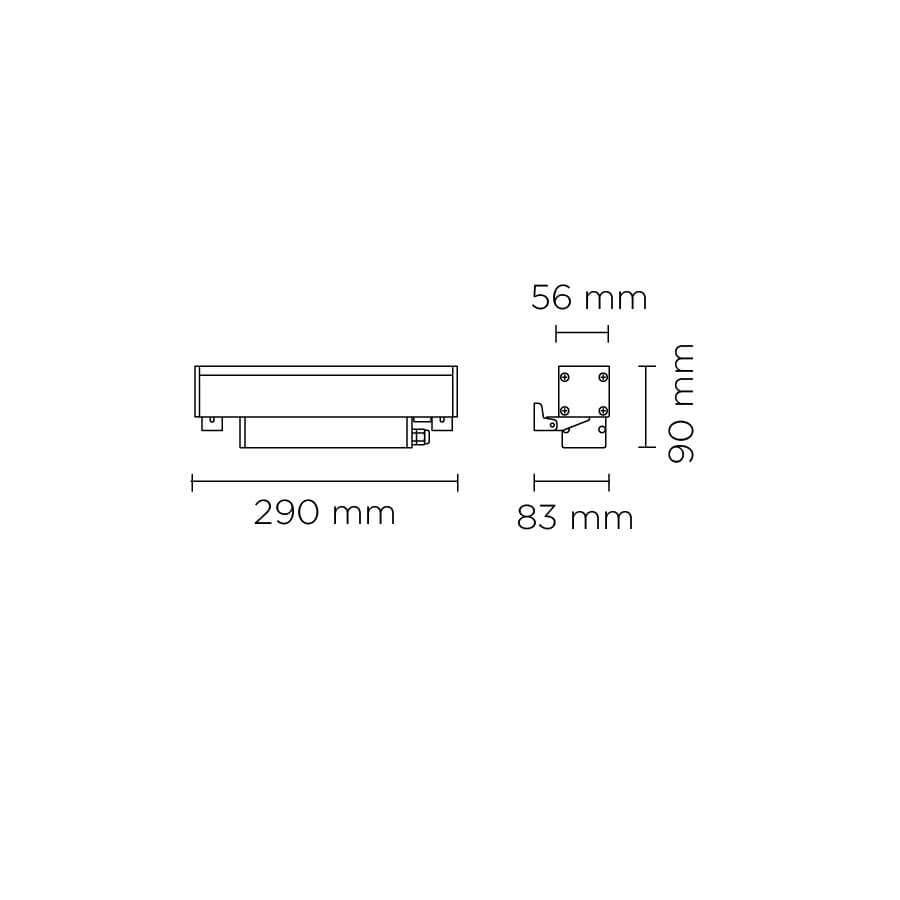

403302 - LINEAFACADE 300
10 WATT
Nr. 12 RGBW 3535 LED
Constant voltage 24V DC remote driver needed
IP67
IK08
1,70 Kg

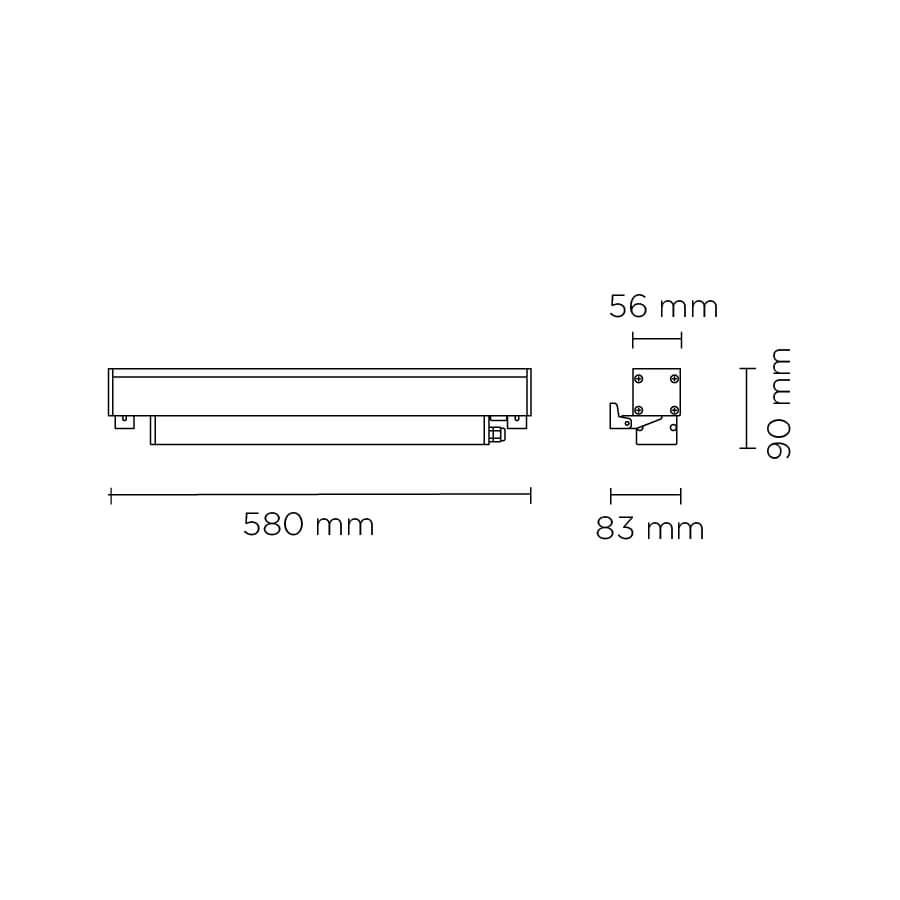

403306 - LINEAFACADE 600
20 WATT
Nr. 24 RGBW 3535 LED
Electrical power supply 220/240V 50/60Hz built-in
IP67
IK08
3,00 Kg

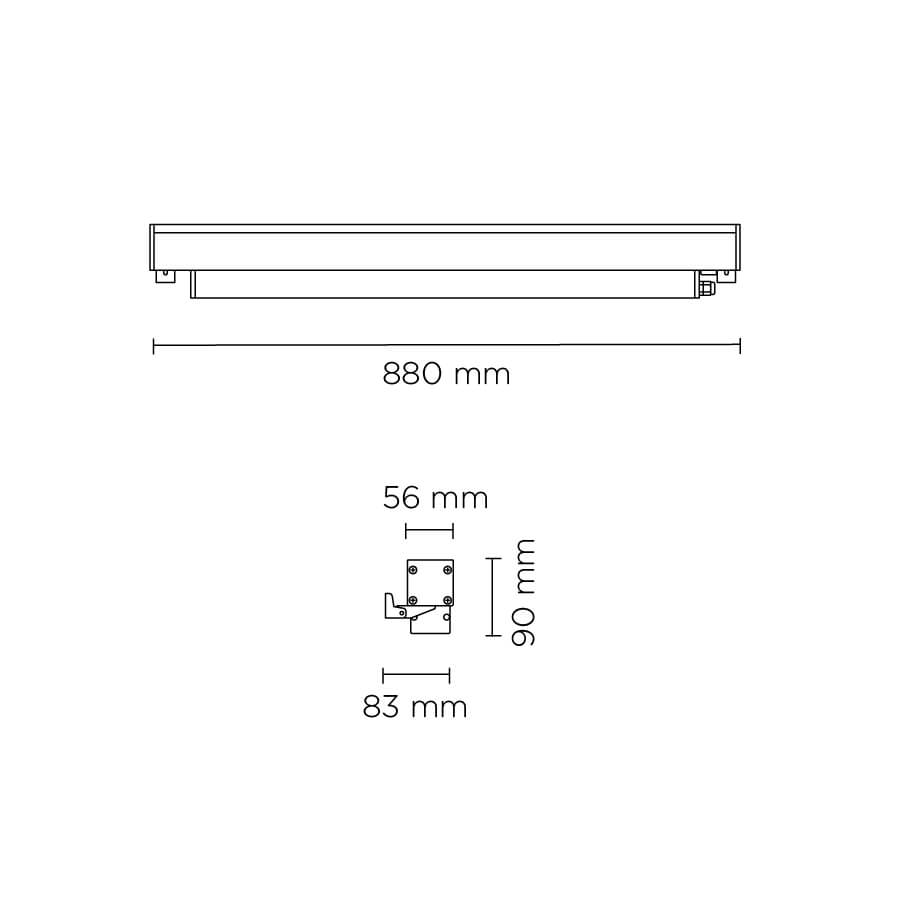

403310 - LINEAFACADE 900
30 WATT
NR. 36 RGBW 3535 LED
Electrical power supply 220/240V 50/60Hz built-in
IP67
IK08
4,50 Kg

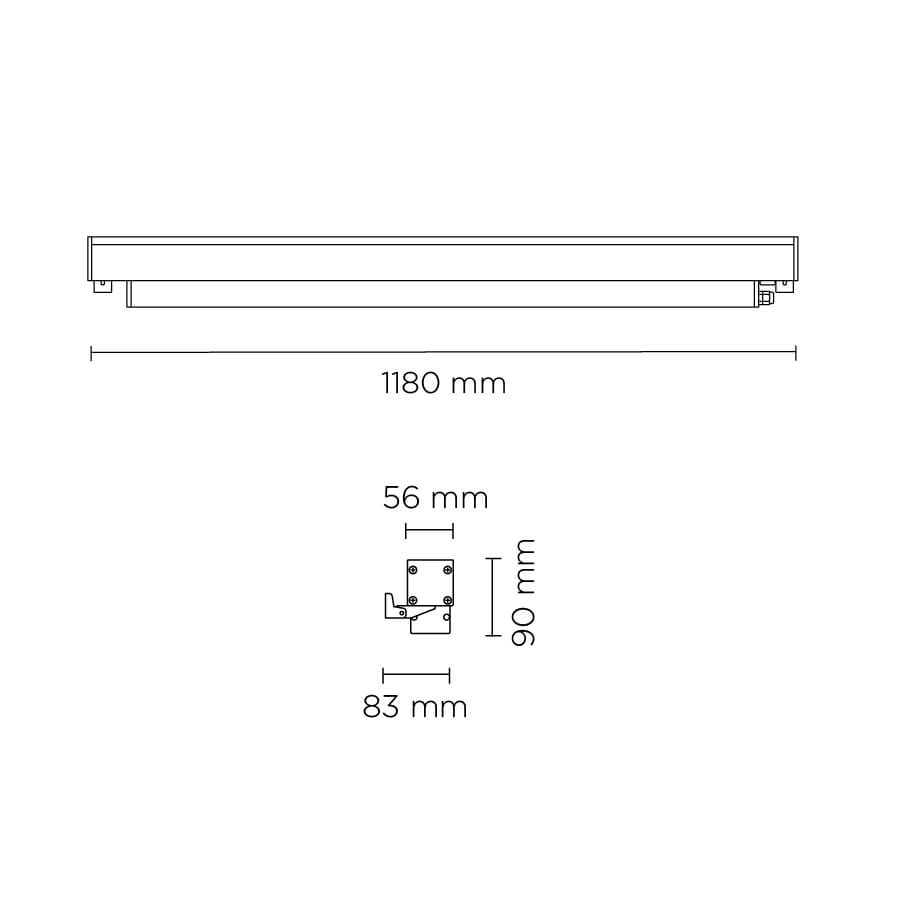

403314 - LINEAFACADE 1200
40 WATT
Nr. 48 RGBW 3535 LED
Electrical power supply 220/240V 50/60Hz built-in
IP67
IK08
6,00 Kg
· Material: high corrosion resistance extruded copper-free aluminum
· Coating: anodizing treatment + protective powder coating
· Screws: Stainless steel
· Gasket: Silicone rubber
· Glass: Tempered
· Power cable: 1 mt. neoprene power cable included
· DMX cable: DMX in & DMX out cables included
SIZE AND FINISHING
403302
403306
403310
403314
| LIGHT TECNOLOGY | high-power led |
| AVAILABLE COLOURS | Textured Grey RAL 9006 | Anthracite Grey RAL 7016 | Matt Black (on request) |
| LIGHT BEAM OPTIONS | narrow 15º | medium 35º | wide 55º | 10x60° ELLIPTICAL |
| LIGHT COLOURS | RGBW 3000K |
| IP RATING | IP67 |
| WARRANTY | 5 years |
