RING MEGA
THE FOURTH AND
BIGGEST SIZE
The fourth and biggest size

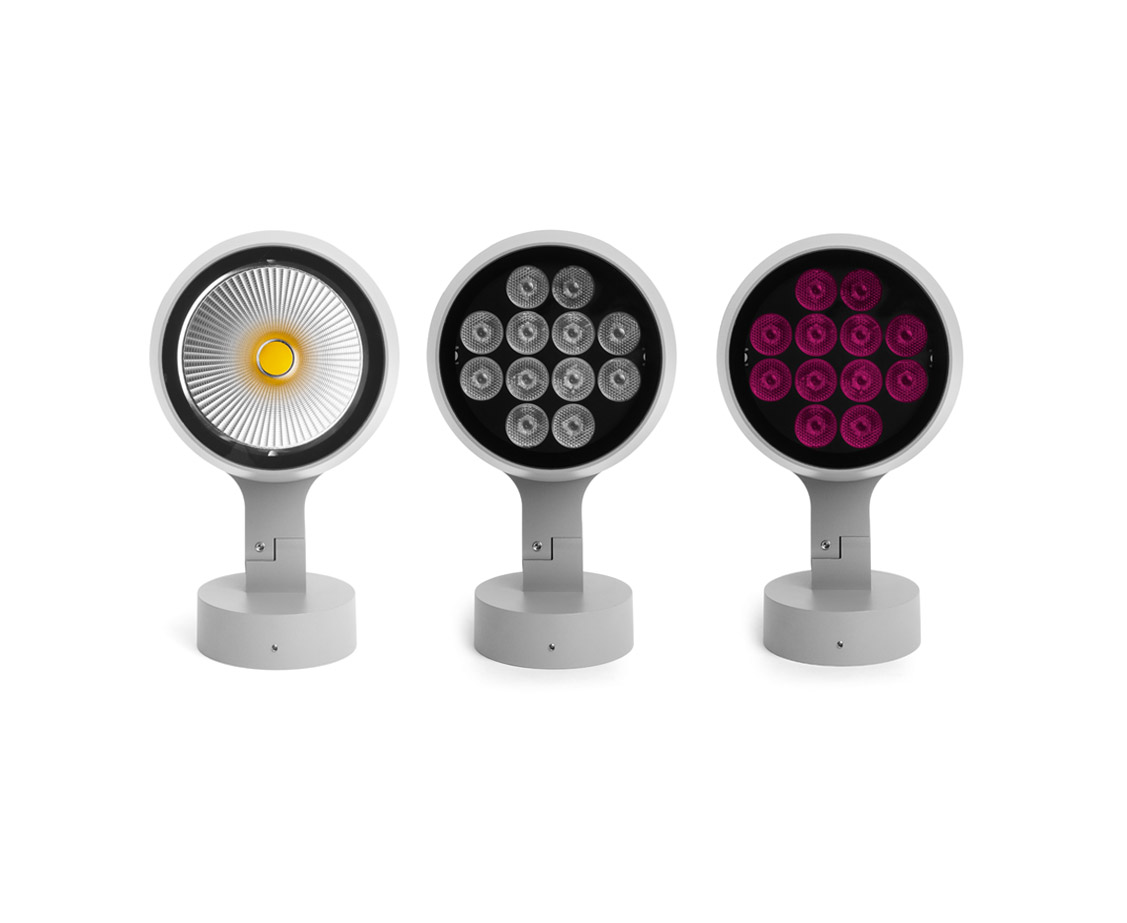

of Ring series is now a reality, with a maximum wattage of 88W and 10.200 lm; available with COB and power-LED technology, also including RGBW color changing option.

101407

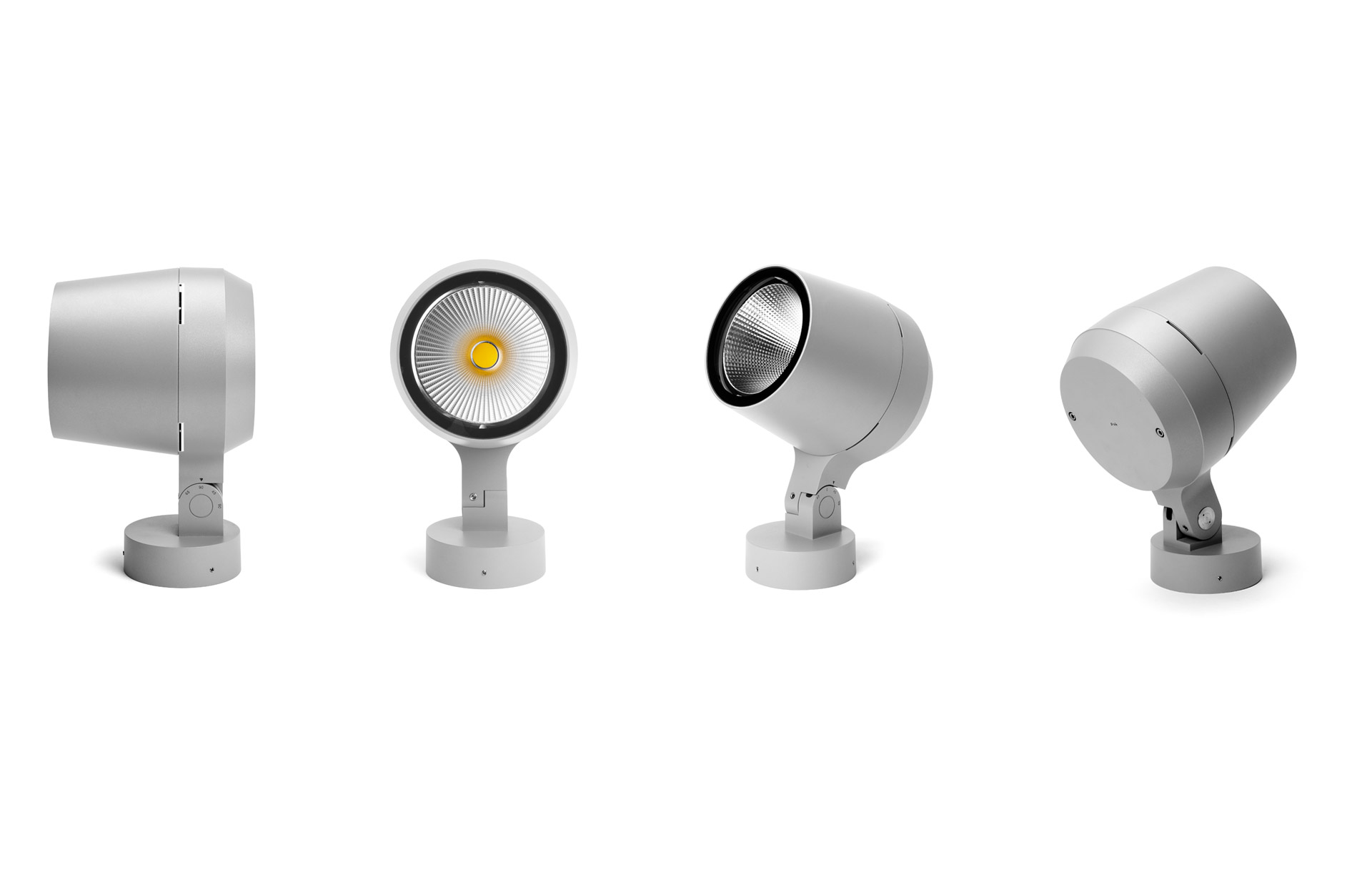

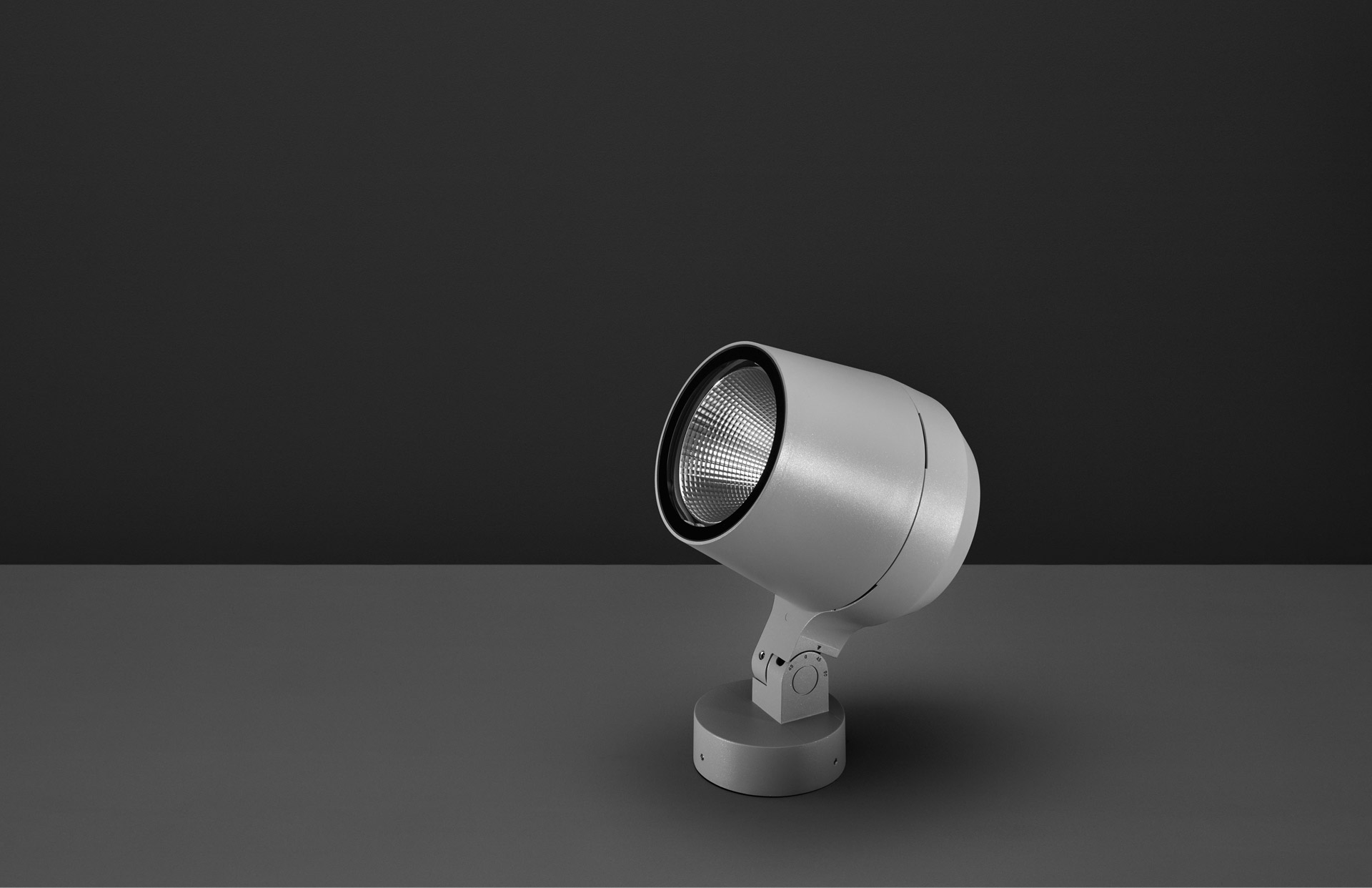

RING MEGA COB

101408

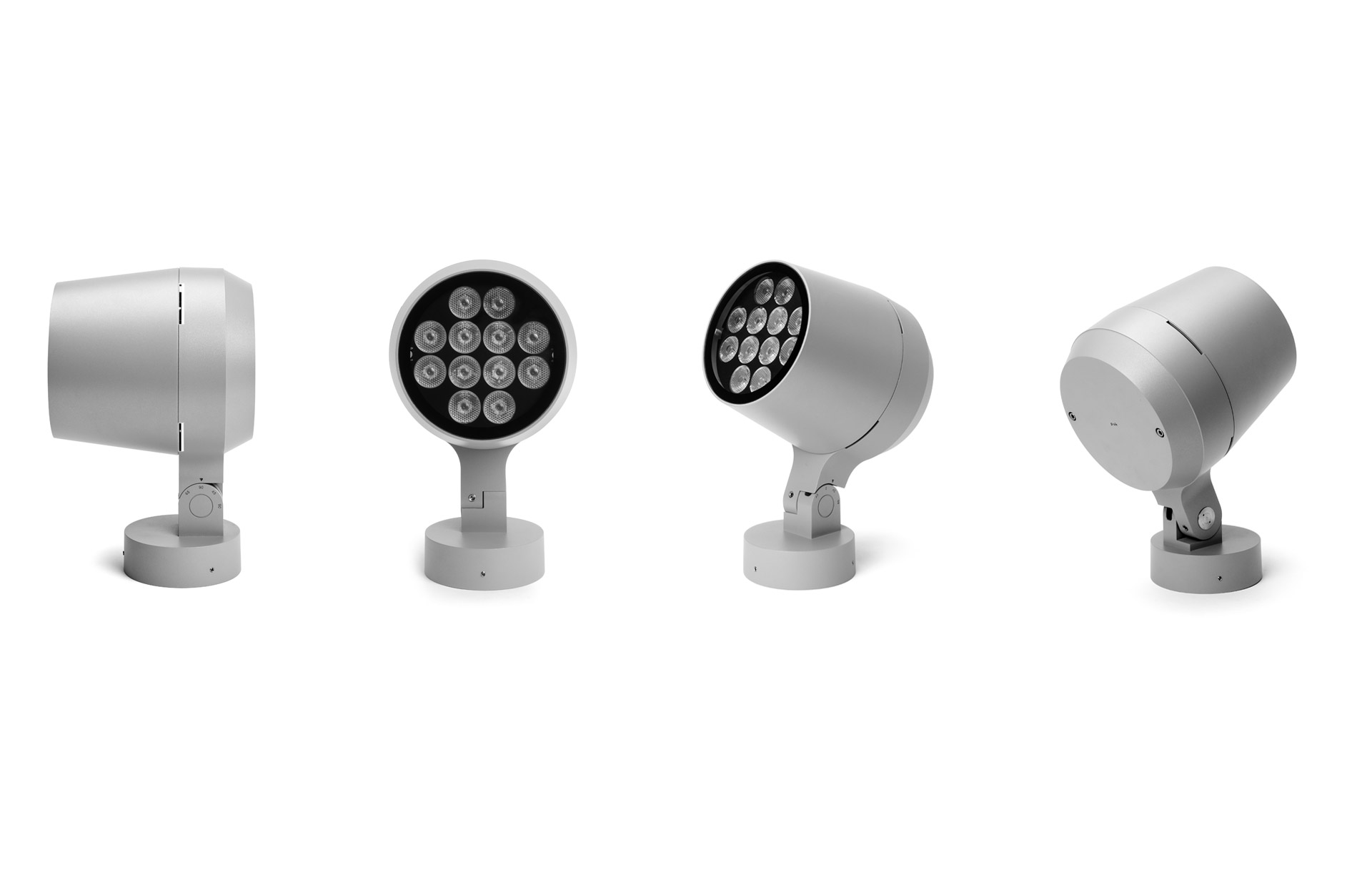

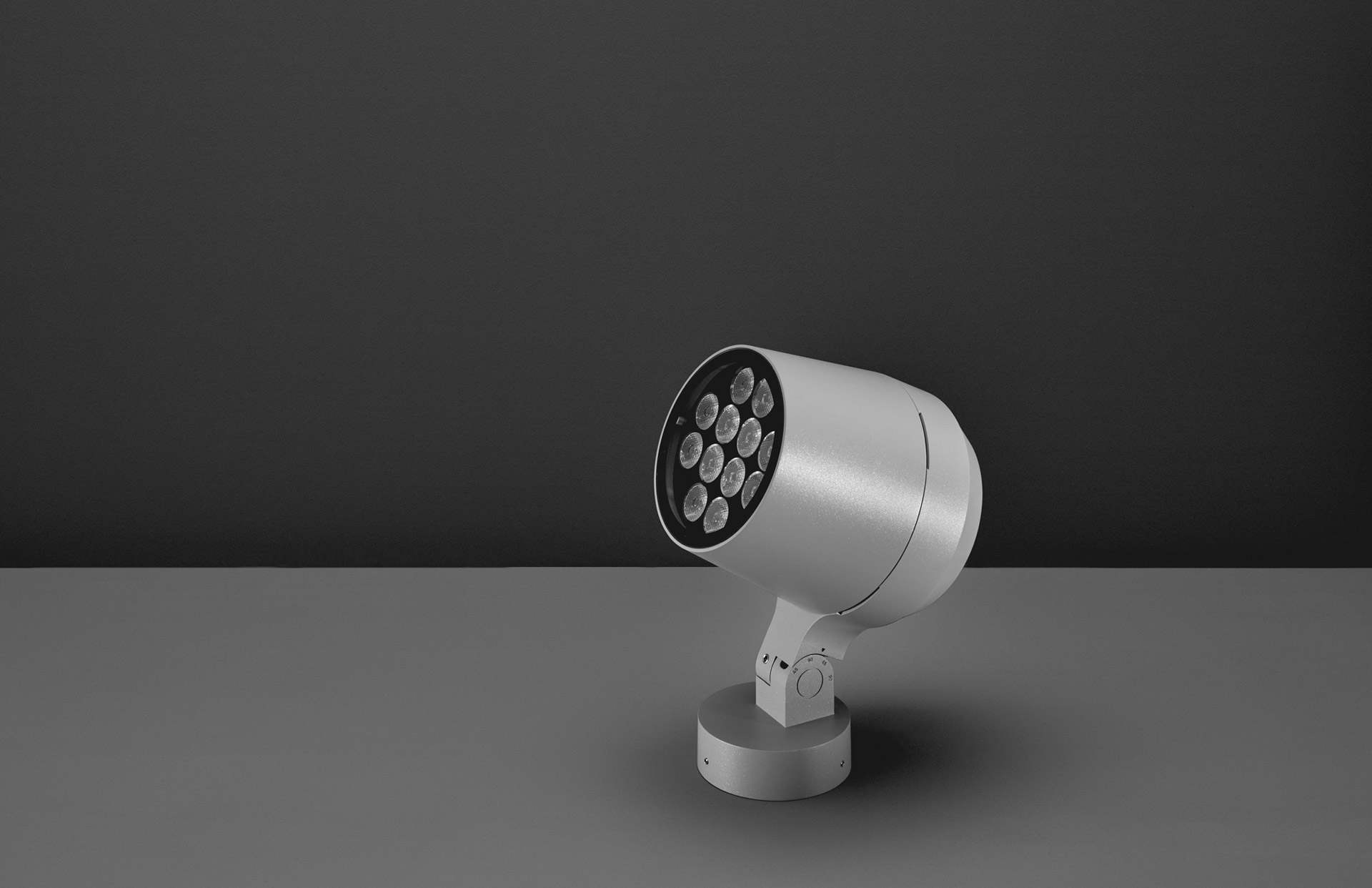

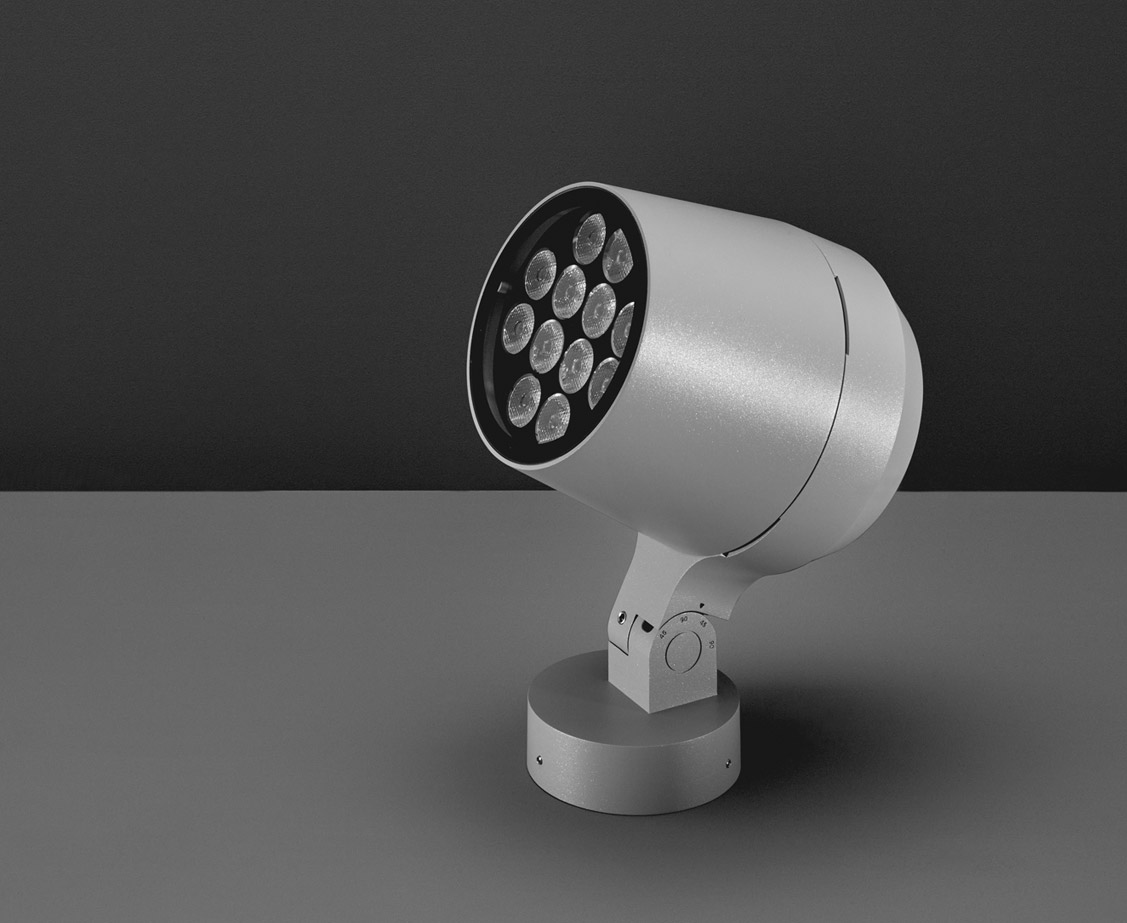

RING MEGA HP

101408RGBW

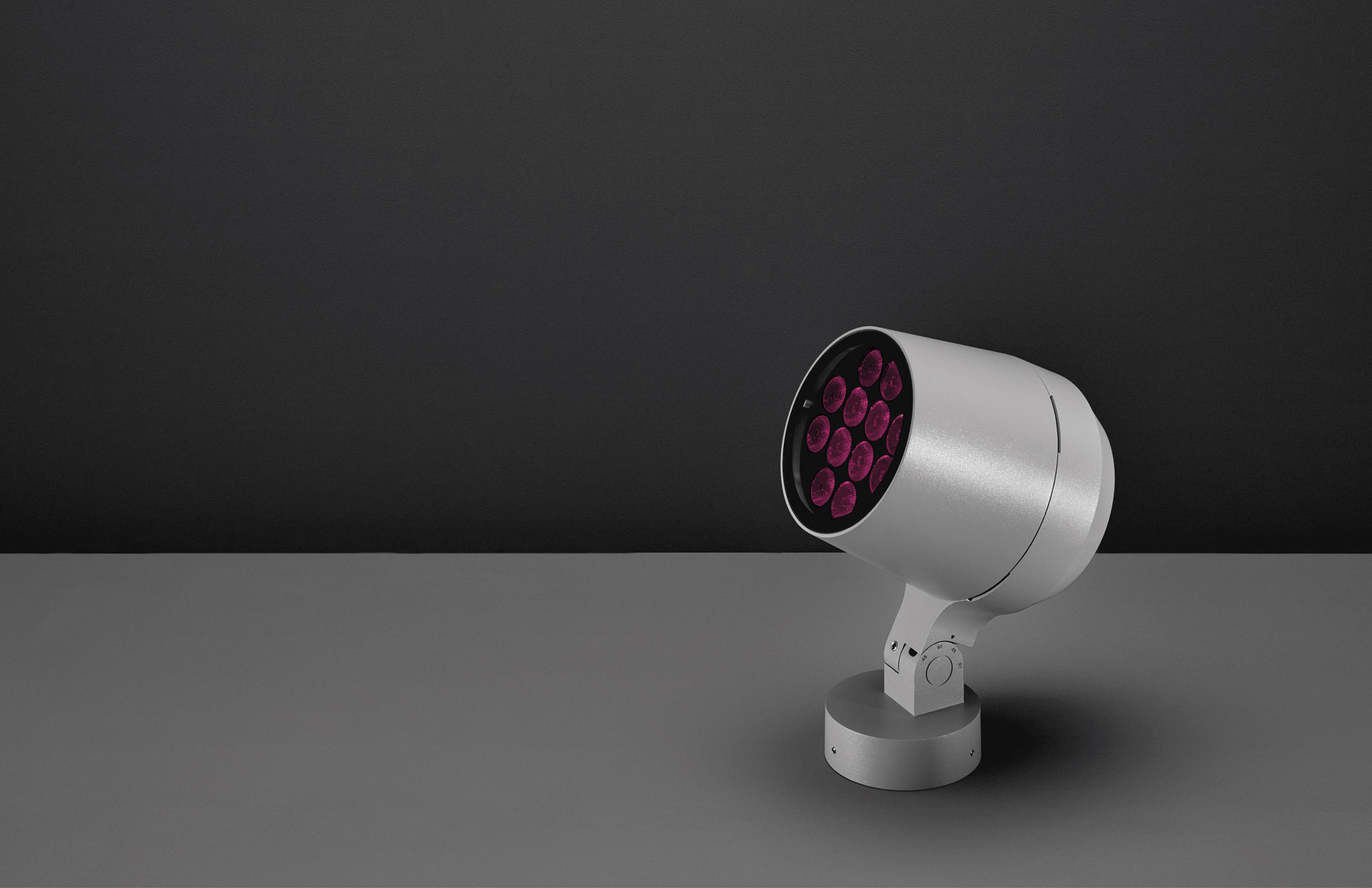

RING MEGA DMX RGBW

807013 – 807015
RING POLE MEGA COB

807014 – 807016
RING POLE MEGA HP
RING MEGA - RING MEGA POLE

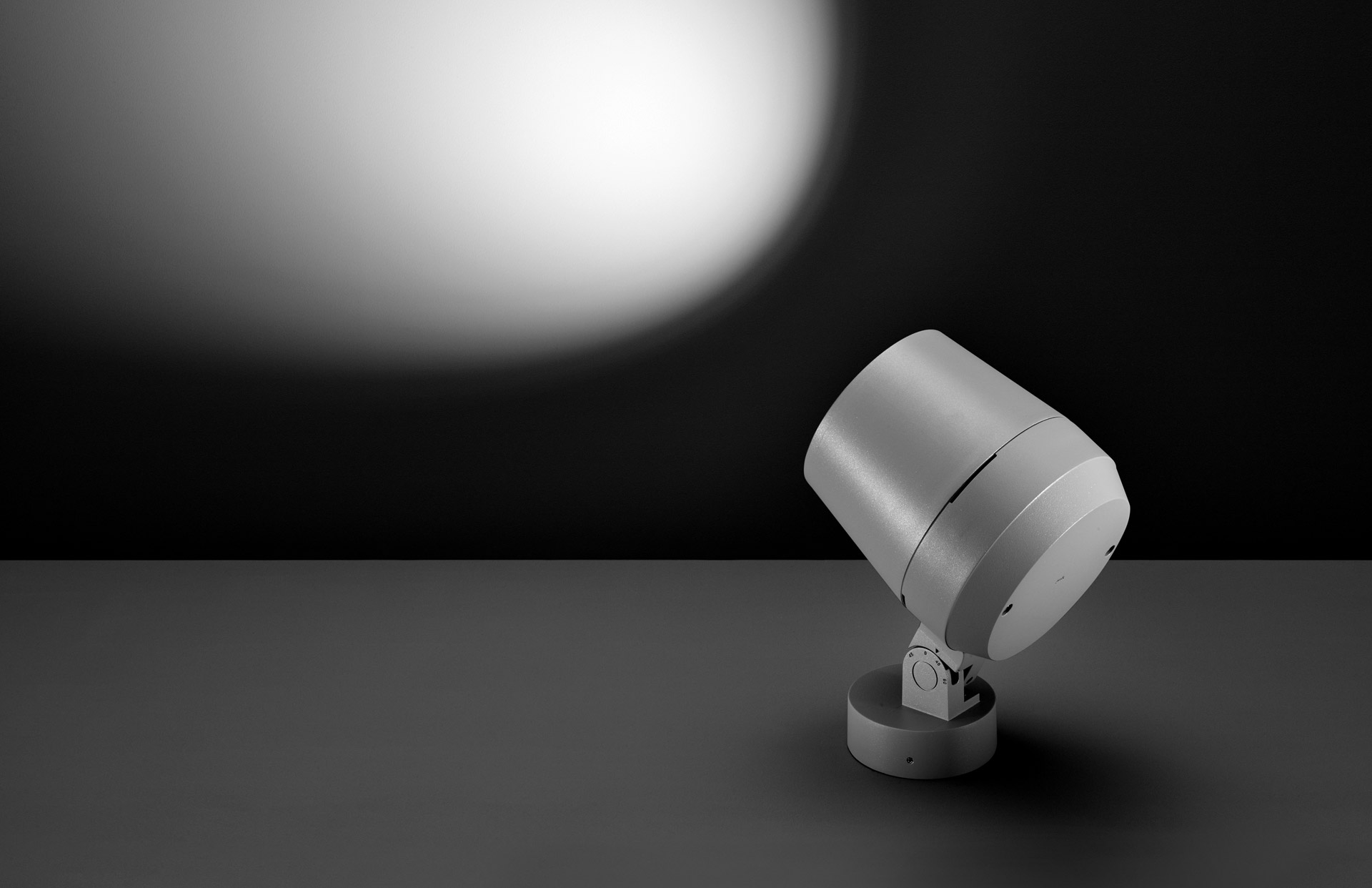

Floodlight for outdoor installation on a façade/wall, with 355° swivel base and allowing horizontal adjustment of +90° / -40°. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium base and head, tempered safety glass, moulded silicone gaskets and o-rings, with screws in stainless steel.
- WATT min 56 – max 66
- LUMEN PACKAGE 1.962 – 2 x 10.200
IP66 | IK 10 | CE | 5 YEARS | CLASSE II | DALI | 1-10 V | DMX
FINISH COLOR OPTION

TEXTURED GRAY
RAL 9006

ANTHRACITE GREY
RAL 7016

MATT BLACK
(on request)

TEXTURED GRAY
RAL 9006

ANTHRACITE GREY
RAL 7016

MATT BLACK
(on request)
Available in 3 colours, Textured Grey, Anthracite Grey and Matt Black, Ring Mega can be dimmable upon request.
SOME APPLICATION EXAMPLES

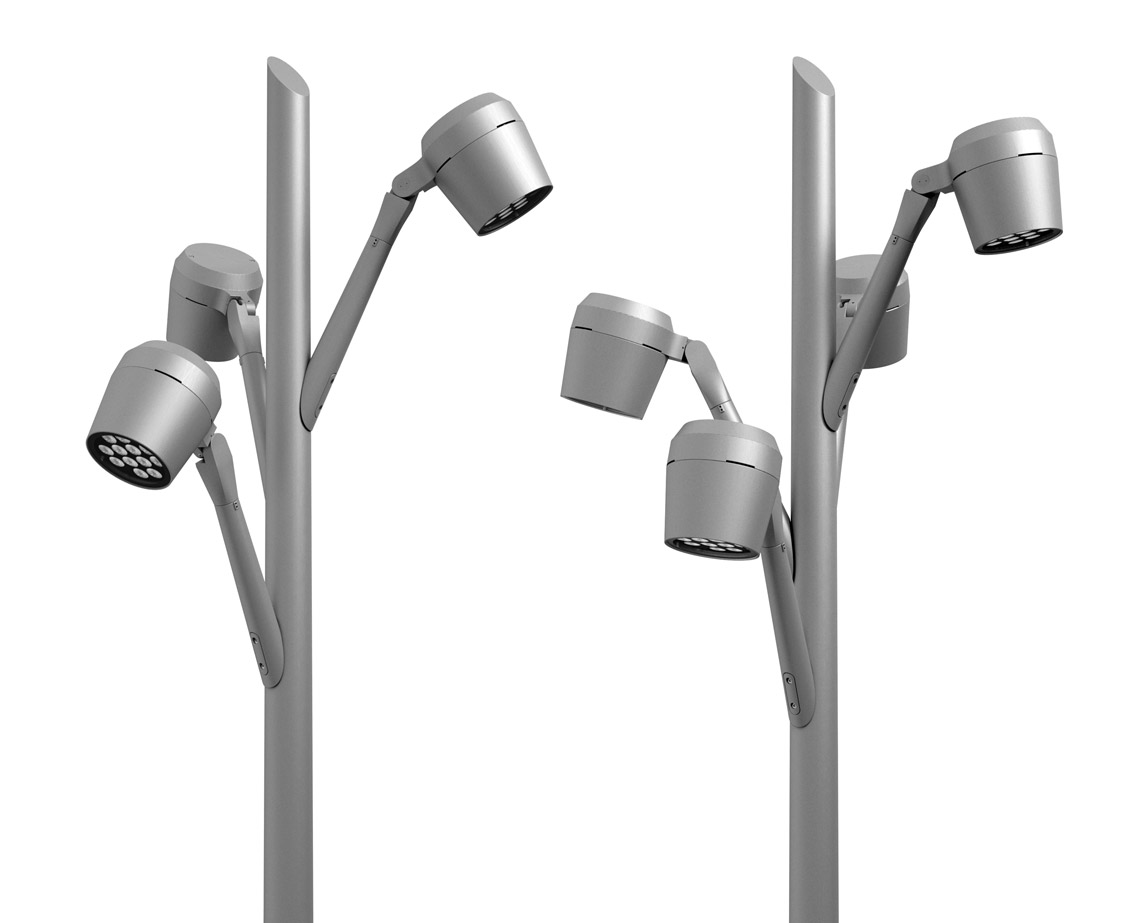

3 X RING MEGA
ON VARIOUS STAGGERED
LEVELS ON THE SAME POLE

4 X RING MEGA
ON VARIOUS STAGGERED
LEVELS ON THE SAME POLE
OPTIONAL

AC087
HONEYCOMB
LOUVER

AC086

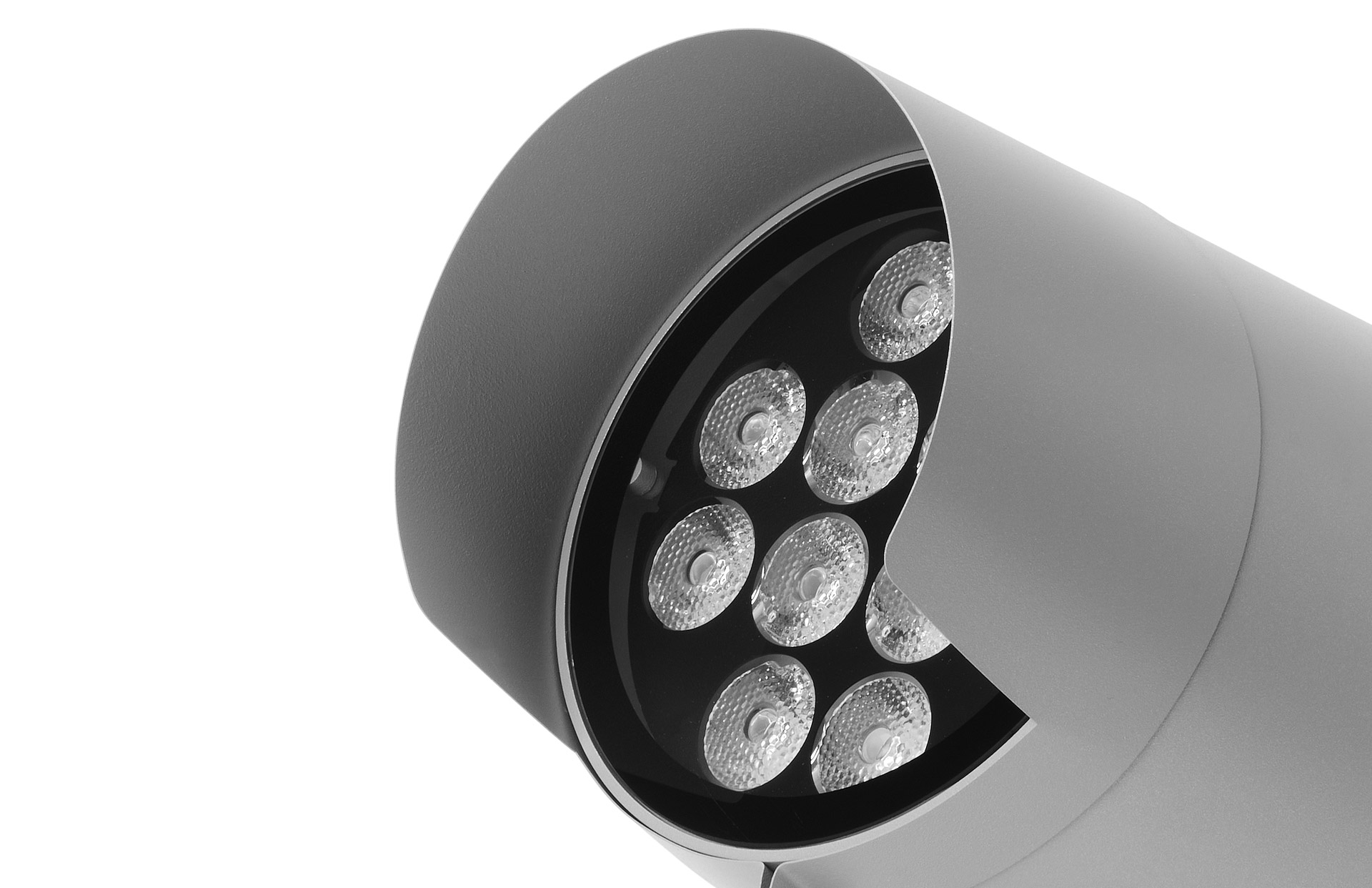

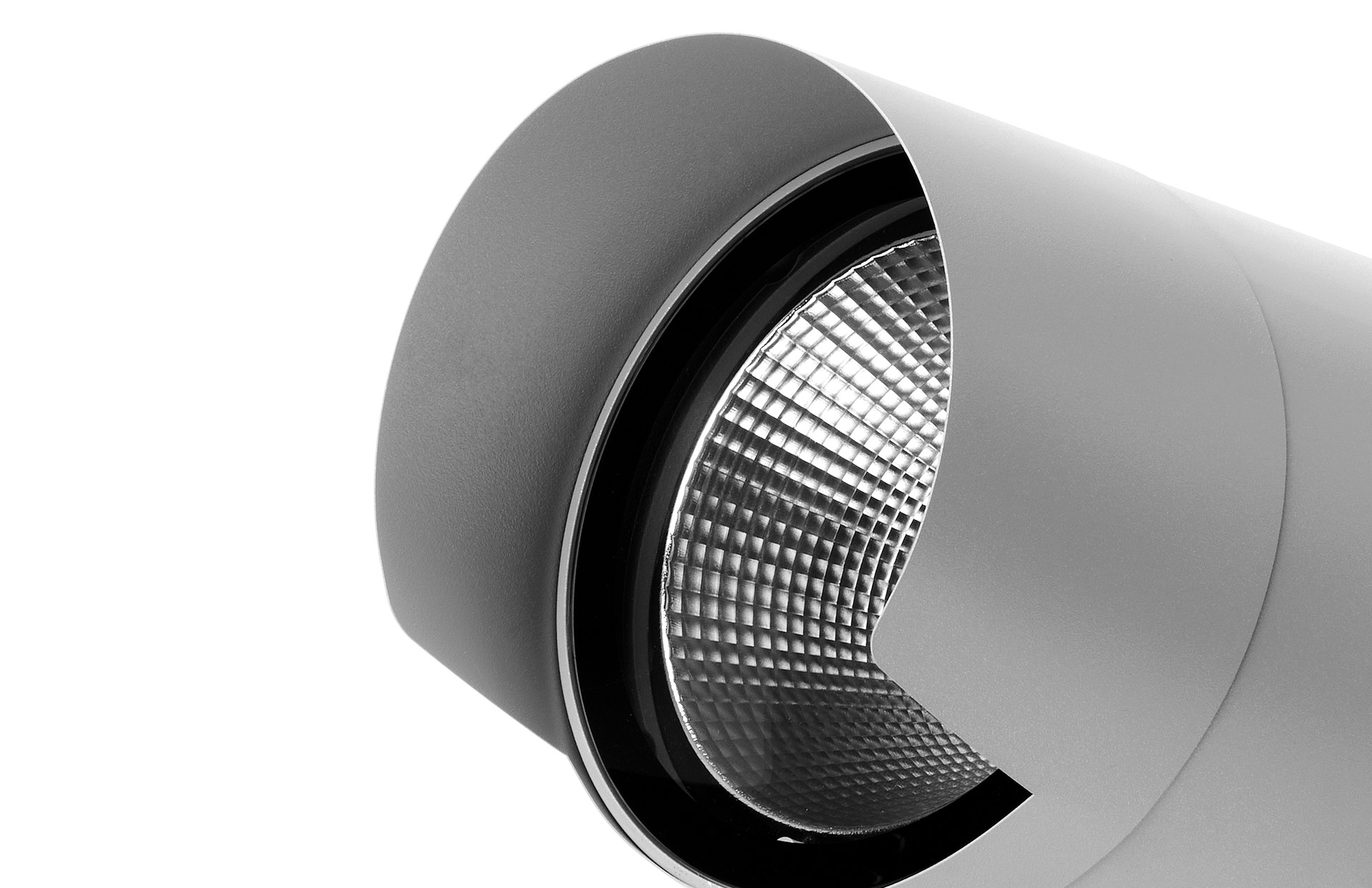

ANTI-GLARE
VISOR

AC103
SPIKE

AC038
TREE STRAP
FOR RING SERIES

AC089
TREE-BRANCH BRACKET

AC085
POLE PLATE

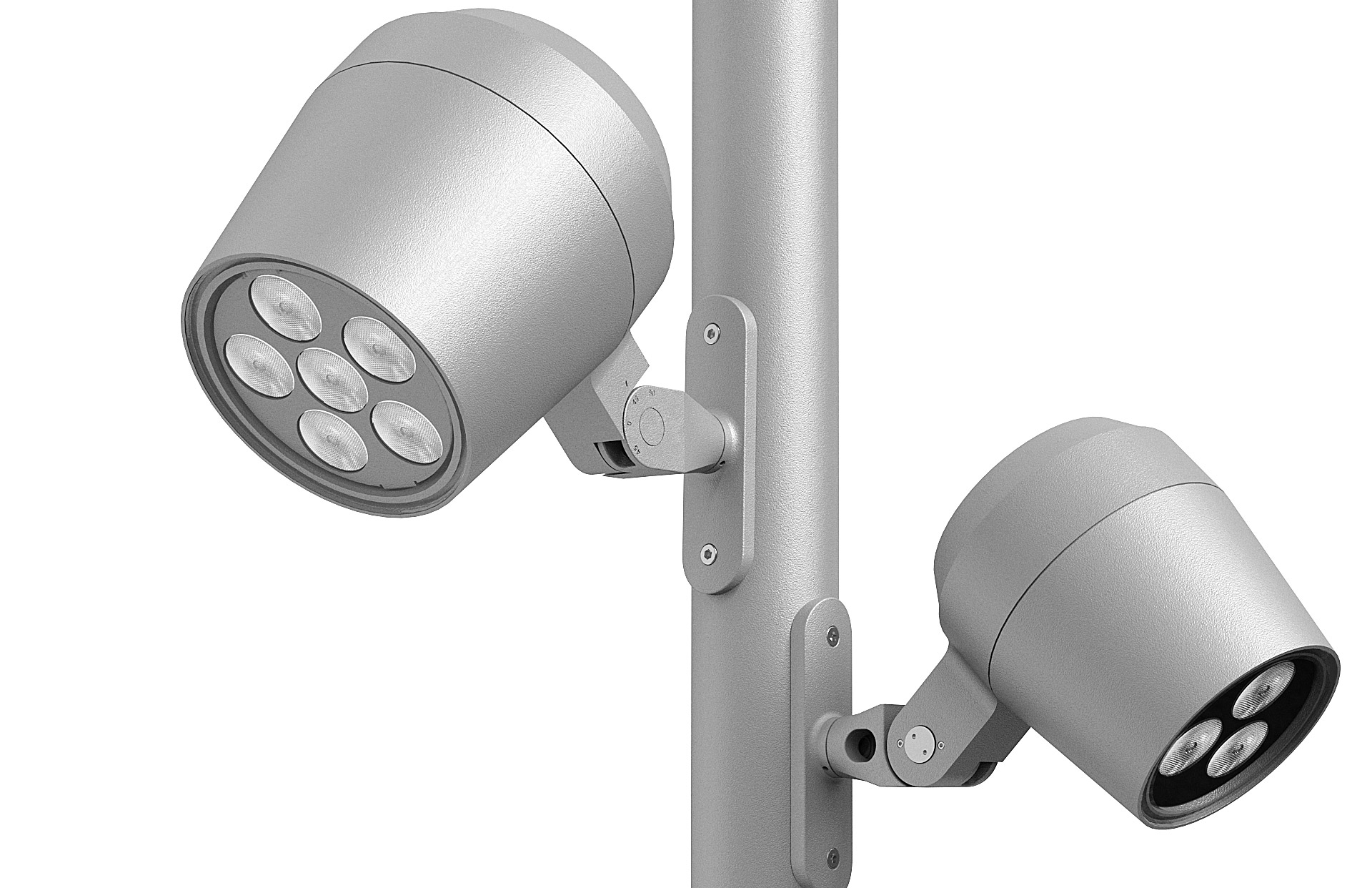

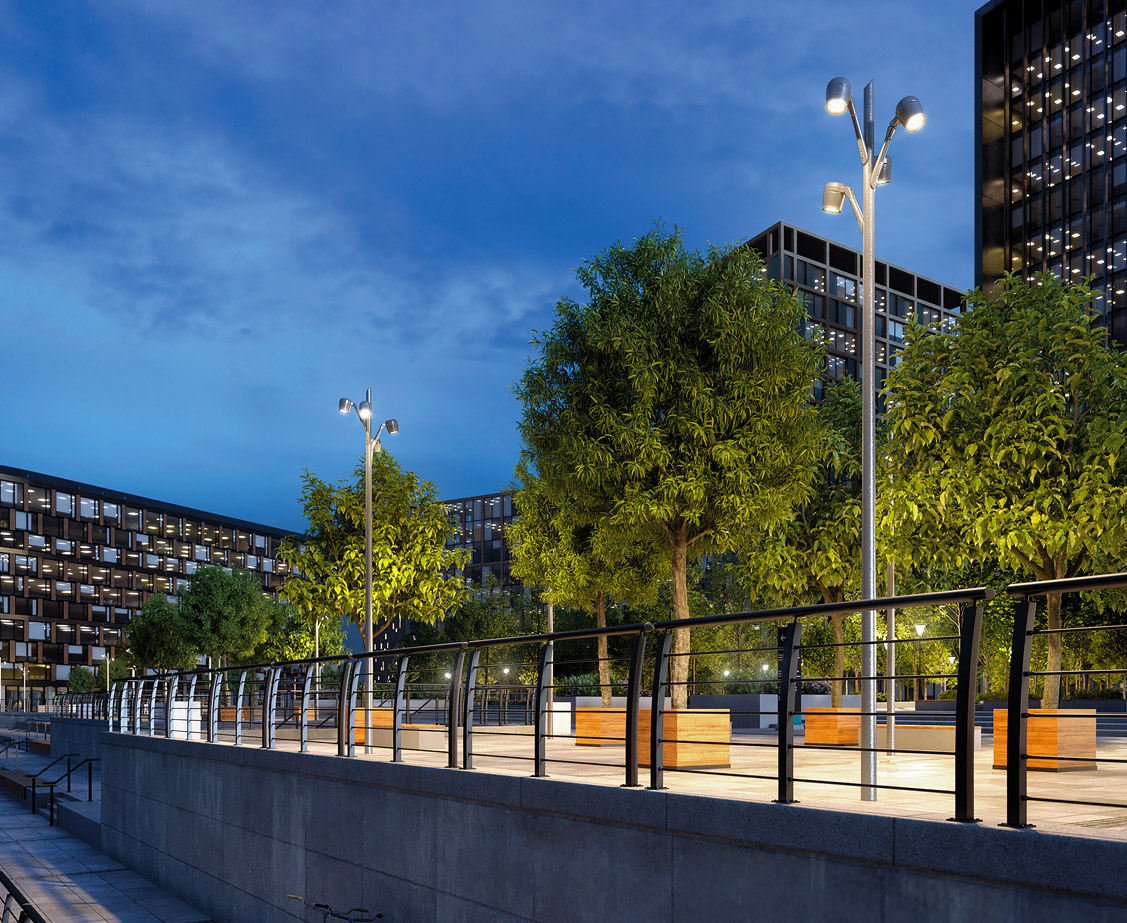

LUMINAIRE SUITABLE FOR POLE MOUNTING IN SINGLE OR MULTIPLE COMBINATIONS

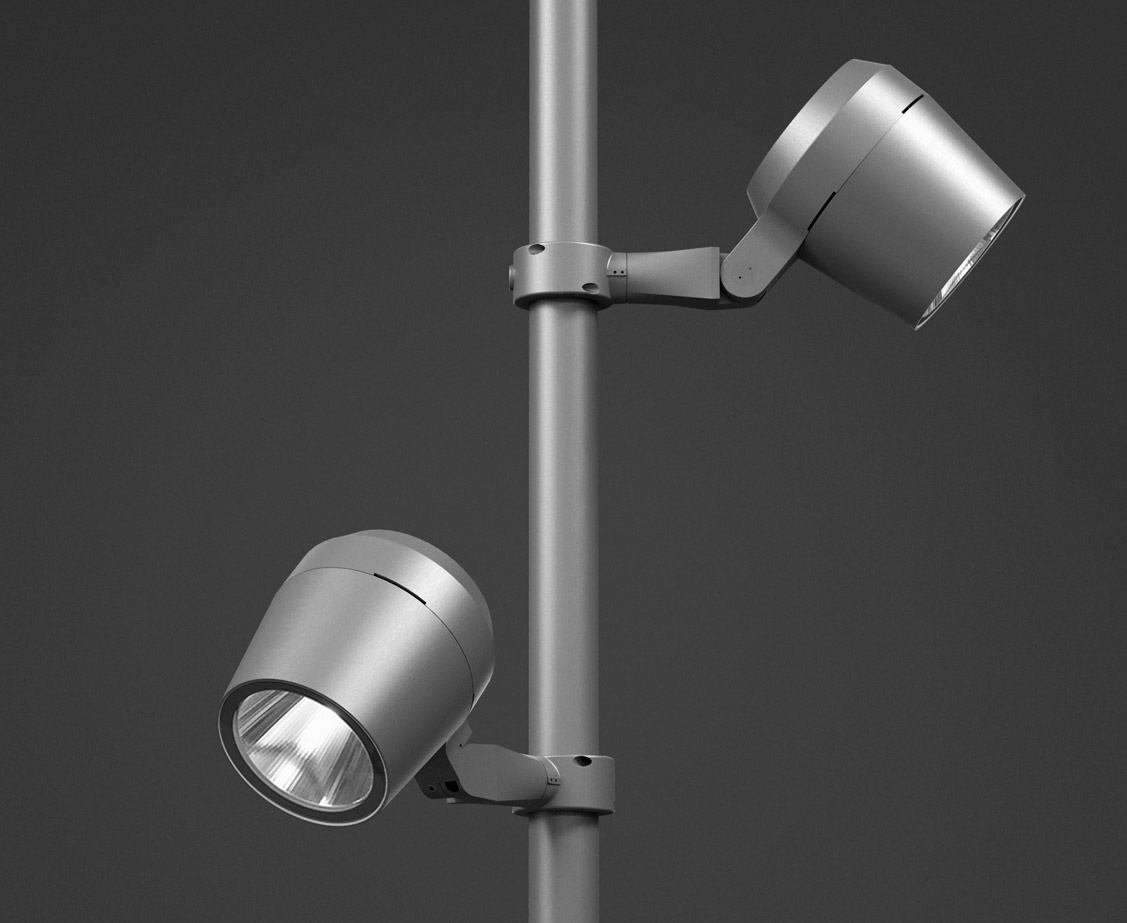

AC085 – POLE PLATE
Pole plate for pole mounting of all Ring models, suitable to be used with poles diam. min 76 mm and diam. max 120 mm. Can be positioned on various staggered levels or on a single level, with the same pole. Made in phosphochromatised and polyester powder coated dia-cast copper-free aluminum material, mouled silicone gaskets and screws in stainless steel.

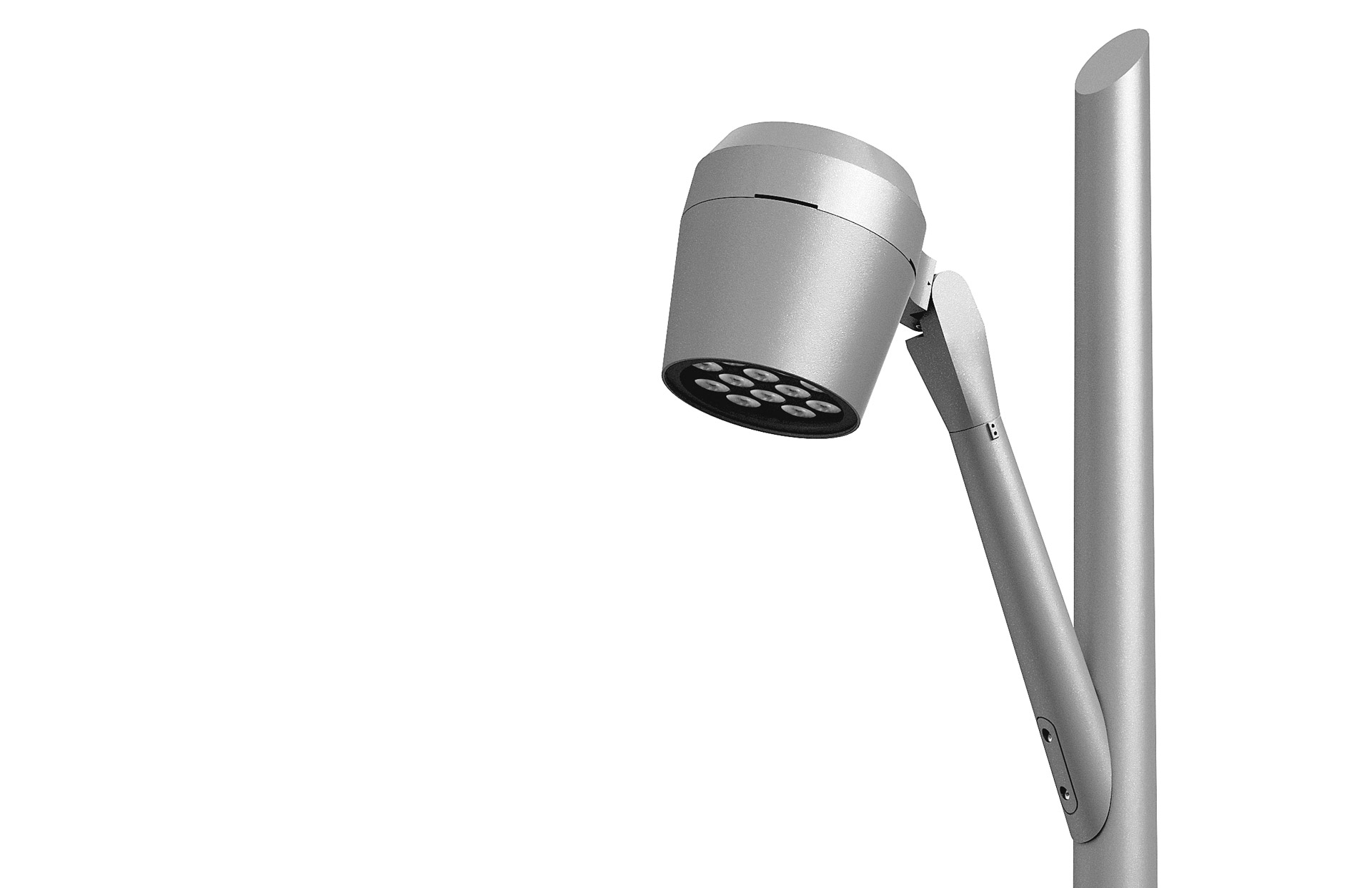

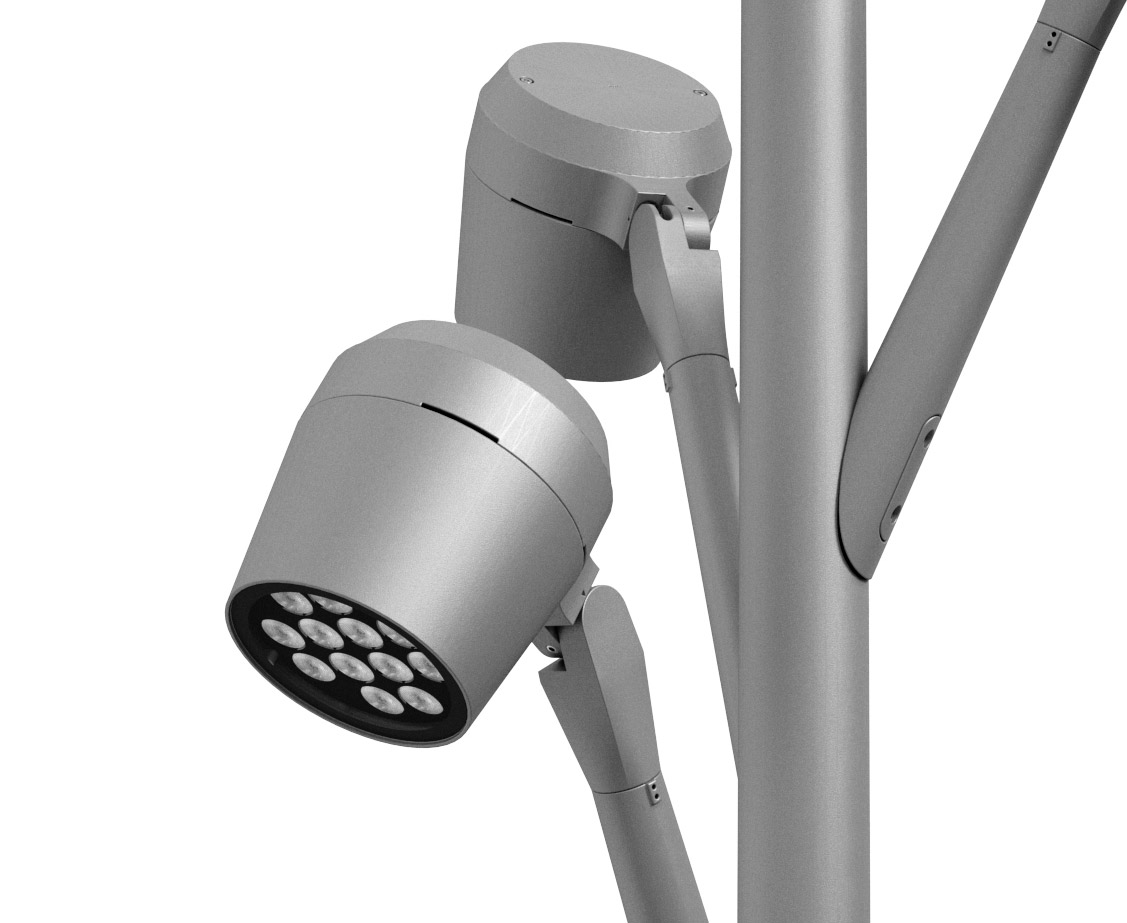

AC089 – TREE-BRANCH BRACKET
Special bracket for Ring Mega pole mounting, suitable to be used with poles diam. min 76 mm and diam. max 120 mm. Can be positioned on various staggered levels or on a single level, with the same pole. Made in phosphochromatised and polyester powder coated dia-cast copper-free aluminum material, mouled silicone gaskets and screws in stainless steel.
