PLAZA

A VERY NICE
& ELEGANT

Nava+Arosio Studio

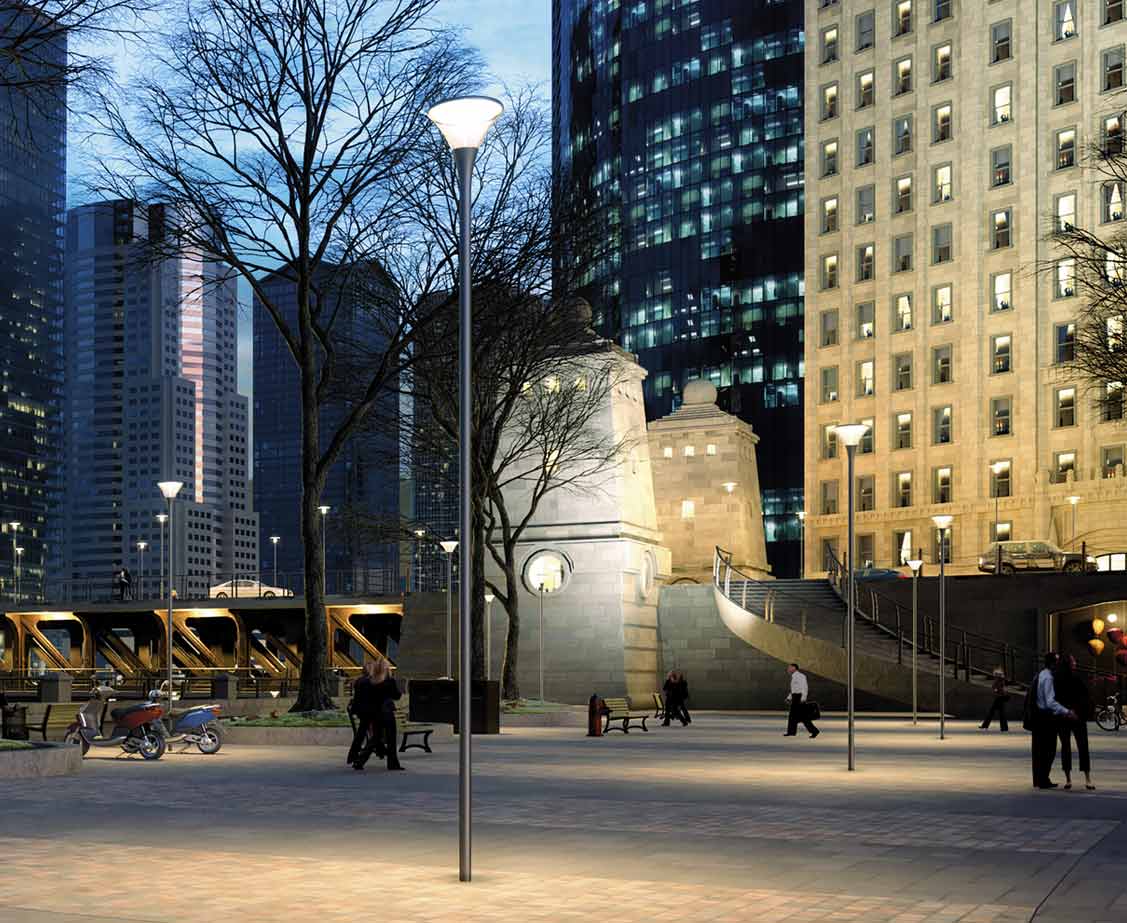

A very nice & elegant pole top luminaire,

the design details and the homogeneous and non-glaring light distribution will help designers searching for the right product that can illuminate but also furnish an urban context in the right way. For plazas, but not only !

809001

PLAZA 25

809002

PLAZA 45

809003

PLAZA 70

PLAZA

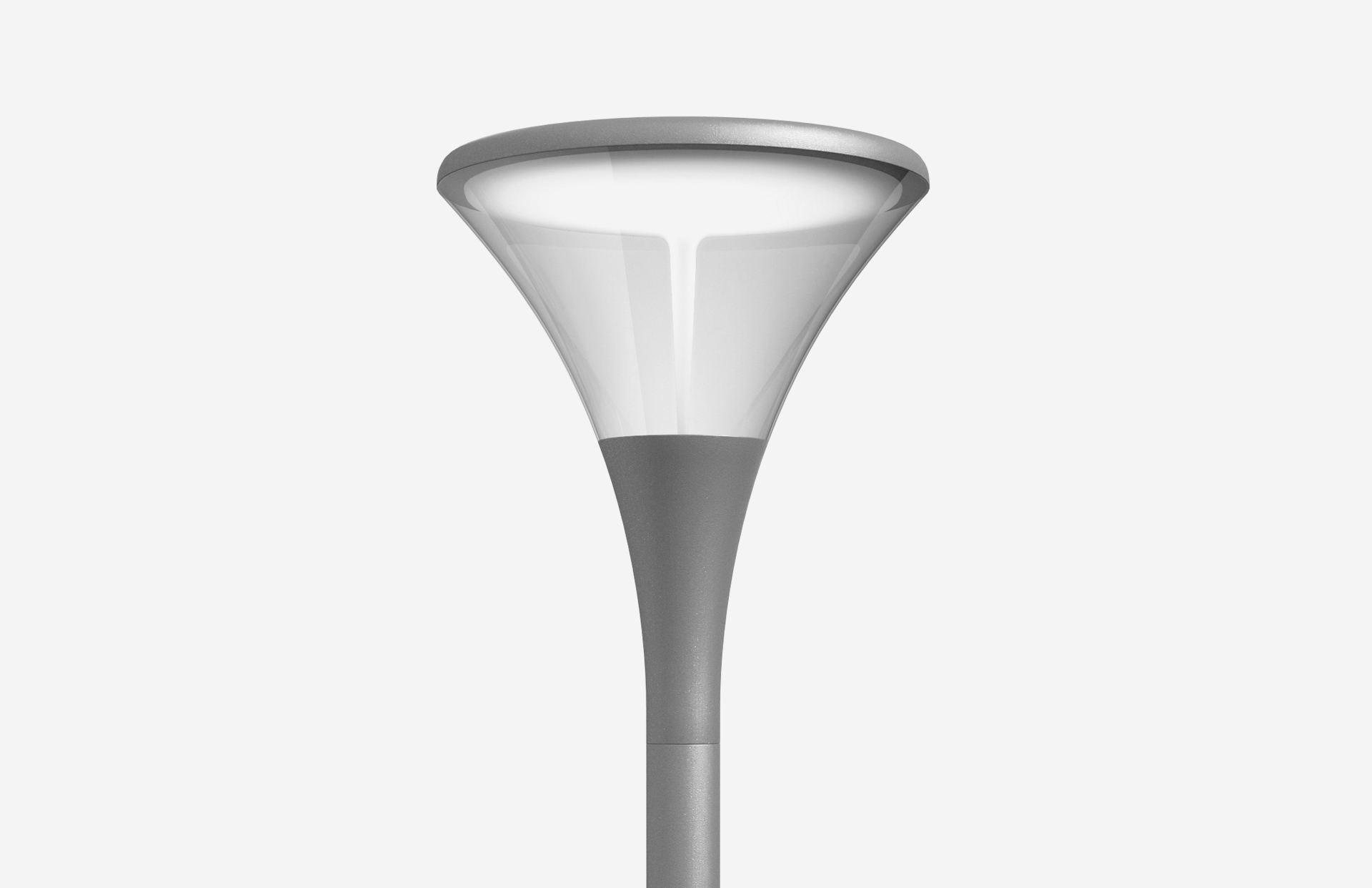

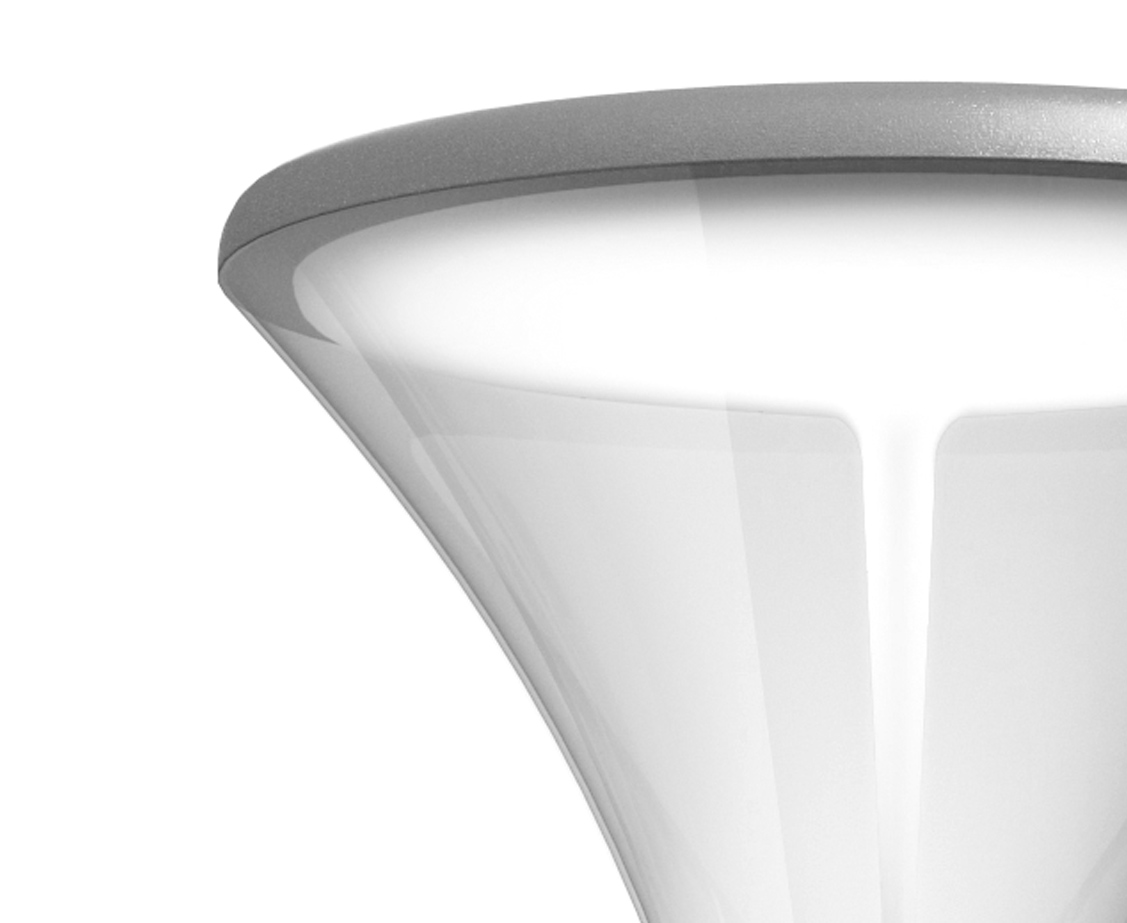

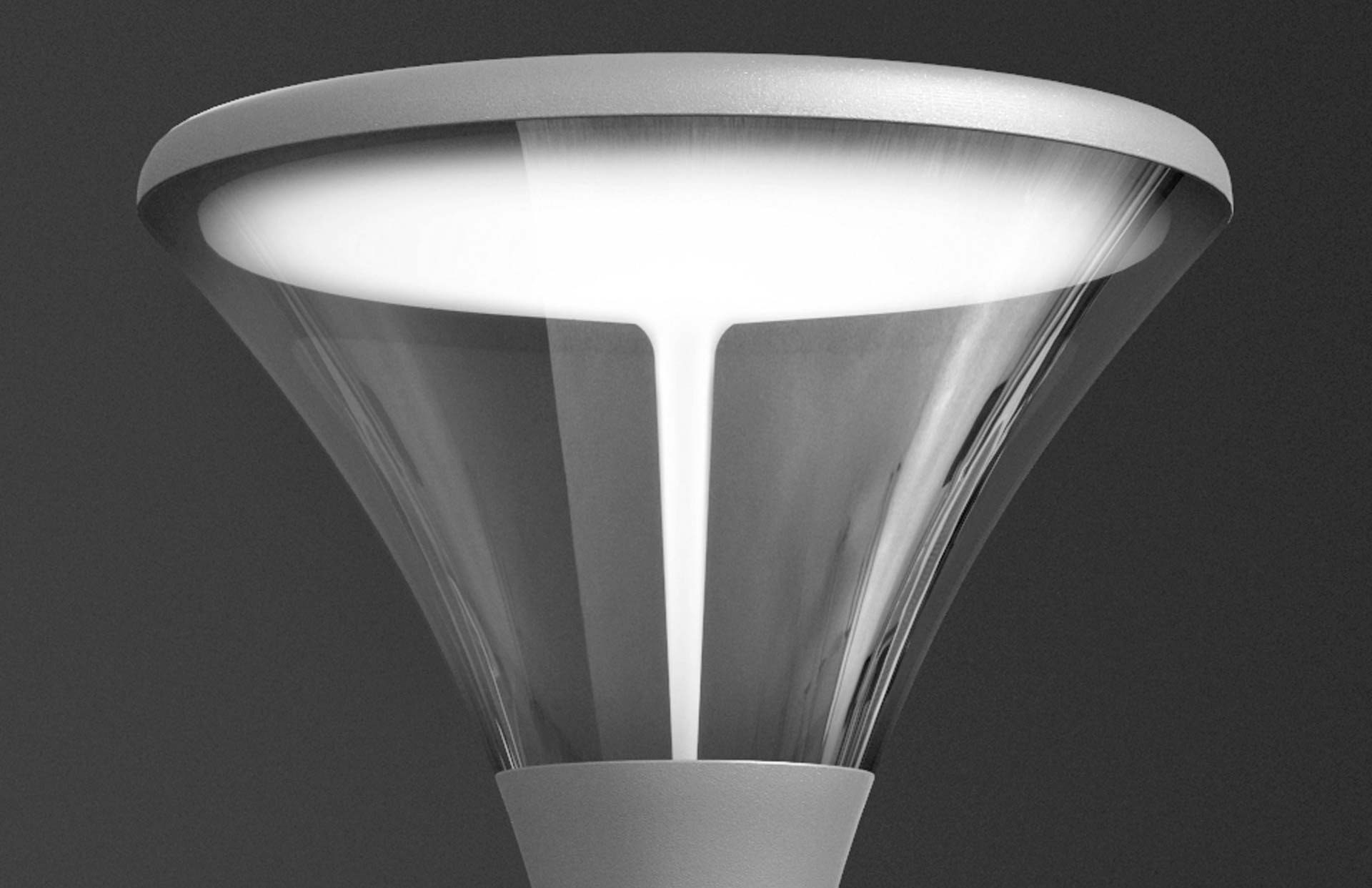

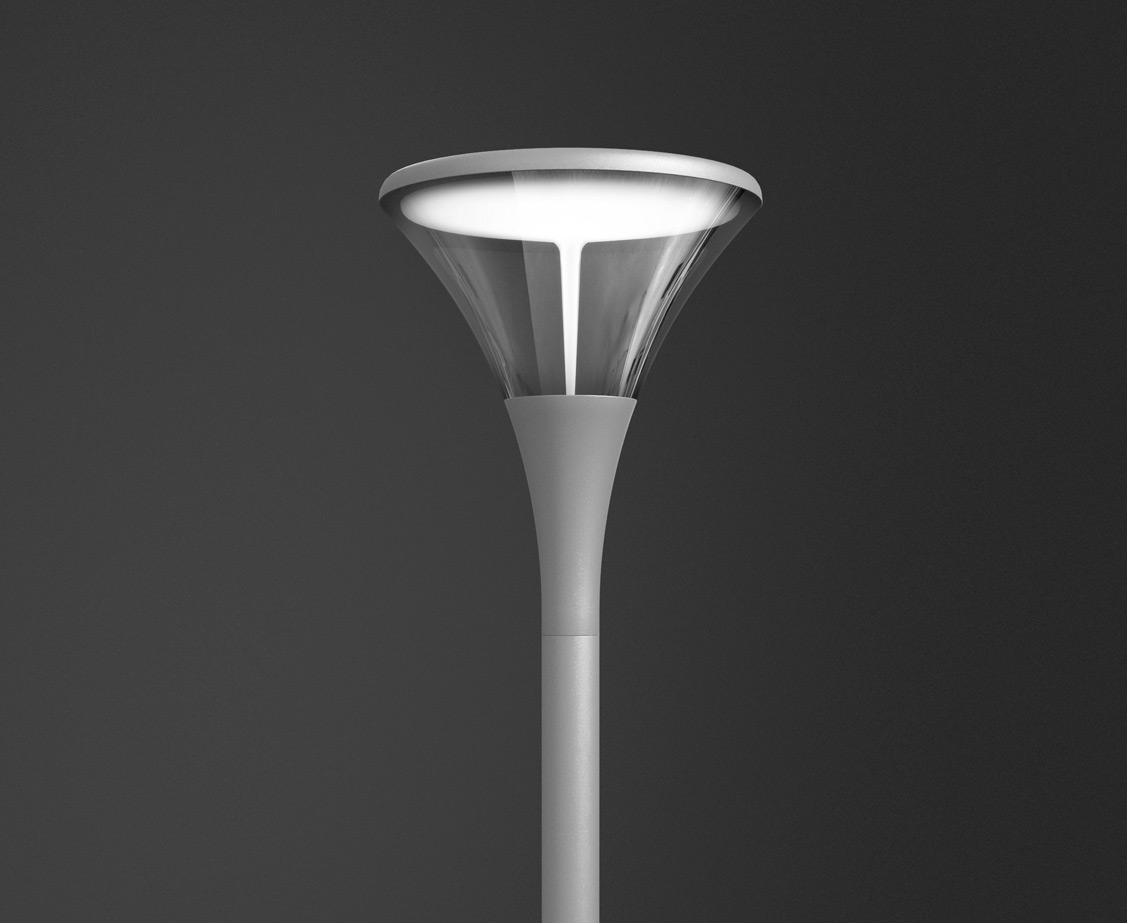

Round pole-top mounted luminaire for outdoor installation on a pole diam. 60 mm (or 76 mm using pole adapter). Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, polycarbonate di user, moulded silicone gasket and stainless steel screws Built-in LED driver 220-240V 50-60Hz, with 50 x Lumileds / Luxeon DS207 LED. IP66 rating.

  • WATT min 25 – max 70
  • LUMEN PACKAGE 2.063 – 5.870

IP66 | IK 10 | CE | 5 YEARS | CLASSE II | DALI | 1-10 V

FINISH COLOR OPTION

TEXTURED GRAY

RAL 9006

ANTHRACITE GREY

RAL 7016

MATT BLACK

(on request)

Available in 3 colours, Textured Grey, Anthracite Grey and Matt Black, Plaza can be dimmable upon request.

DOWNLOAD

DATA SHEET

PDF 245 Kb

Download

PRODUCT BROCHURE

PDF 245 Kb

Download
