Wall applique for outdoor wall installation, with one side light distribution. Luminaire body is made of extruded copper-free aluminum, secured with die-cast aluminum base, tempered safety glass and stainless steel screws. Built-in LED driver 220-240V 50-60Hz, with nr. 5 CREE XP-G3 LED. IP66 rating.

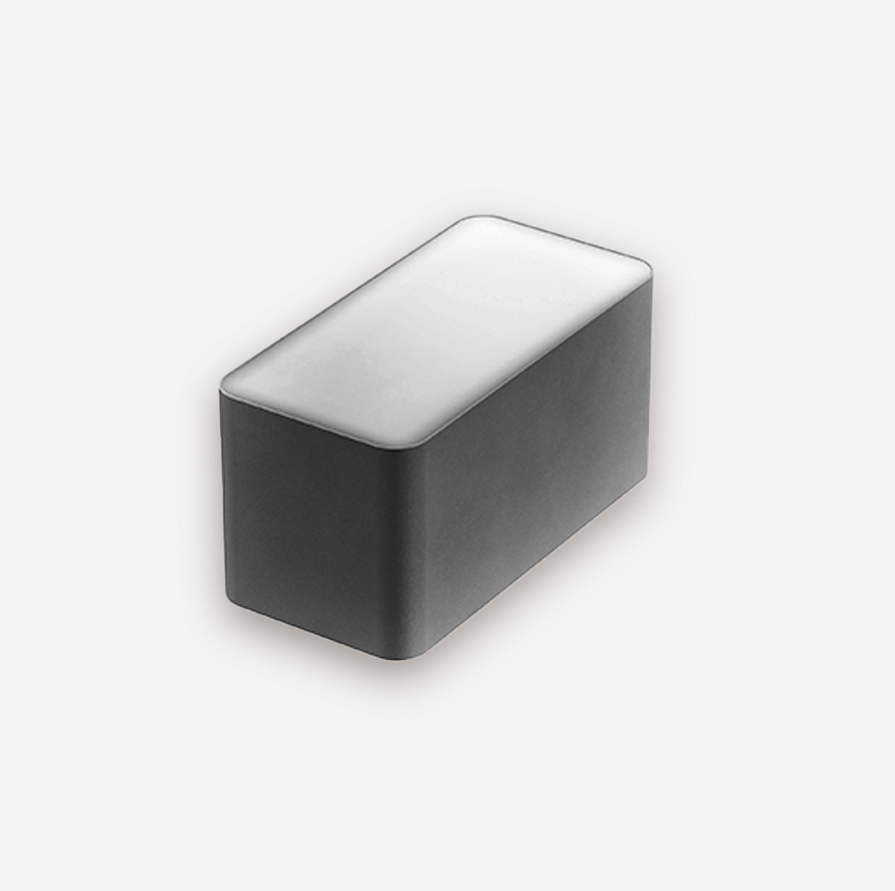

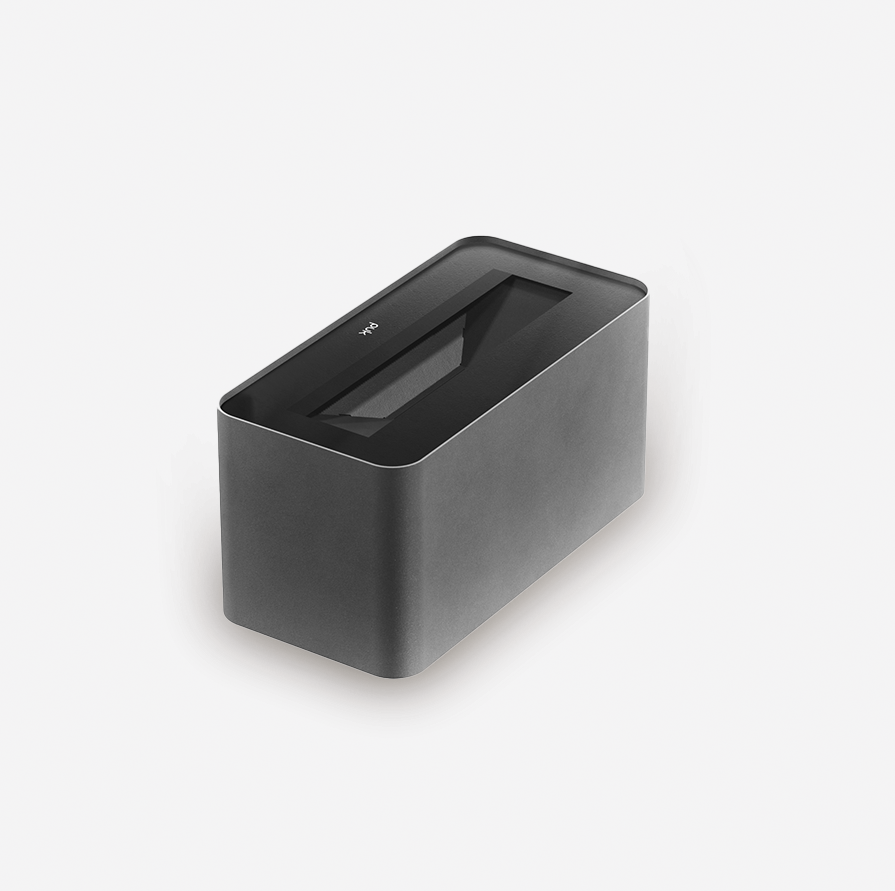

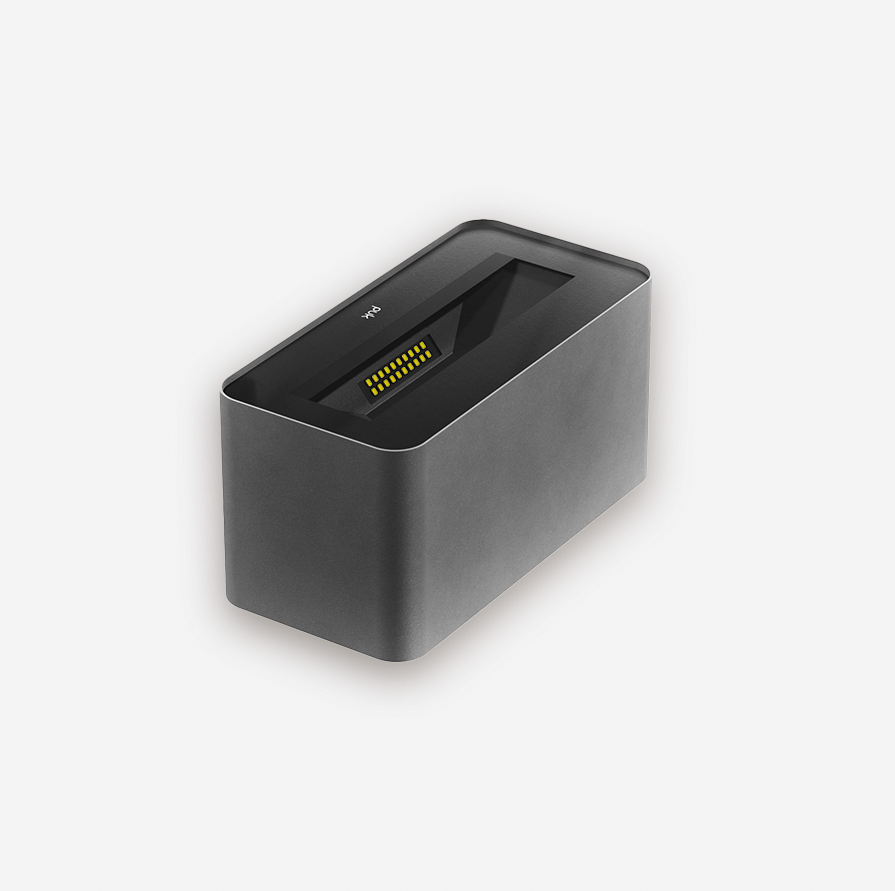

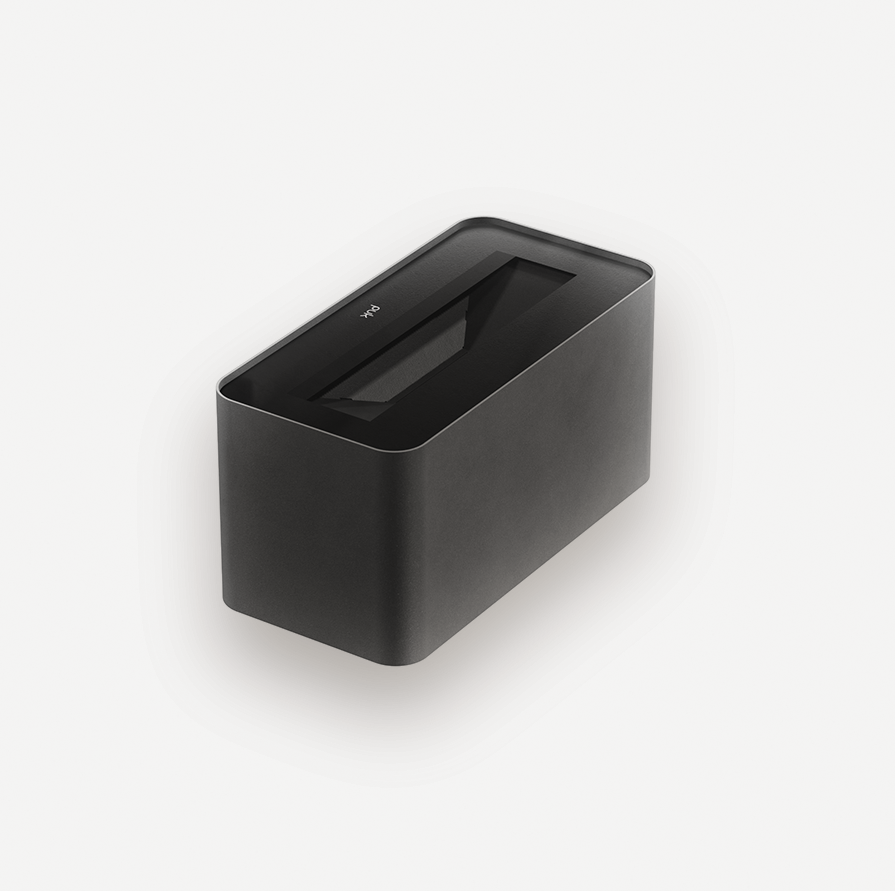

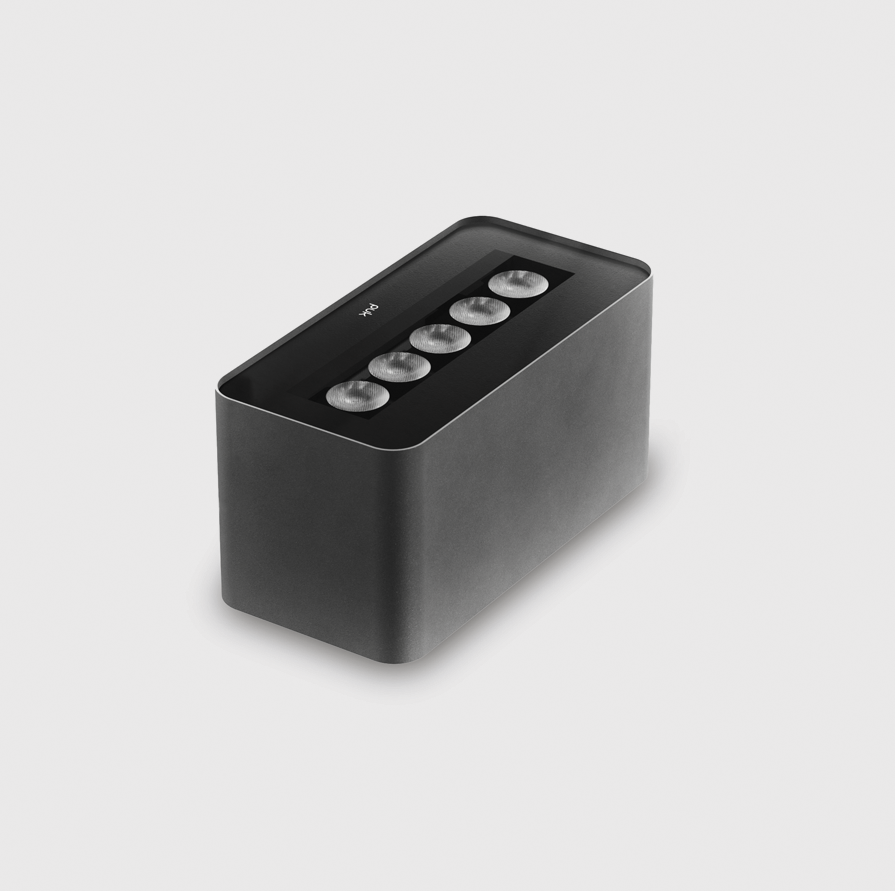

Product IMAGE

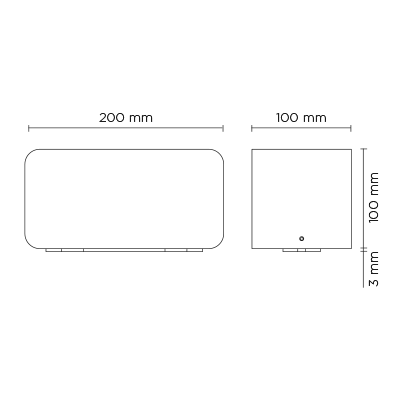

Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 403201.27.E1.03.0 | 7W | 2700K | elliptical 45x10 | 520 |
RAL9005 |
ON/OFF | ||
| 403201.27.E1.03.D | 7W | 2700K | elliptical 45x10 | 520 |
RAL9005 |
DALI | ||
| 403201.27.E1.02.0 | 7W | 2700K | elliptical 45x10 | 520 |
RAL7016 |
ON/OFF | ||
| 403201.27.E1.02.D | 7W | 2700K | elliptical 45x10 | 520 |
RAL7016 |
DALI | ||
| 403201.27.E1.01.0 | 7W | 2700K | elliptical 45x10 | 520 |
RAL9006 |
ON/OFF | ||
| 403201.27.E1.01.D | 7W | 2700K | elliptical 45x10 | 520 |
RAL9006 |
DALI | ||
| 403201.27.11.01.D | 7W | 2700K | 11° | 550 |
RAL9006 |
DALI | ||
| 403201.27.11.03.0 | 7W | 2700K | 11° | 550 |
RAL9005 |
ON/OFF | ||
| 403201.27.11.03.D | 7W | 2700K | 11° | 550 |
RAL9005 |
DALI | ||
| 403201.27.11.02.0 | 7W | 2700K | 11° | 550 |
RAL7016 |
ON/OFF | ||
| 403201.27.11.02.D | 7W | 2700K | 11° | 550 |
RAL7016 |
DALI | ||
| 403201.27.11.01.0 | 7W | 2700K | 11° | 550 |
RAL9006 |
ON/OFF | ||
| 403201.27.30.03.0 | 7W | 2700K | 30° | 525 |
RAL9005 |
ON/OFF | ||
| 403201.27.30.03.D | 7W | 2700K | 30° | 525 |
RAL9005 |
DALI | ||
| 403201.27.30.02.0 | 7W | 2700K | 30° | 525 |
RAL7016 |
ON/OFF | ||
| 403201.27.30.02.D | 7W | 2700K | 30° | 525 |
RAL7016 |
DALI | ||
| 403201.27.30.01.0 | 7W | 2700K | 30° | 525 |
RAL9006 |
ON/OFF | ||
| 403201.27.30.01.D | 7W | 2700K | 30° | 525 |
RAL9006 |
DALI | ||
| 403201.27.60.03.0 | 7W | 2700K | 60° | 500 |
RAL9005 |
ON/OFF | ||
| 403201.27.60.03.D | 7W | 2700K | 60° | 500 |
RAL9005 |
DALI | ||
| 403201.27.60.02.0 | 7W | 2700K | 60° | 500 |
RAL7016 |
ON/OFF | ||
| 403201.27.60.02.D | 7W | 2700K | 60° | 500 |
RAL7016 |
DALI | ||
| 403201.27.60.01.0 | 7W | 2700K | 60° | 500 |
RAL9006 |
ON/OFF | ||
| 403201.27.60.01.D | 7W | 2700K | 60° | 500 |
RAL9006 |
DALI | ||
| 403201.30.E1.03.0 | 7W | 3000K | elliptical 45x10 | 530 |
RAL9005 |
ON/OFF | ||
| 403201.30.E1.03.D | 7W | 3000K | elliptical 45x10 | 530 |
RAL9005 |
DALI | ||
| 403201.30.E1.02.0 | 7W | 3000K | elliptical 45x10 | 530 |
RAL7016 |
ON/OFF | ||
| 403201.30.E1.02.D | 7W | 3000K | elliptical 45x10 | 530 |
RAL7016 |
DALI | ||
| 403201.30.E1.01.0 | 7W | 3000K | elliptical 45x10 | 530 |
RAL9006 |
ON/OFF | ||
| 403201.30.E1.01.D | 7W | 3000K | elliptical 45x10 | 530 |
RAL9006 |
DALI | ||
| 403201.30.11.03.0 | 7W | 3000K | 11° | 560 |
RAL9005 |
ON/OFF | ||
| 403201.30.11.03.D | 7W | 3000K | 11° | 560 |
RAL9005 |
DALI | ||
| 403201.30.11.02.0 | 7W | 3000K | 11° | 560 |
RAL7016 |
ON/OFF | ||
| 403201.30.11.02.D | 7W | 3000K | 11° | 560 |
RAL7016 |
DALI | ||
| 403201.30.11.01.0 | 7W | 3000K | 11° | 560 |
RAL9006 |
ON/OFF | ||
| 403201.30.11.01.D | 7W | 3000K | 11° | 560 |
RAL9006 |
DALI | ||
| 403201.30.30.03.0 | 7W | 3000K | 30° | 535 |
RAL9005 |
ON/OFF | ||
| 403201.30.30.03.D | 7W | 3000K | 30° | 535 |
RAL9005 |
DALI | ||
| 403201.30.30.02.0 | 7W | 3000K | 30° | 535 |
RAL7016 |
ON/OFF | ||
| 403201.30.30.02.D | 7W | 3000K | 30° | 535 |
RAL7016 |
DALI | ||
| 403201.30.30.01.0 | 7W | 3000K | 30° | 535 |
RAL9006 |
ON/OFF | ||
| 403201.30.30.01.D | 7W | 3000K | 30° | 535 |
RAL9006 |
DALI | ||
| 403201.30.60.03.0 | 7W | 3000K | 60° | 510 |
RAL9005 |
ON/OFF | ||
| 403201.30.60.03.D | 7W | 3000K | 60° | 510 |
RAL9005 |
DALI | ||
| 403201.30.60.02.0 | 7W | 3000K | 60° | 510 |
RAL7016 |
ON/OFF | ||
| 403201.30.60.02.D | 7W | 3000K | 60° | 510 |
RAL7016 |
DALI | ||
| 403201.30.60.01.0 | 7W | 3000K | 60° | 510 |
RAL9006 |
ON/OFF | ||
| 403201.30.60.01.D | 7W | 3000K | 60° | 510 |
RAL9006 |
DALI | ||
| 403201.40.E1.03.0 | 7W | 4000K | elliptical 45x10 | 540 |
RAL9005 |
ON/OFF | ||
| 403201.40.E1.03.D | 7W | 4000K | elliptical 45x10 | 540 |
RAL9005 |
DALI | ||
| 403201.40.E1.02.0 | 7W | 4000K | elliptical 45x10 | 540 |
RAL7016 |
ON/OFF | ||
| 403201.40.E1.02.D | 7W | 4000K | elliptical 45x10 | 540 |
RAL7016 |
DALI | ||
| 403201.40.E1.01.0 | 7W | 4000K | elliptical 45x10 | 540 |
RAL9006 |
ON/OFF | ||
| 403201.40.E1.01.D | 7W | 4000K | elliptical 45x10 | 540 |
RAL9006 |
DALI | ||
| 403201.40.11.03.0 | 7W | 4000K | 11° | 570 |
RAL9005 |
ON/OFF | ||
| 403201.40.11.03.D | 7W | 4000K | 11° | 570 |
RAL9005 |
DALI | ||
| 403201.40.11.02.0 | 7W | 4000K | 11° | 570 |
RAL7016 |
ON/OFF | ||
| 403201.40.11.02.D | 7W | 4000K | 11° | 570 |
RAL7016 |
DALI | ||
| 403201.40.11.01.0 | 7W | 4000K | 11° | 570 |
RAL9006 |
ON/OFF | ||
| 403201.40.11.01.D | 7W | 4000K | 11° | 570 |
RAL9006 |
DALI | ||
| 403201.40.30.03.0 | 7W | 4000K | 30° | 545 |
RAL9005 |
ON/OFF | ||
| 403201.40.30.03.D | 7W | 4000K | 30° | 545 |
RAL9005 |
DALI | ||
| 403201.40.30.02.0 | 7W | 4000K | 30° | 545 |
RAL7016 |
ON/OFF | ||
| 403201.40.30.02.D | 7W | 4000K | 30° | 545 |
RAL7016 |
DALI | ||
| 403201.40.30.01.0 | 7W | 4000K | 30° | 545 |
RAL9006 |
ON/OFF | ||
| 403201.40.30.01.D | 7W | 4000K | 30° | 545 |
RAL9006 |
DALI | ||
| 403201.40.60.03.0 | 7W | 4000K | 60° | 520 |
RAL9005 |
ON/OFF | ||
| 403201.40.60.03.D | 7W | 4000K | 60° | 520 |
RAL9005 |
DALI | ||
| 403201.40.60.02.0 | 7W | 4000K | 60° | 520 |
RAL7016 |
ON/OFF | ||
| 403201.40.60.02.D | 7W | 4000K | 60° | 520 |
RAL7016 |
DALI | ||
| 403201.40.60.01.0 | 7W | 4000K | 60° | 520 |
RAL9006 |
ON/OFF | ||
| 403201.40.60.01.D | 7W | 4000K | 60° | 520 |
RAL9006 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 403202.27.SW.03.0 | 8W | 2700K | symmetric wide | 560 |
RAL9005 |
ON/OFF | ||
| 403202.27.SW.03.D | 8W | 2700K | symmetric wide | 560 |
RAL9005 |
DALI | ||
| 403202.27.SW.02.0 | 8W | 2700K | symmetric wide | 560 |
RAL7016 |
ON/OFF | ||
| 403202.27.SW.02.D | 8W | 2700K | symmetric wide | 560 |
RAL7016 |
DALI | ||
| 403202.27.SW.01.0 | 8W | 2700K | symmetric wide | 560 |
RAL9006 |
ON/OFF | ||
| 403202.27.SW.01.D | 8W | 2700K | symmetric wide | 560 |
RAL9006 |
DALI | ||
| 403202.30.SW.03.0 | 8W | 3000K | symmetric wide | 570 |
RAL9005 |
ON/OFF | ||
| 403202.30.SW.03.D | 8W | 3000K | symmetric wide | 570 |
RAL9005 |
DALI | ||
| 403202.30.SW.02.0 | 8W | 3000K | symmetric wide | 570 |
RAL7016 |
ON/OFF | ||
| 403202.30.SW.02.D | 8W | 3000K | symmetric wide | 570 |
RAL7016 |
DALI | ||
| 403202.30.SW.01.0 | 8W | 3000K | symmetric wide | 570 |
RAL9006 |
ON/OFF | ||
| 403202.30.SW.01.D | 8W | 3000K | symmetric wide | 570 |
RAL9006 |
DALI | ||
| 403202.40.SW.03.0 | 8W | 4000K | symmetric wide | 590 |
RAL9005 |
ON/OFF | ||
| 403202.40.SW.03.D | 8W | 4000K | symmetric wide | 590 |
RAL9005 |
DALI | ||
| 403202.40.SW.02.0 | 8W | 4000K | symmetric wide | 590 |
RAL7016 |
ON/OFF | ||
| 403202.40.SW.02.D | 8W | 4000K | symmetric wide | 590 |
RAL7016 |
DALI | ||
| 403202.40.SW.01.0 | 8W | 4000K | symmetric wide | 590 |
RAL9006 |
ON/OFF | ||
| 403202.40.SW.01.D | 8W | 4000K | symmetric wide | 590 |
RAL9006 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 403203.27.AB.03.0 | 8W | 2700K | asymmetric backward | 560 |
RAL9005 |
ON/OFF | ||
| 403203.27.AB.03.D | 8W | 2700K | asymmetric backward | 560 |
RAL9005 |
DALI | ||
| 403203.27.AB.02.0 | 8W | 2700K | asymmetric backward | 560 |
RAL7016 |
ON/OFF | ||
| 403203.27.AB.02.D | 8W | 2700K | asymmetric backward | 560 |
RAL7016 |
DALI | ||
| 403203.27.AB.01.0 | 8W | 2700K | asymmetric backward | 560 |
RAL9006 |
ON/OFF | ||
| 403203.27.AB.01.D | 8W | 2700K | asymmetric backward | 560 |
RAL9006 |
DALI | ||
| 403203.27.AF.03.0 | 8W | 2700K | asymmetric forward | 560 |
RAL9005 |
ON/OFF | ||
| 403203.27.AF.03.D | 8W | 2700K | asymmetric forward | 560 |
RAL9005 |
DALI | ||
| 403203.27.AF.02.0 | 8W | 2700K | asymmetric forward | 560 |
RAL7016 |
ON/OFF | ||
| 403203.27.AF.02.D | 8W | 2700K | asymmetric forward | 560 |
RAL7016 |
DALI | ||
| 403203.27.AF.01.0 | 8W | 2700K | asymmetric forward | 560 |
RAL9006 |
ON/OFF | ||
| 403203.27.AF.01.D | 8W | 2700K | asymmetric forward | 560 |
RAL9006 |
DALI | ||
| 403203.30.AB.03.0 | 8W | 3000K | asymmetric backward | 570 |
RAL9005 |
ON/OFF | ||
| 403203.30.AB.03.D | 8W | 3000K | asymmetric backward | 570 |
RAL9005 |
DALI | ||
| 403203.30.AB.02.0 | 8W | 3000K | asymmetric backward | 570 |
RAL7016 |
ON/OFF | ||
| 403203.30.AB.02.D | 8W | 3000K | asymmetric backward | 570 |
RAL7016 |
DALI | ||
| 403203.30.AB.01.0 | 8W | 3000K | asymmetric backward | 570 |
RAL9006 |
ON/OFF | ||
| 403203.30.AB.01.D | 8W | 3000K | asymmetric backward | 570 |
RAL9006 |
DALI | ||
| 403203.30.AF.03.0 | 8W | 3000K | asymmetric forward | 570 |
RAL9005 |
ON/OFF | ||
| 403203.30.AF.03.D | 8W | 3000K | asymmetric forward | 570 |
RAL9005 |
DALI | ||
| 403203.30.AF.02.0 | 8W | 3000K | asymmetric forward | 570 |
RAL7016 |
ON/OFF | ||
| 403203.30.AF.02.D | 8W | 3000K | asymmetric forward | 570 |
RAL7016 |
DALI | ||
| 403203.30.AF.01.0 | 8W | 3000K | asymmetric forward | 570 |
RAL9006 |
ON/OFF | ||
| 403203.30.AF.01.D | 8W | 3000K | asymmetric forward | 570 |
RAL9006 |
DALI | ||
| 403203.40.AB.03.0 | 8W | 4000K | asymmetric backward | 590 |
RAL9005 |
ON/OFF | ||
| 403203.40.AB.03.D | 8W | 4000K | asymmetric backward | 590 |
RAL9005 |
DALI | ||
| 403203.40.AB.02.0 | 8W | 4000K | asymmetric backward | 590 |
RAL7016 |
ON/OFF | ||
| 403203.40.AB.02.D | 8W | 4000K | asymmetric backward | 590 |
RAL7016 |
DALI | ||
| 403203.40.AB.01.0 | 8W | 4000K | asymmetric backward | 590 |
RAL9006 |
ON/OFF | ||
| 403203.40.AB.01.D | 8W | 4000K | asymmetric backward | 590 |
RAL9006 |
DALI | ||
| 403203.40.AF.03.0 | 8W | 4000K | asymmetric forward | 590 |
RAL9005 |
ON/OFF | ||
| 403203.40.AF.03.D | 8W | 4000K | asymmetric forward | 590 |
RAL9005 |
DALI | ||
| 403203.40.AF.02.0 | 8W | 4000K | asymmetric forward | 590 |
RAL7016 |
ON/OFF | ||
| 403203.40.AF.02.D | 8W | 4000K | asymmetric forward | 590 |
RAL7016 |
DALI | ||
| 403203.40.AF.01.0 | 8W | 4000K | asymmetric forward | 590 |
RAL9006 |
ON/OFF | ||
| 403203.40.AF.01.D | 8W | 4000K | asymmetric forward | 590 |
RAL9006 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 403204.27.DF.03.0 | 8W | 2700K | diffused | 200 |
RAL9005 |
ON/OFF | ||
| 403204.27.DF.03.D | 8W | 2700K | diffused | 200 |
RAL9005 |
DALI | ||
| 403204.27.DF.02.0 | 8W | 2700K | diffused | 200 |
RAL7016 |
ON/OFF | ||
| 403204.27.DF.02.D | 8W | 2700K | diffused | 200 |
RAL7016 |
DALI | ||
| 403204.27.DF.01.0 | 8W | 2700K | diffused | 200 |
RAL9006 |
ON/OFF | ||
| 403204.27.DF.01.D | 8W | 2700K | diffused | 200 |
RAL9006 |
DALI | ||
| 403204.30.DF.03.0 | 8W | 3000K | diffused | 210 |
RAL9005 |
ON/OFF | ||
| 403204.30.DF.03.D | 8W | 3000K | diffused | 210 |
RAL9005 |
DALI | ||
| 403204.30.DF.02.0 | 8W | 3000K | diffused | 210 |
RAL7016 |
ON/OFF | ||
| 403204.30.DF.02.D | 8W | 3000K | diffused | 210 |
RAL7016 |
DALI | ||
| 403204.30.DF.01.0 | 8W | 3000K | diffused | 210 |
RAL9006 |
ON/OFF | ||
| 403204.30.DF.01.D | 8W | 3000K | diffused | 210 |
RAL9006 |
DALI | ||
| 403204.40.DF.03.0 | 8W | 4000K | diffused | 220 |
RAL9005 |
ON/OFF | ||
| 403204.40.DF.03.D | 8W | 4000K | diffused | 220 |
RAL9005 |
DALI | ||
| 403204.40.DF.02.0 | 8W | 4000K | diffused | 220 |
RAL7016 |
ON/OFF | ||
| 403204.40.DF.02.D | 8W | 4000K | diffused | 220 |
RAL7016 |
DALI | ||
| 403204.40.DF.01.0 | 8W | 4000K | diffused | 220 |
RAL9006 |
ON/OFF | ||
| 403204.40.DF.01.D | 8W | 4000K | diffused | 220 |
RAL9006 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 403205.27.E1.03.0 | 14W | 2700K | elliptical 45x10 | 2x520 |
RAL9005 |
ON/OFF | ||
| 403205.27.E1.03.D | 14W | 2700K | elliptical 45x10 | 2x520 |
RAL9005 |
DALI | ||
| 403205.27.E1.02.0 | 14W | 2700K | elliptical 45x10 | 2x520 |
RAL7016 |
ON/OFF | ||
| 403205.27.E1.02.D | 14W | 2700K | elliptical 45x10 | 2x520 |
RAL7016 |
DALI | ||
| 403205.27.E1.01.0 | 14W | 2700K | elliptical 45x10 | 2x520 |
RAL9006 |
ON/OFF | ||
| 403205.27.E1.01.D | 14W | 2700K | elliptical 45x10 | 2x520 |
RAL9006 |
DALI | ||
| 403205.27.11.03.0 | 14W | 2700K | 11° | 2x550 |
RAL9005 |
ON/OFF | ||
| 403205.27.11.03.D | 14W | 2700K | 11° | 2x550 |
RAL9005 |
DALI | ||
| 403205.27.11.02.0 | 14W | 2700K | 11° | 2x550 |
RAL7016 |
ON/OFF | ||
| 403205.27.11.02.D | 14W | 2700K | 11° | 2x550 |
RAL7016 |
DALI | ||
| 403205.27.11.01.0 | 14W | 2700K | 11° | 2x550 |
RAL9006 |
ON/OFF | ||
| 403205.27.11.01.D | 14W | 2700K | 11° | 2x550 |
RAL9006 |
DALI | ||
| 403205.27.30.03.0 | 14W | 2700K | 30° | 2x525 |
RAL9005 |
ON/OFF | ||
| 403205.27.30.03.D | 14W | 2700K | 30° | 2x525 |
RAL9005 |
DALI | ||
| 403205.27.30.02.0 | 14W | 2700K | 30° | 2x525 |
RAL7016 |
ON/OFF | ||
| 403205.27.30.02.D | 14W | 2700K | 30° | 2x525 |
RAL7016 |
DALI | ||
| 403205.27.30.01.0 | 14W | 2700K | 30° | 2x525 |
RAL9006 |
ON/OFF | ||
| 403205.27.30.01.D | 14W | 2700K | 30° | 2x525 |
RAL9006 |
DALI | ||
| 403205.27.60.03.0 | 14W | 2700K | 60° | 2x500 |
RAL9005 |
ON/OFF | ||
| 403205.27.60.03.D | 14W | 2700K | 60° | 2x500 |
RAL9005 |
DALI | ||
| 403205.27.60.02.0 | 14W | 2700K | 60° | 2x500 |
RAL7016 |
ON/OFF | ||
| 403205.27.60.02.D | 14W | 2700K | 60° | 2x500 |
RAL7016 |
DALI | ||
| 403205.27.60.01.0 | 14W | 2700K | 60° | 2x500 |
RAL9006 |
ON/OFF | ||
| 403205.27.60.01.D | 14W | 2700K | 60° | 2x500 |
RAL9006 |
DALI | ||
| 403205.30.E1.03.0 | 14W | 3000K | elliptical 45x10 | 2x530 |
RAL9005 |
ON/OFF | ||
| 403205.30.E1.03.D | 14W | 3000K | elliptical 45x10 | 2x530 |
RAL9005 |
DALI | ||
| 403205.30.E1.02.0 | 14W | 3000K | elliptical 45x10 | 2x530 |
RAL7016 |
ON/OFF | ||
| 403205.30.E1.02.D | 14W | 3000K | elliptical 45x10 | 2x530 |
RAL7016 |
DALI | ||
| 403205.30.E1.01.0 | 14W | 3000K | elliptical 45x10 | 2x530 |
RAL9006 |
ON/OFF | ||
| 403205.30.E1.01.D | 14W | 3000K | elliptical 45x10 | 2x530 |
RAL9006 |
DALI | ||
| 403205.30.11.03.0 | 14W | 3000K | 11° | 2x560 |
RAL9005 |
ON/OFF | ||
| 403205.30.11.03.D | 14W | 3000K | 11° | 2x560 |
RAL9005 |
DALI | ||
| 403205.30.11.02.0 | 14W | 3000K | 11° | 2x560 |
RAL7016 |
ON/OFF | ||
| 403205.30.11.02.D | 14W | 3000K | 11° | 2x560 |
RAL7016 |
DALI | ||
| 403205.30.11.01.0 | 14W | 3000K | 11° | 2x560 |
RAL9006 |
ON/OFF | ||
| 403205.30.11.01.D | 14W | 3000K | 11° | 2x560 |
RAL9006 |
DALI | ||
| 403205.30.30.03.0 | 14W | 3000K | 30° | 2x535 |
RAL9005 |
ON/OFF | ||
| 403205.30.30.03.D | 14W | 3000K | 30° | 2x535 |
RAL9005 |
DALI | ||
| 403205.30.30.02.0 | 14W | 3000K | 30° | 2x535 |
RAL7016 |
ON/OFF | ||
| 403205.30.30.02.D | 14W | 3000K | 30° | 2x535 |
RAL7016 |
DALI | ||
| 403205.30.30.01.0 | 14W | 3000K | 30° | 2x535 |
RAL9006 |
ON/OFF | ||
| 403205.30.30.01.D | 14W | 3000K | 30° | 2x535 |
RAL9006 |
DALI | ||
| 403205.30.60.03.0 | 14W | 3000K | 60° | 2x510 |
RAL9005 |
ON/OFF | ||
| 403205.30.60.03.D | 14W | 3000K | 60° | 2x510 |
RAL9005 |
DALI | ||
| 403205.30.60.02.0 | 14W | 3000K | 60° | 2x510 |
RAL7016 |
ON/OFF | ||
| 403205.30.60.02.D | 14W | 3000K | 60° | 2x510 |
RAL7016 |
DALI | ||
| 403205.30.60.01.0 | 14W | 3000K | 60° | 2x510 |
RAL9006 |
ON/OFF | ||
| 403205.30.60.01.D | 14W | 3000K | 60° | 2x510 |
RAL9006 |
DALI | ||
| 403205.40.E1.03.0 | 14W | 4000K | elliptical 45x10 | 2x540 |
RAL9005 |
ON/OFF | ||
| 403205.40.E1.03.D | 14W | 4000K | elliptical 45x10 | 2x540 |
RAL9005 |
DALI | ||
| 403205.40.E1.02.0 | 14W | 4000K | elliptical 45x10 | 2x540 |
RAL7016 |
ON/OFF | ||
| 403205.40.E1.02.D | 14W | 4000K | elliptical 45x10 | 2x540 |
RAL7016 |
DALI | ||
| 403205.40.E1.01.0 | 14W | 4000K | elliptical 45x10 | 2x540 |
RAL9006 |
ON/OFF | ||
| 403205.40.E1.01.D | 14W | 4000K | elliptical 45x10 | 2x540 |
RAL9006 |
DALI | ||
| 403205.40.11.03.0 | 14W | 4000K | 11° | 2x570 |
RAL9005 |
ON/OFF | ||
| 403205.40.11.03.D | 14W | 4000K | 11° | 2x570 |
RAL9005 |
DALI | ||
| 403205.40.11.02.0 | 14W | 4000K | 11° | 2x570 |
RAL7016 |
ON/OFF | ||
| 403205.40.11.02.D | 14W | 4000K | 11° | 2x570 |
RAL7016 |
DALI | ||
| 403205.40.11.01.0 | 14W | 4000K | 11° | 2x570 |
RAL9006 |
ON/OFF | ||
| 403205.40.11.01.D | 14W | 4000K | 11° | 2x570 |
RAL9006 |
DALI | ||
| 403205.40.30.03.0 | 14W | 4000K | 30° | 2x545 |
RAL9005 |
ON/OFF | ||
| 403205.40.30.03.D | 14W | 4000K | 30° | 2x545 |
RAL9005 |
DALI | ||
| 403205.40.30.02.0 | 14W | 4000K | 30° | 2x545 |
RAL7016 |
ON/OFF | ||
| 403205.40.30.02.D | 14W | 4000K | 30° | 2x545 |
RAL7016 |
DALI | ||
| 403205.40.30.01.0 | 14W | 4000K | 30° | 2x545 |
RAL9006 |
ON/OFF | ||
| 403205.40.30.01.D | 14W | 4000K | 30° | 2x545 |
RAL9006 |
DALI | ||
| 403205.40.60.03.0 | 14W | 4000K | 60° | 2x520 |
RAL9005 |
ON/OFF | ||
| 403205.40.60.03.D | 14W | 4000K | 60° | 2x520 |
RAL9005 |
DALI | ||
| 403205.40.60.02.0 | 14W | 4000K | 60° | 2x520 |
RAL7016 |
ON/OFF | ||
| 403205.40.60.02.D | 14W | 4000K | 60° | 2x520 |
RAL7016 |
DALI | ||
| 403205.40.60.01.0 | 14W | 4000K | 60° | 2x520 |
RAL9006 |
ON/OFF | ||
| 403205.40.60.01.D | 14W | 4000K | 60° | 2x520 |
RAL9006 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 403206.27.SW.03.0 | 16W | 2700K | symmetric wide | 2x560 |
RAL9005 |
ON/OFF | ||
| 403206.27.SW.03.D | 16W | 2700K | symmetric wide | 2x560 |
RAL9005 |
DALI | ||
| 403206.27.SW.02.0 | 16W | 2700K | symmetric wide | 2x560 |
RAL7016 |
ON/OFF | ||
| 403206.27.SW.02.D | 16W | 2700K | symmetric wide | 2x560 |
RAL7016 |
DALI | ||
| 403206.27.SW.01.0 | 16W | 2700K | symmetric wide | 2x560 |
RAL9006 |
ON/OFF | ||
| 403206.27.SW.01.D | 16W | 2700K | symmetric wide | 2x560 |
RAL9006 |
DALI | ||
| 403206.30.SW.03.0 | 16W | 3000K | symmetric wide | 2x570 |
RAL9005 |
ON/OFF | ||
| 403206.30.SW.03.D | 16W | 3000K | symmetric wide | 2x570 |
RAL9005 |
DALI | ||
| 403206.30.SW.02.0 | 16W | 3000K | symmetric wide | 2x570 |
RAL7016 |
ON/OFF | ||
| 403206.30.SW.02.D | 16W | 3000K | symmetric wide | 2x570 |
RAL7016 |
DALI | ||
| 403206.30.SW.01.0 | 16W | 3000K | symmetric wide | 2x570 |
RAL9006 |
ON/OFF | ||
| 403206.30.SW.01.D | 16W | 3000K | symmetric wide | 2x570 |
RAL9006 |
DALI | ||
| 403206.40.SW.03.0 | 16W | 4000K | symmetric wide | 2x590 |
RAL9005 |
ON/OFF | ||
| 403206.40.SW.03.D | 16W | 4000K | symmetric wide | 2x590 |
RAL9005 |
DALI | ||
| 403206.40.SW.02.0 | 16W | 4000K | symmetric wide | 2x590 |
RAL7016 |
ON/OFF | ||
| 403206.40.SW.02.D | 16W | 4000K | symmetric wide | 2x590 |
RAL7016 |
DALI | ||
| 403206.40.SW.01.0 | 16W | 4000K | symmetric wide | 2x590 |
RAL9006 |
ON/OFF | ||
| 403206.40.SW.01.D | 16W | 4000K | symmetric wide | 2x590 |
RAL9006 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 403207.27.AB.03.0 | 16W | 2700K | asymmetric backward | 2x560 |
RAL9005 |
ON/OFF | ||
| 403207.27.AB.03.D | 16W | 2700K | asymmetric backward | 2x560 |
RAL9005 |
DALI | ||
| 403207.27.AB.02.0 | 16W | 2700K | asymmetric backward | 2x560 |
RAL7016 |
ON/OFF | ||
| 403207.27.AB.02.D | 16W | 2700K | asymmetric backward | 2x560 |
RAL7016 |
DALI | ||
| 403207.27.AB.01.0 | 16W | 2700K | asymmetric backward | 2x560 |
RAL9006 |
ON/OFF | ||
| 403207.27.AB.01.D | 16W | 2700K | asymmetric backward | 2x560 |
RAL9006 |
DALI | ||
| 403207.27.AF.03.0 | 16W | 2700K | asymmetric forward | 2x560 |
RAL9005 |
ON/OFF | ||
| 403207.27.AF.03.D | 16W | 2700K | asymmetric forward | 2x560 |
RAL9005 |
DALI | ||
| 403207.27.AF.02.0 | 16W | 2700K | asymmetric forward | 2x560 |
RAL7016 |
ON/OFF | ||
| 403207.27.AF.02.D | 16W | 2700K | asymmetric forward | 2x560 |
RAL7016 |
DALI | ||
| 403207.27.AF.01.0 | 16W | 2700K | asymmetric forward | 2x560 |
RAL9006 |
ON/OFF | ||
| 403207.27.AF.01.D | 16W | 2700K | asymmetric forward | 2x560 |
RAL9006 |
DALI | ||
| 403207.30.AB.03.0 | 16W | 3000K | asymmetric backward | 2x570 |
RAL9005 |
ON/OFF | ||
| 403207.30.AB.03.D | 16W | 3000K | asymmetric backward | 2x570 |
RAL9005 |
DALI | ||
| 403207.30.AB.02.0 | 16W | 3000K | asymmetric backward | 2x570 |
RAL7016 |
ON/OFF | ||
| 403207.30.AB.02.D | 16W | 3000K | asymmetric backward | 2x570 |
RAL7016 |
DALI | ||
| 403207.30.AB.01.0 | 16W | 3000K | asymmetric backward | 2x570 |
RAL9006 |
ON/OFF | ||
| 403207.30.AB.01.D | 16W | 3000K | asymmetric backward | 2x570 |
RAL9006 |
DALI | ||
| 403207.30.AF.03.0 | 16W | 3000K | asymmetric forward | 2x570 |
RAL9005 |
ON/OFF | ||
| 403207.30.AF.03.D | 16W | 3000K | asymmetric forward | 2x570 |
RAL9005 |
DALI | ||
| 403207.30.AF.02.0 | 16W | 3000K | asymmetric forward | 2x570 |
RAL7016 |
ON/OFF | ||
| 403207.30.AF.02.D | 16W | 3000K | asymmetric forward | 2x570 |
RAL7016 |
DALI | ||
| 403207.30.AF.01.0 | 16W | 3000K | asymmetric forward | 2x570 |
RAL9006 |
ON/OFF | ||
| 403207.30.AF.01.D | 16W | 3000K | asymmetric forward | 2x570 |
RAL9006 |
DALI | ||
| 403207.40.AB.03.0 | 16W | 4000K | asymmetric backward | 2x590 |
RAL9005 |
ON/OFF | ||
| 403207.40.AB.03.D | 16W | 4000K | asymmetric backward | 2x590 |
RAL9005 |
DALI | ||
| 403207.40.AB.02.0 | 16W | 4000K | asymmetric backward | 2x590 |
RAL7016 |
ON/OFF | ||
| 403207.40.AB.02.D | 16W | 4000K | asymmetric backward | 2x590 |
RAL7016 |
DALI | ||
| 403207.40.AB.01.0 | 16W | 4000K | asymmetric backward | 2x590 |
RAL9006 |
ON/OFF | ||
| 403207.40.AB.01.D | 16W | 4000K | asymmetric backward | 2x590 |
RAL9006 |
DALI | ||
| 403207.40.AF.03.0 | 16W | 4000K | asymmetric forward | 2x590 |
RAL9005 |
ON/OFF | ||
| 403207.40.AF.03.D | 16W | 4000K | asymmetric forward | 2x590 |
RAL9005 |
DALI | ||
| 403207.40.AF.02.0 | 16W | 4000K | asymmetric forward | 2x590 |
RAL7016 |
ON/OFF | ||
| 403207.40.AF.02.D | 16W | 4000K | asymmetric forward | 2x590 |
RAL7016 |
DALI | ||
| 403207.40.AF.01.0 | 16W | 4000K | asymmetric forward | 2x590 |
RAL9006 |
ON/OFF | ||
| 403207.40.AF.01.D | 16W | 4000K | asymmetric forward | 2x590 |
RAL9006 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 403208.27.DF.03.0 | 16W | 2700K | diffused | 2x200 |
RAL9005 |
ON/OFF | ||
| 403208.27.DF.03.D | 16W | 2700K | diffused | 2x200 |
RAL9005 |
DALI | ||
| 403208.27.DF.02.0 | 16W | 2700K | diffused | 2x200 |
RAL7016 |
ON/OFF | ||
| 403208.27.DF.02.D | 16W | 2700K | diffused | 2x200 |
RAL7016 |
DALI | ||
| 403208.27.DF.01.0 | 16W | 2700K | diffused | 2x200 |
RAL9006 |
ON/OFF | ||
| 403208.27.DF.01.D | 16W | 2700K | diffused | 2x200 |
RAL9006 |
DALI | ||
| 403208.30.DF.03.0 | 16W | 3000K | diffused | 2x210 |
RAL9005 |
ON/OFF | ||
| 403208.30.DF.03.D | 16W | 3000K | diffused | 2x210 |
RAL9005 |
DALI | ||
| 403208.30.DF.02.0 | 16W | 3000K | diffused | 2x210 |
RAL7016 |
ON/OFF | ||
| 403208.30.DF.02.D | 16W | 3000K | diffused | 2x210 |
RAL7016 |
DALI | ||
| 403208.30.DF.01.0 | 16W | 3000K | diffused | 2x210 |
RAL9006 |
ON/OFF | ||
| 403208.30.DF.01.D | 16W | 3000K | diffused | 2x210 |
RAL9006 |
DALI | ||
| 403208.40.DF.03.0 | 16W | 4000K | diffused | 2x220 |
RAL9005 |
ON/OFF | ||
| 403208.40.DF.03.D | 16W | 4000K | diffused | 2x220 |
RAL9005 |
DALI | ||
| 403208.40.DF.02.0 | 16W | 4000K | diffused | 2x220 |
RAL7016 |
ON/OFF | ||
| 403208.40.DF.02.D | 16W | 4000K | diffused | 2x220 |
RAL7016 |
DALI | ||
| 403208.40.DF.01.0 | 16W | 4000K | diffused | 2x220 |
RAL9006 |
ON/OFF | ||
| 403208.40.DF.01.D | 16W | 4000K | diffused | 2x220 |
RAL9006 |
DALI | ||
