Wall applique for outdoor wall installation, with one side light distribution. Luminaire body is made of extruded copper-free aluminum, secured with die-cast aluminum base, tempered safety glass and stainless steel screws. Diffused light distribution. Built-in LED driver 220-240V 50-60Hz, with 20 x midpower SAMSUNG 2835 LED. IP66 rating.

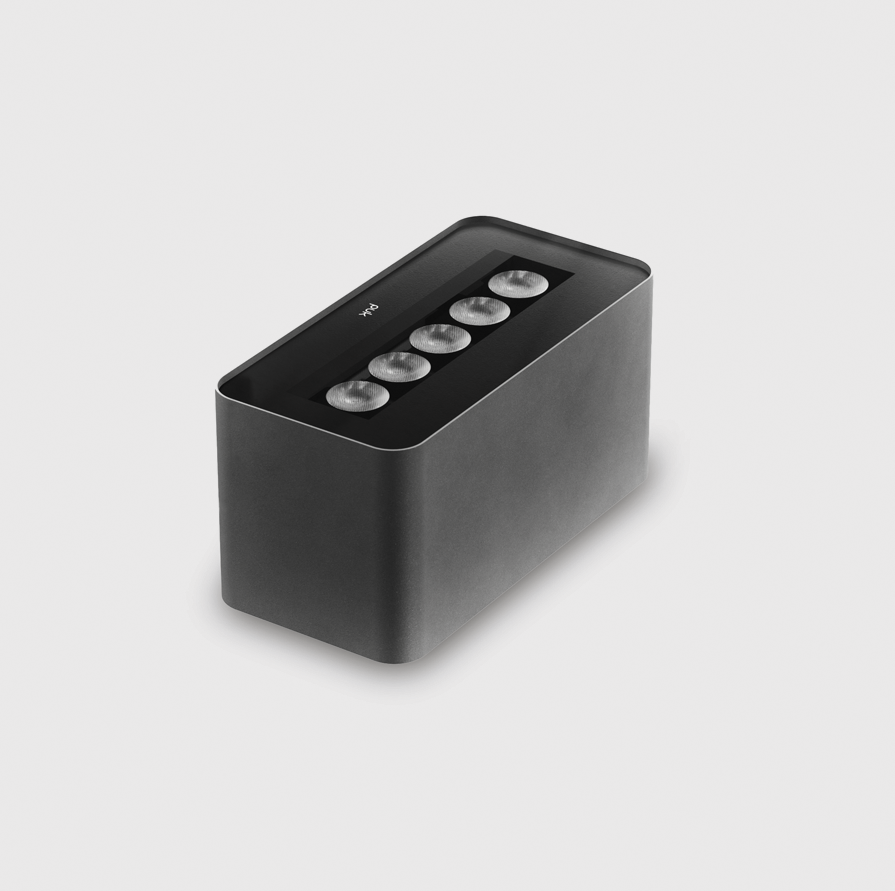

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 403204.27.DF.03.0 | 8W | 2700K | diffused | 200 |
RAL9005 |
ON/OFF | ||
| 403204.27.DF.03.D | 8W | 2700K | diffused | 200 |
RAL9005 |
DALI | ||
| 403204.27.DF.02.0 | 8W | 2700K | diffused | 200 |
RAL7016 |
ON/OFF | ||
| 403204.27.DF.02.D | 8W | 2700K | diffused | 200 |
RAL7016 |
DALI | ||
| 403204.27.DF.01.0 | 8W | 2700K | diffused | 200 |
RAL9006 |
ON/OFF | ||
| 403204.27.DF.01.D | 8W | 2700K | diffused | 200 |
RAL9006 |
DALI | ||
| 403204.30.DF.03.0 | 8W | 3000K | diffused | 210 |
RAL9005 |
ON/OFF | ||
| 403204.30.DF.03.D | 8W | 3000K | diffused | 210 |
RAL9005 |
DALI | ||
| 403204.30.DF.02.0 | 8W | 3000K | diffused | 210 |
RAL7016 |
ON/OFF | ||
| 403204.30.DF.02.D | 8W | 3000K | diffused | 210 |
RAL7016 |
DALI | ||
| 403204.30.DF.01.0 | 8W | 3000K | diffused | 210 |
RAL9006 |
ON/OFF | ||
| 403204.30.DF.01.D | 8W | 3000K | diffused | 210 |
RAL9006 |
DALI | ||
| 403204.40.DF.03.0 | 8W | 4000K | diffused | 220 |
RAL9005 |
ON/OFF | ||
| 403204.40.DF.03.D | 8W | 4000K | diffused | 220 |
RAL9005 |
DALI | ||
| 403204.40.DF.02.0 | 8W | 4000K | diffused | 220 |
RAL7016 |
ON/OFF | ||
| 403204.40.DF.02.D | 8W | 4000K | diffused | 220 |
RAL7016 |
DALI | ||
| 403204.40.DF.01.0 | 8W | 4000K | diffused | 220 |
RAL9006 |
ON/OFF | ||
| 403204.40.DF.01.D | 8W | 4000K | diffused | 220 |
RAL9006 |
DALI | ||
