Horizon
Medium
01

402403

Designed by
PAOLO VILLA

Applique of rectangular shape for outdoor installation on a façade/wall, with single (1 side) light emission. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, tempered frosted safety glass, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 5060Hz, with 21 mid-power CREE XH-G LED. IP65 rating.

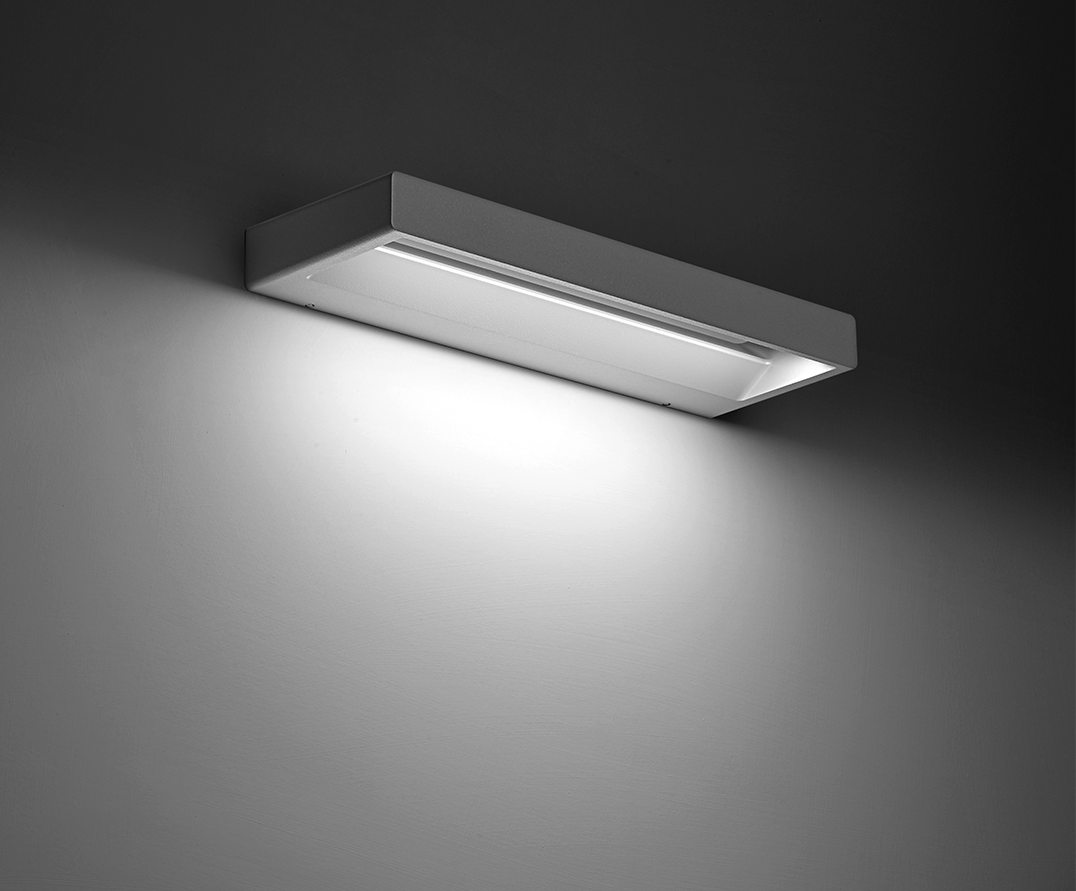

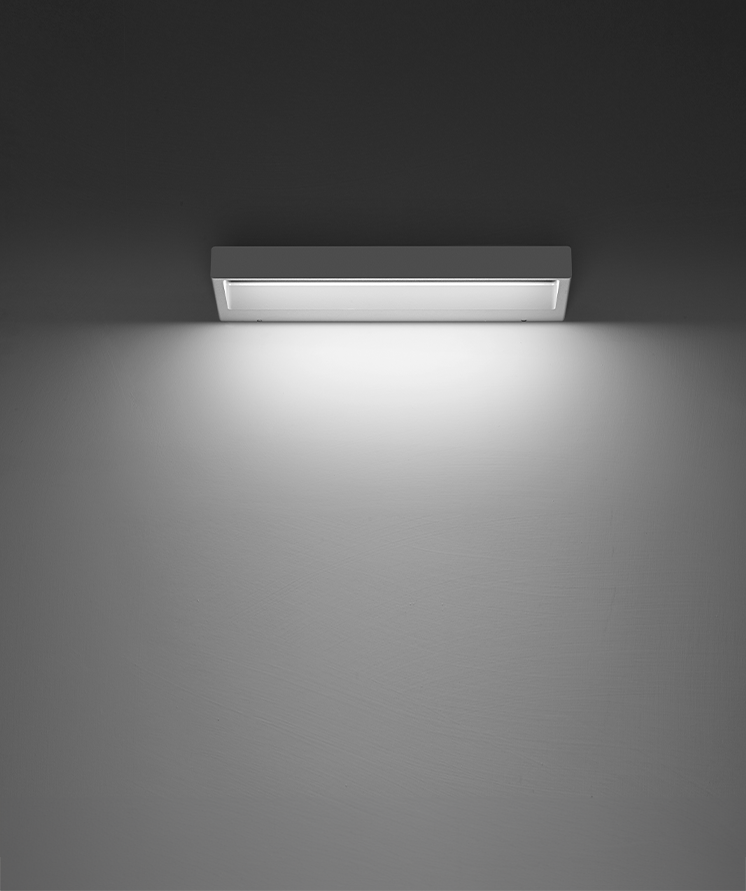

HORIZON MEDIUM 01
HORIZON MEDIUM 01
  • Wattage

    12W

  • CCT

    3000K

  • Beam Angle

    diffused

  • Lumens

    574

  • Finish

    RAL7016 RAL7016

  • IP Rating

    IP65

  • IK Rating

    IK08

  • Coating

    Polyester powder coating with phosphocromating pre-finish

  • Light source

    NR. 21 x CREE XH-G LED

  • Screws

    Stainless steel

  • Transformer

    Electronic power supply 220/240V 50/60Hz built-in

  • Gasket

    Silicone rubber

  • Glass

    Tempered frosted safety glass

  • Gross weight

    1,50 Kg

technical features
technical features
technical features
technical features
technical features
technical features
Wall Mounting 2

Integrated Accessories

402403.30.DF.02.0. _ _

Built-in accessories to be requested when ordering
example 402403.30.DF.02.0.HC

Wall Mounting 3
.00
NO ACCESSORY

No accessory

Light Distribution
