Applique of rectangular shape for outdoor installation on a façade/wall, with single (1 side) light emission. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, tempered frosted safety glass, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 50-60Hz, with 21 mid-power CREE XH-G LED. IP65 rating.

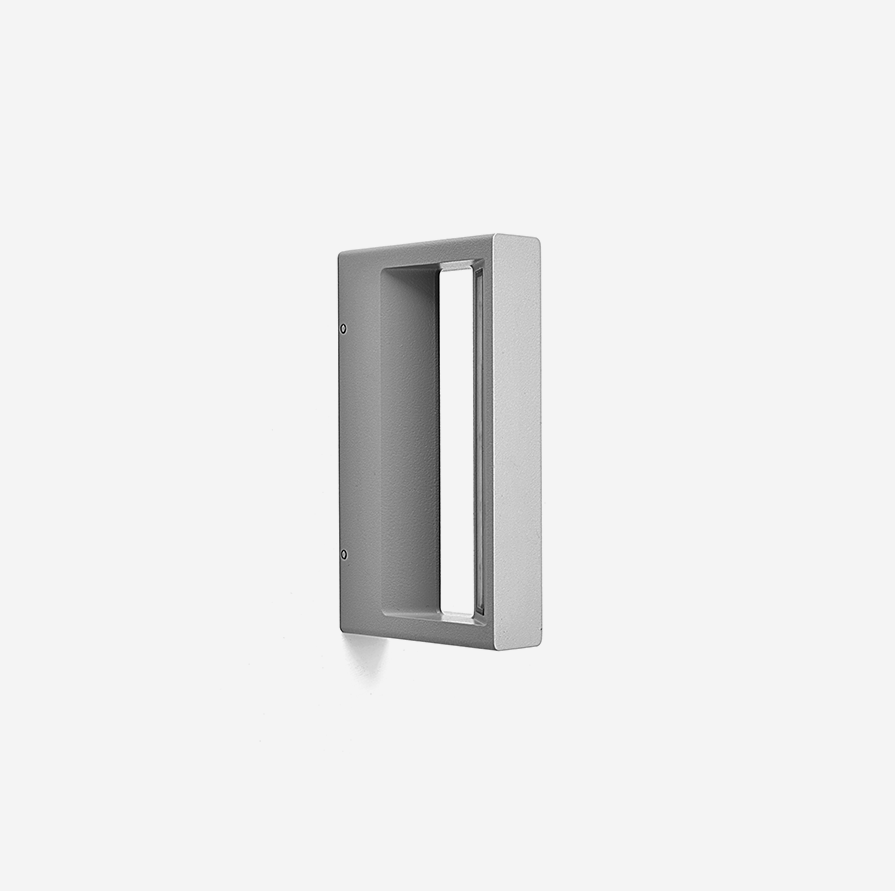

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 402403.27.DF.03.0 | 12W | 2700K | diffused |
RAL9005 |
ON/OFF | |||
| 402403.27.DF.02.0 | 12W | 2700K | diffused |
RAL7016 |
ON/OFF | |||
| 402403.27.DF.01.0 | 12W | 2700K | diffused |
RAL9006 |
ON/OFF | |||
| 402403.30.DF.03.0 | 12W | 3000K | diffused | 574 |
RAL9005 |
ON/OFF | ||
| 402403.30.DF.02.0 | 12W | 3000K | diffused | 574 |
RAL7016 |
ON/OFF | ||
| 402403.30.DF.01.0 | 12W | 3000K | diffused | 574 |
RAL9006 |
ON/OFF | ||
| 402403.40.DF.03.0 | 12W | 4000K | diffused | available on request |
RAL9005 |
ON/OFF | ||
| 402403.40.DF.02.0 | 12W | 4000K | diffused | available on request |
RAL7016 |
ON/OFF | ||
| 402403.40.DF.01.0 | 12W | 4000K | diffused | available on request |
RAL9006 |
ON/OFF | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 402404.27.DF.03.0 | 23W | 2700K | diffused |
RAL9005 |
ON/OFF | |||
| 402404.27.DF.02.0 | 23W | 2700K | diffused |
RAL7016 |
ON/OFF | |||
| 402404.27.DF.01.0 | 23W | 2700K | diffused |
RAL9006 |
ON/OFF | |||
| 402404.30.DF.03.0 | 23W | 3000K | diffused | 1204 |
RAL9005 |
ON/OFF | ||
| 402404.30.DF.02.0 | 23W | 3000K | diffused | 1204 |
RAL7016 |
ON/OFF | ||
| 402404.30.DF.01.0 | 23W | 3000K | diffused | 1204 |
RAL9006 |
ON/OFF | ||
| 402404.40.DF.03.0 | 23W | 4000K | diffused | available on request |
RAL9005 |
ON/OFF | ||
| 402404.40.DF.02.0 | 23W | 4000K | diffused | available on request |
RAL7016 |
ON/OFF | ||
| 402404.40.DF.01.0 | 23W | 4000K | diffused | available on request |
RAL9006 |
ON/OFF | ||
