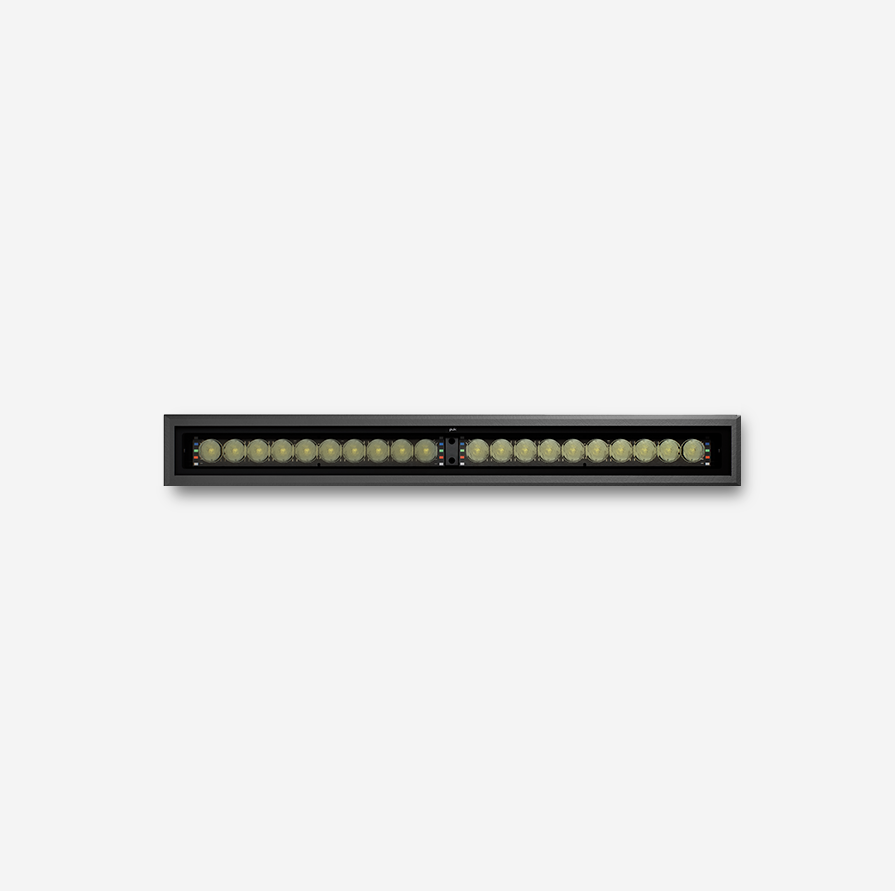

Linear shape ground-recessed luminaire for outdoor installation, length 600mm, made in phosphochromatised and polyester powder coated extruded copper-free aluminium, with tempered safety glass, moulded silicone gaskets, extruded aluminum back box. Light source tilt system +/- 15deg from outside. Built-in LED driver 220-240V 50-60Hz, DMX interface integrated, with 24 x Tunable White 3535 LED (2700K-5600K). IP67 rating.
20W
Tunable white
60°
1240
RAL9005
IP67
IK10
anodizing treatment + protective powder coating
Nr. 24 TUNABLE-WHITE 3535 LED
Stainless steel
Electrical power supply 220/240V 50/60Hz built-in
Silicone rubber
Tempered
1 mt. neoprene power cable included
5,50 Kg
Built-in accessories to be requested when ordering
example 201107.TW.60.03.D.HC
No accessory
Anti-glare grid that sections the light beam into microcells, adding visual comfort without compromising the quality or homogeneity of the light.
Accessories to be ordered separately
Initial cable 3 core, to start an in-line installation, cable length 1 meter. Open wires for mains connection and IP68 connector for fixture connection.
Initial cable 5 core, to start an in-line DALI installation, cable length 1 meter. Open wires for mains connection and IP68 connector for fixture connection.
2 meters length extension, 3 core cable with male and female IP68 connectors (end to end).
