Ring
Mini
Dmx Rgbw

101404

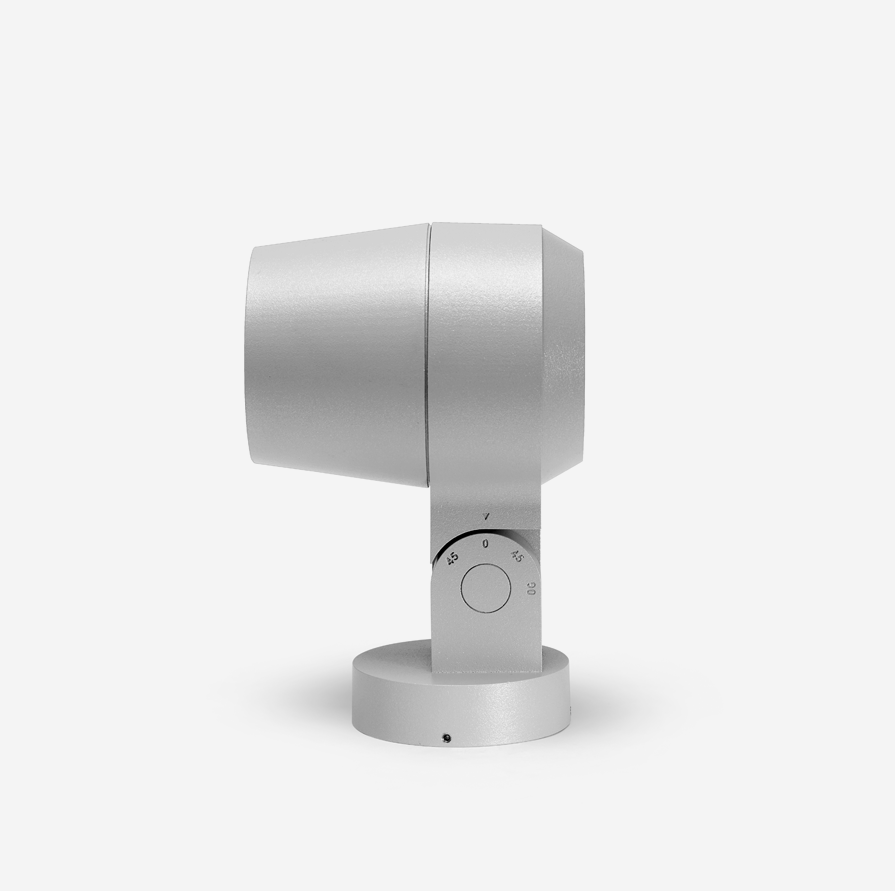

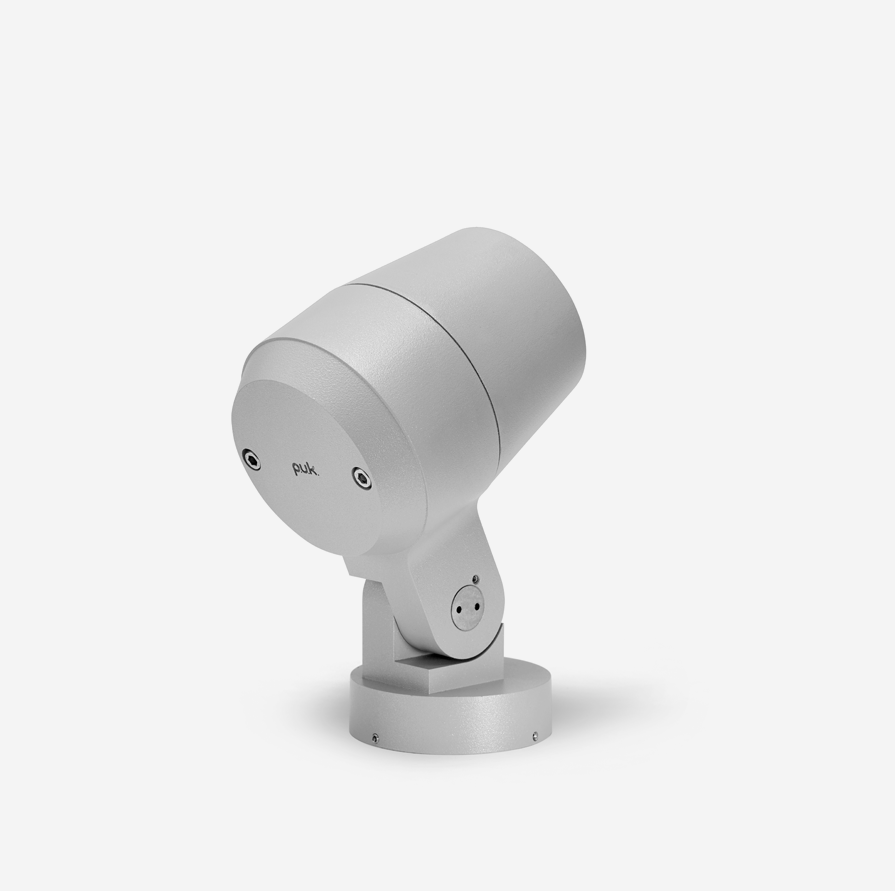

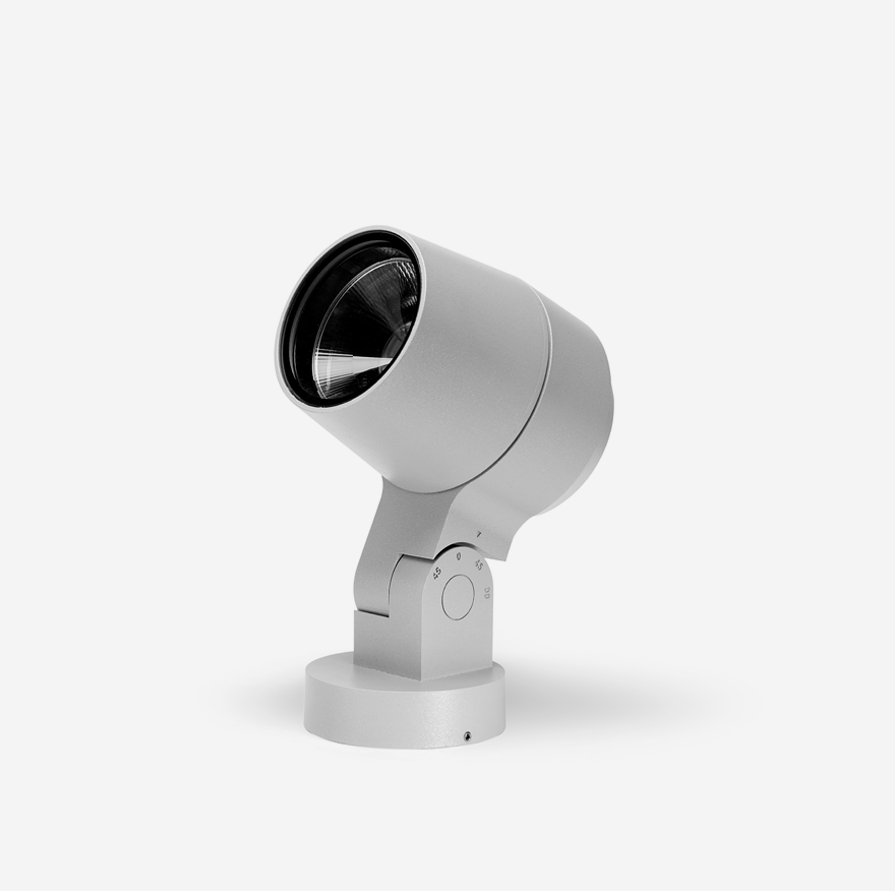

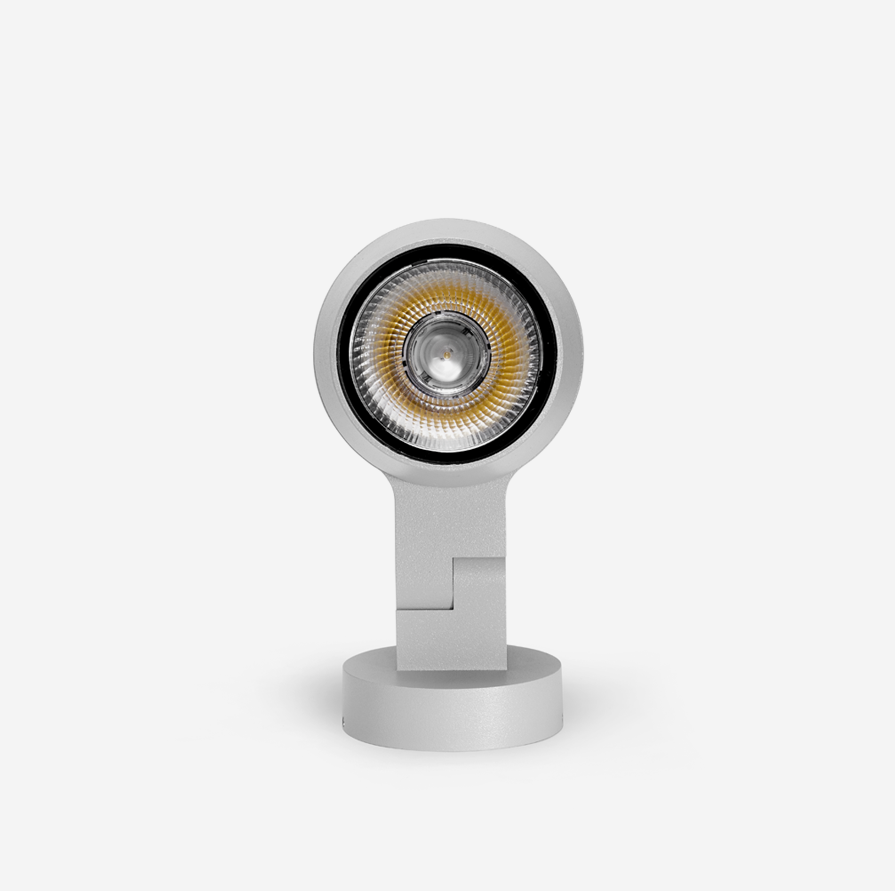

Floodlight for outdoor installation on a façade/wall, with 355° swivel base and allowing horizontal adjustment of +90° / -40°. Phospho-chromatised and polyester powder coated die-cast copperfree aluminium base and head, tempered safety glass, moulded silicone gaskets and o-rings, with screws in stainless steel. Swivel joint with graduated scale and mechanical aiming lock. Remote 24V DC power supply needed, DMX driver integrated; with 1 x CREE “XML” RGBW LED. IP66 rating.

Product Image
Product Image
Product Image
Product Image

Product IMAGE

Technical Drawing

Technical drawing

101404
Mini Dmx Rgbw
view all products
Technical features
  • DMX
  • IP66
  • IK10
  • CE
  • 5 YEARS
  • Classe III
  • Full RGB
Product code watt light source Beam angle LUMENS finish Dimming
101404.RW.12.02.X 4.5W RGBW 12° 160 finish-color RAL7016 DMX
101404.RW.12.03.X 4.5W RGBW 12° 160 finish-color RAL9005 DMX
101404.RW.12.01.X 4.5W RGBW 12° 160 finish-color RAL9006 DMX
101404.RW.25.01.X 4.5W RGBW 25° 152 finish-color RAL9006 DMX
101404.RW.25.02.X 4.5W RGBW 25° 152 finish-color RAL7016 DMX
101404.RW.25.03.X 4.5W RGBW 25° 152 finish-color RAL9005 DMX
101404.RW.35.01.X 4.5W RGBW 35° 145 finish-color RAL9006 DMX
101404.RW.35.02.X 4.5W RGBW 35° 145 finish-color RAL7016 DMX
101404.RW.35.03.X 4.5W RGBW 35° 145 finish-color RAL9005 DMX
