Floodlight for outdoor installation on a façade/wall, with 355° swivel base and allowing horizontal adjustment of +90° / -40°. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium base and head, tempered safety glass, moulded silicone gaskets and o-rings, with screws in stainless steel. Swivel joint with graduated scale and mechanical aiming lock. Built-in LED driver, with 1 COB CREE "CXB 1310" LED. IP66 rating.

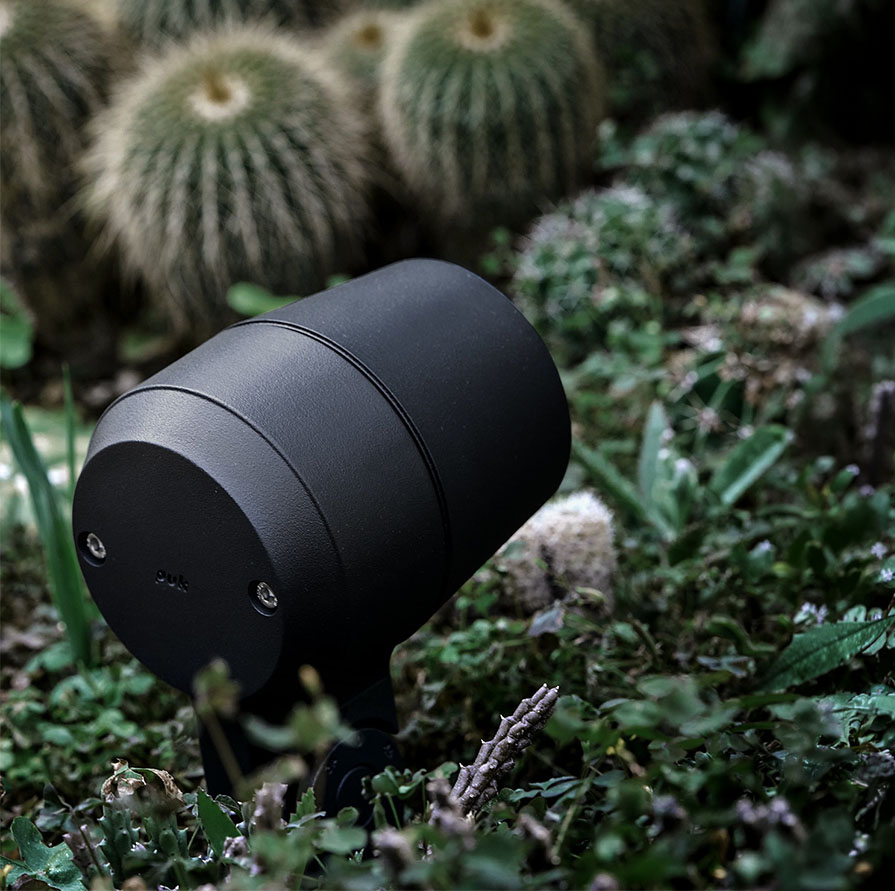

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 101401.27.14.03.0 | 10W | 2700K | 14° | 1045 |
RAL9005 |
ON/OFF | ||
| 101401.27.14.03.D | 10W | 2700K | 14° | 1045 |
RAL9005 |
DALI | ||
| 101401.27.14.02.0 | 10W | 2700K | 14° | 1045 |
RAL7016 |
ON/OFF | ||
| 101401.27.14.02.D | 10W | 2700K | 14° | 1045 |
RAL7016 |
DALI | ||
| 101401.27.14.01.0 | 10W | 2700K | 14° | 1045 |
RAL9006 |
ON/OFF | ||
| 101401.27.14.01.D | 10W | 2700K | 14° | 1045 |
RAL9006 |
DALI | ||
| 101401.27.35.03.0 | 10W | 2700K | 35° | 1007 |
RAL9005 |
ON/OFF | ||
| 101401.27.35.03.D | 10W | 2700K | 35° | 1007 |
RAL9005 |
DALI | ||
| 101401.27.35.02.0 | 10W | 2700K | 35° | 1007 |
RAL7016 |
ON/OFF | ||
| 101401.27.35.02.D | 10W | 2700K | 35° | 1007 |
RAL7016 |
DALI | ||
| 101401.27.35.01.0 | 10W | 2700K | 35° | 1007 |
RAL9006 |
ON/OFF | ||
| 101401.27.35.01.D | 10W | 2700K | 35° | 1007 |
RAL9006 |
DALI | ||
| 101401.27.55.03.0 | 10W | 2700K | 55° | 950 |
RAL9005 |
ON/OFF | ||
| 101401.27.55.03.D | 10W | 2700K | 55° | 950 |
RAL9005 |
DALI | ||
| 101401.27.55.02.0 | 10W | 2700K | 55° | 950 |
RAL7016 |
ON/OFF | ||
| 101401.27.55.02.D | 10W | 2700K | 55° | 950 |
RAL7016 |
DALI | ||
| 101401.27.55.01.0 | 10W | 2700K | 55° | 950 |
RAL9006 |
ON/OFF | ||
| 101401.27.55.01.D | 10W | 2700K | 55° | 950 |
RAL9006 |
DALI | ||
| 101401.30.14.03.0 | 10W | 3000K | 14° | 1100 |
RAL9005 |
ON/OFF | ||
| 101401.30.14.03.D | 10W | 3000K | 14° | 1100 |
RAL9005 |
DALI | ||
| 101401.30.14.02.0 | 10W | 3000K | 14° | 1100 |
RAL7016 |
ON/OFF | ||
| 101401.30.14.02.D | 10W | 3000K | 14° | 1100 |
RAL7016 |
DALI | ||
| 101401.30.14.01.0 | 10W | 3000K | 14° | 1100 |
RAL9006 |
ON/OFF | ||
| 101401.30.14.01.D | 10W | 3000K | 14° | 1100 |
RAL9006 |
DALI | ||
| 101401.30.35.03.0 | 10W | 3000K | 35° | 1060 |
RAL9005 |
ON/OFF | ||
| 101401.30.35.03.D | 10W | 3000K | 35° | 1060 |
RAL9005 |
DALI | ||
| 101401.30.35.02.0 | 10W | 3000K | 35° | 1060 |
RAL7016 |
ON/OFF | ||
| 101401.30.35.02.D | 10W | 3000K | 35° | 1060 |
RAL7016 |
DALI | ||
| 101401.30.35.01.0 | 10W | 3000K | 35° | 1060 |
RAL9006 |
ON/OFF | ||
| 101401.30.35.01.D | 10W | 3000K | 35° | 1060 |
RAL9006 |
DALI | ||
| 101401.30.55.03.0 | 10W | 3000K | 55° | 1000 |
RAL9005 |
ON/OFF | ||
| 101401.30.55.03.D | 10W | 3000K | 55° | 1000 |
RAL9005 |
DALI | ||
| 101401.30.55.02.0 | 10W | 3000K | 55° | 1000 |
RAL7016 |
ON/OFF | ||
| 101401.30.55.02.D | 10W | 3000K | 55° | 1000 |
RAL7016 |
DALI | ||
| 101401.30.55.01.0 | 10W | 3000K | 55° | 1000 |
RAL9006 |
ON/OFF | ||
| 101401.30.55.01.D | 10W | 3000K | 55° | 1000 |
RAL9006 |
DALI | ||
| 101401.40.14.03.0 | 10W | 4000K | 14° | 1200 |
RAL9005 |
ON/OFF | ||
| 101401.40.14.03.D | 10W | 4000K | 14° | 1200 |
RAL9005 |
DALI | ||
| 101401.40.14.02.0 | 10W | 4000K | 14° | 1200 |
RAL7016 |
ON/OFF | ||
| 101401.40.14.02.D | 10W | 4000K | 14° | 1200 |
RAL7016 |
DALI | ||
| 101401.40.14.01.0 | 10W | 4000K | 14° | 1200 |
RAL9006 |
ON/OFF | ||
| 101401.40.14.01.D | 10W | 4000K | 14° | 1200 |
RAL9006 |
DALI | ||
| 101401.40.35.03.0 | 10W | 4000K | 35° | 1140 |
RAL9005 |
ON/OFF | ||
| 101401.40.35.03.D | 10W | 4000K | 35° | 1140 |
RAL9005 |
DALI | ||
| 101401.40.35.02.0 | 10W | 4000K | 35° | 1140 |
RAL7016 |
ON/OFF | ||
| 101401.40.35.02.D | 10W | 4000K | 35° | 1140 |
RAL7016 |
DALI | ||
| 101401.40.35.01.0 | 10W | 4000K | 35° | 1140 |
RAL9006 |
ON/OFF | ||
| 101401.40.35.01.D | 10W | 4000K | 35° | 1140 |
RAL9006 |
DALI | ||
| 101401.40.55.03.0 | 10W | 4000K | 55° | 1083 |
RAL9005 |
ON/OFF | ||
| 101401.40.55.03.D | 10W | 4000K | 55° | 1083 |
RAL9005 |
DALI | ||
| 101401.40.55.02.0 | 10W | 4000K | 55° | 1083 |
RAL7016 |
ON/OFF | ||
| 101401.40.55.02.D | 10W | 4000K | 55° | 1083 |
RAL7016 |
DALI | ||
| 101401.40.55.01.0 | 10W | 4000K | 55° | 1083 |
RAL9006 |
ON/OFF | ||
| 101401.40.55.01.D | 10W | 4000K | 55° | 1083 |
RAL9006 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 101404.27.04.03.0 | 8W | 2700K | 4° | 656 |
RAL9005 |
ON/OFF | ||
| 101404.27.04.03.D | 8W | 2700K | 4° | 656 |
RAL9005 |
DALI | ||
| 101404.27.04.02.0 | 8W | 2700K | 4° | 656 |
RAL7016 |
ON/OFF | ||
| 101404.27.04.02.D | 8W | 2700K | 4° | 656 |
RAL7016 |
DALI | ||
| 101404.27.04.01.0 | 8W | 2700K | 4° | 656 |
RAL9006 |
ON/OFF | ||
| 101404.27.04.01.D | 8W | 2700K | 4° | 656 |
RAL9006 |
DALI | ||
| 101404.27.10.03.0 | 8W | 2700K | 10° | 629 |
RAL9005 |
ON/OFF | ||
| 101404.27.10.03.D | 8W | 2700K | 10° | 629 |
RAL9005 |
DALI | ||
| 101404.27.10.02.0 | 8W | 2700K | 10° | 629 |
RAL7016 |
ON/OFF | ||
| 101404.27.10.02.D | 8W | 2700K | 10° | 629 |
RAL7016 |
DALI | ||
| 101404.27.10.01.0 | 8W | 2700K | 10° | 629 |
RAL9006 |
ON/OFF | ||
| 101404.27.10.01.D | 8W | 2700K | 10° | 629 |
RAL9006 |
DALI | ||
| 101404.27.28.03.0 | 8W | 2700K | 28° | 610 |
RAL9005 |
ON/OFF | ||
| 101404.27.28.03.D | 8W | 2700K | 28° | 610 |
RAL9005 |
DALI | ||
| 101404.27.28.02.0 | 8W | 2700K | 28° | 610 |
RAL7016 |
ON/OFF | ||
| 101404.27.28.02.D | 8W | 2700K | 28° | 610 |
RAL7016 |
DALI | ||
| 101404.27.28.01.0 | 8W | 2700K | 28° | 610 |
RAL9006 |
ON/OFF | ||
| 101404.27.28.01.D | 8W | 2700K | 28° | 610 |
RAL9006 |
DALI | ||
| 101404.27.55.03.0 | 8W | 2700K | 55° | 519 |
RAL9005 |
ON/OFF | ||
| 101404.27.55.03.D | 8W | 2700K | 55° | 519 |
RAL9005 |
DALI | ||
| 101404.27.55.02.0 | 8W | 2700K | 55° | 519 |
RAL7016 |
ON/OFF | ||
| 101404.27.55.02.D | 8W | 2700K | 55° | 519 |
RAL7016 |
DALI | ||
| 101404.27.55.01.0 | 8W | 2700K | 55° | 519 |
RAL9006 |
ON/OFF | ||
| 101404.27.55.01.D | 8W | 2700K | 55° | 519 |
RAL9006 |
DALI | ||
| 101404.30.04.03.0 | 8W | 3000K | 4° | 690 |
RAL9005 |
ON/OFF | ||
| 101404.30.04.03.D | 8W | 3000K | 4° | 690 |
RAL9005 |
DALI | ||
| 101404.30.04.02.0 | 8W | 3000K | 4° | 690 |
RAL7016 |
ON/OFF | ||
| 101404.30.04.02.D | 8W | 3000K | 4° | 690 |
RAL7016 |
DALI | ||
| 101404.30.04.01.0 | 8W | 3000K | 4° | 690 |
RAL9006 |
ON/OFF | ||
| 101404.30.04.01.D | 8W | 3000K | 4° | 690 |
RAL9006 |
DALI | ||
| 101404.30.10.03.0 | 8W | 3000K | 10° | 662 |
RAL9005 |
ON/OFF | ||
| 101404.30.10.03.D | 8W | 3000K | 10° | 662 |
RAL9005 |
DALI | ||
| 101404.30.10.02.0 | 8W | 3000K | 10° | 662 |
RAL7016 |
ON/OFF | ||
| 101404.30.10.02.D | 8W | 3000K | 10° | 662 |
RAL7016 |
DALI | ||
| 101404.30.10.01.0 | 8W | 3000K | 10° | 662 |
RAL9006 |
ON/OFF | ||
| 101404.30.10.01.D | 8W | 3000K | 10° | 662 |
RAL9006 |
DALI | ||
| 101404.30.28.03.0 | 8W | 3000K | 28° | 642 |
RAL9005 |
ON/OFF | ||
| 101404.30.28.03.D | 8W | 3000K | 28° | 642 |
RAL9005 |
DALI | ||
| 101404.30.28.02.0 | 8W | 3000K | 28° | 642 |
RAL7016 |
ON/OFF | ||
| 101404.30.28.02.D | 8W | 3000K | 28° | 642 |
RAL7016 |
DALI | ||
| 101404.30.28.01.0 | 8W | 3000K | 28° | 642 |
RAL9006 |
ON/OFF | ||
| 101404.30.28.01.D | 8W | 3000K | 28° | 642 |
RAL9006 |
DALI | ||
| 101404.30.55.03.0 | 8W | 3000K | 55° | 546 |
RAL9005 |
ON/OFF | ||
| 101404.30.55.03.D | 8W | 3000K | 55° | 546 |
RAL9005 |
DALI | ||
| 101404.30.55.02.0 | 8W | 3000K | 55° | 546 |
RAL7016 |
ON/OFF | ||
| 101404.30.55.02.D | 8W | 3000K | 55° | 546 |
RAL7016 |
DALI | ||
| 101404.30.55.01.0 | 8W | 3000K | 55° | 546 |
RAL9006 |
ON/OFF | ||
| 101404.30.55.01.D | 8W | 3000K | 55° | 546 |
RAL9006 |
DALI | ||
| 101404.40.04.03.0 | 8W | 4000K | 4° | 703 |
RAL9005 |
ON/OFF | ||
| 101404.40.04.03.D | 8W | 4000K | 4° | 703 |
RAL9005 |
DALI | ||
| 101404.40.04.02.0 | 8W | 4000K | 4° | 703 |
RAL7016 |
ON/OFF | ||
| 101404.40.04.02.D | 8W | 4000K | 4° | 703 |
RAL7016 |
DALI | ||
| 101404.40.04.01.0 | 8W | 4000K | 4° | 703 |
RAL9006 |
ON/OFF | ||
| 101404.40.04.01.D | 8W | 4000K | 4° | 703 |
RAL9006 |
DALI | ||
| 101404.40.10.03.0 | 8W | 4000K | 10° | 676 |
RAL9005 |
ON/OFF | ||
| 101404.40.10.03.D | 8W | 4000K | 10° | 676 |
RAL9005 |
DALI | ||
| 101404.40.10.02.0 | 8W | 4000K | 10° | 676 |
RAL7016 |
ON/OFF | ||
| 101404.40.10.02.D | 8W | 4000K | 10° | 676 |
RAL7016 |
DALI | ||
| 101404.40.10.01.0 | 8W | 4000K | 10° | 676 |
RAL9006 |
ON/OFF | ||
| 101404.40.10.01.D | 8W | 4000K | 10° | 676 |
RAL9006 |
DALI | ||
| 101404.40.28.03.0 | 8W | 4000K | 28° | 656 |
RAL9005 |
ON/OFF | ||
| 101404.40.28.03.D | 8W | 4000K | 28° | 656 |
RAL9005 |
DALI | ||
| 101404.40.28.02.0 | 8W | 4000K | 28° | 656 |
RAL7016 |
ON/OFF | ||
| 101404.40.28.02.D | 8W | 4000K | 28° | 656 |
RAL7016 |
DALI | ||
| 101404.40.28.01.0 | 8W | 4000K | 28° | 656 |
RAL9006 |
ON/OFF | ||
| 101404.40.28.01.D | 8W | 4000K | 28° | 656 |
RAL9006 |
DALI | ||
| 101404.40.55.03.0 | 8W | 4000K | 55° | 558 |
RAL9005 |
ON/OFF | ||
| 101404.40.55.03.D | 8W | 4000K | 55° | 558 |
RAL9005 |
DALI | ||
| 101404.40.55.02.0 | 8W | 4000K | 55° | 558 |
RAL7016 |
ON/OFF | ||
| 101404.40.55.02.D | 8W | 4000K | 55° | 558 |
RAL7016 |
DALI | ||
| 101404.40.55.01.0 | 8W | 4000K | 55° | 558 |
RAL9006 |
ON/OFF | ||
| 101404.40.55.01.D | 8W | 4000K | 55° | 558 |
RAL9006 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 101404.RW.12.02.X | 4.5W | RGBW | 12° | 160 |
RAL7016 |
DMX | ||
| 101404.RW.12.03.X | 4.5W | RGBW | 12° | 160 |
RAL9005 |
DMX | ||
| 101404.RW.12.01.X | 4.5W | RGBW | 12° | 160 |
RAL9006 |
DMX | ||
| 101404.RW.25.01.X | 4.5W | RGBW | 25° | 152 |
RAL9006 |
DMX | ||
| 101404.RW.25.02.X | 4.5W | RGBW | 25° | 152 |
RAL7016 |
DMX | ||
| 101404.RW.25.03.X | 4.5W | RGBW | 25° | 152 |
RAL9005 |
DMX | ||
| 101404.RW.35.01.X | 4.5W | RGBW | 35° | 145 |
RAL9006 |
DMX | ||
| 101404.RW.35.02.X | 4.5W | RGBW | 35° | 145 |
RAL7016 |
DMX | ||
| 101404.RW.35.03.X | 4.5W | RGBW | 35° | 145 |
RAL9005 |
DMX | ||
