Projector for outdoor installation on a façade/wall. Body in anodized aluminum with phosphochromatised and polyester powder coating, bracket in stainless steel, tempered safety glass, moulded silicone gasket and stainless steel screws. Constant voltage 24V DC remote driver needed. With 1 x XP-G3 CREE LED. IP66 rating.

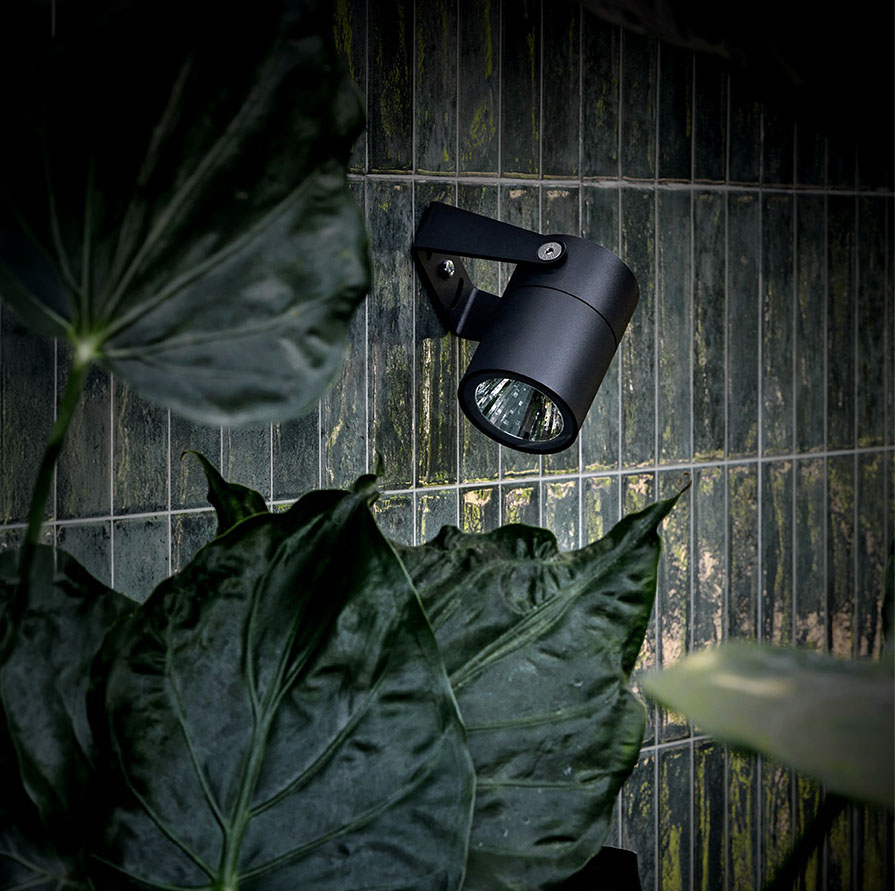

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 101901.27.10.03.0 | 3W | 2700K | 10° | 238 |
RAL9005 |
ON/OFF | ||
| 101901.27.10.02.0 | 3W | 2700K | 10° | 238 |
RAL7016 |
ON/OFF | ||
| 101901.27.10.01.0 | 3W | 2700K | 10° | 238 |
RAL9006 |
ON/OFF | ||
| 101901.27.30.03.0 | 3W | 2700K | 30° | 228 |
RAL9005 |
ON/OFF | ||
| 101901.27.30.02.0 | 3W | 2700K | 30° | 228 |
RAL7016 |
ON/OFF | ||
| 101901.27.30.01.0 | 3W | 2700K | 30° | 228 |
RAL9006 |
ON/OFF | ||
| 101901.27.45.03.0 | 3W | 2700K | 45° | 219 |
RAL9005 |
ON/OFF | ||
| 101901.27.45.02.0 | 3W | 2700K | 45° | 219 |
RAL7016 |
ON/OFF | ||
| 101901.27.45.01.0 | 3W | 2700K | 45° | 219 |
RAL9006 |
ON/OFF | ||
| 101901.30.10.03.0 | 3W | 3000K | 10° | 250 |
RAL9005 |
ON/OFF | ||
| 101901.30.10.02.0 | 3W | 3000K | 10° | 250 |
RAL7016 |
ON/OFF | ||
| 101901.30.10.01.0 | 3W | 3000K | 10° | 250 |
RAL9006 |
ON/OFF | ||
| 101901.30.30.03.0 | 3W | 3000K | 30° | 240 |
RAL9005 |
ON/OFF | ||
| 101901.30.30.02.0 | 3W | 3000K | 30° | 240 |
RAL7016 |
ON/OFF | ||
| 101901.30.30.01.0 | 3W | 3000K | 30° | 240 |
RAL9006 |
ON/OFF | ||
| 101901.30.45.03.0 | 3W | 3000K | 45° | 230 |
RAL9005 |
ON/OFF | ||
| 101901.30.45.02.0 | 3W | 3000K | 45° | 230 |
RAL7016 |
ON/OFF | ||
| 101901.30.45.01.0 | 3W | 3000K | 45° | 230 |
RAL9006 |
ON/OFF | ||
| 101901.40.10.03.0 | 3W | 4000K | 10° | 270 |
RAL9005 |
ON/OFF | ||
| 101901.40.10.02.0 | 3W | 4000K | 10° | 270 |
RAL7016 |
ON/OFF | ||
| 101901.40.10.01.0 | 3W | 4000K | 10° | 270 |
RAL9006 |
ON/OFF | ||
| 101901.40.30.03.0 | 3W | 4000K | 30° | 260 |
RAL9005 |
ON/OFF | ||
| 101901.40.30.02.0 | 3W | 4000K | 30° | 260 |
RAL7016 |
ON/OFF | ||
| 101901.40.30.01.0 | 3W | 4000K | 30° | 260 |
RAL9006 |
ON/OFF | ||
| 101901.40.45.03.0 | 3W | 4000K | 45° | 250 |
RAL9005 |
ON/OFF | ||
| 101901.40.45.02.0 | 3W | 4000K | 45° | 250 |
RAL7016 |
ON/OFF | ||
| 101901.40.45.01.0 | 3W | 4000K | 45° | 250 |
RAL9006 |
ON/OFF | ||
