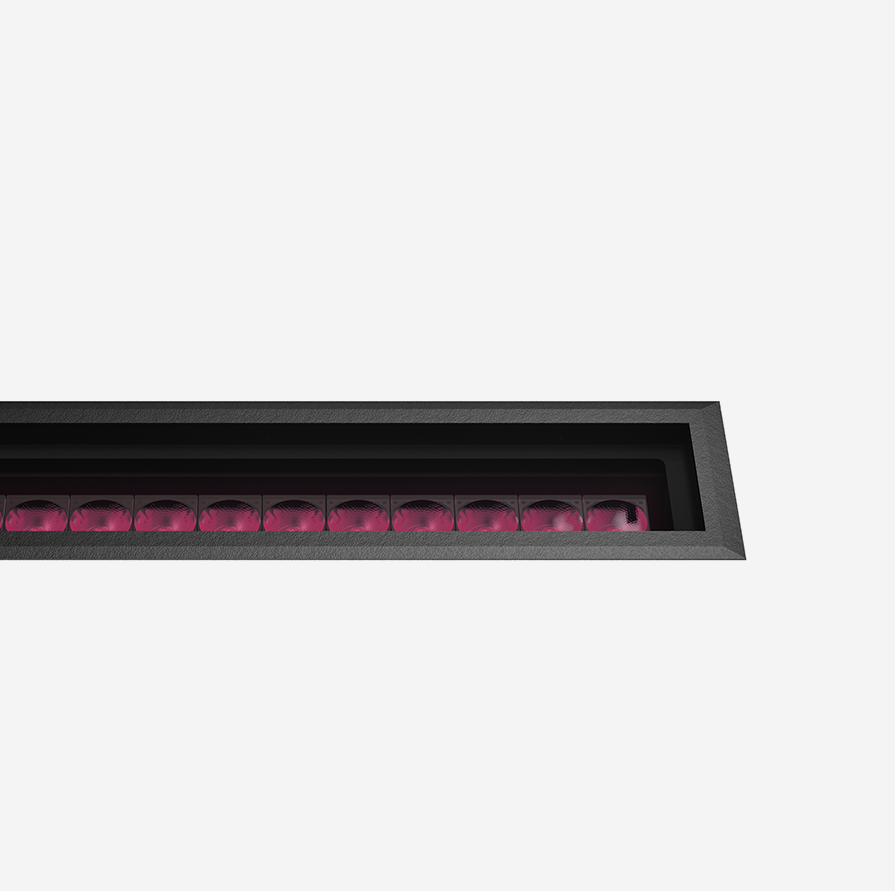

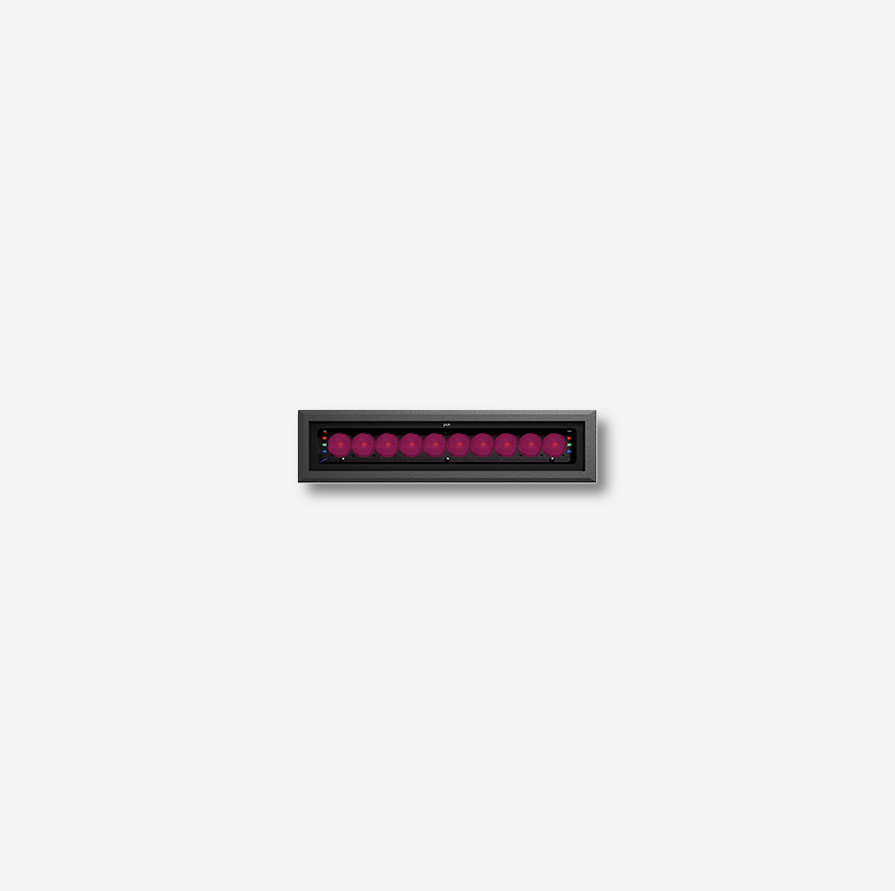

Linear shape ceiling-recessed luminaire for outdoor installation, length 310mm, made in phosphochromatised and polyester powder coated extruded copper-free aluminium, with tempered safety glass, moulded silicone gaskets, stainless steel springs. Light source tilt system +/- 15deg from outside. Remote 24V DC power supply needed, DMX interface integrated, with 12 x RGBW(3000K) 3535 LED. IP67 rating.
10W
RGBW
15°
380
RAL9005
IP67
IK10
Anodizing treatment + protective powder coating
Nr. 12 RGBW 3535 LED
Stainless steel
Constant voltage 24V DC remote driver needed
Silicone rubber
Tempered
1 mt. neoprene power cable included
1,70 Kg
Built-in accessories to be requested when ordering
example 701502.RW.15.03.X.HC
No accessory
Anti-glare grid that sections the light beam into microcells, adding visual comfort without compromising the quality or homogeneity of the light.
Accessories to be ordered separately
Initial cable 3 core, to start an in-line installation, cable length 1 meter. Open wires for mains connection and IP68 connector for fixture connection.
2 meters length extension, 3 core cable with male and female IP68 connectors (end to end).
End cap for connectors, to terminate the in-line installation of light fixture equipped with 3 core cable.
