Linear shape ceiling-recessed luminaire for outdoor installation, four available lengths (310mm, 600mm, 900mm, 1200mm) made in phospho-chromatised, anodized and polyester powder coated extruded copper-free aluminium, with tempered safety glass, moulded silicone gaskets, stainless steel springs. Built-in LED driver 220-240V 50-60Hz (remote driver for 300mm RGBW/TW versions), with SAMSUNG 3030 HP LED. IP67 rating.

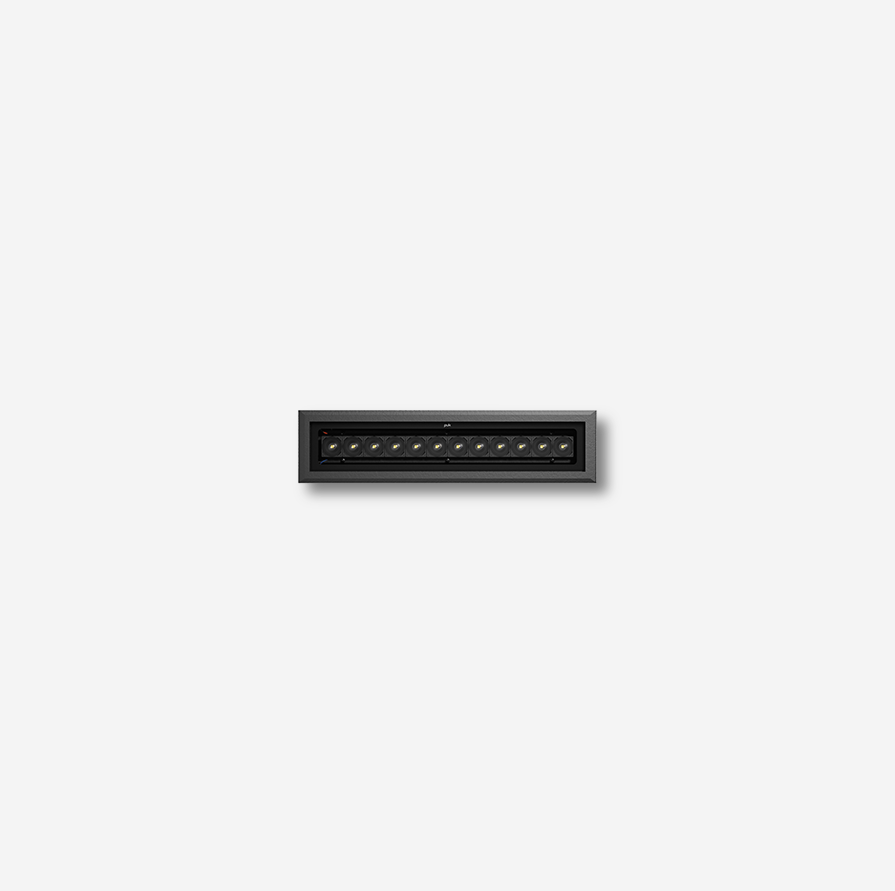

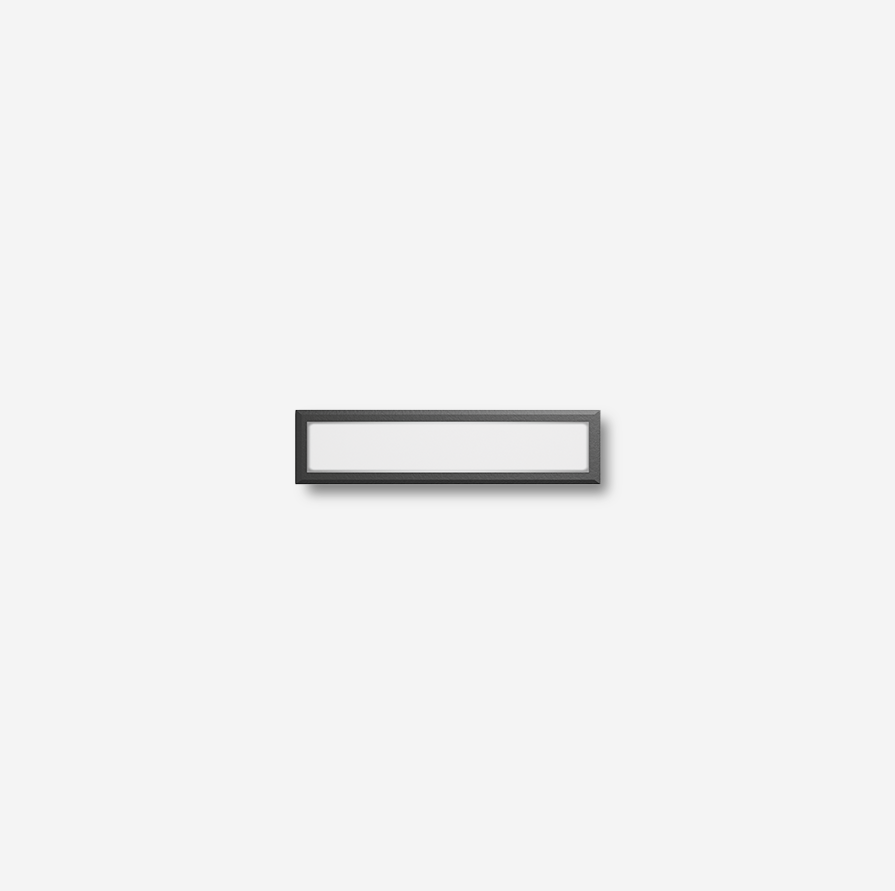

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701501.27.WW.03.D | 12W | 2700K | wall washer | 900 |
RAL9005 |
DALI | ||
| 701501.27.WW.03.0 | 12W | 2700K | wall washer | 900 |
RAL9005 |
ON/OFF | ||
| 701501.27.15.03.D | 12W | 2700K | 15° | 900 |
RAL9005 |
DALI | ||
| 701501.27.15.03.0 | 12W | 2700K | 15° | 900 |
RAL9005 |
ON/OFF | ||
| 701501.27.35.03.0 | 12W | 2700K | 35° | 870 |
RAL9005 |
ON/OFF | ||
| 701501.27.35.03.D | 12W | 2700K | 35° | 870 |
RAL9005 |
DALI | ||
| 701501.27.55.03.0 | 12W | 2700K | 55° | 840 |
RAL9005 |
ON/OFF | ||
| 701501.27.55.03.D | 12W | 2700K | 55° | 840 |
RAL9005 |
DALI | ||
| 701501.30.WW.03.0 | 12W | 3000K | wall washer | 930 |
RAL9005 |
ON/OFF | ||
| 701501.30.WW.03.D | 12W | 3000K | wall washer | 930 |
RAL9005 |
DALI | ||
| 701501.30.15.03.0 | 12W | 3000K | 15° | 930 |
RAL9005 |
ON/OFF | ||
| 701501.30.15.03.D | 12W | 3000K | 15° | 930 |
RAL9005 |
DALI | ||
| 701501.30.35.03.0 | 12W | 3000K | 35° | 900 |
RAL9005 |
ON/OFF | ||
| 701501.30.35.03.D | 12W | 3000K | 35° | 900 |
RAL9005 |
DALI | ||
| 701501.30.55.03.0 | 12W | 3000K | 55° | 870 |
RAL9005 |
ON/OFF | ||
| 701501.30.55.03.D | 12W | 3000K | 55° | 870 |
RAL9005 |
DALI | ||
| 701501.40.WW.03.0 | 12W | 4000K | wall washer | 960 |
RAL9005 |
ON/OFF | ||
| 701501.40.WW.03.D | 12W | 4000K | wall washer | 960 |
RAL9005 |
DALI | ||
| 701501.40.15.03.D | 12W | 4000K | 15° | 960 |
RAL9005 |
DALI | ||
| 701501.40.15.03.0 | 12W | 4000K | 15° | 960 |
RAL9005 |
ON/OFF | ||
| 701501.40.35.03.D | 12W | 4000K | 35° | 930 |
RAL9005 |
DALI | ||
| 701501.40.35.03.0 | 12W | 4000K | 35° | 930 |
RAL9005 |
ON/OFF | ||
| 701501.40.55.03.D | 12W | 4000K | 55° | 900 |
RAL9005 |
DALI | ||
| 701501.40.55.03.0 | 12W | 4000K | 55° | 900 |
RAL9005 |
ON/OFF | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701502.RW.E6.03.D | 10W | RGBW | elliptical 10x60 | 380 |
RAL9005 |
DALI | ||
| 701502.RW.E6.03.X | 10W | RGBW | elliptical 10x60 | 380 |
RAL9005 |
DMX | ||
| 701502.RW.15.03.D | 10W | RGBW | 15° | 380 |
RAL9005 |
DALI | ||
| 701502.RW.15.03.X | 10W | RGBW | 15° | 380 |
RAL9005 |
DMX | ||
| 701502.RW.30.03.X | 10W | RGBW | 30° | 365 |
RAL9005 |
DMX | ||
| 701502.RW.30.03.D | 10W | RGBW | 30° | 365 |
RAL9005 |
DALI | ||
| 701502.RW.60.03.X | 10W | RGBW | 60° | 335 |
RAL9005 |
DMX | ||
| 701502.RW.60.03.D | 10W | RGBW | 60° | 335 |
RAL9005 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701503.TW.E6.03.X | 10W | Tunable white | elliptical 10x60 | 650 |
RAL9005 |
DMX | ||
| 701503.TW.E6.03.D | 10W | Tunable white | elliptical 10x60 | 650 |
RAL9005 |
DALI | ||
| 701503.TW.15.03.D | 10W | Tunable white | 15° | 650 |
RAL9005 |
DALI | ||
| 701503.TW.15.03.X | 10W | Tunable white | 15° | 650 |
RAL9005 |
DMX | ||
| 701503.TW.30.03.D | 10W | Tunable white | 30° | 635 |
RAL9005 |
DALI | ||
| 701503.TW.30.03.X | 10W | Tunable white | 30° | 635 |
RAL9005 |
DMX | ||
| 701503.TW.60.03.X | 10W | Tunable white | 60° | 620 |
RAL9005 |
DMX | ||
| 701503.TW.60.03.D | 10W | Tunable white | 60° | 620 |
RAL9005 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701504.27.DF.03.0 | 8W | 2700K | diffused | 300 |
RAL9005 |
ON/OFF | ||
| 701504.27.DF.03.D | 8W | 2700K | diffused | 300 |
RAL9005 |
DALI | ||
| 701504.30.DF.03.D | 8W | 3000K | diffused | 310 |
RAL9005 |
DALI | ||
| 701504.30.DF.03.0 | 8W | 3000K | diffused | 310 |
RAL9005 |
ON/OFF | ||
| 701504.40.DF.03.0 | 8W | 4000K | diffused | 330 |
RAL9005 |
ON/OFF | ||
| 701504.40.DF.03.D | 8W | 4000K | diffused | 330 |
RAL9005 |
DALI | ||
