Diameter 254mm ceiling-recessed luminaire for outdoor installation, phospho-chromatised and polyester powder coated die-cast copper-free aluminium body and stainless steel AISI 316L frame, tempered safety glass, moulded silicone gasket. Light source tilt system +/- 15deg from outside. Built-in LED driver 220-240V 50-60Hz, with 1 CREE CXB2540 LED. IP67 rating.

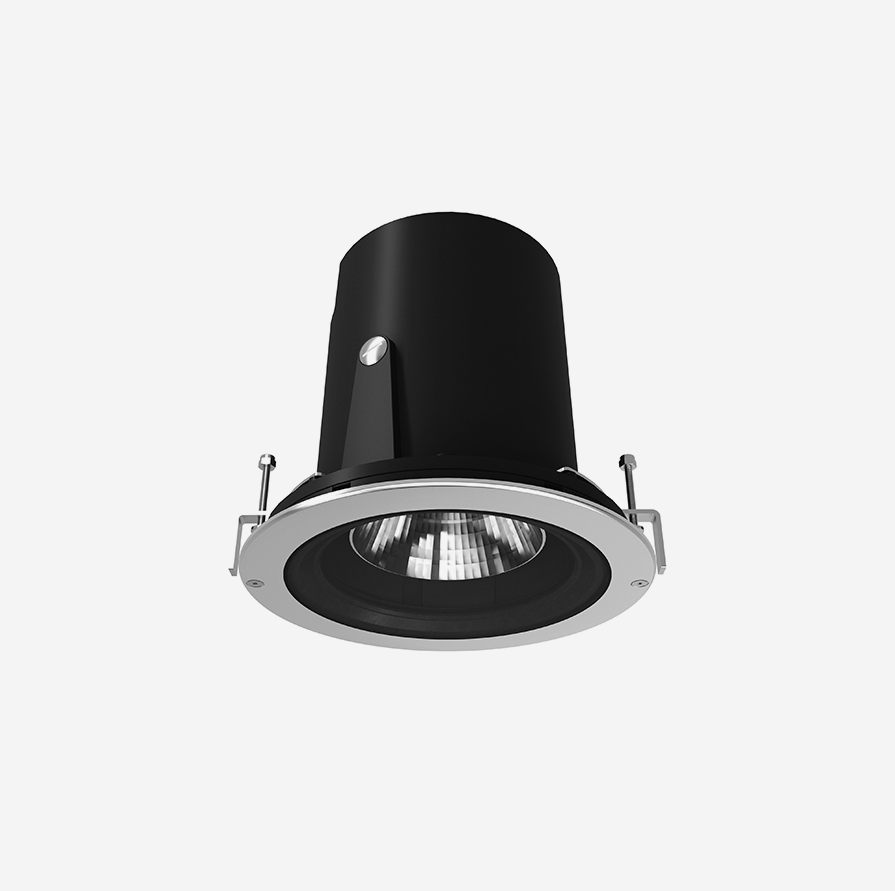

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701311.27.14.SS.0 | 32W | 2700K | 14° | 2960 |
STAINLESS STEEL |
ON/OFF | ||
| 701311.27.14.SS.D | 32W | 2700K | 14° | 2960 |
STAINLESS STEEL |
DALI | ||
| 701311.27.35.SS.0 | 32W | 2700K | 35° | 2940 |
STAINLESS STEEL |
ON/OFF | ||
| 701311.27.35.SS.D | 32W | 2700K | 35° | 2940 |
STAINLESS STEEL |
DALI | ||
| 701311.27.55.SS.0 | 32W | 2700K | 55° | 2920 |
STAINLESS STEEL |
ON/OFF | ||
| 701311.27.55.SS.D | 32W | 2700K | 55° | 2920 |
STAINLESS STEEL |
DALI | ||
| 701311.30.14.SS.0 | 32W | 3000K | 14° | 2970 |
STAINLESS STEEL |
ON/OFF | ||
| 701311.30.14.SS.D | 32W | 3000K | 14° | 2970 |
STAINLESS STEEL |
DALI | ||
| 701311.30.35.SS.0 | 32W | 3000K | 35° | 2950 |
STAINLESS STEEL |
ON/OFF | ||
| 701311.30.35.SS.D | 32W | 3000K | 35° | 2950 |
STAINLESS STEEL |
DALI | ||
| 701311.30.55.SS.0 | 32W | 3000K | 55° | 2930 |
STAINLESS STEEL |
ON/OFF | ||
| 701311.30.55.SS.D | 32W | 3000K | 55° | 2930 |
STAINLESS STEEL |
DALI | ||
| 701311.40.14.SS.0 | 32W | 4000K | 14° | 2990 |
STAINLESS STEEL |
ON/OFF | ||
| 701311.40.14.SS.D | 32W | 4000K | 14° | 2990 |
STAINLESS STEEL |
DALI | ||
| 701311.40.35.SS.0 | 32W | 4000K | 35° | 2970 |
STAINLESS STEEL |
ON/OFF | ||
| 701311.40.35.SS.D | 32W | 4000K | 35° | 2970 |
STAINLESS STEEL |
DALI | ||
| 701311.40.55.SS.0 | 32W | 4000K | 55° | 2950 |
STAINLESS STEEL |
ON/OFF | ||
| 701311.40.55.SS.D | 32W | 4000K | 55° | 2950 |
STAINLESS STEEL |
DALI | ||
