Diameter 254mm ceiling-recessed luminaire for outdoor installation, phosphochromatised and polyester powder coated die-cast copper-free aluminium body and stainless steel AISI 316L frame, tempered safety glass, moulded silicone gasket. Light source tilt system +/- 15deg from outside. Built-in LED driver 220- 240V 50-60Hz, with 1 CREE CXB2540 LED. IP67 rating.

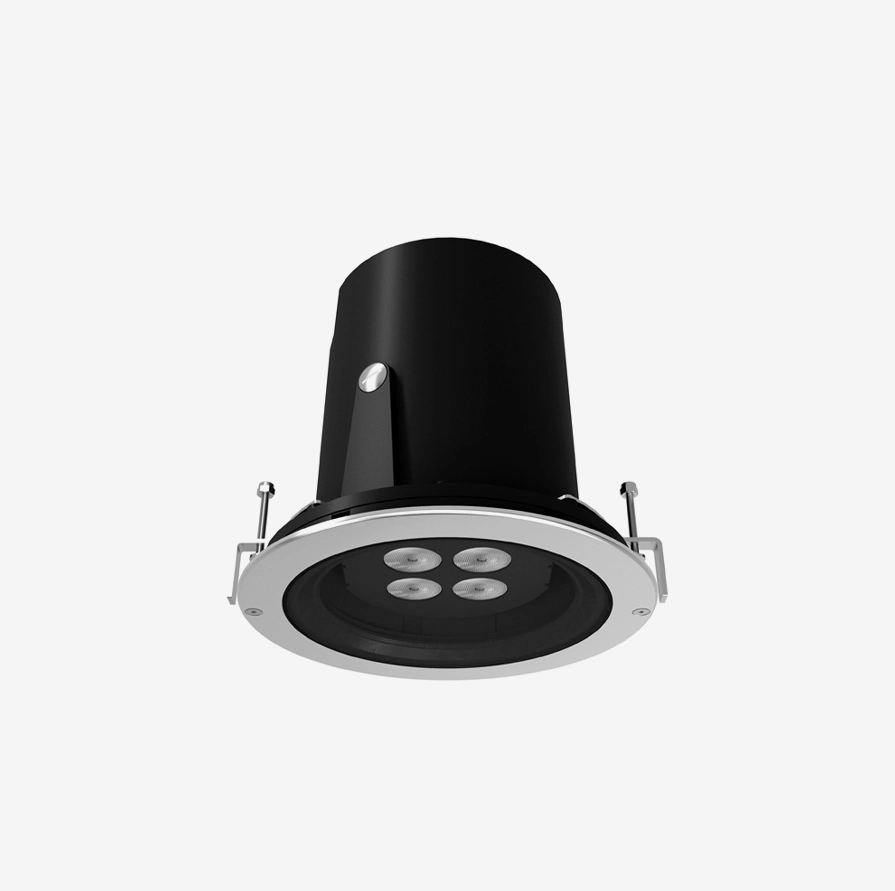

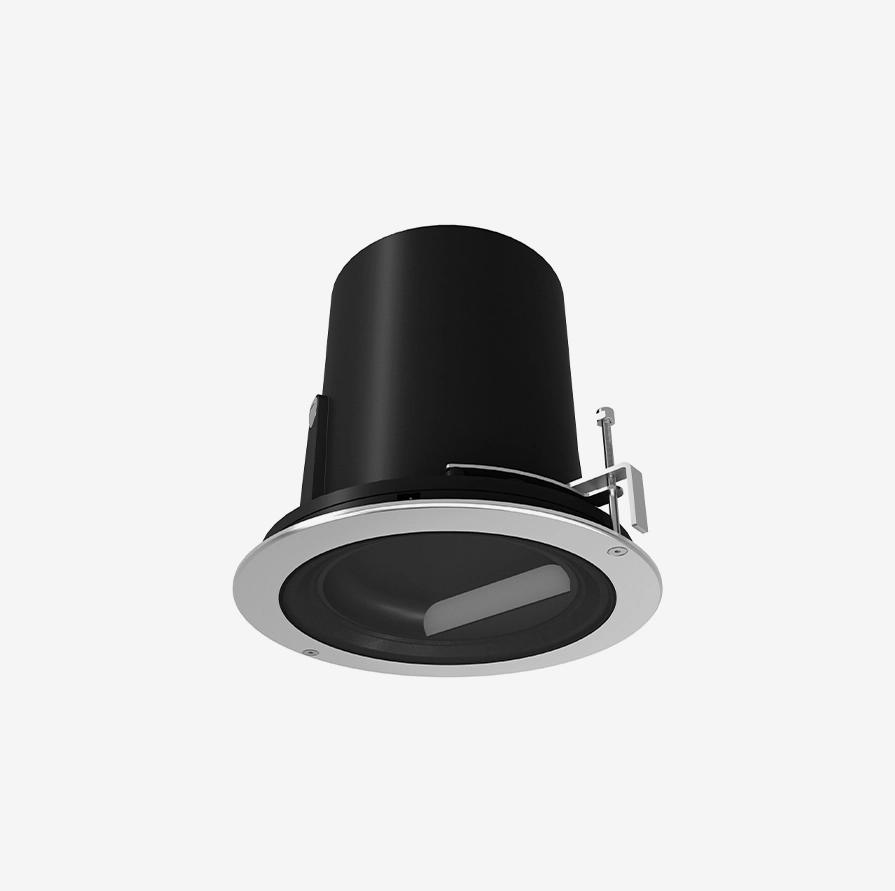

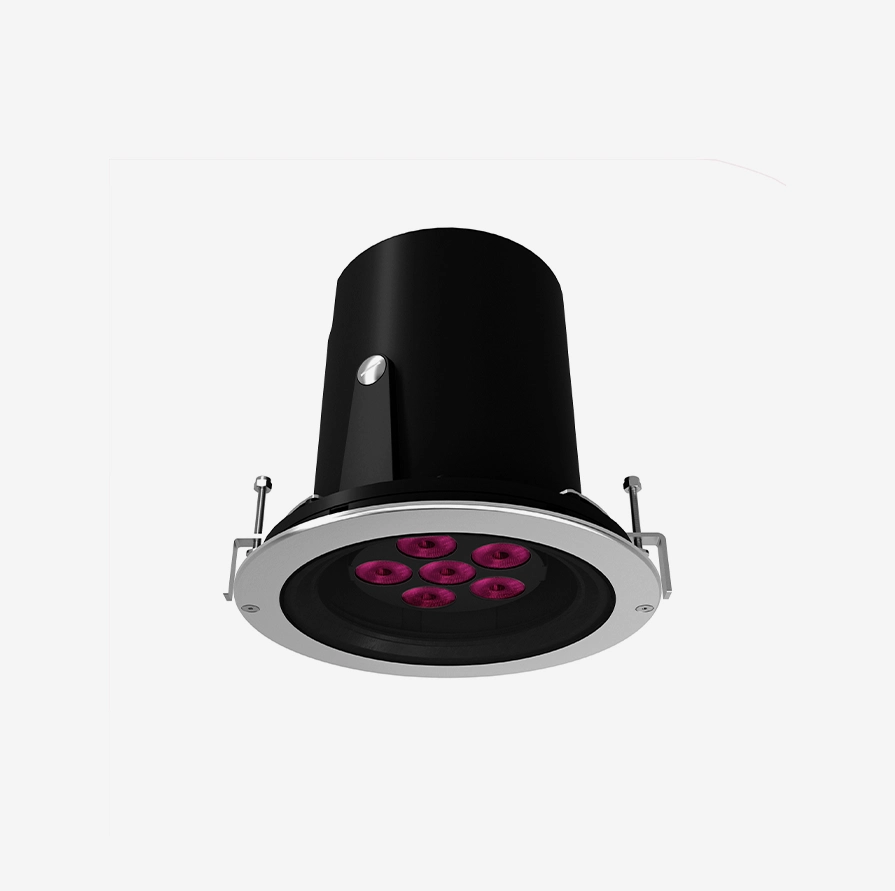

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701311.27.14.SS.0 | 32W | 2700K | 14° | 2960 |
STAINLESS STEEL |
ON/OFF | ||
| 701311.27.14.SS.D | 32W | 2700K | 14° | 2960 |
STAINLESS STEEL |
DALI | ||
| 701311.27.35.SS.0 | 32W | 2700K | 35° | 2940 |
STAINLESS STEEL |
ON/OFF | ||
| 701311.27.35.SS.D | 32W | 2700K | 35° | 2940 |
STAINLESS STEEL |
DALI | ||
| 701311.27.55.SS.0 | 32W | 2700K | 55° | 2920 |
STAINLESS STEEL |
ON/OFF | ||
| 701311.27.55.SS.D | 32W | 2700K | 55° | 2920 |
STAINLESS STEEL |
DALI | ||
| 701311.30.14.SS.0 | 32W | 3000K | 14° | 2970 |
STAINLESS STEEL |
ON/OFF | ||
| 701311.30.14.SS.D | 32W | 3000K | 14° | 2970 |
STAINLESS STEEL |
DALI | ||
| 701311.30.35.SS.0 | 32W | 3000K | 35° | 2950 |
STAINLESS STEEL |
ON/OFF | ||
| 701311.30.35.SS.D | 32W | 3000K | 35° | 2950 |
STAINLESS STEEL |
DALI | ||
| 701311.30.55.SS.0 | 32W | 3000K | 55° | 2930 |
STAINLESS STEEL |
ON/OFF | ||
| 701311.30.55.SS.D | 32W | 3000K | 55° | 2930 |
STAINLESS STEEL |
DALI | ||
| 701311.40.14.SS.0 | 32W | 4000K | 14° | 2990 |
STAINLESS STEEL |
ON/OFF | ||
| 701311.40.14.SS.D | 32W | 4000K | 14° | 2990 |
STAINLESS STEEL |
DALI | ||
| 701311.40.35.SS.0 | 32W | 4000K | 35° | 2970 |
STAINLESS STEEL |
ON/OFF | ||
| 701311.40.35.SS.D | 32W | 4000K | 35° | 2970 |
STAINLESS STEEL |
DALI | ||
| 701311.40.55.SS.0 | 32W | 4000K | 55° | 2950 |
STAINLESS STEEL |
ON/OFF | ||
| 701311.40.55.SS.D | 32W | 4000K | 55° | 2950 |
STAINLESS STEEL |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701312.27.04.SS.0 | 34W | 2700K | 4° | 3296 |
STAINLESS STEEL |
ON/OFF | ||
| 701312.27.04.SS.D | 34W | 2700K | 4° | 3296 |
STAINLESS STEEL |
DALI | ||
| 701312.27.10.SS.0 | 34W | 2700K | 10° | 3268 |
STAINLESS STEEL |
ON/OFF | ||
| 701312.27.10.SS.D | 34W | 2700K | 10° | 3268 |
STAINLESS STEEL |
DALI | ||
| 701312.27.28.SS.0 | 34W | 2700K | 28° | 3239 |
STAINLESS STEEL |
ON/OFF | ||
| 701312.27.28.SS.D | 34W | 2700K | 28° | 3239 |
STAINLESS STEEL |
DALI | ||
| 701312.27.55.SS.0 | 34W | 2700K | 55° | 2753 |
STAINLESS STEEL |
ON/OFF | ||
| 701312.27.55.SS.D | 34W | 2700K | 55° | 2753 |
STAINLESS STEEL |
DALI | ||
| 701312.30.04.SS.0 | 34W | 3000K | 4° | 3325 |
STAINLESS STEEL |
ON/OFF | ||
| 701312.30.04.SS.D | 34W | 3000K | 4° | 3325 |
STAINLESS STEEL |
DALI | ||
| 701312.30.10.SS.0 | 34W | 3000K | 10° | 3296 |
STAINLESS STEEL |
ON/OFF | ||
| 701312.30.10.SS.D | 34W | 3000K | 10° | 3296 |
STAINLESS STEEL |
DALI | ||
| 701312.30.28.SS.0 | 34W | 3000K | 28° | 3268 |
STAINLESS STEEL |
ON/OFF | ||
| 701312.30.28.SS.D | 34W | 3000K | 28° | 3268 |
STAINLESS STEEL |
DALI | ||
| 701312.30.55.SS.0 | 34W | 3000K | 55° | 2778 |
STAINLESS STEEL |
ON/OFF | ||
| 701312.30.55.SS.D | 34W | 3000K | 55° | 2778 |
STAINLESS STEEL |
DALI | ||
| 701312.40.04.SS.0 | 34W | 4000K | 4° | 3353 |
STAINLESS STEEL |
ON/OFF | ||
| 701312.40.04.SS.D | 34W | 4000K | 4° | 3353 |
STAINLESS STEEL |
DALI | ||
| 701312.40.10.SS.0 | 34W | 4000K | 10° | 3325 |
STAINLESS STEEL |
ON/OFF | ||
| 701312.40.10.SS.D | 34W | 4000K | 10° | 3325 |
STAINLESS STEEL |
DALI | ||
| 701312.40.28.SS.0 | 34W | 4000K | 28° | 3296 |
STAINLESS STEEL |
ON/OFF | ||
| 701312.40.28.SS.D | 34W | 4000K | 28° | 3296 |
STAINLESS STEEL |
DALI | ||
| 701312.40.55.SS.0 | 34W | 4000K | 55° | 2802 |
STAINLESS STEEL |
ON/OFF | ||
| 701312.40.55.SS.D | 34W | 4000K | 55° | 2802 |
STAINLESS STEEL |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701313.RW.12.SS.X | 28W | RGBW | 12° | 1000 |
STAINLESS STEEL |
DMX | ||
| 701313.RW.12.SS.D | 28W | RGBW | 12° | 1000 |
STAINLESS STEEL |
DALI | ||
| 701313.RW.25.SS.X | 28W | RGBW | 25° | 992 |
STAINLESS STEEL |
DMX | ||
| 701313.RW.25.SS.D | 28W | RGBW | 25° | 992 |
STAINLESS STEEL |
DALI | ||
| 701313.RW.35.SS.X | 28W | RGBW | 35° | 981 |
STAINLESS STEEL |
DMX | ||
| 701313.RW.35.SS.D | 28W | RGBW | 35° | 981 |
STAINLESS STEEL |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 701314.27.WW.SS.0 | 24W | 2700K | wall washer | 1800 |
STAINLESS STEEL |
ON/OFF | ||
| 701314.27.WW.SS.D | 24W | 2700K | wall washer | 1800 |
STAINLESS STEEL |
DALI | ||
| 701314.30.WW.SS.0 | 24W | 3000K | wall washer | 1880 |
STAINLESS STEEL |
ON/OFF | ||
| 701314.30.WW.SS.D | 24W | 3000K | wall washer | 1880 |
STAINLESS STEEL |
DALI | ||
| 701314.40.WW.SS.0 | 24W | 4000K | wall washer | 1960 |
STAINLESS STEEL |
ON/OFF | ||
| 701314.40.WW.SS.D | 24W | 4000K | wall washer | 1960 |
STAINLESS STEEL |
DALI | ||
