Square wall-recessed luminaire for outdoor installation, phospho-chromatised and polyester powder coated extruded copper-free aluminium body, tempered frosted glass diffuser, moulded silicone gaskets, polypropylene housing for recess. Built-in LED driver 220-240V 50-60Hz, with 14 CREE XH-G mid-power LED. IP65 rating.

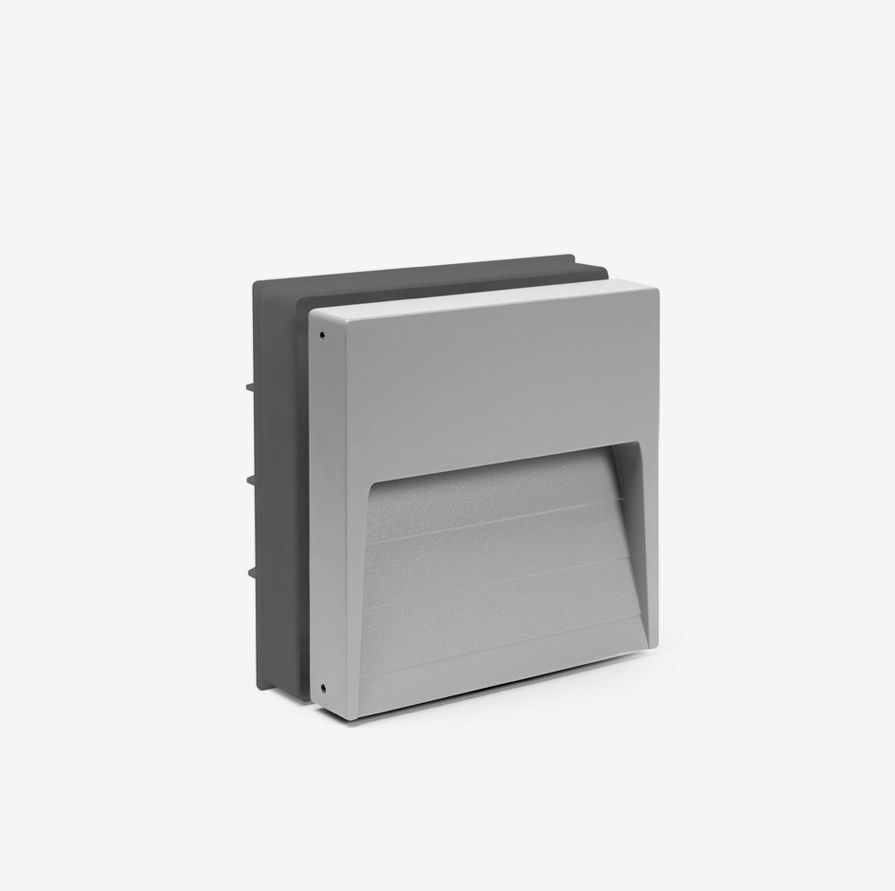

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 504002.27.FW.03.0 | 8W | 2700K | floor washer |
RAL9005 |
ON/OFF | |||
| 504002.27.FW.02.0 | 8W | 2700K | floor washer |
RAL7016 |
ON/OFF | |||
| 504002.27.FW.01.0 | 8W | 2700K | floor washer |
RAL9006 |
ON/OFF | |||
| 504002.30.FW.03.0 | 8W | 3000K | floor washer | 650 |
RAL9005 |
ON/OFF | ||
| 504002.30.FW.02.0 | 8W | 3000K | floor washer | 650 |
RAL7016 |
ON/OFF | ||
| 504002.30.FW.01.0 | 8W | 3000K | floor washer | 650 |
RAL9006 |
ON/OFF | ||
| 504002.40.FW.03.0 | 8W | 4000K | floor washer | 660 |
RAL9005 |
ON/OFF | ||
| 504002.40.FW.02.0 | 8W | 4000K | floor washer | 660 |
RAL7016 |
ON/OFF | ||
| 504002.40.FW.01.0 | 8W | 4000K | floor washer | 660 |
RAL9006 |
ON/OFF | ||
