Round shape wall-recessed luminaire with diffused light distribution for outdoor installation, phosphochromatised and polyester powder coated diecast copper-free aluminium body, tempered sandblasted glass diffuser, moulded silicone gaskets, polypropylene housing for recess. Remote constant voltage 24V DC power supply needed. IP66 rating.

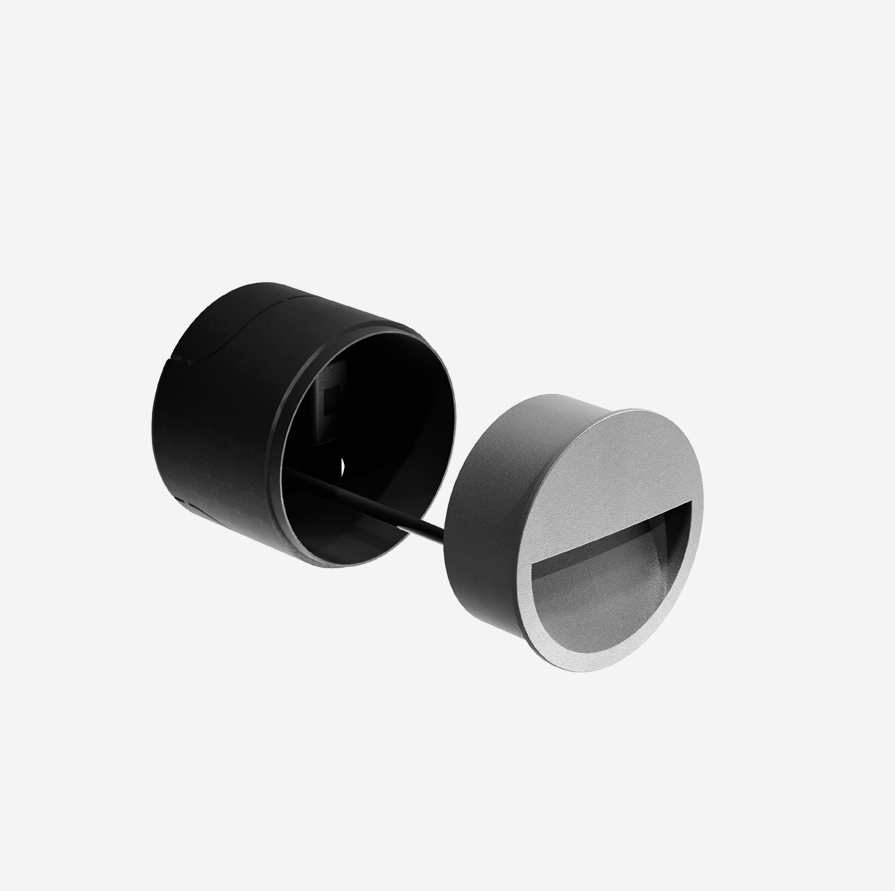

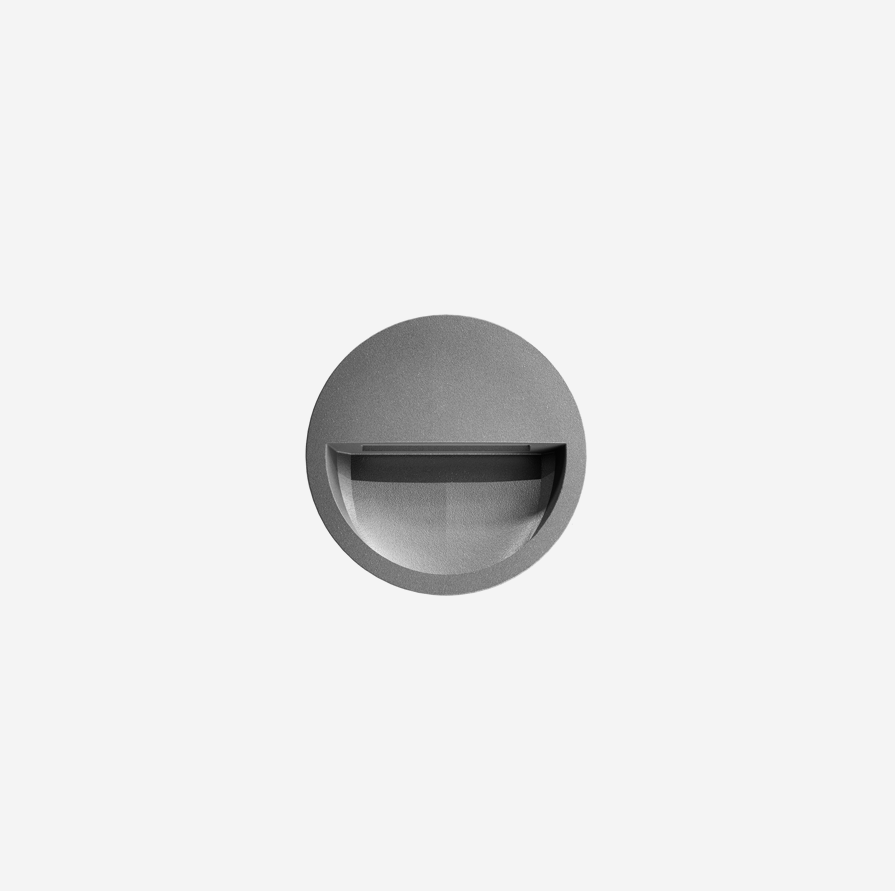

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 506002.27.DF.03.0 | 3W | 2700K | diffused | 120 |
RAL9005 |
ON/OFF | ||
| 506002.27.DF.02.0 | 3W | 2700K | diffused | 120 |
RAL7016 |
ON/OFF | ||
| 506002.27.DF.01.0 | 3W | 2700K | diffused | 120 |
RAL9006 |
ON/OFF | ||
| 506002.30.DF.03.0 | 3W | 3000K | diffused | 130 |
RAL9005 |
ON/OFF | ||
| 506002.30.DF.01.0 | 3W | 3000K | diffused | 130 |
RAL9006 |
ON/OFF | ||
| 506002.30.DF.02.0 | 3W | 3000K | diffused | 130 |
RAL7016 |
ON/OFF | ||
| 506002.40.DF.03.0 | 3W | 4000K | diffused | 150 |
RAL9005 |
ON/OFF | ||
| 506002.40.DF.01.0 | 3W | 4000K | diffused | 150 |
RAL9006 |
ON/OFF | ||
| 506002.40.DF.02.0 | 3W | 4000K | diffused | 150 |
RAL7016 |
ON/OFF | ||
