Square shape wall-recessed luminaire with floor-wahser light distribution for outdoor installation, phospho-chromatised and polyester powder coated diecast copper-free aluminium body, tempered sand-blasted glass diffuser, moulded silicone gaskets, polypropylene housing for recess. Built-in driver 220-240V 50-60Hz. IP66 rating.

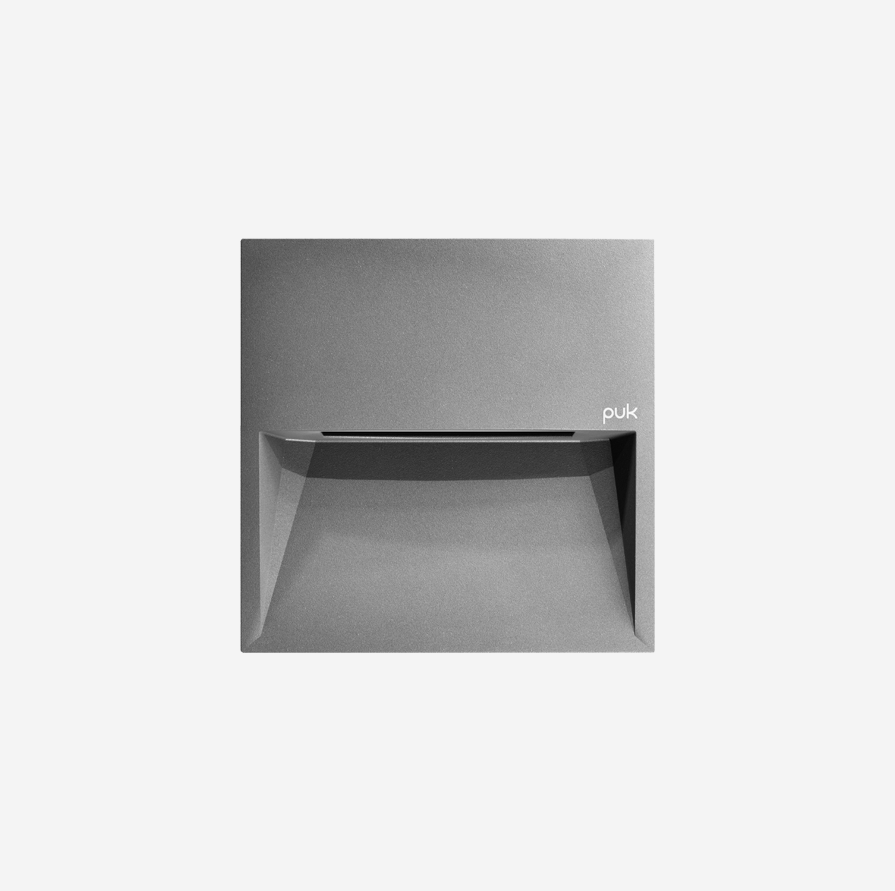

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 506013.27.FW.03.D | 8W | 2700K | floor washer | 296 |
RAL9005 |
DALI | ||
| 506013.27.FW.02.D | 8W | 2700K | floor washer | 296 |
RAL7016 |
DALI | ||
| 506013.27.FW.03.0 | 8W | 2700K | floor washer | 296 |
RAL9005 |
ON/OFF | ||
| 506013.27.FW.02.0 | 8W | 2700K | floor washer | 296 |
RAL7016 |
ON/OFF | ||
| 506013.27.FW.01.D | 8W | 2700K | floor washer | 296 |
RAL9006 |
DALI | ||
| 506013.27.FW.01.0 | 8W | 2700K | floor washer | 296 |
RAL9006 |
ON/OFF | ||
| 506013.30.FW.03.0 | 8W | 3000K | floor washer | 306 |
RAL9005 |
ON/OFF | ||
| 506013.30.FW.03.D | 8W | 3000K | floor washer | 306 |
RAL9005 |
DALI | ||
| 506013.30.FW.01.0 | 8W | 3000K | floor washer | 306 |
RAL9006 |
ON/OFF | ||
| 506013.30.FW.01.D | 8W | 3000K | floor washer | 306 |
RAL9006 |
DALI | ||
| 506013.30.FW.02.0 | 8W | 3000K | floor washer | 306 |
RAL7016 |
ON/OFF | ||
| 506013.30.FW.02.D | 8W | 3000K | floor washer | 306 |
RAL7016 |
DALI | ||
| 506013.40.FW.03.0 | 8W | 4000K | floor washer | 326 |
RAL9005 |
ON/OFF | ||
| 506013.40.FW.03.D | 8W | 4000K | floor washer | 326 |
RAL9005 |
DALI | ||
| 506013.40.FW.02.D | 8W | 4000K | floor washer | 326 |
RAL7016 |
DALI | ||
| 506013.40.FW.01.D | 8W | 4000K | floor washer | 326 |
RAL9006 |
DALI | ||
| 506013.40.FW.02.0 | 8W | 4000K | floor washer | 326 |
RAL7016 |
ON/OFF | ||
| 506013.40.FW.01.0 | 8W | 4000K | floor washer | 326 |
RAL9006 |
ON/OFF | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 506014.27.DF.03.D | 8W | 2700K | diffused | 306 |
RAL9005 |
DALI | ||
| 506014.27.DF.01.D | 8W | 2700K | diffused | 306 |
RAL9006 |
DALI | ||
| 506014.27.DF.02.0 | 8W | 2700K | diffused | 306 |
RAL7016 |
ON/OFF | ||
| 506014.27.DF.02.D | 8W | 2700K | diffused | 306 |
RAL7016 |
DALI | ||
| 506014.27.DF.03.0 | 8W | 2700K | diffused | 306 |
RAL9005 |
ON/OFF | ||
| 506014.27.DF.01.0 | 8W | 2700K | diffused | 306 |
RAL9006 |
ON/OFF | ||
| 506014.30.DF.03.D | 8W | 3000K | diffused | 316 |
RAL9005 |
DALI | ||
| 506014.30.DF.02.D | 8W | 3000K | diffused | 316 |
RAL7016 |
DALI | ||
| 506014.30.DF.03.0 | 8W | 3000K | diffused | 316 |
RAL9005 |
ON/OFF | ||
| 506014.30.DF.01.0 | 8W | 3000K | diffused | 316 |
RAL9006 |
ON/OFF | ||
| 506014.30.DF.01.D | 8W | 3000K | diffused | 316 |
RAL9006 |
DALI | ||
| 506014.30.DF.02.0 | 8W | 3000K | diffused | 316 |
RAL7016 |
ON/OFF | ||
| 506014.40.DF.03.D | 8W | 4000K | diffused | 336 |
RAL9005 |
DALI | ||
| 506014.40.DF.03.0 | 8W | 4000K | diffused | 336 |
RAL9005 |
ON/OFF | ||
| 506014.40.DF.01.0 | 8W | 4000K | diffused | 336 |
RAL9006 |
ON/OFF | ||
| 506014.40.DF.01.D | 8W | 4000K | diffused | 336 |
RAL9006 |
DALI | ||
| 506014.40.DF.02.0 | 8W | 4000K | diffused | 336 |
RAL7016 |
ON/OFF | ||
| 506014.40.DF.02.D | 8W | 4000K | diffused | 336 |
RAL7016 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 506015.27.DF.02.D | 8W | 2700K | diffused | 296 |
RAL7016 |
DALI | ||
| 506015.27.DF.03.0 | 8W | 2700K | diffused | 296 |
RAL9005 |
ON/OFF | ||
| 506015.27.DF.03.D | 8W | 2700K | diffused | 296 |
RAL9005 |
DALI | ||
| 506015.27.DF.02.0 | 8W | 2700K | diffused | 296 |
RAL7016 |
ON/OFF | ||
| 506015.27.DF.01.0 | 8W | 2700K | diffused | 296 |
RAL9006 |
ON/OFF | ||
| 506015.27.DF.01.D | 8W | 2700K | diffused | 296 |
RAL9006 |
DALI | ||
| 506015.30.DF.03.D | 8W | 3000K | diffused | 306 |
RAL9005 |
DALI | ||
| 506015.30.DF.01.D | 8W | 3000K | diffused | 306 |
RAL9006 |
DALI | ||
| 506015.30.DF.02.0 | 8W | 3000K | diffused | 306 |
RAL7016 |
ON/OFF | ||
| 506015.30.DF.02.D | 8W | 3000K | diffused | 306 |
RAL7016 |
DALI | ||
| 506015.30.DF.03.0 | 8W | 3000K | diffused | 306 |
RAL9005 |
ON/OFF | ||
| 506015.30.DF.01.0 | 8W | 3000K | diffused | 306 |
RAL9006 |
ON/OFF | ||
| 506015.40.DF.03.D | 8W | 4000K | diffused | 326 |
RAL9005 |
DALI | ||
| 506015.40.DF.01.D | 8W | 4000K | diffused | 326 |
RAL9006 |
DALI | ||
| 506015.40.DF.02.0 | 8W | 4000K | diffused | 326 |
RAL7016 |
ON/OFF | ||
| 506015.40.DF.02.D | 8W | 4000K | diffused | 326 |
RAL7016 |
DALI | ||
| 506015.40.DF.03.0 | 8W | 4000K | diffused | 326 |
RAL9005 |
ON/OFF | ||
| 506015.40.DF.01.0 | 8W | 4000K | diffused | 326 |
RAL9006 |
ON/OFF | ||
