Nanostep
Round

505003

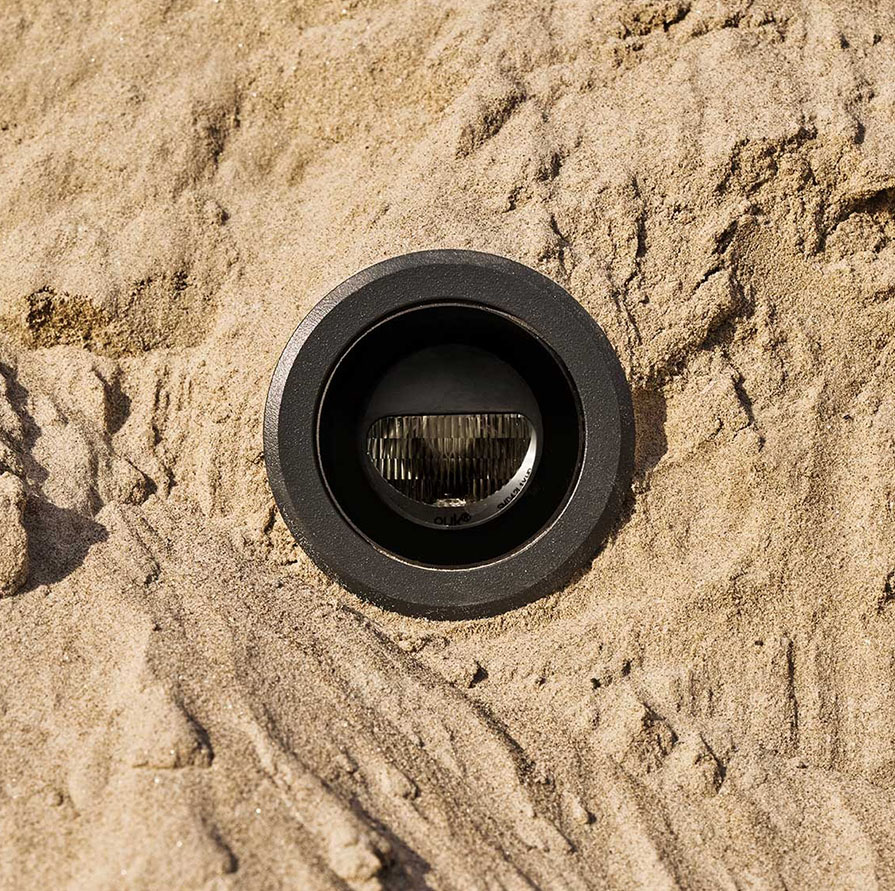

Product IMAGE

Technical Drawing

Technical drawing

505003

Nanostep Round

view all products

Technical features

Product code	watt	light source	Beam angle	LUMENS	finish	Dimming
505003.27.35.01.0	5W (@350mA) / 8W (@500mA) / 10W (@700mA)	2700K	8°x35° elliptical	460 lm (@350mA) / 622 lm (@500mA) / 836 lm (@700mA)	RAL9006	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
505003.27.35.02.0	5W (@350mA) / 8W (@500mA) / 10W (@700mA)	2700K	8°x35° elliptical	460 lm (@350mA) / 622 lm (@500mA) / 836 lm (@700mA)	RAL7016	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
505003.27.35.03.0	5W (@350mA) / 8W (@500mA) / 10W (@700mA)	2700K	8°x35° elliptical	460 lm (@350mA) / 622 lm (@500mA) / 836 lm (@700mA)	Matt Black	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
505003.30.35.01.0	5W (@350mA) / 8W (@500mA) / 10W (@700mA)	3000K	8°x35° elliptical	474 lm (@350mA) / 642 lm (@500mA) / 846 lm (@700mA)	RAL9006	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
505003.30.35.02.0	5W (@350mA) / 8W (@500mA) / 10W (@700mA)	3000K	8°x35° elliptical	474 lm (@350mA) / 642 lm (@500mA) / 846 lm (@700mA)	RAL7016	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
505003.30.35.03.0	5W (@350mA) / 8W (@500mA) / 10W (@700mA)	3000K	8°x35° elliptical	474 lm (@350mA) / 642 lm (@500mA) / 846 lm (@700mA)	Matt Black	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
505003.40.35.01.0	5W (@350mA) / 8W (@500mA) / 10W (@700mA)	4000K	8°x35° elliptical	484 lm (@350mA) / 656 lm (@500mA) / 863 lm (@700mA)	RAL9006	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
505003.40.35.02.0	5W (@350mA) / 8W (@500mA) / 10W (@700mA)	4000K	8°x35° elliptical	484 lm (@350mA) / 656 lm (@500mA) / 863 lm (@700mA)	RAL7016	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
505003.40.35.03.0	5W (@350mA) / 8W (@500mA) / 10W (@700mA)	4000K	8°x35° elliptical	484 lm (@350mA) / 656 lm (@500mA) / 863 lm (@700mA)	Matt Black	ON/OFF
ltd file instructions BIM REVIT 3D CAD Data Sheet
