Trimless linear shape wall-recessed luminaire for outdoor installation. Body in hard anodized aluminum with phospho-chromatised and polyester powder coating, tempered safety glass, moulded silicone gasket. Asymmetrical oval wide light distribution. Remote constant current max 700mA driver needed, with 3 CREE XP-G2 LED. IP68 rating.

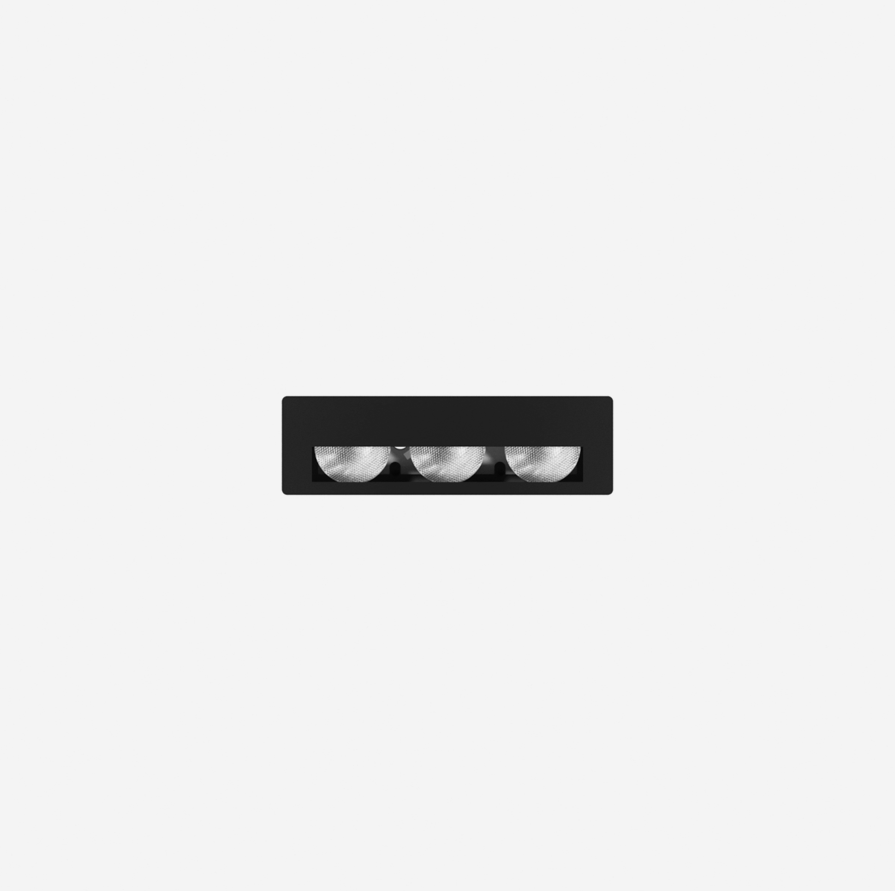

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 505005.27.E1.GL.0 | 6W | 2700K | elliptical 45x10 | 278 |
CLEAR GLASS |
ON/OFF | ||
| 505005.30.E1.GL.0 | 6W | 3000K | elliptical 45x10 | 284 |
CLEAR GLASS |
ON/OFF | ||
| 505005.40.E1.GL.0 | 6W | 4000K | elliptical 45x10 | 290 |
CLEAR GLASS |
ON/OFF | ||
