Linear shape wall-recessed luminaire for outdoor installation. Body and frontal cover in hard anodized aluminum with phospho-chromatised and polyester powder coating, tempered safety glass, moulded silicone gasket. Asymmetrical oval wide light distribution. Remote constant current max 700mA driver needed, with 3 CREE XP-G2 LED. IP68 rating.

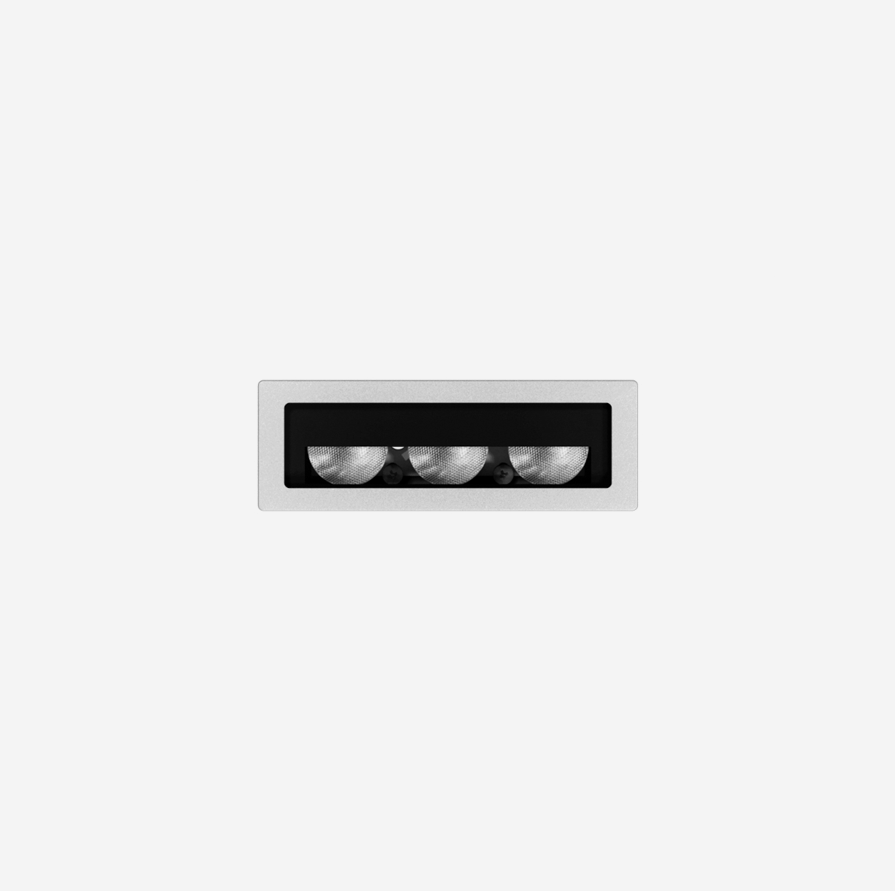

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 505004.27.45.01.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 2700K | 10°x45° elliptical | 278 lm (@350mA) / 350 lm (@500mA) / 501 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 505004.27.45.02.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 2700K | 10°x45° elliptical | 278 lm (@350mA) / 350 lm (@500mA) / 501 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 505004.27.45.03.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 2700K | 10°x45° elliptical | 278 lm (@350mA) / 350 lm (@500mA) / 501 lm (@700mA) |
Matt Black |
ON/OFF | ||
| 505004.30.45.01.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 3000K | 10°x45° elliptical | 284 lm (@350mA) / 360 lm (@500mA) / 507 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 505004.30.45.02.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 3000K | 10°x45° elliptical | 284 lm (@350mA) / 360 lm (@500mA) / 507 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 505004.30.45.03.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 3000K | 10°x45° elliptical | 284 lm (@350mA) / 360 lm (@500mA) / 507 lm (@700mA) |
Matt Black |
ON/OFF | ||
| 505004.40.45.01.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 4000K | 10°x45° elliptical | 290 lm (@350mA) / 369 lm (@500mA) / 518 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 505004.40.45.02.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 4000K | 10°x45° elliptical | 290 lm (@350mA) / 369 lm (@500mA) / 518 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 505004.40.45.03.0 | 3W (@350mA) / 4.5W (@500mA) / 6W (@700mA) | 4000K | 10°x45° elliptical | 290 lm (@350mA) / 369 lm (@500mA) / 518 lm (@700mA) |
Matt Black |
ON/OFF | ||
