Surface mounted luminaire for outdoor installation on window sill, with asymmetric 8°x170° “window-washer” light distribution. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, tempered safety glass, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 50-60Hz,with 1 x CREE XHP35 LED. IP65 rating.

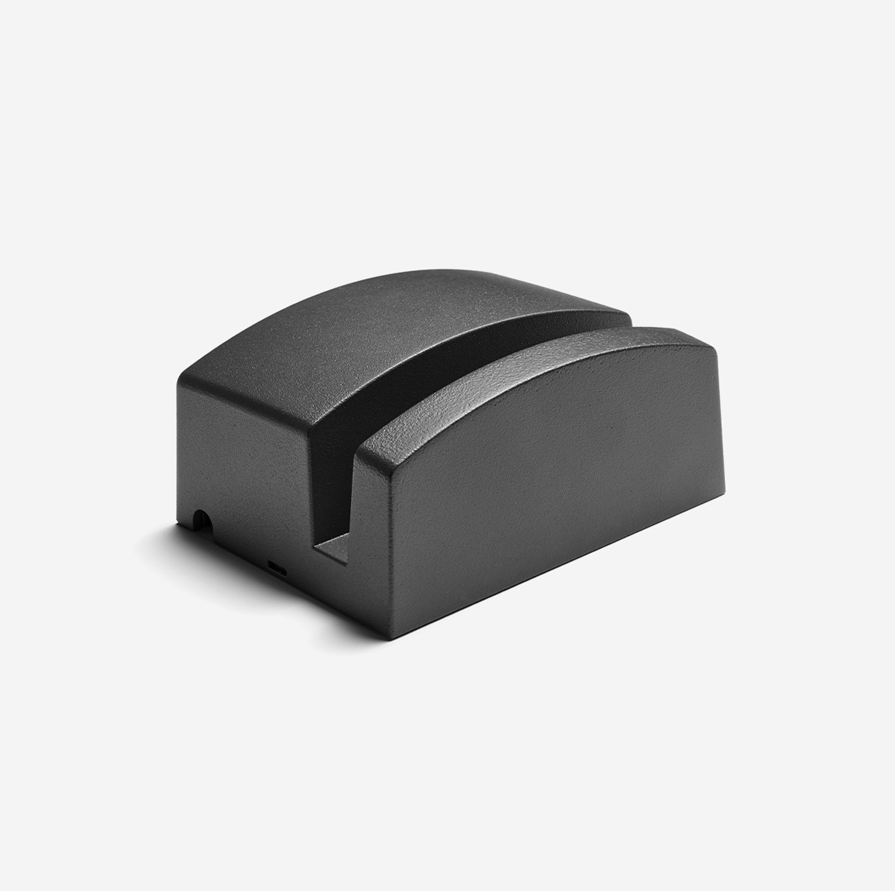

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 401102.27.BL.03.0 | 7W | 2700K | blade optic | 553 |
RAL9005 |
ON/OFF | ||
| 401102.27.BL.03.1 | 7W | 2700K | blade optic | 553 |
RAL9005 |
1-10V | ||
| 401102.27.BL.03.D | 7W | 2700K | blade optic | 553 |
RAL9005 |
DALI | ||
| 401102.27.BL.02.0 | 7W | 2700K | blade optic | 553 |
RAL7016 |
ON/OFF | ||
| 401102.27.BL.02.1 | 7W | 2700K | blade optic | 553 |
RAL7016 |
1-10V | ||
| 401102.27.BL.02.D | 7W | 2700K | blade optic | 553 |
RAL7016 |
DALI | ||
| 401102.27.BL.01.0 | 7W | 2700K | blade optic | 553 |
RAL9006 |
ON/OFF | ||
| 401102.27.BL.01.1 | 7W | 2700K | blade optic | 553 |
RAL9006 |
1-10V | ||
| 401102.27.BL.01.D | 7W | 2700K | blade optic | 553 |
RAL9006 |
DALI | ||
| 401102.30.BL.03.0 | 7W | 3000K | blade optic | 582 |
RAL9005 |
ON/OFF | ||
| 401102.30.BL.03.1 | 7W | 3000K | blade optic | 582 |
RAL9005 |
1-10V | ||
| 401102.30.BL.03.D | 7W | 3000K | blade optic | 582 |
RAL9005 |
DALI | ||
| 401102.30.BL.02.0 | 7W | 3000K | blade optic | 582 |
RAL7016 |
ON/OFF | ||
| 401102.30.BL.02.1 | 7W | 3000K | blade optic | 582 |
RAL7016 |
1-10V | ||
| 401102.30.BL.02.D | 7W | 3000K | blade optic | 582 |
RAL7016 |
DALI | ||
| 401102.30.BL.01.0 | 7W | 3000K | blade optic | 582 |
RAL9006 |
ON/OFF | ||
| 401102.30.BL.01.1 | 7W | 3000K | blade optic | 582 |
RAL9006 |
1-10V | ||
| 401102.30.BL.01.D | 7W | 3000K | blade optic | 582 |
RAL9006 |
DALI | ||
| 401102.40.BL.03.0 | 7W | 4000K | blade optic | 600 |
RAL9005 |
ON/OFF | ||
| 401102.40.BL.03.1 | 7W | 4000K | blade optic | 600 |
RAL9005 |
1-10V | ||
| 401102.40.BL.03.D | 7W | 4000K | blade optic | 600 |
RAL9005 |
DALI | ||
| 401102.40.BL.02.0 | 7W | 4000K | blade optic | 600 |
RAL7016 |
ON/OFF | ||
| 401102.40.BL.02.1 | 7W | 4000K | blade optic | 600 |
RAL7016 |
1-10V | ||
| 401102.40.BL.02.D | 7W | 4000K | blade optic | 600 |
RAL7016 |
DALI | ||
| 401102.40.BL.01.0 | 7W | 4000K | blade optic | 600 |
RAL9006 |
ON/OFF | ||
| 401102.40.BL.01.1 | 7W | 4000K | blade optic | 600 |
RAL9006 |
1-10V | ||
| 401102.40.BL.01.D | 7W | 4000K | blade optic | 600 |
RAL9006 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 401102.RW.BL.01.X | 4.5W | RGBW | blade optic | 160 |
RAL9006 |
DMX | ||
| 401102.RW.BL.02.X | 4.5W | RGBW | blade optic | 160 |
RAL7016 |
DMX | ||
| 401102.RW.BL.03.X | 4.5W | RGBW | blade optic | 160 |
RAL9005 |
DMX | ||
