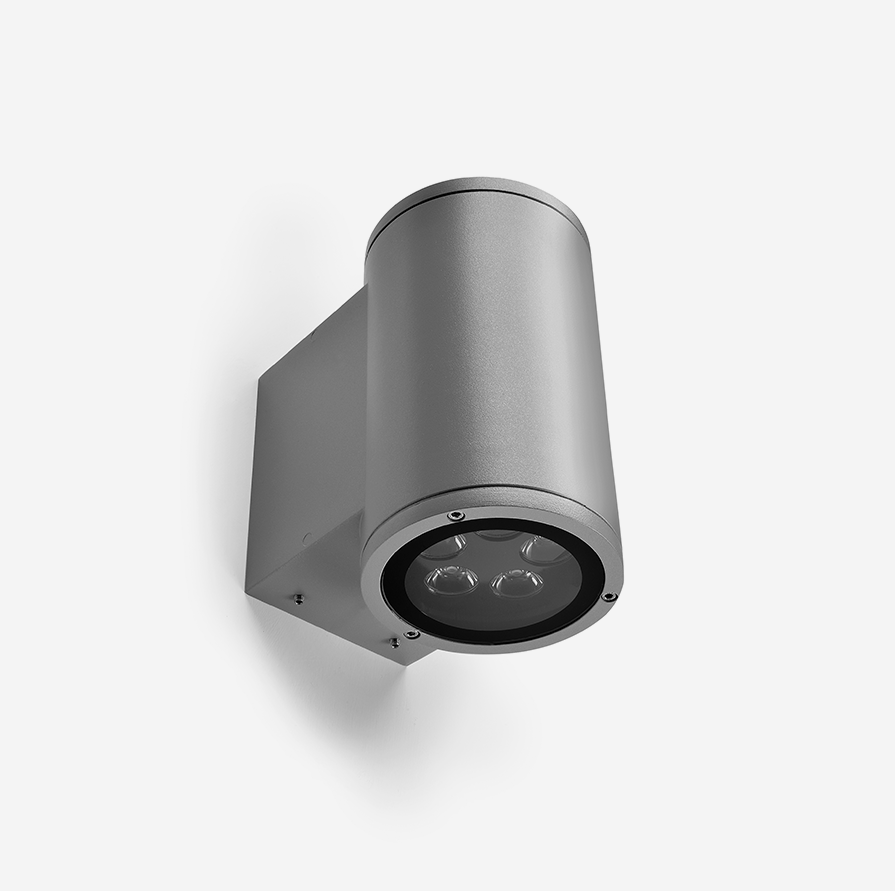

Round up&down luminaire for outdoor installation on a façade/wall. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, tempered safety glass, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 50-60Hz, with 2 x 5 CREE XP-L LED. IP65 rating.
Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 401016.30.10.03.0 | 2x14W | 3000K | 10° | 2 x 1300 |
RAL9005 |
ON/OFF | ||
| 401016.30.10.02.0 | 2x14W | 3000K | 10° | 2 x 1300 |
RAL7016 |
ON/OFF | ||
| 401016.30.10.01.0 | 2x14W | 3000K | 10° | 2 x 1300 |
RAL9006 |
ON/OFF | ||
| 401016.30.30.03.0 | 2x14W | 3000K | 30° | 2 x 1230 |
RAL9005 |
ON/OFF | ||
| 401016.30.30.02.0 | 2x14W | 3000K | 30° | 2 x 1230 |
RAL7016 |
ON/OFF | ||
| 401016.30.30.01.0 | 2x14W | 3000K | 30° | 2 x 1230 |
RAL9006 |
ON/OFF | ||
| 401016.30.45.03.0 | 2x14W | 3000K | 45° | 2 x 1170 |
RAL9005 |
ON/OFF | ||
| 401016.30.45.01.0 | 2x14W | 3000K | 45° | 2 x 1170 |
RAL9006 |
ON/OFF | ||
| 401016.30.45.02.0 | 2x14W | 3000K | 45° | 2 x 1170 |
RAL7016 |
ON/OFF | ||
| 401016.40.10.03.0 | 2x14W | 4000K | 10° | available on request |
RAL9005 |
ON/OFF | ||
| 401016.40.10.02.0 | 2x14W | 4000K | 10° | available on request |
RAL7016 |
ON/OFF | ||
| 401016.40.10.01.0 | 2x14W | 4000K | 10° | available on request |
RAL9006 |
ON/OFF | ||
| 401016.40.30.02.0 | 2x14W | 4000K | 30° | available on request |
RAL7016 |
ON/OFF | ||
| 401016.40.30.03.0 | 2x14W | 4000K | 30° | available on request |
RAL9005 |
ON/OFF | ||
| 401016.40.30.01.0 | 2x14W | 4000K | 30° | available on request |
RAL9006 |
ON/OFF | ||
| 401016.40.45.03.0 | 2x14W | 4000K | 45° | available on request |
RAL9005 |
ON/OFF | ||
| 401016.40.45.02.0 | 2x14W | 4000K | 45° | available on request |
RAL7016 |
ON/OFF | ||
| 401016.40.45.01.0 | 2x14W | 4000K | 45° | available on request |
RAL9006 |
ON/OFF | ||
