Wall applique, to be mounted on an outdoor façade/wall, with one side light distribution. Phospho-chromatised and polyester powder coated copper-free extruded aluminium body, tempered safety glass, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 50-60Hz, with 3 CREE XP-G2 LED. IP 65 rating. Design by MOMO Design

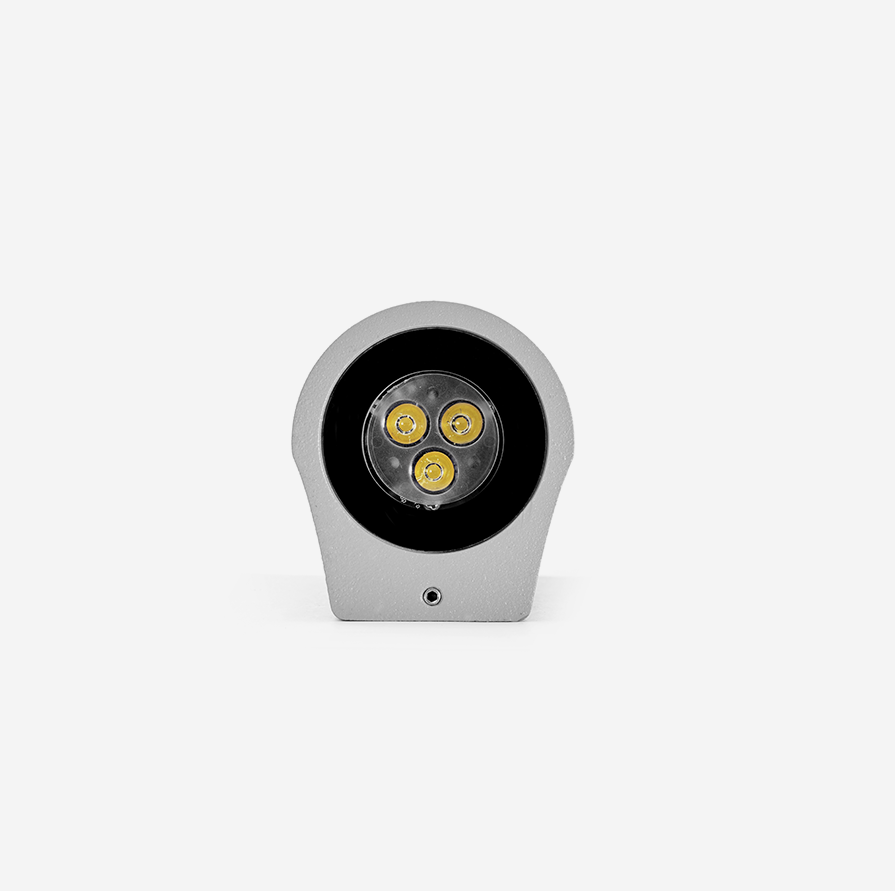

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 402601.30.10.03.0 | 5.5W | 3000K | 10° | 550 |
RAL9005 |
ON/OFF | ||
| 402601.30.10.03.D | 5.5W | 3000K | 10° | 550 |
RAL9005 |
DALI | ||
| 402601.30.10.02.0 | 5.5W | 3000K | 10° | 550 |
RAL7016 |
ON/OFF | ||
| 402601.30.10.02.D | 5.5W | 3000K | 10° | 550 |
RAL7016 |
DALI | ||
| 402601.30.10.01.0 | 5.5W | 3000K | 10° | 550 |
RAL9006 |
ON/OFF | ||
| 402601.30.10.01.D | 5.5W | 3000K | 10° | 550 |
RAL9006 |
DALI | ||
| 402601.30.30.03.0 | 5.5W | 3000K | 30° | 520 |
RAL9005 |
ON/OFF | ||
| 402601.30.30.03.D | 5.5W | 3000K | 30° | 520 |
RAL9005 |
DALI | ||
| 402601.30.30.02.0 | 5.5W | 3000K | 30° | 520 |
RAL7016 |
ON/OFF | ||
| 402601.30.30.02.D | 5.5W | 3000K | 30° | 520 |
RAL7016 |
DALI | ||
| 402601.30.30.01.0 | 5.5W | 3000K | 30° | 520 |
RAL9006 |
ON/OFF | ||
| 402601.30.30.01.D | 5.5W | 3000K | 30° | 520 |
RAL9006 |
DALI | ||
| 402601.30.45.03.0 | 5.5W | 3000K | 45° | 495 |
RAL9005 |
ON/OFF | ||
| 402601.30.45.03.D | 5.5W | 3000K | 45° | 495 |
RAL9005 |
DALI | ||
| 402601.30.45.02.0 | 5.5W | 3000K | 45° | 495 |
RAL7016 |
ON/OFF | ||
| 402601.30.45.02.D | 5.5W | 3000K | 45° | 495 |
RAL7016 |
DALI | ||
| 402601.30.45.01.0 | 5.5W | 3000K | 45° | 495 |
RAL9006 |
ON/OFF | ||
| 402601.30.45.01.D | 5.5W | 3000K | 45° | 495 |
RAL9006 |
DALI | ||
| 402601.40.10.03.0 | 5.5W | 4000K | 10° | 600 |
RAL9005 |
ON/OFF | ||
| 402601.40.10.03.D | 5.5W | 4000K | 10° | 600 |
RAL9005 |
DALI | ||
| 402601.40.10.02.0 | 5.5W | 4000K | 10° | 600 |
RAL7016 |
ON/OFF | ||
| 402601.40.10.02.D | 5.5W | 4000K | 10° | 600 |
RAL7016 |
DALI | ||
| 402601.40.10.01.0 | 5.5W | 4000K | 10° | 600 |
RAL9006 |
ON/OFF | ||
| 402601.40.10.01.D | 5.5W | 4000K | 10° | 600 |
RAL9006 |
DALI | ||
| 402601.40.30.03.0 | 5.5W | 4000K | 30° | 570 |
RAL9005 |
ON/OFF | ||
| 402601.40.30.03.D | 5.5W | 4000K | 30° | 570 |
RAL9005 |
DALI | ||
| 402601.40.30.02.0 | 5.5W | 4000K | 30° | 570 |
RAL7016 |
ON/OFF | ||
| 402601.40.30.02.D | 5.5W | 4000K | 30° | 570 |
RAL7016 |
DALI | ||
| 402601.40.30.01.0 | 5.5W | 4000K | 30° | 570 |
RAL9006 |
ON/OFF | ||
| 402601.40.30.01.D | 5.5W | 4000K | 30° | 570 |
RAL9006 |
DALI | ||
| 402601.40.45.03.0 | 5.5W | 4000K | 45° | 540 |
RAL9005 |
ON/OFF | ||
| 402601.40.45.03.D | 5.5W | 4000K | 45° | 540 |
RAL9005 |
DALI | ||
| 402601.40.45.02.0 | 5.5W | 4000K | 45° | 540 |
RAL7016 |
ON/OFF | ||
| 402601.40.45.02.D | 5.5W | 4000K | 45° | 540 |
RAL7016 |
DALI | ||
| 402601.40.45.01.0 | 5.5W | 4000K | 45° | 540 |
RAL9006 |
ON/OFF | ||
| 402601.40.45.01.D | 5.5W | 4000K | 45° | 540 |
RAL9006 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 402602.30.10.03.0 | 11W | 3000K | 10° | 2 x 550 |
RAL9005 |
ON/OFF | ||
| 402602.30.10.03.D | 11W | 3000K | 10° | 2 x 550 |
RAL9005 |
DALI | ||
| 402602.30.10.02.0 | 11W | 3000K | 10° | 2 x 550 |
RAL7016 |
ON/OFF | ||
| 402602.30.10.02.D | 11W | 3000K | 10° | 2 x 550 |
RAL7016 |
DALI | ||
| 402602.30.10.01.0 | 11W | 3000K | 10° | 2 x 550 |
RAL9006 |
ON/OFF | ||
| 402602.30.10.01.D | 11W | 3000K | 10° | 2 x 550 |
RAL9006 |
DALI | ||
| 402602.30.30.03.0 | 11W | 3000K | 30° | 2 x 520 |
RAL9005 |
ON/OFF | ||
| 402602.30.30.03.D | 11W | 3000K | 30° | 2 x 520 |
RAL9005 |
DALI | ||
| 402602.30.30.02.0 | 11W | 3000K | 30° | 2 x 520 |
RAL7016 |
ON/OFF | ||
| 402602.30.30.02.D | 11W | 3000K | 30° | 2 x 520 |
RAL7016 |
DALI | ||
| 402602.30.30.01.0 | 11W | 3000K | 30° | 2 x 520 |
RAL9006 |
ON/OFF | ||
| 402602.30.30.01.D | 11W | 3000K | 30° | 2 x 520 |
RAL9006 |
DALI | ||
| 402602.30.45.03.0 | 11W | 3000K | 45° | 2 x 495 |
RAL9005 |
ON/OFF | ||
| 402602.30.45.03.D | 11W | 3000K | 45° | 2 x 495 |
RAL9005 |
DALI | ||
| 402602.30.45.02.0 | 11W | 3000K | 45° | 2 x 495 |
RAL7016 |
ON/OFF | ||
| 402602.30.45.02.D | 11W | 3000K | 45° | 2 x 495 |
RAL7016 |
DALI | ||
| 402602.30.45.01.0 | 11W | 3000K | 45° | 2 x 495 |
RAL9006 |
ON/OFF | ||
| 402602.30.45.01.D | 11W | 3000K | 45° | 2 x 495 |
RAL9006 |
DALI | ||
| 402602.40.10.03.0 | 11W | 4000K | 10° | 2 x 600 |
RAL9005 |
ON/OFF | ||
| 402602.40.10.03.D | 11W | 4000K | 10° | 2 x 600 |
RAL9005 |
DALI | ||
| 402602.40.10.02.0 | 11W | 4000K | 10° | 2 x 600 |
RAL7016 |
ON/OFF | ||
| 402602.40.10.02.D | 11W | 4000K | 10° | 2 x 600 |
RAL7016 |
DALI | ||
| 402602.40.10.01.0 | 11W | 4000K | 10° | 2 x 600 |
RAL9006 |
ON/OFF | ||
| 402602.40.10.01.D | 11W | 4000K | 10° | 2 x 600 |
RAL9006 |
DALI | ||
| 402602.40.30.03.0 | 11W | 4000K | 30° | 2 x 570 |
RAL9005 |
ON/OFF | ||
| 402602.40.30.03.D | 11W | 4000K | 30° | 2 x 570 |
RAL9005 |
DALI | ||
| 402602.40.30.02.0 | 11W | 4000K | 30° | 2 x 570 |
RAL7016 |
ON/OFF | ||
| 402602.40.30.02.D | 11W | 4000K | 30° | 2 x 570 |
RAL7016 |
DALI | ||
| 402602.40.30.01.0 | 11W | 4000K | 30° | 2 x 570 |
RAL9006 |
ON/OFF | ||
| 402602.40.30.01.D | 11W | 4000K | 30° | 2 x 570 |
RAL9006 |
DALI | ||
| 402602.40.45.03.0 | 11W | 4000K | 45° | 2 x 540 |
RAL9005 |
ON/OFF | ||
| 402602.40.45.03.D | 11W | 4000K | 45° | 2 x 540 |
RAL9005 |
DALI | ||
| 402602.40.45.02.0 | 11W | 4000K | 45° | 2 x 540 |
RAL7016 |
ON/OFF | ||
| 402602.40.45.02.D | 11W | 4000K | 45° | 2 x 540 |
RAL7016 |
DALI | ||
| 402602.40.45.01.0 | 11W | 4000K | 45° | 2 x 540 |
RAL9006 |
ON/OFF | ||
| 402602.40.45.01.D | 11W | 4000K | 45° | 2 x 540 |
RAL9006 |
DALI | ||
