Wall applique for outdoor installation on a façade/wall, with one side light only. Body in anodized aluminum with phospho-chromatised and polyester powder coating, tempered safety glass, moulded silicone gasket and stainless steel screws. Constant current max 700mA remote driver needed. With 2 x CREE “XHP35” LED. IP66 rating.

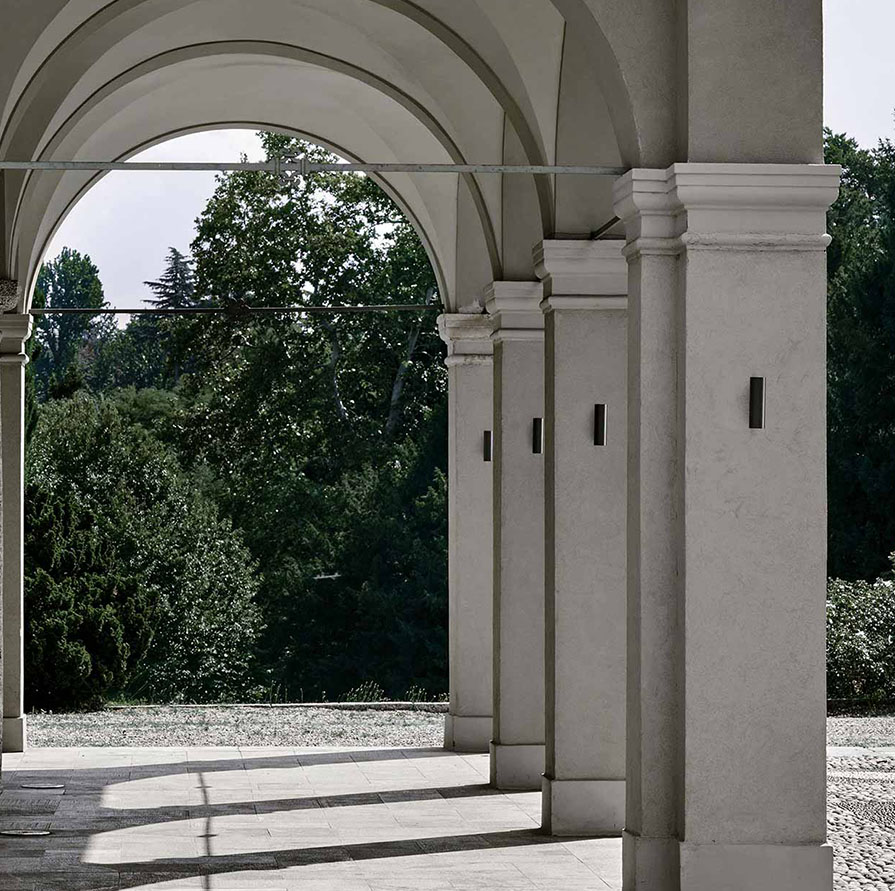

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 403104.27.04.01.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 2700K | 4° | 2x500 lm (@350mA) / 2x670 lm (@500mA) / 2x897 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 403104.27.04.02.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 2700K | 4° | 2x500 lm (@350mA) / 2x670 lm (@500mA) / 2x897 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 403104.27.04.03.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 2700K | 4° | 2x500 lm (@350mA) / 2x670 lm (@500mA) / 2x897 lm (@700mA) |
Matt Black |
ON/OFF | ||
| 403104.27.10.01.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 2700K | 10° | 2x479 lm (@350mA) / 2x642 lm (@500mA) / 2x762 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 403104.27.10.02.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 2700K | 10° | 2x479 lm (@350mA) / 2x642 lm (@500mA) / 2x762 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 403104.27.10.03.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 2700K | 10° | 2x479 lm (@350mA) / 2x642 lm (@500mA) / 2x762 lm (@700mA) |
Matt Black |
ON/OFF | ||
| 403104.27.28.01.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 2700K | 28° | 2x464 lm (@350mA) / 2x622 lm (@500mA) / 2x836 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 403104.27.28.02.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 2700K | 28° | 2x464 lm (@350mA) / 2x622 lm (@500mA) / 2x836 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 403104.27.28.03.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 2700K | 28° | 2x464 lm (@350mA) / 2x622 lm (@500mA) / 2x836 lm (@700mA) |
Matt Black |
ON/OFF | ||
| 403104.27.55.01.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 2700K | 55° | 2x394 lm (@350mA) / 2x529 lm (@500mA) / 2x711 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 403104.27.55.02.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 2700K | 55° | 2x394 lm (@350mA) / 2x529 lm (@500mA) / 2x711 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 403104.27.55.03.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 2700K | 55° | 2x394 lm (@350mA) / 2x529 lm (@500mA) / 2x711 lm (@700mA) |
Matt Black |
ON/OFF | ||
| 403104.30.04.01.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 3000K | 4° | 2x510 lm (@350mA) / 2x690 lm (@500mA) / 2x907 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 403104.30.04.02.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 3000K | 4° | 2x510 lm (@350mA) / 2x690 lm (@500mA) / 2x907 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 403104.30.04.03.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 3000K | 4° | 2x510 lm (@350mA) / 2x690 lm (@500mA) / 2x907 lm (@700mA) |
Matt Black |
ON/OFF | ||
| 403104.30.10.01.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 3000K | 10° | 2x489 lm (@350mA) / 2x662 lm (@500mA) / 2x872 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 403104.30.10.02.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 3000K | 10° | 2x489 lm (@350mA) / 2x662 lm (@500mA) / 2x872 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 403104.30.10.03.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 3000K | 10° | 2x489 lm (@350mA) / 2x662 lm (@500mA) / 2x872 lm (@700mA) |
Matt Black |
ON/OFF | ||
| 403104.30.28.01.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 3000K | 28° | 2x474 lm (@350mA) / 2x642 lm (@500mA) / 2x846 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 403104.30.28.02.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 3000K | 28° | 2x474 lm (@350mA) / 2x642 lm (@500mA) / 2x846 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 403104.30.28.03.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 3000K | 28° | 2x474 lm (@350mA) / 2x642 lm (@500mA) / 2x846 lm (@700mA) |
Matt Black |
ON/OFF | ||
| 403104.30.55.01.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 3000K | 55° | 2x403 lm (@350mA) / 2x546 lm (@500mA) / 2x719 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 403104.30.55.02.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 3000K | 55° | 2x403 lm (@350mA) / 2x546 lm (@500mA) / 2x719 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 403104.30.55.03.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 3000K | 55° | 2x403 lm (@350mA) / 2x546 lm (@500mA) / 2x719 lm (@700mA) |
Matt Black |
ON/OFF | ||
| 403104.40.04.01.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 4000K | 4° | 2x520 lm (@350mA) / 2x703 lm (@500mA) / 2x930 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 403104.40.04.02.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 4000K | 4° | 2x520 lm (@350mA) / 2x703 lm (@500mA) / 2x930 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 403104.40.04.03.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 4000K | 4° | 2x520 lm (@350mA) / 2x703 lm (@500mA) / 2x930 lm (@700mA) |
Matt Black |
ON/OFF | ||
| 403104.40.10.01.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 4000K | 10° | 2x499 lm (@350mA) / 2x676 lm (@500mA) / 2x890 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 403104.40.10.02.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 4000K | 10° | 2x499 lm (@350mA) / 2x676 lm (@500mA) / 2x890 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 403104.40.10.03.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 4000K | 10° | 2x499 lm (@350mA) / 2x676 lm (@500mA) / 2x890 lm (@700mA) |
Matt Black |
ON/OFF | ||
| 403104.40.28.01.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 4000K | 28° | 2x484 lm (@350mA) / 2x656 lm (@500mA) / 2x863 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 403104.40.28.02.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 4000K | 28° | 2x484 lm (@350mA) / 2x656 lm (@500mA) / 2x863 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 403104.40.28.03.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 4000K | 28° | 2x484 lm (@350mA) / 2x656 lm (@500mA) / 2x863 lm (@700mA) |
Matt Black |
ON/OFF | ||
| 403104.40.55.01.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 4000K | 55° | 2x411 lm (@350mA) / 2x558 lm (@500mA) / 2x734 lm (@700mA) |
RAL9006 |
ON/OFF | ||
| 403104.40.55.02.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 4000K | 55° | 2x411 lm (@350mA) / 2x558 lm (@500mA) / 2x734 lm (@700mA) |
RAL7016 |
ON/OFF | ||
| 403104.40.55.03.0 | 2x5W (@350mA) / 2x8W (@500mA) / 2x10W (@700mA) | 4000K | 55° | 2x411 lm (@350mA) / 2x558 lm (@500mA) / 2x734 lm (@700mA) |
Matt Black |
ON/OFF | ||
