880mm length linear luminaire for outdoor installation, surface mounted on a façade/wall with brackets, made in phospho-chromatised and polyester powder coated extruded copper-free aluminium, with tempered safety glass, moulded silicone gaskets. Built-in LED driver 220-240V 5060Hz, DMX interface integrated, with 36 x Tunable White 3535 LED (2700K-5600K). IP67 rating.

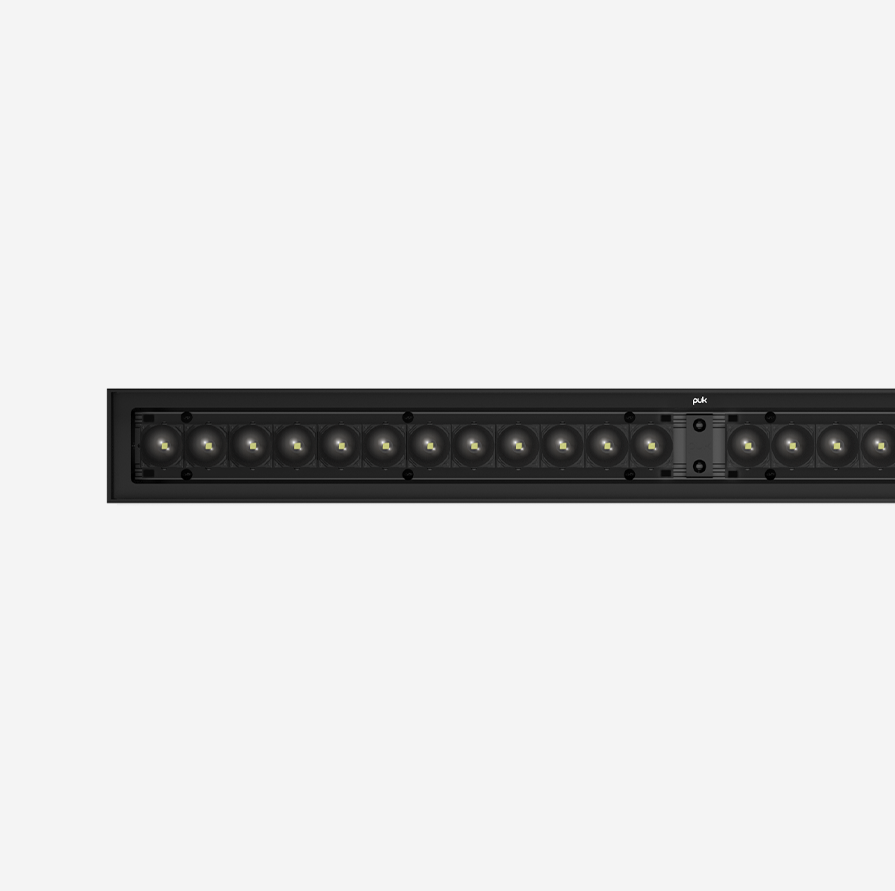

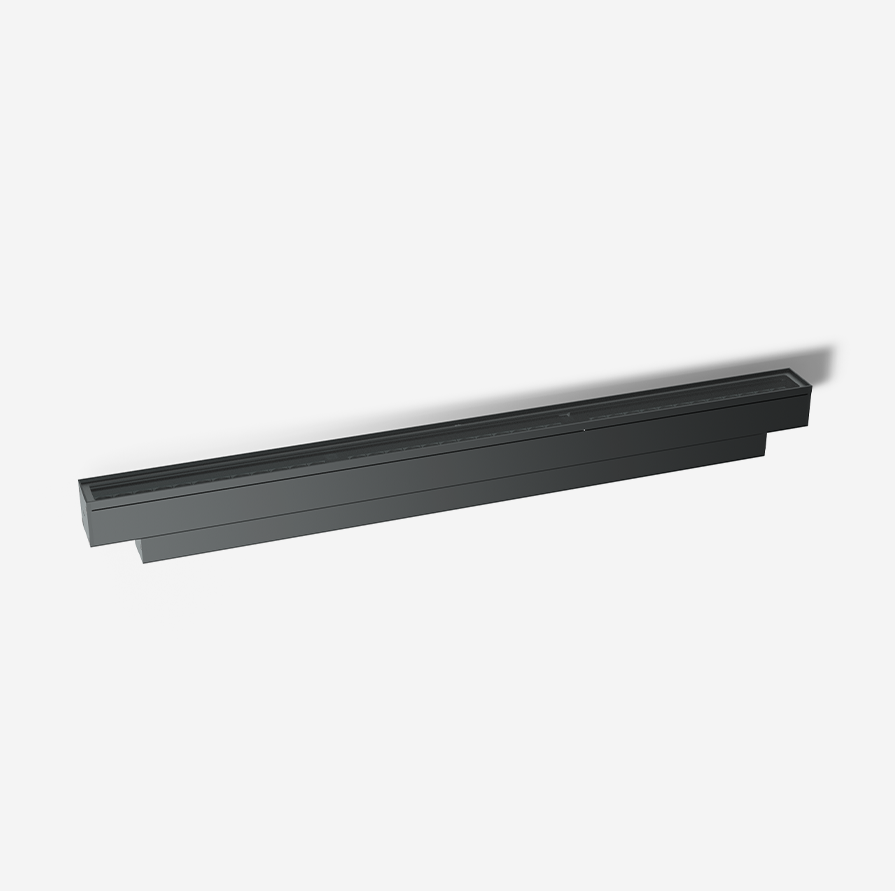

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 403311.00.E6.01.D | 30W | Tunable-White | elliptical 10x60 | 1950 |
RAL9006 |
DALI | ||
| 403311.00.E6.01.X | 30W | Tunable-White | elliptical 10x60 | 1950 |
RAL9006 |
DMX | ||
| 403311.00.E6.02.D | 30W | Tunable-White | elliptical 10x60 | 1950 |
RAL7016 |
DALI | ||
| 403311.00.E6.02.X | 30W | Tunable-White | elliptical 10x60 | 1950 |
RAL7016 |
DMX | ||
| 403311.00.E6.03.X | 30W | Tunable-White | elliptical 10x60 | 1950 |
RAL9005 |
DMX | ||
| 403311.00.E6.03.D | 30W | Tunable-White | elliptical 10x60 | 1950 |
RAL9005 |
DALI | ||
| 403311.00.15.01.D | 30W | Tunable-White | 15° | 1950 |
RAL9006 |
DALI | ||
| 403311.00.15.01.X | 30W | Tunable-White | 15° | 1950 |
RAL9006 |
DMX | ||
| 403311.00.15.02.D | 30W | Tunable-White | 15° | 1950 |
RAL7016 |
DALI | ||
| 403311.00.15.02.X | 30W | Tunable-White | 15° | 1950 |
RAL7016 |
DMX | ||
| 403311.00.15.03.X | 30W | Tunable-White | 15° | 1950 |
RAL9005 |
DMX | ||
| 403311.00.15.03.D | 30W | Tunable-White | 15° | 1950 |
RAL9005 |
DALI | ||
| 403311.00.30.01.D | 30W | Tunable-White | 30° | 1905 |
RAL9006 |
DALI | ||
| 403311.00.30.01.X | 30W | Tunable-White | 30° | 1905 |
RAL9006 |
DMX | ||
| 403311.00.30.02.D | 30W | Tunable-White | 30° | 1905 |
RAL7016 |
DALI | ||
| 403311.00.30.02.X | 30W | Tunable-White | 30° | 1905 |
RAL7016 |
DMX | ||
| 403311.00.30.03.X | 30W | Tunable-White | 30° | 1905 |
RAL9005 |
DMX | ||
| 403311.00.30.03.D | 30W | Tunable-White | 30° | 1905 |
RAL9005 |
DALI | ||
| 403311.00.60.01.D | 30W | Tunable-White | 60° | 1860 |
RAL9006 |
DALI | ||
| 403311.00.60.01.X | 30W | Tunable-White | 60° | 1860 |
RAL9006 |
DMX | ||
| 403311.00.60.02.D | 30W | Tunable-White | 60° | 1860 |
RAL7016 |
DALI | ||
| 403311.00.60.02.X | 30W | Tunable-White | 60° | 1860 |
RAL7016 |
DMX | ||
| 403311.00.60.03.X | 30W | Tunable-White | 60° | 1860 |
RAL9005 |
DMX | ||
| 403311.00.60.03.D | 30W | Tunable-White | 60° | 1860 |
RAL9005 |
DALI | ||
