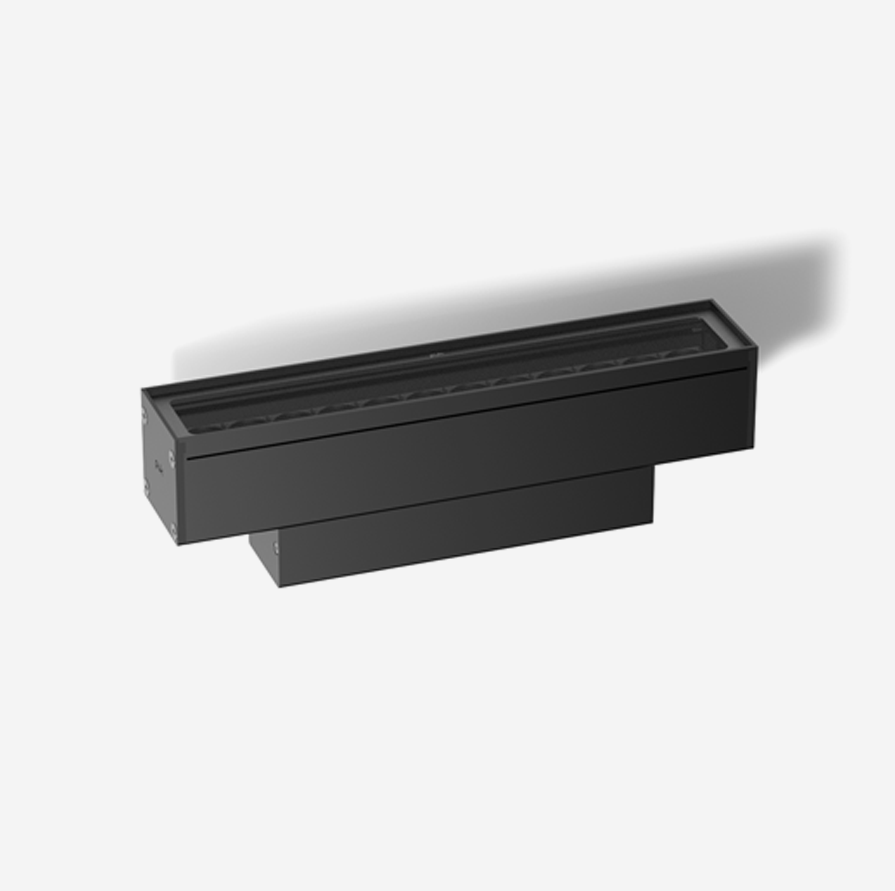

Linear shape luminaire for outdoor installation, surface mounted on a façade/wall with brackets, four available lengths (290mm, 580mm, 880mm, 1180mm) made in phospho-chromatised and polyester powder coated extruded copper-free aluminium, with tempered safety glass, moulded silicone gaskets. Built-in LED driver 220-240V 50-60Hz, with SAMSUNG 3030 LED. IP67 rating.

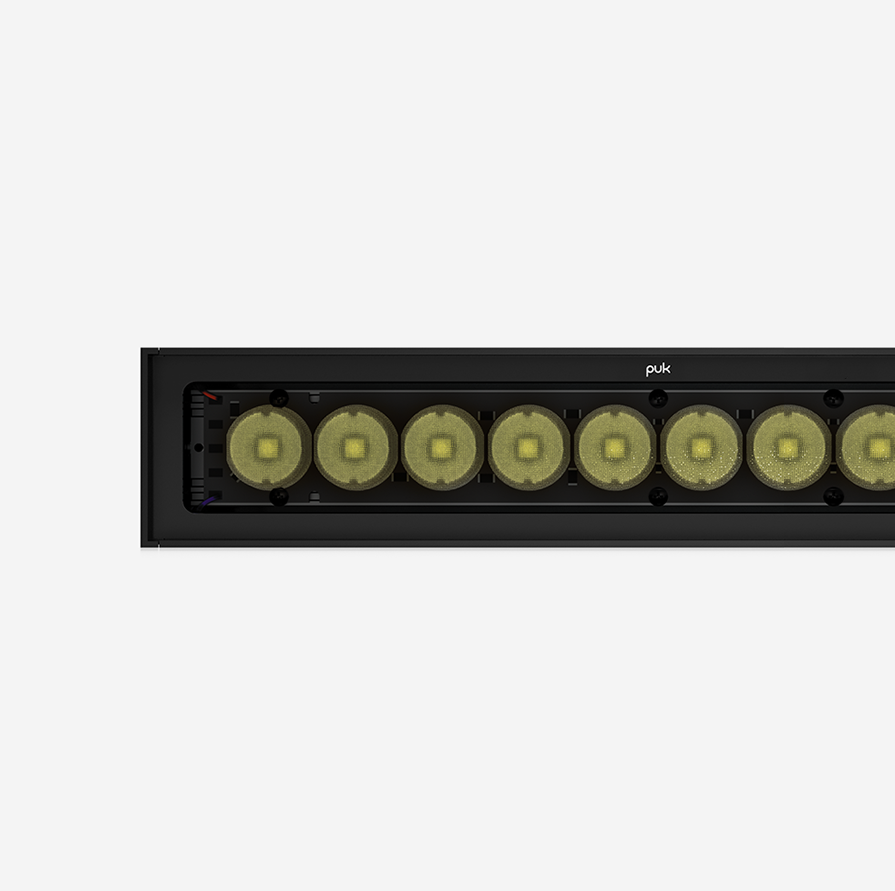

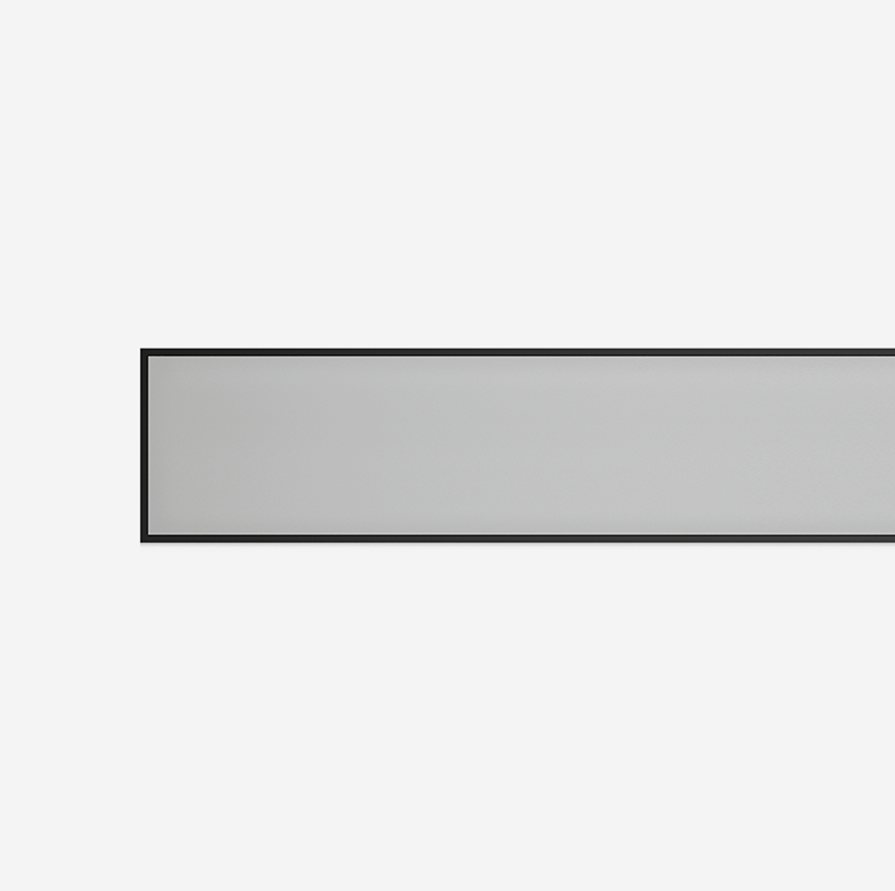

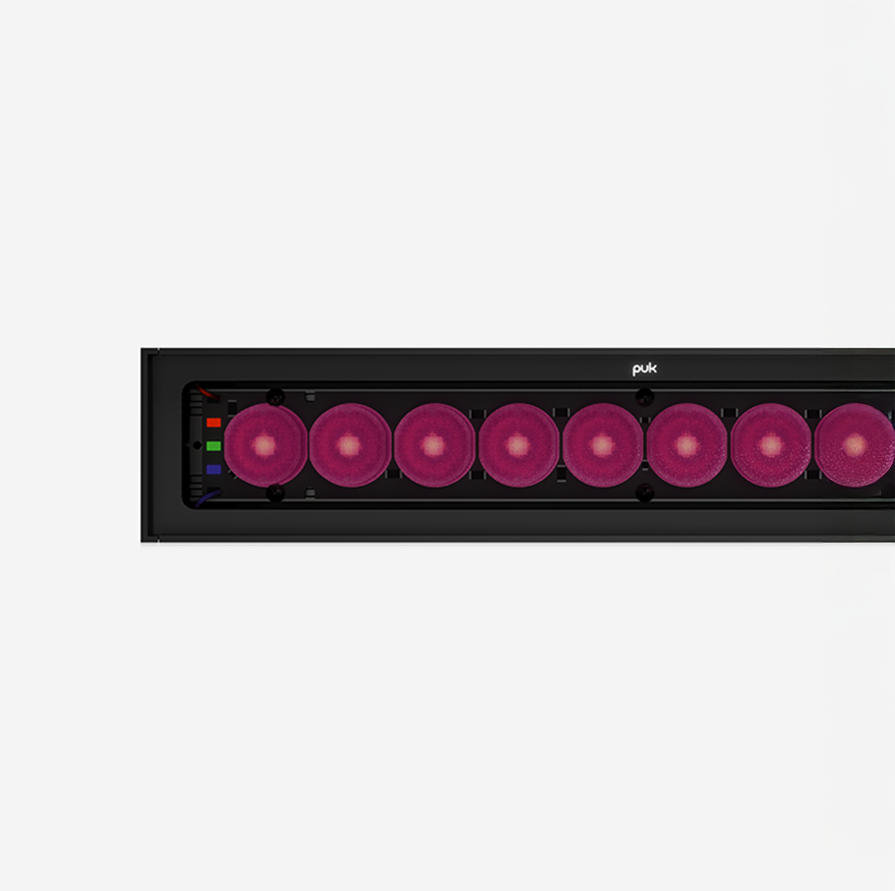

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 403301.27.WW.01.0 | 12W | 2700K | wall washer | 900 |
RAL9006 |
ON/OFF | ||
| 403301.27.WW.01.D | 12W | 2700K | wall washer | 900 |
RAL9006 |
DALI | ||
| 403301.27.WW.02.0 | 12W | 2700K | wall washer | 900 |
RAL7016 |
ON/OFF | ||
| 403301.27.WW.02.D | 12W | 2700K | wall washer | 900 |
RAL7016 |
DALI | ||
| 403301.27.WW.03.D | 12W | 2700K | wall washer | 900 |
RAL9005 |
DALI | ||
| 403301.27.WW.03.0 | 12W | 2700K | wall washer | 900 |
RAL9005 |
ON/OFF | ||
| 403301.27.15.01.0 | 12W | 2700K | 15° | 900 |
RAL9006 |
ON/OFF | ||
| 403301.27.15.01.D | 12W | 2700K | 15° | 900 |
RAL9006 |
DALI | ||
| 403301.27.15.02.0 | 12W | 2700K | 15° | 900 |
RAL7016 |
ON/OFF | ||
| 403301.27.15.02.D | 12W | 2700K | 15° | 900 |
RAL7016 |
DALI | ||
| 403301.27.15.03.D | 12W | 2700K | 15° | 900 |
RAL9005 |
DALI | ||
| 403301.27.15.03.0 | 12W | 2700K | 15° | 900 |
RAL9005 |
ON/OFF | ||
| 403301.27.35.01.0 | 12W | 2700K | 35° | 870 |
RAL9006 |
ON/OFF | ||
| 403301.27.35.01.D | 12W | 2700K | 35° | 870 |
RAL9006 |
DALI | ||
| 403301.27.35.02.0 | 12W | 2700K | 35° | 870 |
RAL7016 |
ON/OFF | ||
| 403301.27.35.02.D | 12W | 2700K | 35° | 870 |
RAL7016 |
DALI | ||
| 403301.27.35.03.D | 12W | 2700K | 35° | 870 |
RAL9005 |
DALI | ||
| 403301.27.35.03.0 | 12W | 2700K | 35° | 870 |
RAL9005 |
ON/OFF | ||
| 403301.27.55.01.0 | 12W | 2700K | 55° | 840 |
RAL9006 |
ON/OFF | ||
| 403301.27.55.01.D | 12W | 2700K | 55° | 840 |
RAL9006 |
DALI | ||
| 403301.27.55.02.0 | 12W | 2700K | 55° | 840 |
RAL7016 |
ON/OFF | ||
| 403301.27.55.02.D | 12W | 2700K | 55° | 840 |
RAL7016 |
DALI | ||
| 403301.27.55.03.D | 12W | 2700K | 55° | 840 |
RAL9005 |
DALI | ||
| 403301.27.55.03.0 | 12W | 2700K | 55° | 840 |
RAL9005 |
ON/OFF | ||
| 403301.30.WW.01.0 | 12W | 3000K | wall washer | 930 |
RAL9006 |
ON/OFF | ||
| 403301.30.WW.01.D | 12W | 3000K | wall washer | 930 |
RAL9006 |
DALI | ||
| 403301.30.WW.02.0 | 12W | 3000K | wall washer | 930 |
RAL7016 |
ON/OFF | ||
| 403301.30.WW.02.D | 12W | 3000K | wall washer | 930 |
RAL7016 |
DALI | ||
| 403301.30.WW.03.0 | 12W | 3000K | wall washer | 930 |
RAL9005 |
ON/OFF | ||
| 403301.30.WW.03.D | 12W | 3000K | wall washer | 930 |
RAL9005 |
DALI | ||
| 403301.30.15.01.0 | 12W | 3000K | 15° | 930 |
RAL9006 |
ON/OFF | ||
| 403301.30.15.01.D | 12W | 3000K | 15° | 930 |
RAL9006 |
DALI | ||
| 403301.30.15.02.0 | 12W | 3000K | 15° | 930 |
RAL7016 |
ON/OFF | ||
| 403301.30.15.02.D | 12W | 3000K | 15° | 930 |
RAL7016 |
DALI | ||
| 403301.30.15.03.D | 12W | 3000K | 15° | 930 |
RAL9005 |
DALI | ||
| 403301.30.15.03.0 | 12W | 3000K | 15° | 930 |
RAL9005 |
ON/OFF | ||
| 403301.30.35.01.0 | 12W | 3000K | 35° | 900 |
RAL9006 |
ON/OFF | ||
| 403301.30.35.01.D | 12W | 3000K | 35° | 900 |
RAL9006 |
DALI | ||
| 403301.30.35.02.0 | 12W | 3000K | 35° | 900 |
RAL7016 |
ON/OFF | ||
| 403301.30.35.02.D | 12W | 3000K | 35° | 900 |
RAL7016 |
DALI | ||
| 403301.30.35.03.D | 12W | 3000K | 35° | 900 |
RAL9005 |
DALI | ||
| 403301.30.35.03.0 | 12W | 3000K | 35° | 900 |
RAL9005 |
ON/OFF | ||
| 403301.30.55.01.0 | 12W | 3000K | 55° | 870 |
RAL9006 |
ON/OFF | ||
| 403301.30.55.01.D | 12W | 3000K | 55° | 870 |
RAL9006 |
DALI | ||
| 403301.30.55.02.0 | 12W | 3000K | 55° | 870 |
RAL7016 |
ON/OFF | ||
| 403301.30.55.02.D | 12W | 3000K | 55° | 870 |
RAL7016 |
DALI | ||
| 403301.30.55.03.D | 12W | 3000K | 55° | 870 |
RAL9005 |
DALI | ||
| 403301.30.55.03.0 | 12W | 3000K | 55° | 870 |
RAL9005 |
ON/OFF | ||
| 403301.40.WW.01.0 | 12W | 4000K | wall washer | 960 |
RAL9006 |
ON/OFF | ||
| 403301.40.WW.01.D | 12W | 4000K | wall washer | 960 |
RAL9006 |
DALI | ||
| 403301.40.WW.02.0 | 12W | 4000K | wall washer | 960 |
RAL7016 |
ON/OFF | ||
| 403301.40.WW.02.D | 12W | 4000K | wall washer | 960 |
RAL7016 |
DALI | ||
| 403301.40.WW.03.D | 12W | 4000K | wall washer | 960 |
RAL9005 |
DALI | ||
| 403301.40.WW.03.0 | 12W | 4000K | wall washer | 960 |
RAL9005 |
ON/OFF | ||
| 403301.40.15.01.0 | 12W | 4000K | 15° | 960 |
RAL9006 |
ON/OFF | ||
| 403301.40.15.01.D | 12W | 4000K | 15° | 960 |
RAL9006 |
DALI | ||
| 403301.40.15.02.0 | 12W | 4000K | 15° | 960 |
RAL7016 |
ON/OFF | ||
| 403301.40.15.02.D | 12W | 4000K | 15° | 960 |
RAL7016 |
DALI | ||
| 403301.40.15.03.D | 12W | 4000K | 15° | 960 |
RAL9005 |
DALI | ||
| 403301.40.15.03.0 | 12W | 4000K | 15° | 960 |
RAL9005 |
ON/OFF | ||
| 403301.40.35.01.0 | 12W | 4000K | 35° | 930 |
RAL9006 |
ON/OFF | ||
| 403301.40.35.01.D | 12W | 4000K | 35° | 930 |
RAL9006 |
DALI | ||
| 403301.40.35.02.0 | 12W | 4000K | 35° | 930 |
RAL7016 |
ON/OFF | ||
| 403301.40.35.02.D | 12W | 4000K | 35° | 930 |
RAL7016 |
DALI | ||
| 403301.40.35.03.D | 12W | 4000K | 35° | 930 |
RAL9005 |
DALI | ||
| 403301.40.35.03.0 | 12W | 4000K | 35° | 930 |
RAL9005 |
ON/OFF | ||
| 403301.40.55.01.0 | 12W | 4000K | 55° | 900 |
RAL9006 |
ON/OFF | ||
| 403301.40.55.01.D | 12W | 4000K | 55° | 900 |
RAL9006 |
DALI | ||
| 403301.40.55.02.0 | 12W | 4000K | 55° | 900 |
RAL7016 |
ON/OFF | ||
| 403301.40.55.02.D | 12W | 4000K | 55° | 900 |
RAL7016 |
DALI | ||
| 403301.40.55.03.0 | 12W | 4000K | 55° | 900 |
RAL9005 |
ON/OFF | ||
| 403301.40.55.03.D | 12W | 4000K | 55° | 900 |
RAL9005 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 403302.RW.E6.01.D | 10W | RGBW | elliptical 10x60 | 380 |
RAL9006 |
DALI | ||
| 403302.RW.E6.01.X | 10W | RGBW | elliptical 10x60 | 380 |
RAL9006 |
DMX | ||
| 403302.RW.E6.02.D | 10W | RGBW | elliptical 10x60 | 380 |
RAL7016 |
DALI | ||
| 403302.RW.E6.02.X | 10W | RGBW | elliptical 10x60 | 380 |
RAL7016 |
DMX | ||
| 403302.RW.E6.03.D | 10W | RGBW | elliptical 10x60 | 380 |
RAL9005 |
DALI | ||
| 403302.RW.E6.03.X | 10W | RGBW | elliptical 10x60 | 380 |
RAL9005 |
DMX | ||
| 403302.RW.15.01.D | 10W | RGBW | 15° | 380 |
RAL9006 |
DALI | ||
| 403302.RW.15.01.X | 10W | RGBW | 15° | 380 |
RAL9006 |
DMX | ||
| 403302.RW.15.02.D | 10W | RGBW | 15° | 380 |
RAL7016 |
DALI | ||
| 403302.RW.15.02.X | 10W | RGBW | 15° | 380 |
RAL7016 |
DMX | ||
| 403302.RW.15.03.D | 10W | RGBW | 15° | 380 |
RAL9005 |
DALI | ||
| 403302.RW.15.03.X | 10W | RGBW | 15° | 380 |
RAL9005 |
DMX | ||
| 403302.RW.30.01.D | 10W | RGBW | 30° | 365 |
RAL9006 |
DALI | ||
| 403302.RW.30.01.X | 10W | RGBW | 30° | 365 |
RAL9006 |
DMX | ||
| 403302.RW.30.02.D | 10W | RGBW | 30° | 365 |
RAL7016 |
DALI | ||
| 403302.RW.30.02.X | 10W | RGBW | 30° | 365 |
RAL7016 |
DMX | ||
| 403302.RW.30.03.X | 10W | RGBW | 30° | 365 |
RAL9005 |
DMX | ||
| 403302.RW.30.03.D | 10W | RGBW | 30° | 365 |
RAL9005 |
DALI | ||
| 403302.RW.60.01.D | 10W | RGBW | 60° | 335 |
RAL9006 |
DALI | ||
| 403302.RW.60.01.X | 10W | RGBW | 60° | 335 |
RAL9006 |
DMX | ||
| 403302.RW.60.02.D | 10W | RGBW | 60° | 335 |
RAL7016 |
DALI | ||
| 403302.RW.60.02.X | 10W | RGBW | 60° | 335 |
RAL7016 |
DMX | ||
| 403302.RW.60.03.D | 10W | RGBW | 60° | 335 |
RAL9005 |
DALI | ||
| 403302.RW.60.03.X | 10W | RGBW | 60° | 335 |
RAL9005 |
DMX | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 403303.00.E6.01.D | 10W | Tunable-White | elliptical 10x60 | 650 |
RAL9006 |
DALI | ||
| 403303.00.E6.01.X | 10W | Tunable-White | elliptical 10x60 | 650 |
RAL9006 |
DMX | ||
| 403303.00.E6.02.D | 10W | Tunable-White | elliptical 10x60 | 650 |
RAL7016 |
DALI | ||
| 403303.00.E6.02.X | 10W | Tunable-White | elliptical 10x60 | 650 |
RAL7016 |
DMX | ||
| 403303.00.E6.03.X | 10W | Tunable-White | elliptical 10x60 | 650 |
RAL9005 |
DMX | ||
| 403303.00.E6.03.D | 10W | Tunable-White | elliptical 10x60 | 650 |
RAL9005 |
DALI | ||
| 403303.00.15.01.D | 10W | Tunable-White | 15° | 650 |
RAL9006 |
DALI | ||
| 403303.00.15.01.X | 10W | Tunable-White | 15° | 650 |
RAL9006 |
DMX | ||
| 403303.00.15.02.D | 10W | Tunable-White | 15° | 650 |
RAL7016 |
DALI | ||
| 403303.00.15.02.X | 10W | Tunable-White | 15° | 650 |
RAL7016 |
DMX | ||
| 403303.00.15.03.X | 10W | Tunable-White | 15° | 650 |
RAL9005 |
DMX | ||
| 403303.00.15.03.D | 10W | Tunable-White | 15° | 650 |
RAL9005 |
DALI | ||
| 403303.00.30.01.D | 10W | Tunable-White | 30° | 635 |
RAL9006 |
DALI | ||
| 403303.00.30.01.X | 10W | Tunable-White | 30° | 635 |
RAL9006 |
DMX | ||
| 403303.00.30.02.D | 10W | Tunable-White | 30° | 635 |
RAL7016 |
DALI | ||
| 403303.00.30.02.X | 10W | Tunable-White | 30° | 635 |
RAL7016 |
DMX | ||
| 403303.00.30.03.X | 10W | Tunable-White | 30° | 635 |
RAL9005 |
DMX | ||
| 403303.00.30.03.D | 10W | Tunable-White | 30° | 635 |
RAL9005 |
DALI | ||
| 403303.00.60.01.D | 10W | Tunable-White | 60° | 620 |
RAL9006 |
DALI | ||
| 403303.00.60.01.X | 10W | Tunable-White | 60° | 620 |
RAL9006 |
DMX | ||
| 403303.00.60.02.D | 10W | Tunable-White | 60° | 620 |
RAL7016 |
DALI | ||
| 403303.00.60.02.X | 10W | Tunable-White | 60° | 620 |
RAL7016 |
DMX | ||
| 403303.00.60.03.D | 10W | Tunable-White | 60° | 620 |
RAL9005 |
DALI | ||
| 403303.00.60.03.X | 10W | Tunable-White | 60° | 620 |
RAL9005 |
DMX | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 403304.27.DF.01.0 | 8W | 2700K | diffused | 300 |
RAL9006 |
ON/OFF | ||
| 403304.27.DF.01.D | 8W | 2700K | diffused | 300 |
RAL9006 |
DALI | ||
| 403304.27.DF.02.0 | 8W | 2700K | diffused | 300 |
RAL7016 |
ON/OFF | ||
| 403304.27.DF.02.D | 8W | 2700K | diffused | 300 |
RAL7016 |
DALI | ||
| 403304.27.DF.03.0 | 8W | 2700K | diffused | 300 |
RAL9005 |
ON/OFF | ||
| 403304.27.DF.03.D | 8W | 2700K | diffused | 300 |
RAL9005 |
DALI | ||
| 403304.30.DF.01.0 | 8W | 3000K | diffused | 310 |
RAL9006 |
ON/OFF | ||
| 403304.30.DF.01.D | 8W | 3000K | diffused | 310 |
RAL9006 |
DALI | ||
| 403304.30.DF.02.0 | 8W | 3000K | diffused | 310 |
RAL7016 |
ON/OFF | ||
| 403304.30.DF.02.D | 8W | 3000K | diffused | 310 |
RAL7016 |
DALI | ||
| 403304.30.DF.03.0 | 8W | 3000K | diffused | 310 |
RAL9005 |
ON/OFF | ||
| 403304.30.DF.03.D | 8W | 3000K | diffused | 310 |
RAL9005 |
DALI | ||
| 403304.40.DF.01.0 | 8W | 4000K | diffused | 330 |
RAL9006 |
ON/OFF | ||
| 403304.40.DF.01.D | 8W | 4000K | diffused | 330 |
RAL9006 |
DALI | ||
| 403304.40.DF.02.0 | 8W | 4000K | diffused | 330 |
RAL7016 |
ON/OFF | ||
| 403304.40.DF.02.D | 8W | 4000K | diffused | 330 |
RAL7016 |
DALI | ||
| 403304.40.DF.03.0 | 8W | 4000K | diffused | 330 |
RAL9005 |
ON/OFF | ||
| 403304.40.DF.03.D | 8W | 4000K | diffused | 330 |
RAL9005 |
DALI | ||
