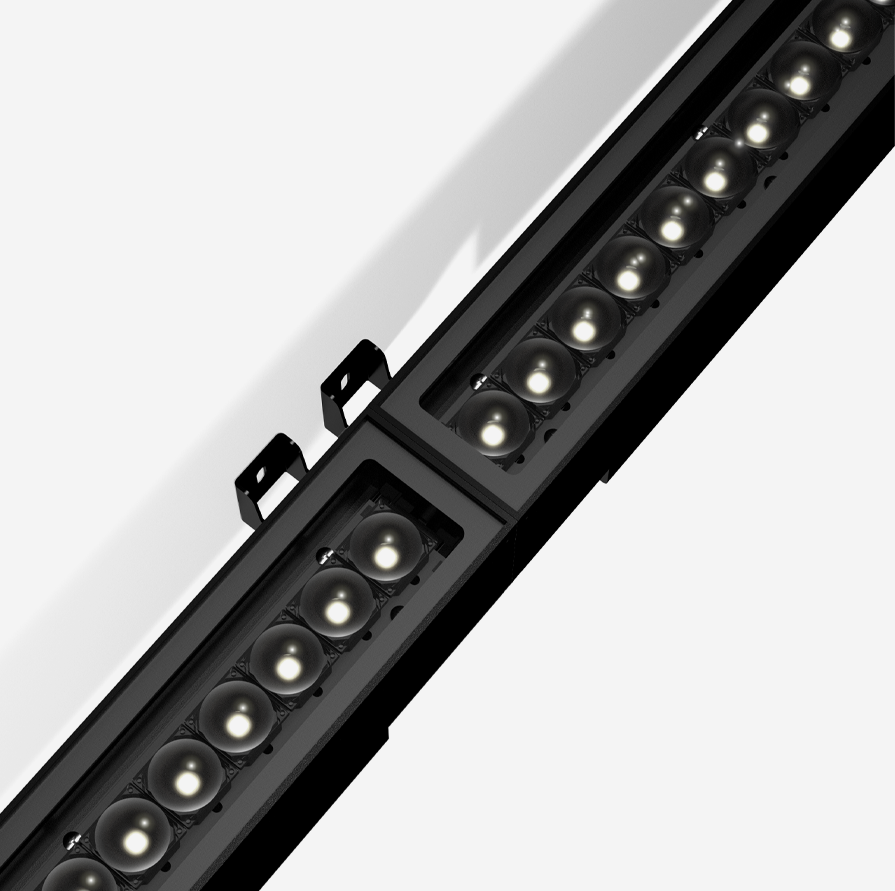

1190mm length linear luminaire for outdoor installation, surface mounted on a façade/wall with brackets, made in phospho-chromatised and polyester powder coated extruded copper-free aluminium, with tempered safety glass, moulded silicone gaskets. Built-in LED driver 220-240V 5060Hz, with 48 x SAMSUNG 3030 LED. IP67 rating.
48W
2700K
35°
3480
RAL9005
IP67
IK08
anodizing treatment + protective powder coating
Nr. 48 SAMSUNG 3030 LED
Stainless steel
Electrical power supply 220/240V 50/60Hz built-in
Silicone rubber
Tempered
PG9 cable gland
1 mt. neoprene power cable included, in & out cable for loop-in loop-out connection available on request
6,00 Kg
Built-in accessories to be requested when ordering
example 403313.27.35.03.0.HC
No accessory
Anti-glare grid that sections the light beam into microcells, adding visual comfort without compromising the quality or homogeneity of the light.
Accessories to be ordered separately

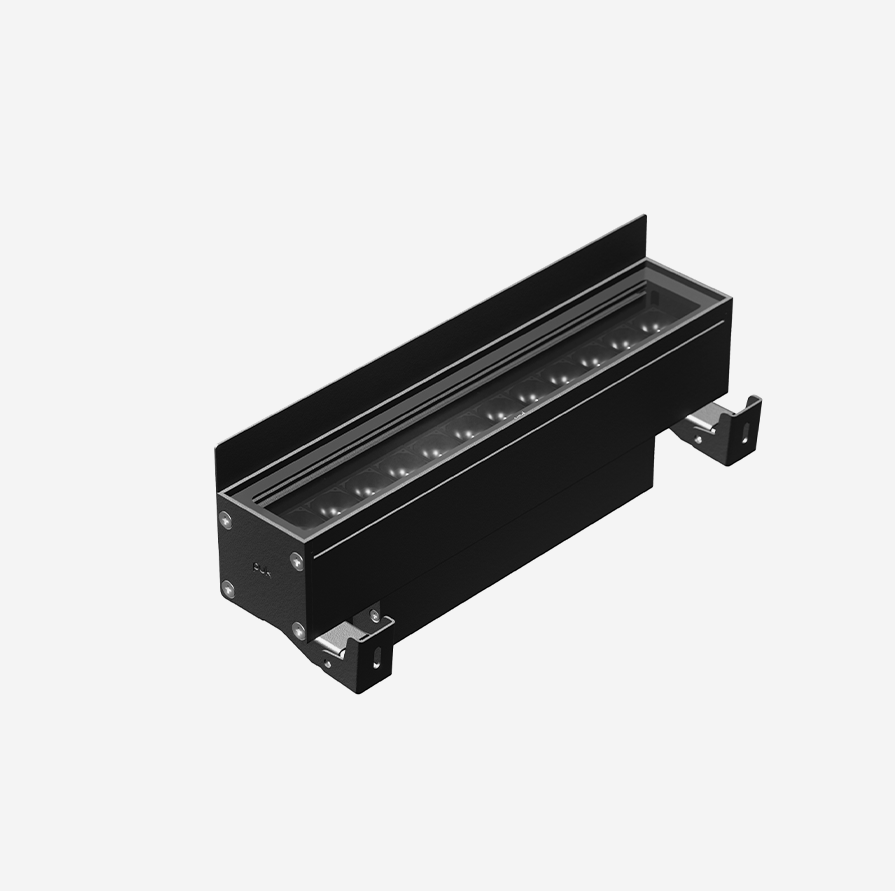

Anti-glare single shield, improving visual comfort on the outer side.

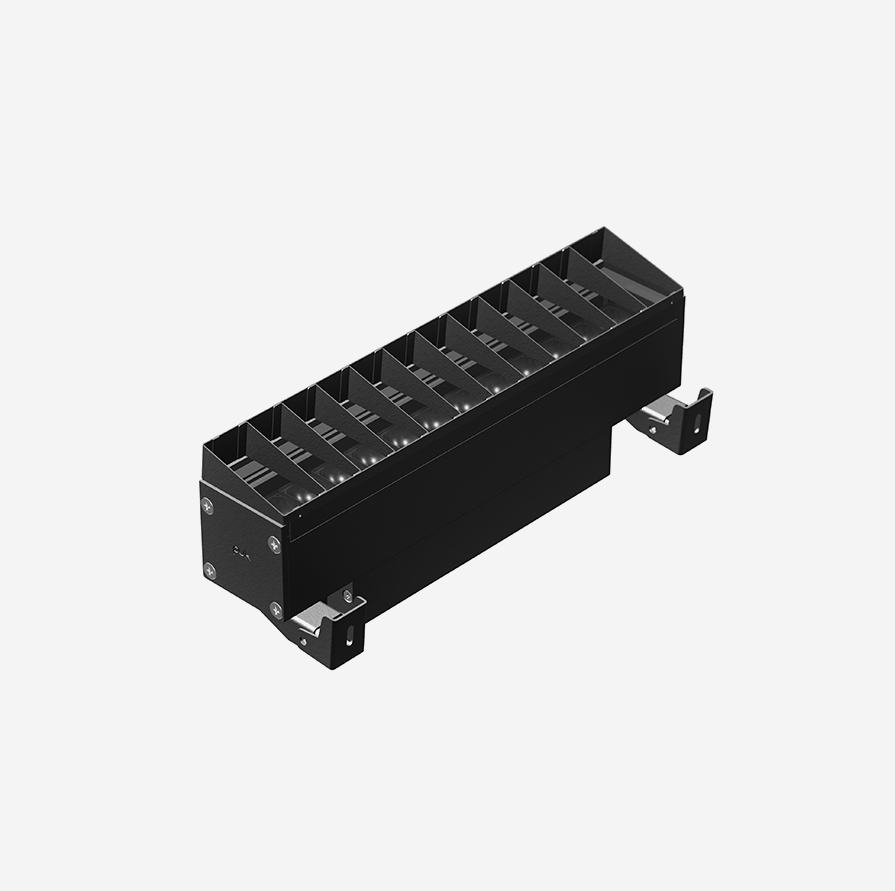

Anti-glare asymmetrical shield for single-color Lineafaçade range, confering very high glare control: each optic is individually shielded.
100mm length extension fixing brackets (2x), to increase the distance of Lineafaçade from the wall.
