Hydroflex
Side
4000

401805

(straight or bended) outdoor and indoor wall-recessed installation; surface mounted version through installation accessories to be ordered separately. LED circuit completely encapsulated with UV and hightemperatures resistant Polyurethane sheath, with white (outside) and milky finish (over light emission), dot free and homogeneous light emission surface.Double power cable with male/female connectors included, suitable for in-line installation. Cuttable each 50 mm. Remote driver 24V DC needed. With lowpower SMD3014 Lumileds LED. IP68 rating.

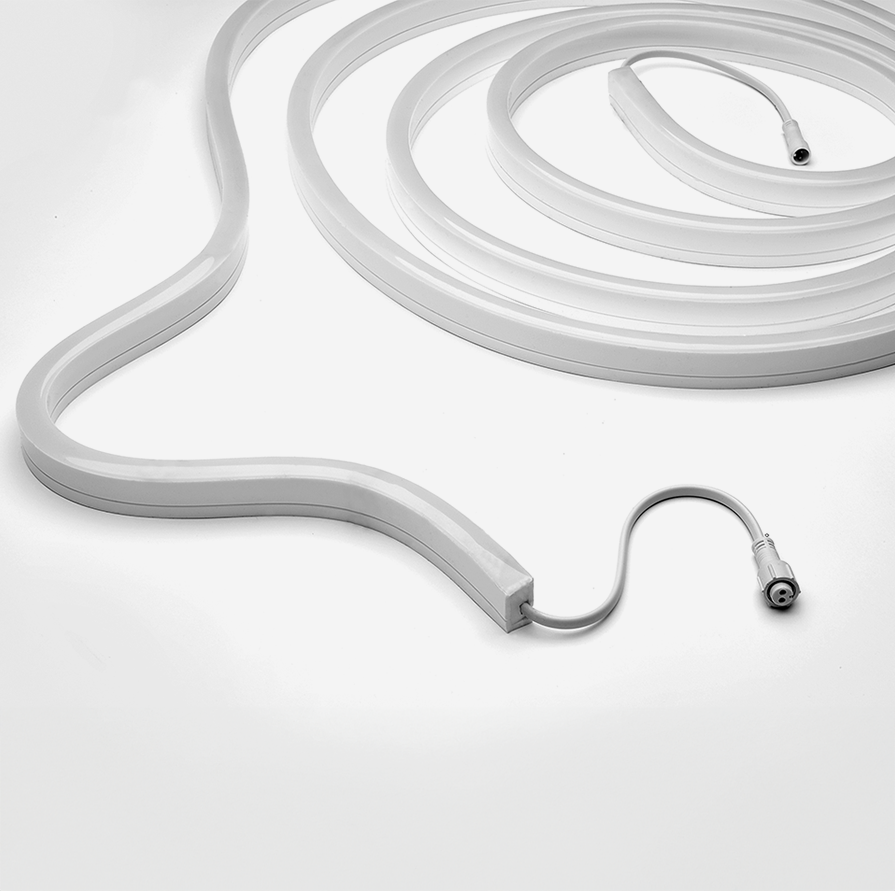

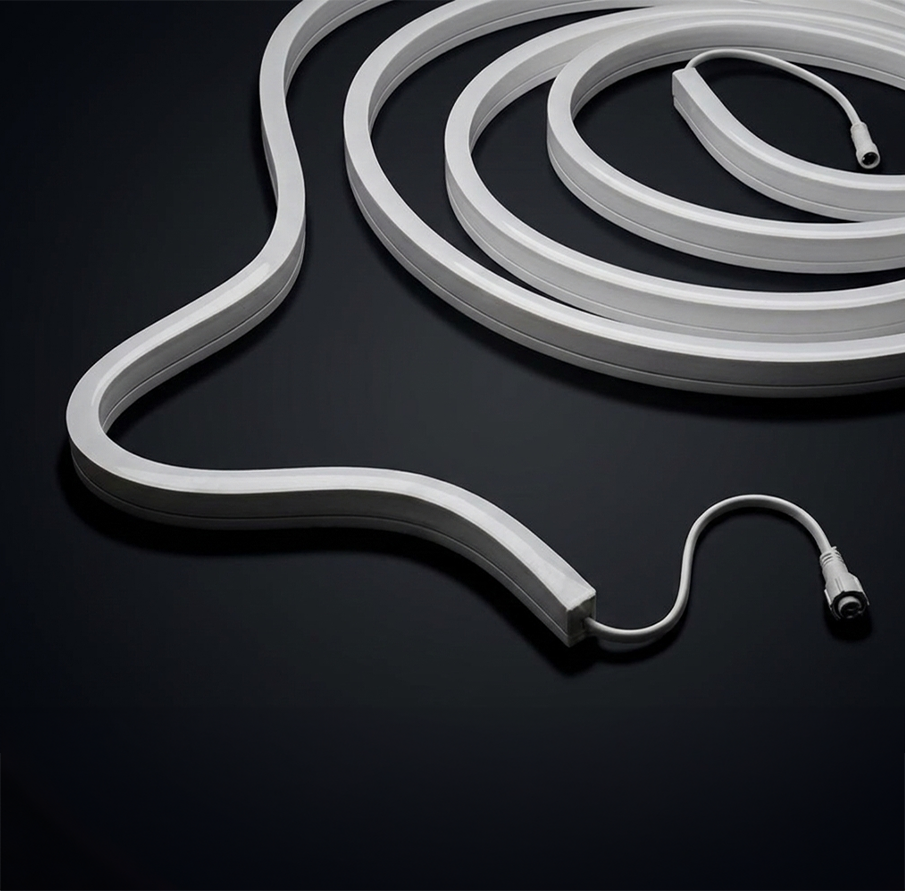

HYDROFLEX SIDE 4000
  • Wattage

    40W

  • CCT

    3000K

  • Beam Angle

    diffused

  • Lumens

    3000

  • Finish

    NO FINISH NO FINISH

  • IP Rating

    IP68

  • Light source

    SMD3014 Lumileds LED

  • Transformer

    24V DC remote driver needed

  • Power cable

    Supplied with Male/Female connectors for in-line installation

technical features
technical features
technical features
technical features
technical features
technical features
HYDROFLEX SIDE 4000
HYDROFLEX SIDE 4000
HYDROFLEX SIDE 4000
HYDROFLEX SIDE 4000
HYDROFLEX SIDE 4000
Wall Mounting 2

REMOTE DRIVER SELECTION

Meanwell LPV-60-24 constant voltage 24V DC 60W IP67 1
Meanwell LPV-100-24 constant voltage 24V DC 100W IP67 min 1 - max 2

Integrated Accessories

401805.30.DF.00.0. _ _

Built-in accessories to be requested when ordering
example 401805.30.DF.00.0.HC

Wall Mounting 3
.00
NO ACCESSORY

No accessory

Accessories not included

Accessories to be ordered separately

Wall Mounting 3
AC054
LEADER CABLE FOR HYDROCOVE RANGE

Initial cable to connect the driver to first luminaire of an in-line installation of multiple luminaires, all connected to one driver. Kit contains two leader cables, one with male connector and one with female connector, to allow start the installation from both sides.

Wall Mounting 3
AC031

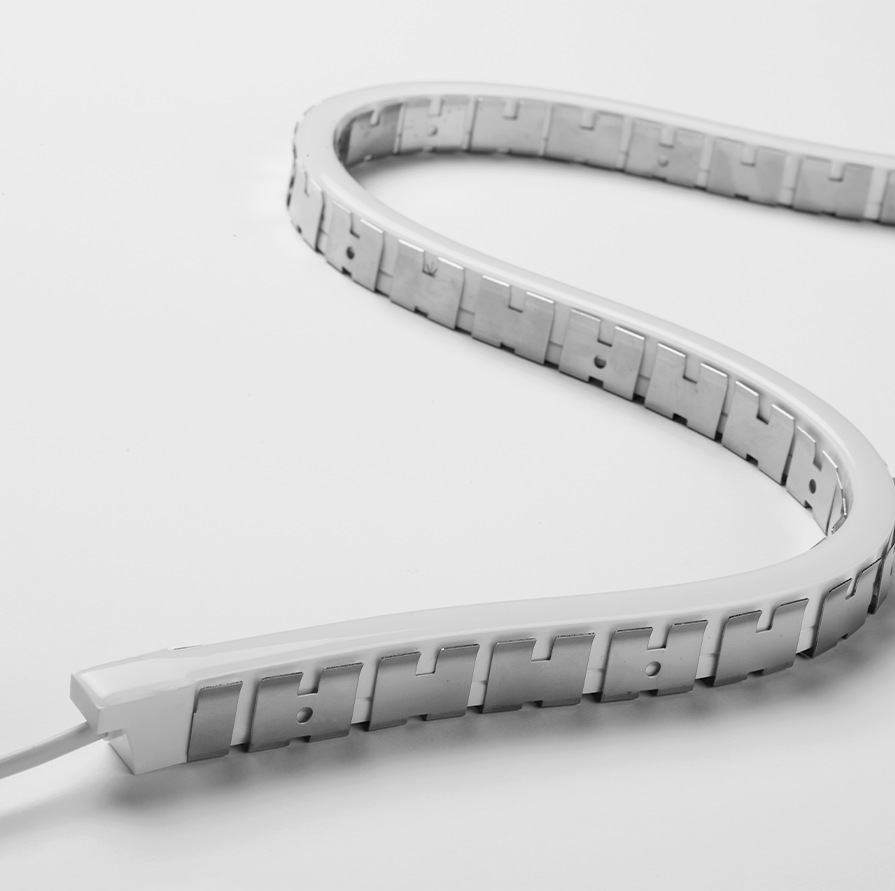

MOUNTING CLIP FOR HYDROFLEX SIDE

Mounting clip for Hydroflex Side realized in Stainless steel, clip to be applied every 40 cm, to secure with screws. Ideal for bended installation on a wall or ceiling.

Wall Mounting 3
AC032

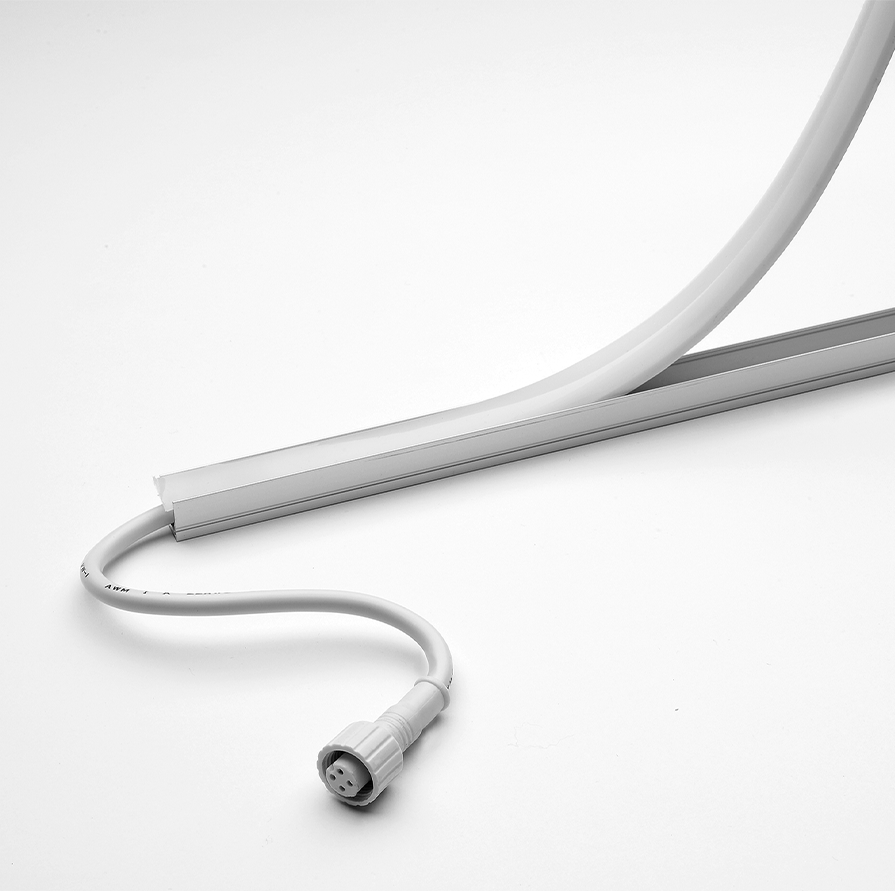

ALUMINUM LINEAR PROFILE (AC032)

1.000 mm Linear profile for Hydroflex Side, realized in Anodized aluminum.

Wall Mounting 3
AC033

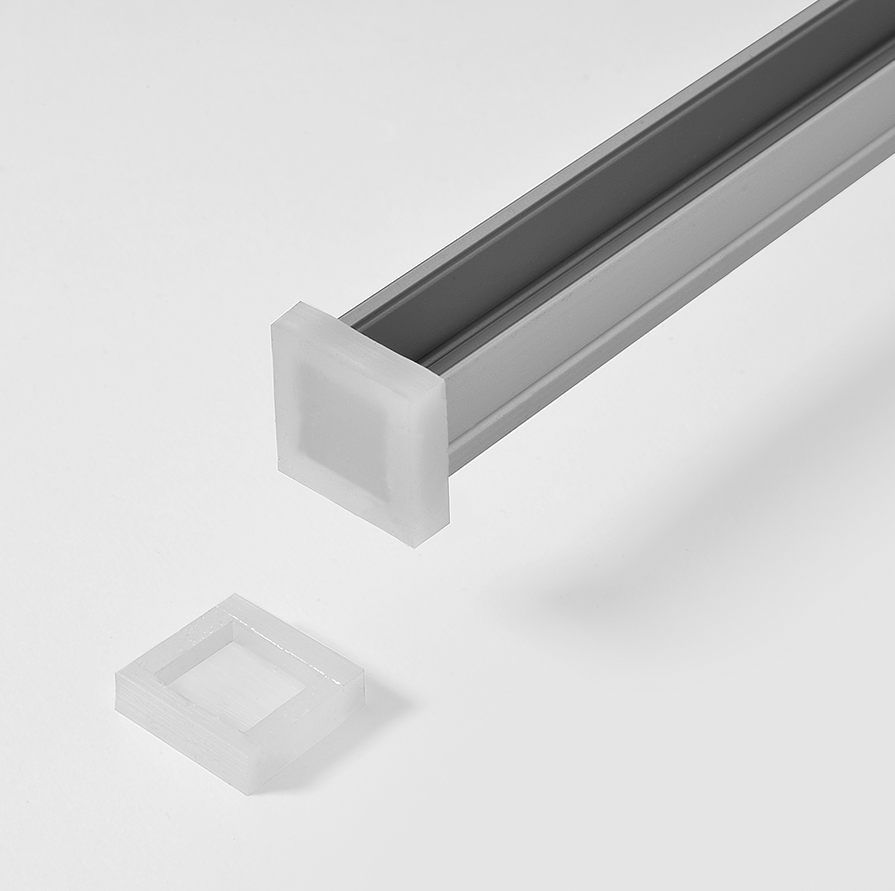

END CAP FOR HYDROFLEX SIDE

End cap for Hydroflex Side, realized in Polyurethane, to be applied at the end of the line, after Hydroflex cut.

Light Distribution

Download

Data Sheet
Installation instructions
