Hydrocove
5000
X70

402102

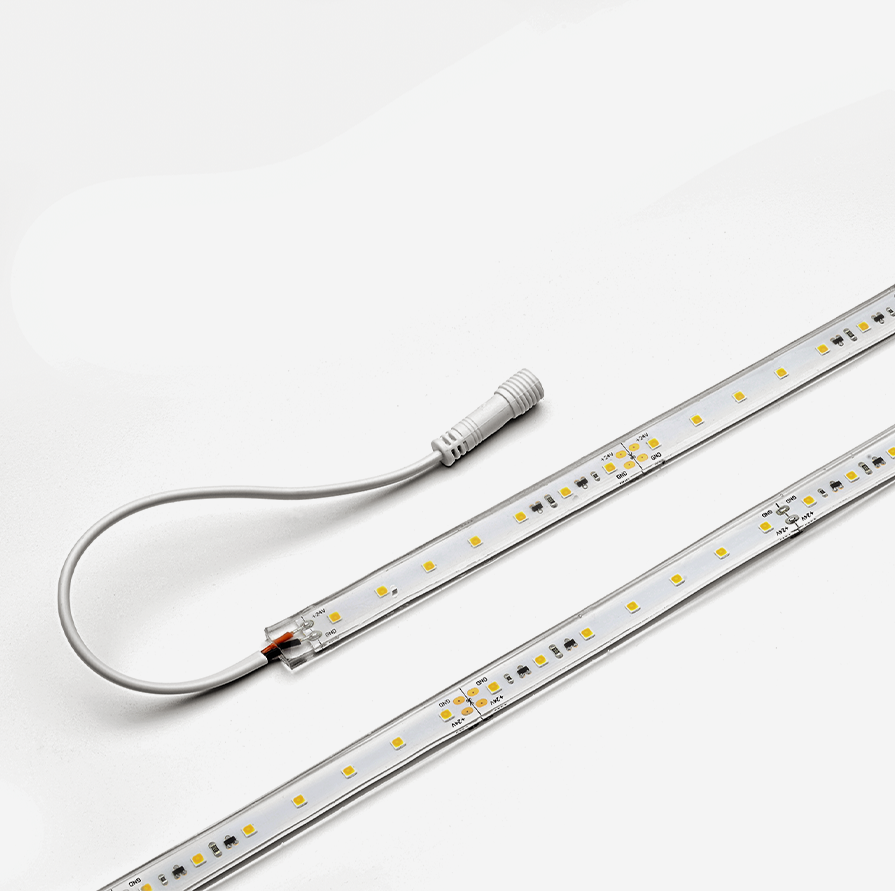

Cove light 5.000 mm length, 5 mm x 10 mm section, fully encapsulated flexible LED strip for linear lighting outdoor and indoor; LED circui completely encapsulated with UV and high-resistant polyurethane sheath, with transparent finish, homogeneous light emission. Cuttable every 100 mm. Nr. 70 LED per meter, LED brand Nichia 757. 24V DC remote driver needed. IP68 rated.

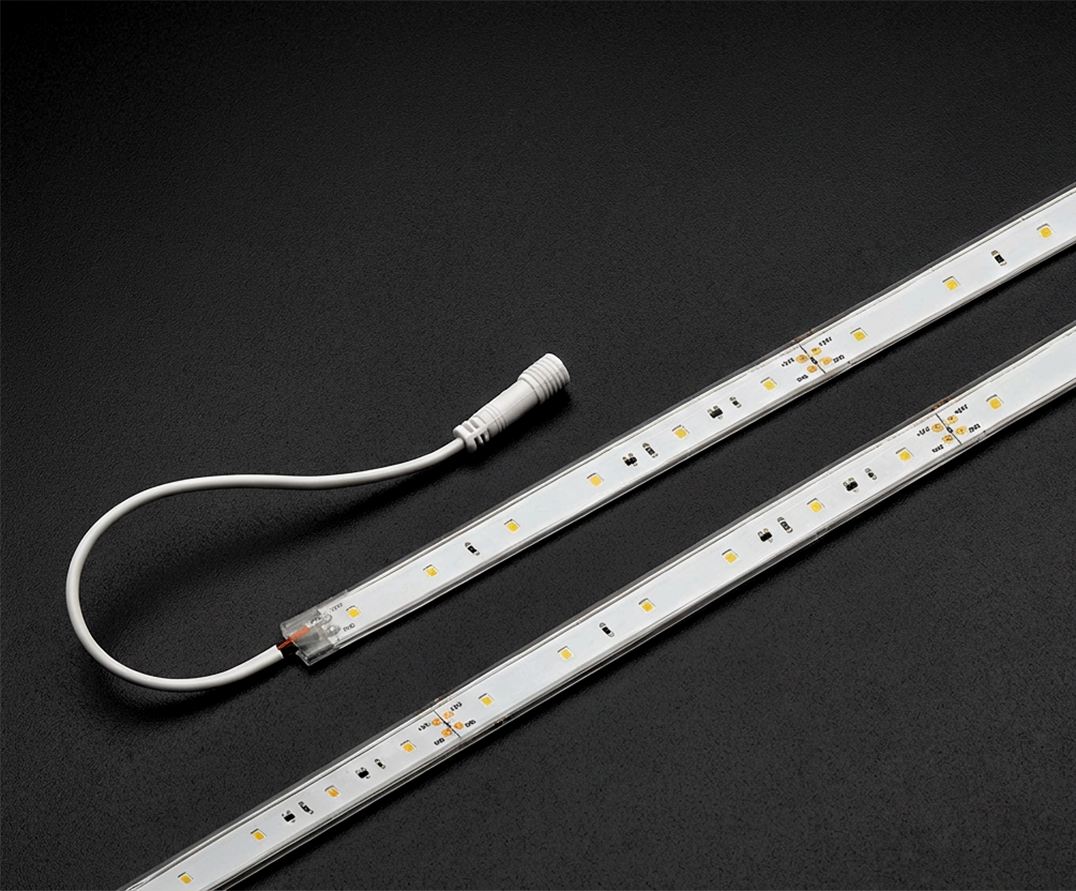

HYDROCOVE x70 5000
  • Wattage

    18W / meter

  • CCT

    3000K

  • Beam Angle

    diffused

  • Lumens

    1500

  • Finish

    TRANSPARENT TRANSPARENT

  • IP Rating

    IP68

  • Light source

    LED brand Nichia 757

  • Transformer

    24V DC remote driver needed

  • Power cable

    Supplied with Male/Female connectors for in-line installation

technical features
technical features
technical features
technical features
technical features
Wall Mounting 2

REMOTE DRIVER SELECTION

Meanwell LPV-100-24 constant voltage 24V DC 100W IP67 1

Integrated Accessories

402102.30.DF.OP.0. _ _

Built-in accessories to be requested when ordering
example 402102.30.DF.OP.0.HC

Wall Mounting 3
.00
NO ACCESSORY

No accessory

Accessories not included

Accessories to be ordered separately

Wall Mounting 3
AC041

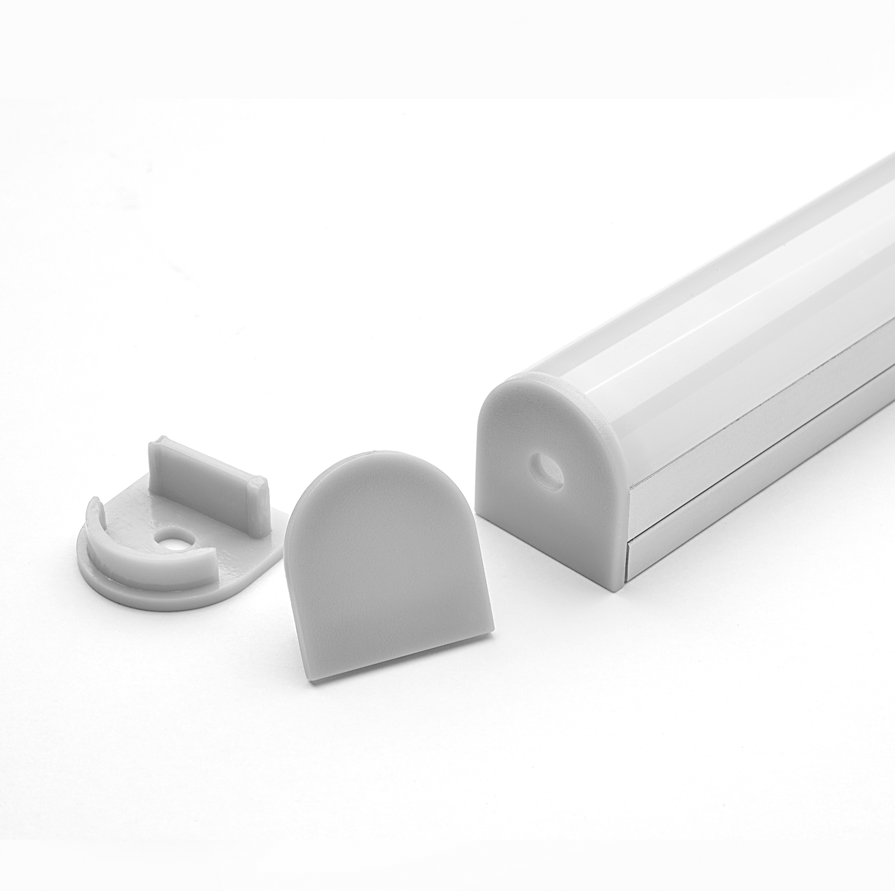

ROUND END CAP

Plastic end cap to close aluminum profile + round diffuser.

Wall Mounting 3
AC039

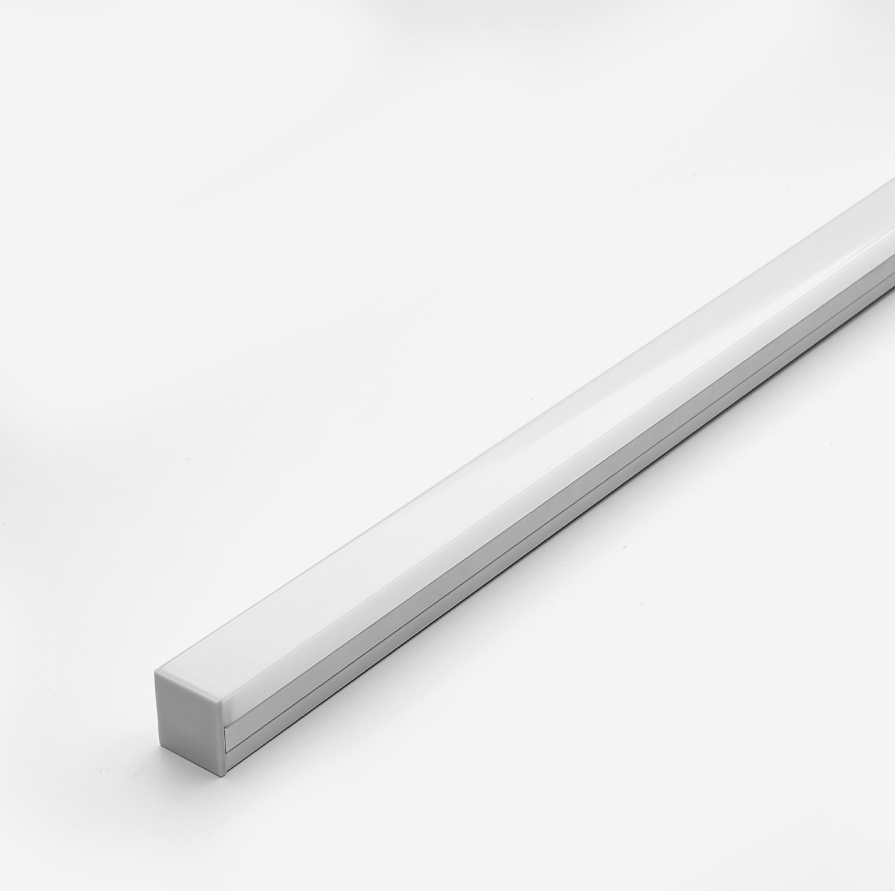

ALUMINUM LINEAR PROFILE

1.000 mm Linear profile for Hydrocove, realized in anodized aluminum, to secure with screws. Ideal for straight installation on a wall or ceiling.

Wall Mounting 3
AC043

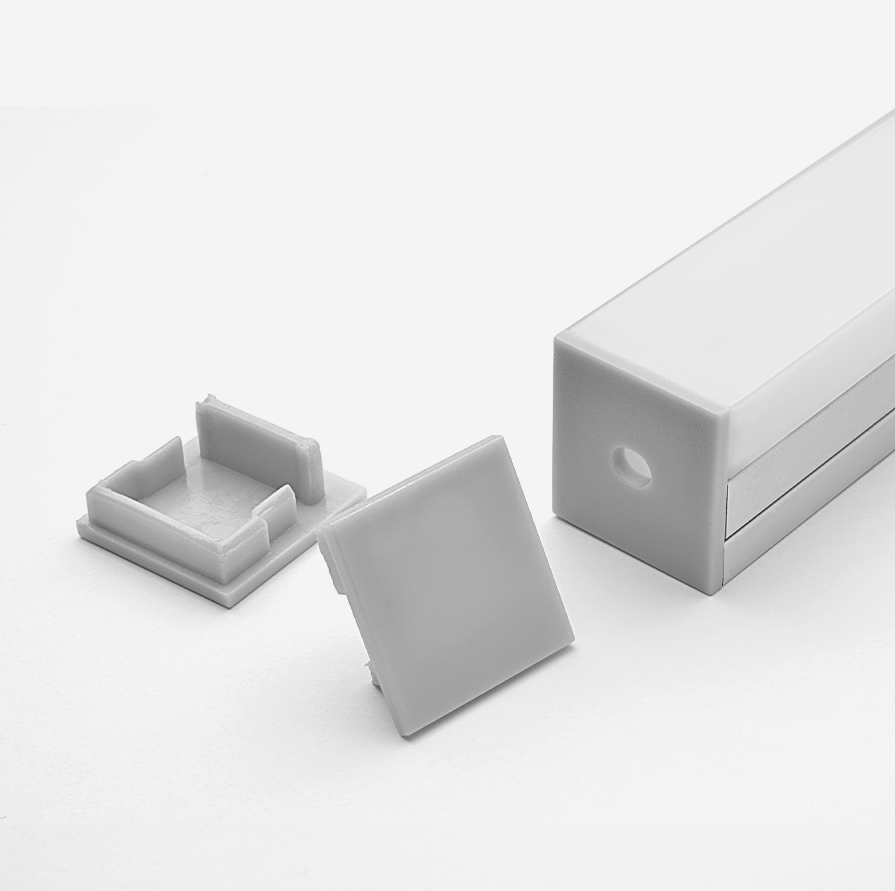

SQUARE END CAP

Plastic end cap to close aluminum profile + square diffuser.

Wall Mounting 3
AC040

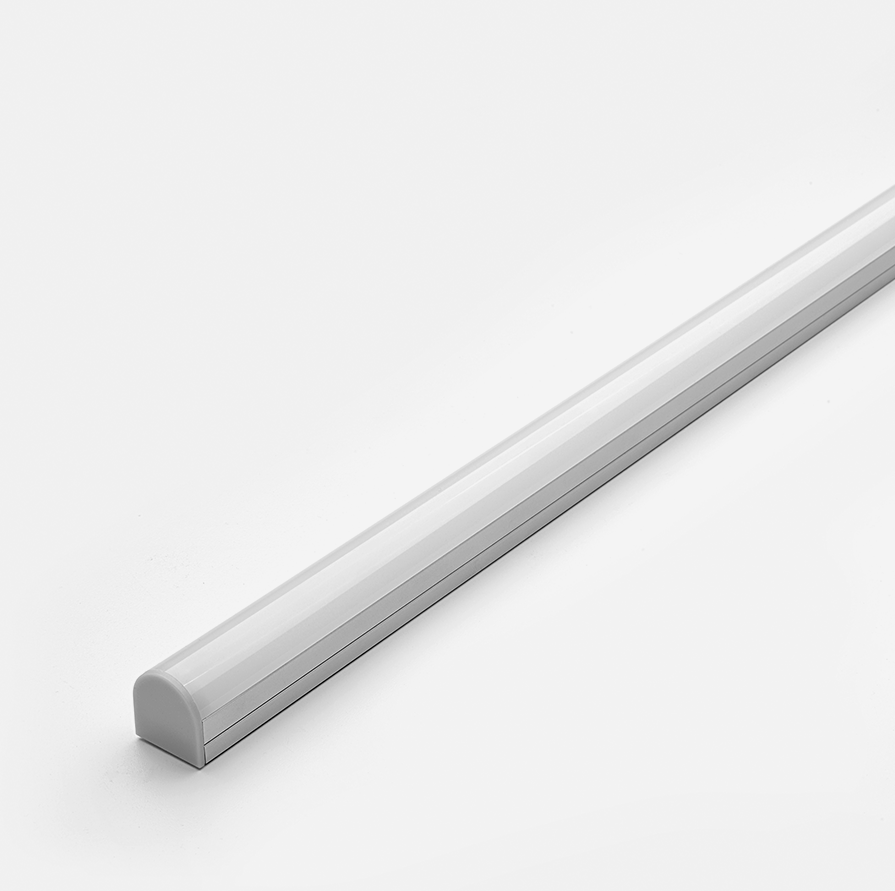

ROUND COVER - DIFFUSER

Round shape opal diffuser in polycarbonate, to be used with aluminum profile.

Light Distribution
