Frame
Medium Round

402801

Designed by
NAVA + AROSIO

Round diam. 210mm surface mounted luminaire for outdoor installation on a façade/wall. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, acid-etched tempered glass diffuser white painted internally, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 50-60Hz, with 36 x mid-power SAMSUNG 2835 LED. IP65 rating.

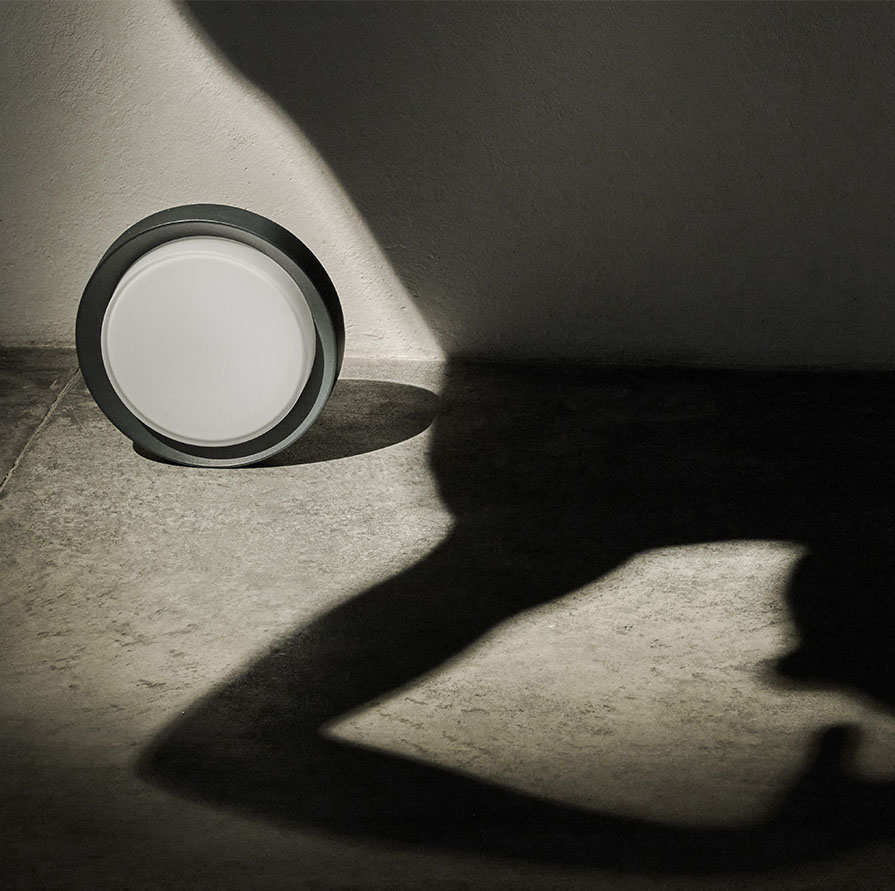

Product Image
Product Image
Product Image

Product IMAGE

Technical Drawing

Technical drawing

402801
Frame Medium Round
view code and download
Technical features
  • DALI
  • ON/OFF
  • IP65
  • IK09
  • CE
  • 5 YEARS
  • Classe I (terra)
Product code watt light source Beam angle LUMENS finish Dimming
402801.27.DF.03.0 16W 2700K diffused 768 finish-color RAL9005 ON/OFF
402801.27.DF.03.D 16W 2700K diffused 768 finish-color RAL9005 DALI
402801.27.DF.02.0 16W 2700K diffused 768 finish-color RAL7016 ON/OFF
402801.27.DF.02.D 16W 2700K diffused 768 finish-color RAL7016 DALI
402801.27.DF.01.0 16W 2700K diffused 768 finish-color RAL9006 ON/OFF
402801.27.DF.01.D 16W 2700K diffused 768 finish-color RAL9006 DALI
402801.30.DF.03.0 16W 3000K diffused 808 finish-color RAL9005 ON/OFF
402801.30.DF.03.D 16W 3000K diffused 808 finish-color RAL9005 DALI
402801.30.DF.02.0 16W 3000K diffused 808 finish-color RAL7016 ON/OFF
402801.30.DF.02.D 16W 3000K diffused 808 finish-color RAL7016 DALI
402801.30.DF.01.0 16W 3000K diffused 808 finish-color RAL9006 ON/OFF
402801.30.DF.01.D 16W 3000K diffused 808 finish-color RAL9006 DALI
402801.40.DF.03.0 16W 4000K diffused 844 finish-color RAL9005 ON/OFF
402801.40.DF.03.D 16W 4000K diffused 844 finish-color RAL9005 DALI
402801.40.DF.02.0 16W 4000K diffused 844 finish-color RAL7016 ON/OFF
402801.40.DF.02.D 16W 4000K diffused 844 finish-color RAL7016 DALI
402801.40.DF.01.0 16W 4000K diffused 844 finish-color RAL9006 ON/OFF
402801.40.DF.01.D 16W 4000K diffused 844 finish-color RAL9006 DALI
