Round diam. 285mm surface mounted luminaire for outdoor installation on a façade/wall. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, acid-etched tempered glass diffuser white painted internally, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 50-60Hz, with 48 x mid-power SAMSUNG 2835 LED. IP65 rating.

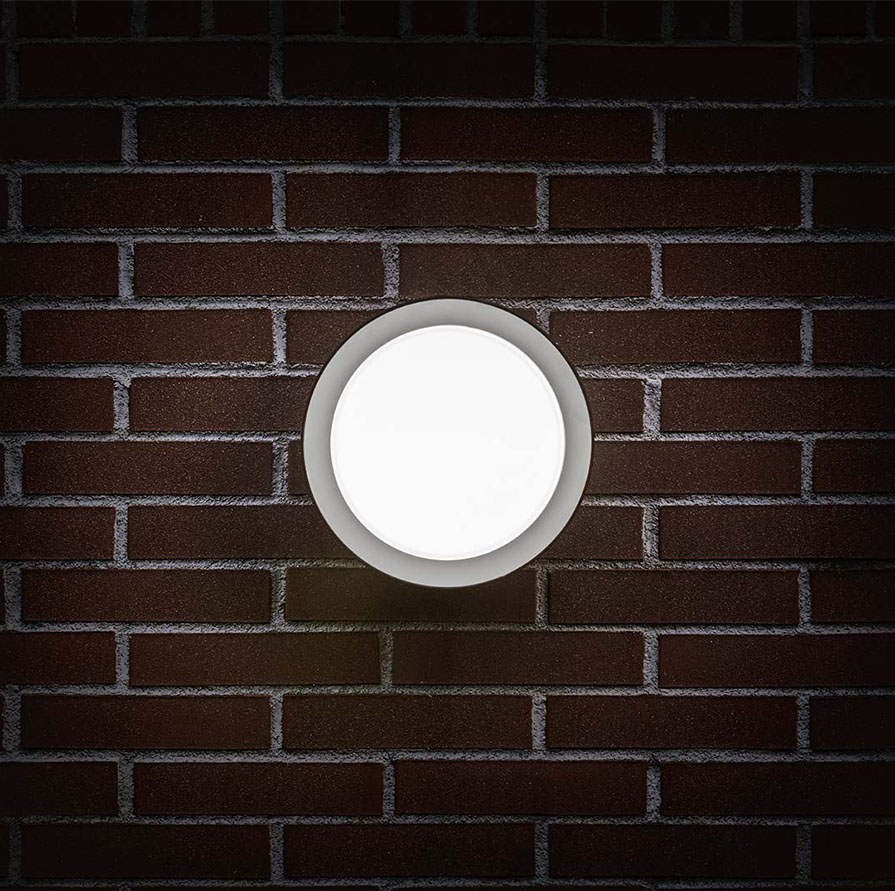

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 402803.27.DF.03.0 | 20W | 2700K | diffused | 960 |
RAL9005 |
ON/OFF | ||
| 402803.27.DF.03.D | 20W | 2700K | diffused | 960 |
RAL9005 |
DALI | ||
| 402803.27.DF.02.0 | 20W | 2700K | diffused | 960 |
RAL7016 |
ON/OFF | ||
| 402803.27.DF.02.D | 20W | 2700K | diffused | 960 |
RAL7016 |
DALI | ||
| 402803.27.DF.01.0 | 20W | 2700K | diffused | 960 |
RAL9006 |
ON/OFF | ||
| 402803.27.DF.01.D | 20W | 2700K | diffused | 960 |
RAL9006 |
DALI | ||
| 402803.30.DF.03.0 | 20W | 3000K | diffused | 1010 |
RAL9005 |
ON/OFF | ||
| 402803.30.DF.03.D | 20W | 3000K | diffused | 1010 |
RAL9005 |
DALI | ||
| 402803.30.DF.02.0 | 20W | 3000K | diffused | 1010 |
RAL7016 |
ON/OFF | ||
| 402803.30.DF.02.D | 20W | 3000K | diffused | 1010 |
RAL7016 |
DALI | ||
| 402803.30.DF.01.0 | 20W | 3000K | diffused | 1010 |
RAL9006 |
ON/OFF | ||
| 402803.30.DF.01.D | 20W | 3000K | diffused | 1010 |
RAL9006 |
DALI | ||
| 402803.40.DF.03.0 | 20W | 4000K | diffused | 1055 |
RAL9005 |
ON/OFF | ||
| 402803.40.DF.03.D | 20W | 4000K | diffused | 1055 |
RAL9005 |
DALI | ||
| 402803.40.DF.02.0 | 20W | 4000K | diffused | 1055 |
RAL7016 |
ON/OFF | ||
| 402803.40.DF.02.D | 20W | 4000K | diffused | 1055 |
RAL7016 |
DALI | ||
| 402803.40.DF.01.0 | 20W | 4000K | diffused | 1055 |
RAL9006 |
ON/OFF | ||
| 402803.40.DF.01.D | 20W | 4000K | diffused | 1055 |
RAL9006 |
DALI | ||
