installation on a pole diam. 60 mm or 76 mm. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, tempered safety glass, moulded silicone gasket and stainless steel screws. Flange for pole diam. 60 mm or 76 mm included. Built-in LED driver 220-240V 50-60Hz, with 36 or 48 CREE XP-G2 LED. IP66 rating.

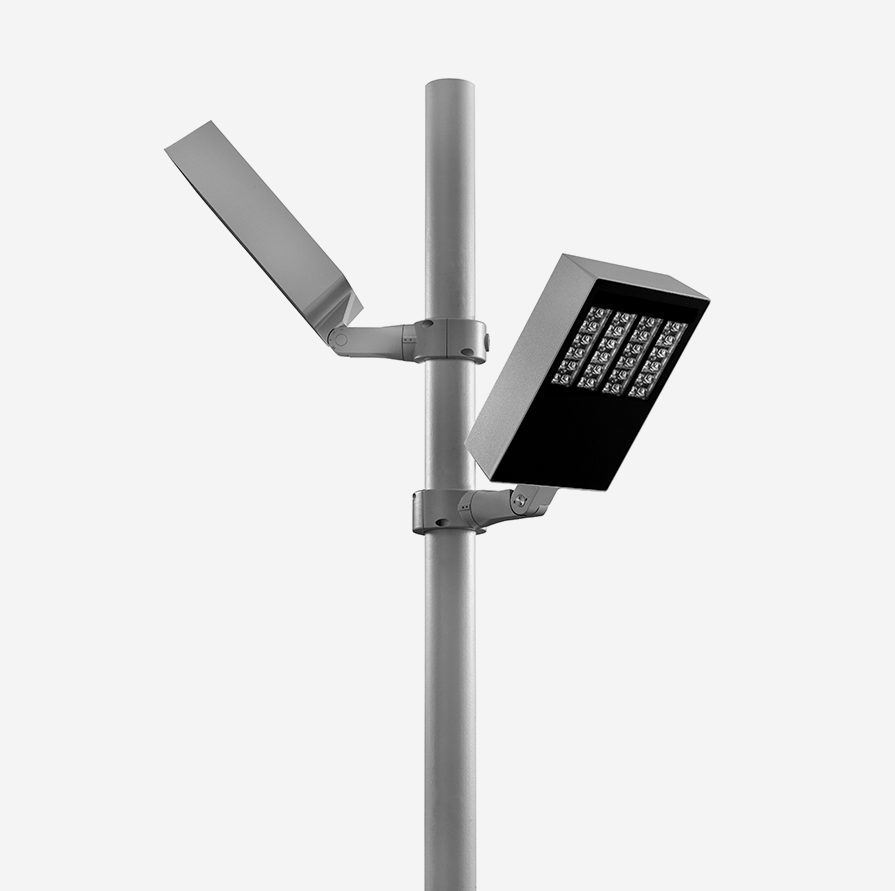

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 806001.30.ST.03.1 | 56W | 3000K | street | 4888 |
RAL9005 |
1-10V | ||
| 806001.30.ST.03.0 | 56W | 3000K | street | 4888 |
RAL9005 |
ON/OFF | ||
| 806001.30.ST.02.0 | 56W | 3000K | street | 4888 |
RAL7016 |
ON/OFF | ||
| 806001.30.ST.03.D | 56W | 3000K | street | 4888 |
RAL9005 |
DALI | ||
| 806001.30.ST.01.0 | 56W | 3000K | street | 4888 |
RAL9006 |
ON/OFF | ||
| 806001.30.ST.02.D | 56W | 3000K | street | 4888 |
RAL7016 |
DALI | ||
| 806001.30.ST.02.1 | 56W | 3000K | street | 4888 |
RAL7016 |
1-10V | ||
| 806001.30.CP.03.0 | 56W | 3000K | cycle-route pedestrian | 4888 |
RAL9005 |
ON/OFF | ||
| 806001.30.ST.01.D | 56W | 3000K | street | 4888 |
RAL9006 |
DALI | ||
| 806001.30.ST.01.1 | 56W | 3000K | street | 4888 |
RAL9006 |
1-10V | ||
| 806001.30.CP.03.D | 56W | 3000K | cycle-route pedestrian | 4888 |
RAL9005 |
DALI | ||
| 806001.30.CP.03.1 | 56W | 3000K | cycle-route pedestrian | 4888 |
RAL9005 |
1-10V | ||
| 806001.30.CP.02.D | 56W | 3000K | cycle-route pedestrian | 4888 |
RAL7016 |
DALI | ||
| 806001.30.CP.02.1 | 56W | 3000K | cycle-route pedestrian | 4888 |
RAL7016 |
1-10V | ||
| 806001.30.CP.02.0 | 56W | 3000K | cycle-route pedestrian | 4888 |
RAL7016 |
ON/OFF | ||
| 806001.30.CP.01.1 | 56W | 3000K | cycle-route pedestrian | 4888 |
RAL9006 |
1-10V | ||
| 806001.30.CP.01.0 | 56W | 3000K | cycle-route pedestrian | 4888 |
RAL9006 |
ON/OFF | ||
| 806001.30.CP.01.D | 56W | 3000K | cycle-route pedestrian | 4888 |
RAL9006 |
DALI | ||
| 806001.40.ST.02.1 | 56W | 4000K | street | 5040 |
RAL7016 |
1-10V | ||
| 806001.40.ST.02.0 | 56W | 4000K | street | 5040 |
RAL7016 |
ON/OFF | ||
| 806001.40.ST.03.D | 56W | 4000K | street | 5040 |
RAL9005 |
DALI | ||
| 806001.40.ST.03.1 | 56W | 4000K | street | 5040 |
RAL9005 |
1-10V | ||
| 806001.40.ST.03.0 | 56W | 4000K | street | 5040 |
RAL9005 |
ON/OFF | ||
| 806001.40.ST.01.D | 56W | 4000K | street | 5040 |
RAL9006 |
DALI | ||
| 806001.40.ST.01.1 | 56W | 4000K | street | 5040 |
RAL9006 |
1-10V | ||
| 806001.40.ST.01.0 | 56W | 4000K | street | 5040 |
RAL9006 |
ON/OFF | ||
| 806001.40.ST.02.D | 56W | 4000K | street | 5040 |
RAL7016 |
DALI | ||
| 806001.40.CP.03.0 | 56W | 4000K | cycle-route pedestrian | 5040 |
RAL9005 |
ON/OFF | ||
| 806001.40.CP.02.1 | 56W | 4000K | cycle-route pedestrian | 5040 |
RAL7016 |
1-10V | ||
| 806001.40.CP.02.0 | 56W | 4000K | cycle-route pedestrian | 5040 |
RAL7016 |
ON/OFF | ||
| 806001.40.CP.03.D | 56W | 4000K | cycle-route pedestrian | 5040 |
RAL9005 |
DALI | ||
| 806001.40.CP.03.1 | 56W | 4000K | cycle-route pedestrian | 5040 |
RAL9005 |
1-10V | ||
| 806001.40.CP.02.D | 56W | 4000K | cycle-route pedestrian | 5040 |
RAL7016 |
DALI | ||
| 806001.40.CP.01.0 | 56W | 4000K | cycle-route pedestrian | 5040 |
RAL9006 |
ON/OFF | ||
| 806001.40.CP.01.D | 56W | 4000K | cycle-route pedestrian | 5040 |
RAL9006 |
DALI | ||
| 806001.40.CP.01.1 | 56W | 4000K | cycle-route pedestrian | 5040 |
RAL9006 |
1-10V | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 806002.30.ST.03.1 | 75W | 3000K | street | 6474 |
RAL9005 |
1-10V | ||
| 806002.30.ST.03.0 | 75W | 3000K | street | 6474 |
RAL9005 |
ON/OFF | ||
| 806002.30.ST.03.D | 75W | 3000K | street | 6474 |
RAL9005 |
DALI | ||
| 806002.30.ST.02.1 | 75W | 3000K | street | 6474 |
RAL7016 |
1-10V | ||
| 806002.30.ST.02.0 | 75W | 3000K | street | 6474 |
RAL7016 |
ON/OFF | ||
| 806002.30.ST.01.1 | 75W | 3000K | street | 6474 |
RAL9006 |
1-10V | ||
| 806002.30.ST.01.0 | 75W | 3000K | street | 6474 |
RAL9006 |
ON/OFF | ||
| 806002.30.ST.02.D | 75W | 3000K | street | 6474 |
RAL7016 |
DALI | ||
| 806002.30.CP.03.D | 75W | 3000K | cycle-route pedestrian | 6474 |
RAL9005 |
DALI | ||
| 806002.30.CP.03.1 | 75W | 3000K | cycle-route pedestrian | 6474 |
RAL9005 |
1-10V | ||
| 806002.30.CP.03.0 | 75W | 3000K | cycle-route pedestrian | 6474 |
RAL9005 |
ON/OFF | ||
| 806002.30.ST.01.D | 75W | 3000K | street | 6474 |
RAL9006 |
DALI | ||
| 806002.30.CP.02.0 | 75W | 3000K | cycle-route pedestrian | 6474 |
RAL7016 |
ON/OFF | ||
| 806002.30.CP.02.1 | 75W | 3000K | cycle-route pedestrian | 6474 |
RAL7016 |
1-10V | ||
| 806002.30.CP.01.D | 75W | 3000K | cycle-route pedestrian | 6474 |
RAL9006 |
DALI | ||
| 806002.30.CP.01.1 | 75W | 3000K | cycle-route pedestrian | 6474 |
RAL9006 |
1-10V | ||
| 806002.30.CP.01.0 | 75W | 3000K | cycle-route pedestrian | 6474 |
RAL9006 |
ON/OFF | ||
| 806002.30.CP.02.D | 75W | 3000K | cycle-route pedestrian | 6474 |
RAL7016 |
DALI | ||
| 806002.40.ST.03.0 | 75W | 4000K | street | 6675 |
RAL9005 |
ON/OFF | ||
| 806002.40.ST.03.D | 75W | 4000K | street | 6675 |
RAL9005 |
DALI | ||
| 806002.40.ST.03.1 | 75W | 4000K | street | 6675 |
RAL9005 |
1-10V | ||
| 806002.40.ST.02.D | 75W | 4000K | street | 6675 |
RAL7016 |
DALI | ||
| 806002.40.ST.02.1 | 75W | 4000K | street | 6675 |
RAL7016 |
1-10V | ||
| 806002.40.ST.02.0 | 75W | 4000K | street | 6675 |
RAL7016 |
ON/OFF | ||
| 806002.40.ST.01.1 | 75W | 4000K | street | 6675 |
RAL9006 |
1-10V | ||
| 806002.40.ST.01.0 | 75W | 4000K | street | 6675 |
RAL9006 |
ON/OFF | ||
| 806002.40.CP.03.1 | 75W | 4000K | cycle-route pedestrian | 6675 |
RAL9005 |
1-10V | ||
| 806002.40.CP.03.0 | 75W | 4000K | cycle-route pedestrian | 6675 |
RAL9005 |
ON/OFF | ||
| 806002.40.ST.01.D | 75W | 4000K | street | 6675 |
RAL9006 |
DALI | ||
| 806002.40.CP.02.1 | 75W | 4000K | cycle-route pedestrian | 6675 |
RAL7016 |
1-10V | ||
| 806002.40.CP.02.0 | 75W | 4000K | cycle-route pedestrian | 6675 |
RAL7016 |
ON/OFF | ||
| 806002.40.CP.03.D | 75W | 4000K | cycle-route pedestrian | 6675 |
RAL9005 |
DALI | ||
| 806002.40.CP.01.0 | 75W | 4000K | cycle-route pedestrian | 6675 |
RAL9006 |
ON/OFF | ||
| 806002.40.CP.02.D | 75W | 4000K | cycle-route pedestrian | 6675 |
RAL7016 |
DALI | ||
| 806002.40.CP.01.D | 75W | 4000K | cycle-route pedestrian | 6675 |
RAL9006 |
DALI | ||
| 806002.40.CP.01.1 | 75W | 4000K | cycle-route pedestrian | 6675 |
RAL9006 |
1-10V | ||
