installation on a pole diam. 60 mm or 76 mm. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium base and head, tempered safety glass, moulded silicone gaskets and o-rings, with screws in stainless steel. Symmetrical or asymmetrical wide light distribution. Swivel joint with graduated scale and mechanical aiming lock. Built-in LED driver, with 56 x mid-power SAMSUNG 2835 LED.IP66 rating.

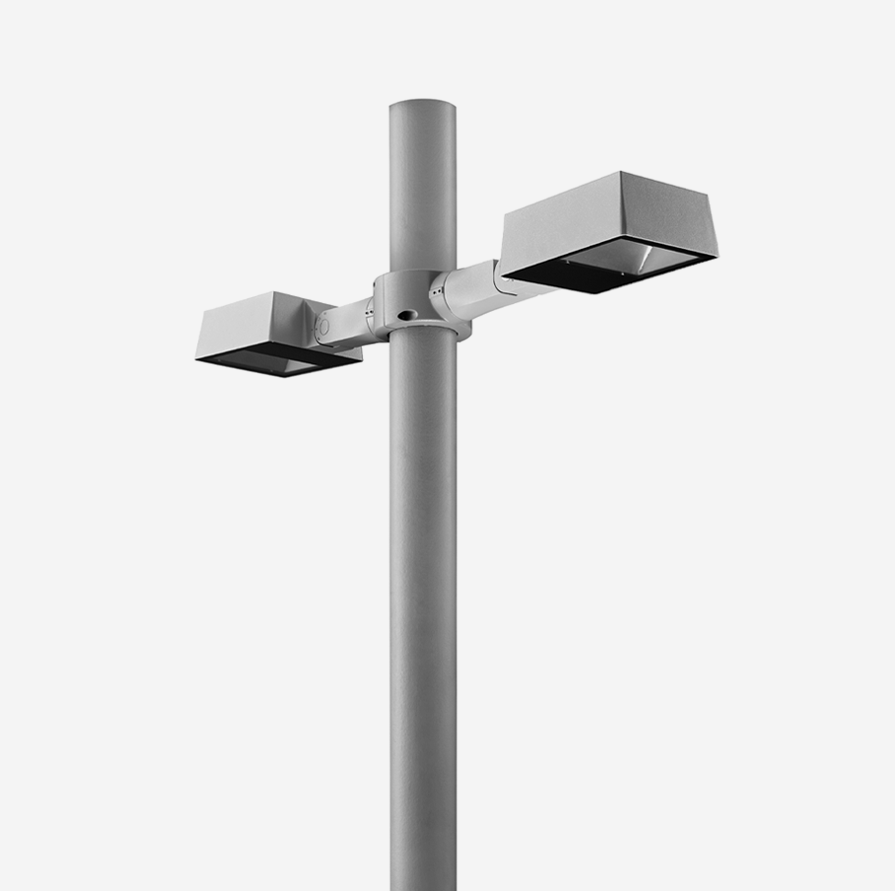

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 806010.30.AS.03.1 | 2x20W | 3000K | 110°x70° | 2 x 1560 |
RAL9005 |
1-10V | ||
| 806010.30.AS.03.0 | 2x20W | 3000K | 110°x70° | 2 x 1560 |
RAL9005 |
ON/OFF | ||
| 806010.30.AS.02.0 | 2x20W | 3000K | 110°x70° | 2 x 1560 |
RAL7016 |
ON/OFF | ||
| 806010.30.AS.03.D | 2x20W | 3000K | 110°x70° | 2 x 1560 |
RAL9005 |
DALI | ||
| 806010.30.AS.01.1 | 2x20W | 3000K | 110°x70° | 2 x 1560 |
RAL9006 |
1-10V | ||
| 806010.30.AS.01.0 | 2x20W | 3000K | 110°x70° | 2 x 1560 |
RAL9006 |
ON/OFF | ||
| 806010.30.AS.02.D | 2x20W | 3000K | 110°x70° | 2 x 1560 |
RAL7016 |
DALI | ||
| 806010.30.AS.02.1 | 2x20W | 3000K | 110°x70° | 2 x 1560 |
RAL7016 |
1-10V | ||
| 806010.30.AS.01.D | 2x20W | 3000K | 110°x70° | 2 x 1560 |
RAL9006 |
DALI | ||
| 806010.40.AS.03.1 | 2x20W | 4000K | 110°x70° | 2 x 1610 |
RAL9005 |
1-10V | ||
| 806010.40.AS.03.0 | 2x20W | 4000K | 110°x70° | 2 x 1610 |
RAL9005 |
ON/OFF | ||
| 806010.40.AS.03.D | 2x20W | 4000K | 110°x70° | 2 x 1610 |
RAL9005 |
DALI | ||
| 806010.40.AS.01.1 | 2x20W | 4000K | 110°x70° | 2 x 1610 |
RAL9006 |
1-10V | ||
| 806010.40.AS.01.0 | 2x20W | 4000K | 110°x70° | 2 x 1610 |
RAL9006 |
ON/OFF | ||
| 806010.40.AS.02.D | 2x20W | 4000K | 110°x70° | 2 x 1610 |
RAL7016 |
DALI | ||
| 806010.40.AS.02.1 | 2x20W | 4000K | 110°x70° | 2 x 1610 |
RAL7016 |
1-10V | ||
| 806010.40.AS.02.0 | 2x20W | 4000K | 110°x70° | 2 x 1610 |
RAL7016 |
ON/OFF | ||
| 806010.40.AS.01.D | 2x20W | 4000K | 110°x70° | 2 x 1610 |
RAL9006 |
DALI | ||
