Ring Pole
Mega

807013-14

Designed by
NAVA + AROSIO

Floodlight for outdoor installation on a pole diam. 60 mm or 76 mm, with 355° swivel pole attachment and allowing horizontal adjustment of +90° / -40°.Phospho-chromatised and polyester powder coated die-cast copper-free aluminium base and head, tempered safety glass, moulded silicone gaskets and o-rings, with screws in stainless steel. Swivel pole joint with graduated scale and mechanical aiming lock. Built-in LED driver, with 1 COB CREE “CXB 3590” LED. IP66 rating.

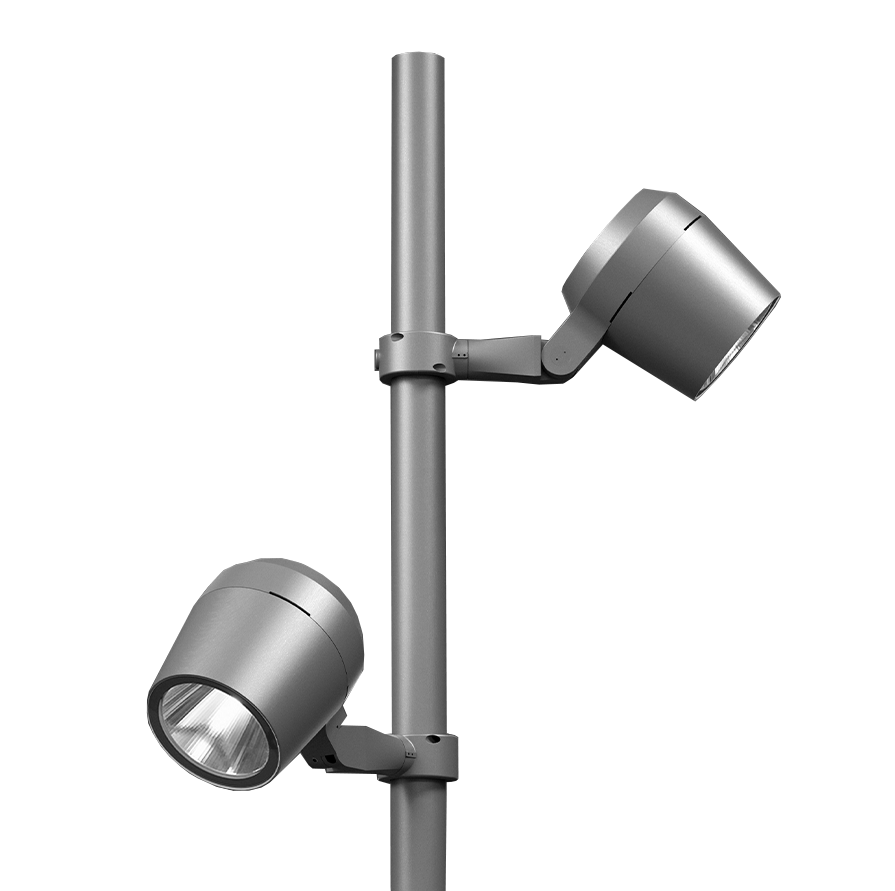

Product Image

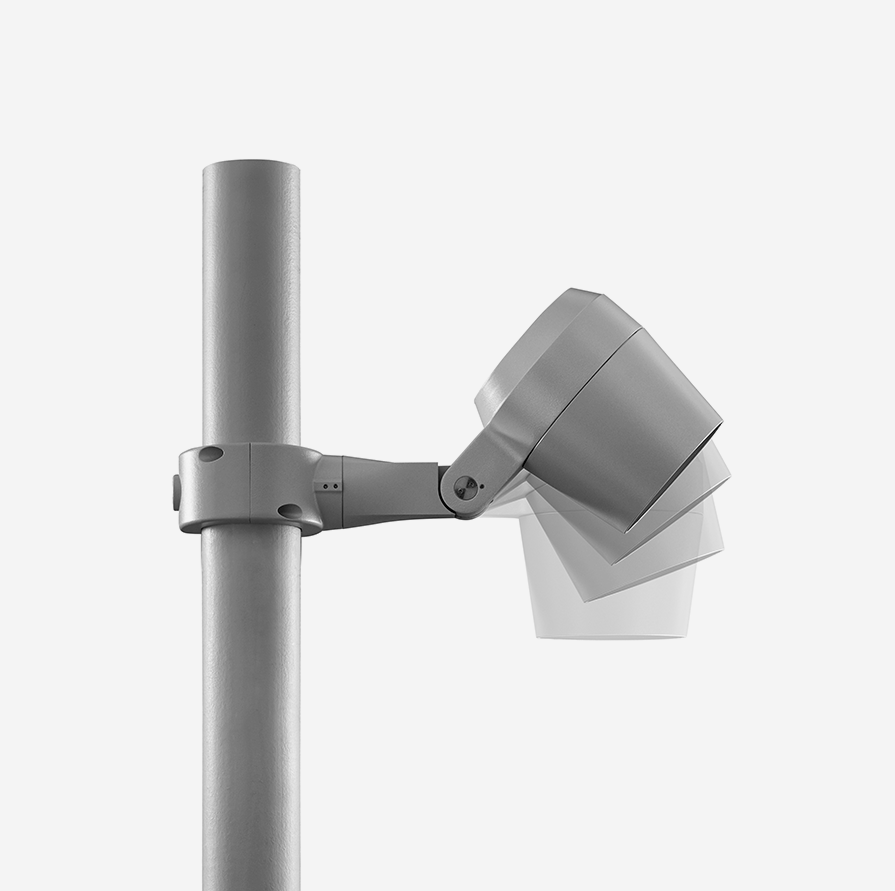

Product Image

Product IMAGE

Technical Drawing

Technical drawing

807013
Ring Pole Mega Cob
view code and download
Technical features
  • DALI
  • ON/OFF
  • IP66
  • IK10
  • CE
  • 5 YEARS
  • Classe II (doppio isolamento)
Product code watt light source Beam angle LUMENS finish Dimming
807013.27.14.03.0 75W 2700K 14° 9519 finish-color RAL9005 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.27.14.03.D 75W 2700K 14° 9519 finish-color RAL9005 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.27.14.02.D 75W 2700K 14° 9519 finish-color RAL7016 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.27.14.02.0 75W 2700K 14° 9519 finish-color RAL7016 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.27.14.01.D 75W 2700K 14° 9519 finish-color RAL9006 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.27.14.01.0 75W 2700K 14° 9519 finish-color RAL9006 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.27.20.03.0 75W 2700K 20° 9595 finish-color RAL9005 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.27.20.02.0 75W 2700K 20° 9595 finish-color RAL7016 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.27.20.03.D 75W 2700K 20° 9595 finish-color RAL9005 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.27.20.01.0 75W 2700K 20° 9595 finish-color RAL9006 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.27.20.02.D 75W 2700K 20° 9595 finish-color RAL7016 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.27.20.01.D 75W 2700K 20° 9595 finish-color RAL9006 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.30.14.02.0 75W 3000K 14° 10020 finish-color RAL7016 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.30.14.03.D 75W 3000K 14° 10020 finish-color RAL9005 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.30.14.03.0 75W 3000K 14° 10020 finish-color RAL9005 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.30.14.01.D 75W 3000K 14° 10020 finish-color RAL9006 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.30.14.01.0 75W 3000K 14° 10020 finish-color RAL9006 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.30.14.02.D 75W 3000K 14° 10020 finish-color RAL7016 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.30.20.03.D 75W 3000K 20° 10100 finish-color RAL9005 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.30.20.03.0 75W 3000K 20° 10100 finish-color RAL9005 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.30.20.01.D 75W 3000K 20° 10100 finish-color RAL9006 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.30.20.01.0 75W 3000K 20° 10100 finish-color RAL9006 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.30.20.02.D 75W 3000K 20° 10100 finish-color RAL7016 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.30.20.02.0 75W 3000K 20° 10100 finish-color RAL7016 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.40.14.01.0 75W 4000K 14° 10120 finish-color RAL9006 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.40.14.02.D 75W 4000K 14° 10120 finish-color RAL7016 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.40.14.02.0 75W 4000K 14° 10120 finish-color RAL7016 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.40.14.03.D 75W 4000K 14° 10120 finish-color RAL9005 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.40.14.03.0 75W 4000K 14° 10120 finish-color RAL9005 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.40.14.01.D 75W 4000K 14° 10120 finish-color RAL9006 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.40.20.02.0 75W 4000K 20° 10200 finish-color RAL7016 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.40.20.03.D 75W 4000K 20° 10200 finish-color RAL9005 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.40.20.03.0 75W 4000K 20° 10200 finish-color RAL9005 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.40.20.02.D 75W 4000K 20° 10200 finish-color RAL7016 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.40.20.01.0 75W 4000K 20° 10200 finish-color RAL9006 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807013.40.20.01.D 75W 4000K 20° 10200 finish-color RAL9006 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
807014
Ring Pole Mega Hp
view code and download
Technical features
  • DALI
  • ON/OFF
  • IP66
  • IK10
  • CE
  • 5 YEARS
  • Classe II (doppio isolamento)
Product code watt light source Beam angle LUMENS finish Dimming
807014.27.04.03.0 88W 2700K 4° 9025 finish-color RAL9005 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.04.02.0 88W 2700K 4° 9025 finish-color RAL7016 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.04.03.D 88W 2700K 4° 9025 finish-color RAL9005 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.04.01.0 88W 2700K 4° 9025 finish-color RAL9006 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.04.02.D 88W 2700K 4° 9025 finish-color RAL7016 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.04.01.D 88W 2700K 4° 9025 finish-color RAL9006 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.10.03.D 88W 2700K 10° 8978 finish-color RAL9005 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.10.03.0 88W 2700K 10° 8978 finish-color RAL9005 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.10.01.D 88W 2700K 10° 8978 finish-color RAL9006 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.10.01.0 88W 2700K 10° 8978 finish-color RAL9006 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.10.02.D 88W 2700K 10° 8978 finish-color RAL7016 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.10.02.0 88W 2700K 10° 8978 finish-color RAL7016 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.28.03.D 88W 2700K 28° 8911 finish-color RAL9005 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.28.03.0 88W 2700K 28° 8911 finish-color RAL9005 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.28.02.0 88W 2700K 28° 8911 finish-color RAL7016 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.28.01.D 88W 2700K 28° 8911 finish-color RAL9006 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.28.01.0 88W 2700K 28° 8911 finish-color RAL9006 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.28.02.D 88W 2700K 28° 8911 finish-color RAL7016 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.55.03.D 88W 2700K 55° 7574 finish-color RAL9005 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.55.03.0 88W 2700K 55° 7574 finish-color RAL9005 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.55.02.D 88W 2700K 55° 7574 finish-color RAL7016 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.55.02.0 88W 2700K 55° 7574 finish-color RAL7016 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.55.01.D 88W 2700K 55° 7574 finish-color RAL9006 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.27.55.01.0 88W 2700K 55° 7574 finish-color RAL9006 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.04.02.0 88W 3000K 4° 9500 finish-color RAL7016 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.04.03.D 88W 3000K 4° 9500 finish-color RAL9005 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.04.03.0 88W 3000K 4° 9500 finish-color RAL9005 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.04.01.D 88W 3000K 4° 9500 finish-color RAL9006 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.04.01.0 88W 3000K 4° 9500 finish-color RAL9006 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.04.02.D 88W 3000K 4° 9500 finish-color RAL7016 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.10.02.D 88W 3000K 10° 9450 finish-color RAL7016 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.10.02.0 88W 3000K 10° 9450 finish-color RAL7016 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.10.03.D 88W 3000K 10° 9450 finish-color RAL9005 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.10.03.0 88W 3000K 10° 9450 finish-color RAL9005 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.10.01.D 88W 3000K 10° 9450 finish-color RAL9006 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.10.01.0 88W 3000K 10° 9450 finish-color RAL9006 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.28.03.D 88W 3000K 28° 9380 finish-color RAL9005 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.28.03.0 88W 3000K 28° 9380 finish-color RAL9005 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.28.01.0 88W 3000K 28° 9380 finish-color RAL9006 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.28.02.D 88W 3000K 28° 9380 finish-color RAL7016 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.28.02.0 88W 3000K 28° 9380 finish-color RAL7016 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.28.01.D 88W 3000K 28° 9380 finish-color RAL9006 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.55.03.0 88W 3000K 55° 7973 finish-color RAL9005 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.55.01.0 88W 3000K 55° 7973 finish-color RAL9006 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.55.02.D 88W 3000K 55° 7973 finish-color RAL7016 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.55.02.0 88W 3000K 55° 7973 finish-color RAL7016 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.55.03.D 88W 3000K 55° 7973 finish-color RAL9005 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.30.55.01.D 88W 3000K 55° 7973 finish-color RAL9006 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.04.03.D 88W 4000K 4° 9600 finish-color RAL9005 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.04.03.0 88W 4000K 4° 9600 finish-color RAL9005 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.04.02.D 88W 4000K 4° 9600 finish-color RAL7016 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.04.02.0 88W 4000K 4° 9600 finish-color RAL7016 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.04.01.D 88W 4000K 4° 9600 finish-color RAL9006 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.04.01.0 88W 4000K 4° 9600 finish-color RAL9006 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.10.03.0 88W 4000K 10° 9550 finish-color RAL9005 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.10.02.0 88W 4000K 10° 9550 finish-color RAL7016 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.10.03.D 88W 4000K 10° 9550 finish-color RAL9005 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.10.01.D 88W 4000K 10° 9550 finish-color RAL9006 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.10.01.0 88W 4000K 10° 9550 finish-color RAL9006 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.10.02.D 88W 4000K 10° 9550 finish-color RAL7016 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.28.02.D 88W 4000K 28° 9480 finish-color RAL7016 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.28.02.0 88W 4000K 28° 9480 finish-color RAL7016 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.28.03.D 88W 4000K 28° 9480 finish-color RAL9005 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.28.03.0 88W 4000K 28° 9480 finish-color RAL9005 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.28.01.D 88W 4000K 28° 9480 finish-color RAL9006 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.28.01.0 88W 4000K 28° 9480 finish-color RAL9006 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.55.03.D 88W 4000K 55° 8058 finish-color RAL9005 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.55.03.0 88W 4000K 55° 8058 finish-color RAL9005 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.55.01.0 88W 4000K 55° 8058 finish-color RAL9006 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.55.02.D 88W 4000K 55° 8058 finish-color RAL7016 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.55.02.0 88W 4000K 55° 8058 finish-color RAL7016 ON/OFF
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
807014.40.55.01.D 88W 4000K 55° 8058 finish-color RAL9006 DALI
ltd file download-icon.png instructions download-icon.png 3D CAD download-icon.png Data Sheet download-icon.png
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
