Ring Pole
Medium

807002-08

Designed by
NAVA + AROSIO

Floodlight for outdoor installation on a pole diam. 60 mm or 76 mm, with 355° swivel pole attachment and allowing horizontal adjustment of +90° / -40°. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium base and head, tempered safety glass, moulded silicone gaskets and o-rings, with screws in stainless steel. Swivel pole joint with graduated scale and mechanical aiming lock. Built-in LED driver, with 1 COB CREE “CXB 1512” LED. IP66 rating.

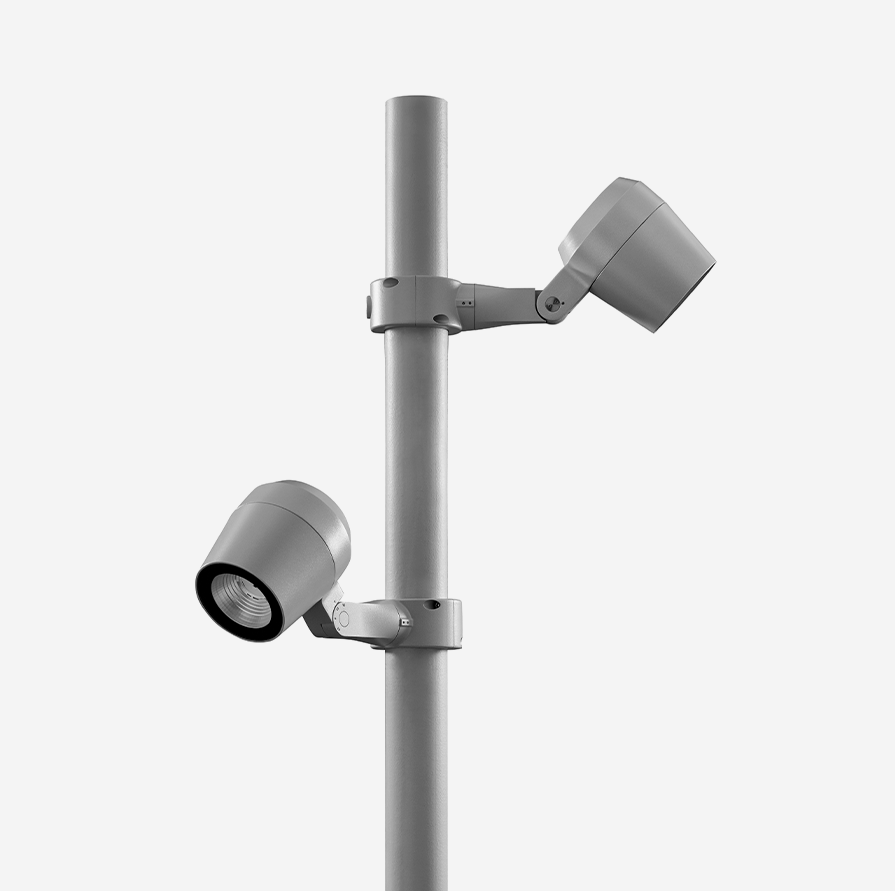

Product IMAGE

Technical drawing

807002

Ring Pole Medium

view code and download

Technical features

Product code	watt	light source	Beam angle	LUMENS	finish	Dimming
807002.27.14.03.0	16W	2700K	14°	1805	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.27.14.03.D	16W	2700K	14°	1805	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807002.27.14.03.1	16W	2700K	14°	1805	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807002.27.14.02.D	16W	2700K	14°	1805	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807002.27.14.02.1	16W	2700K	14°	1805	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807002.27.14.02.0	16W	2700K	14°	1805	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.27.14.01.1	16W	2700K	14°	1805	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807002.27.14.01.0	16W	2700K	14°	1805	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.27.14.01.D	16W	2700K	14°	1805	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807002.27.35.03.0	16W	2700K	35°	1722	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.27.35.03.1	16W	2700K	35°	1722	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807002.27.35.03.D	16W	2700K	35°	1722	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807002.27.35.02.0	16W	2700K	35°	1722	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.27.35.02.1	16W	2700K	35°	1722	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807002.27.35.01.D	16W	2700K	35°	1722	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807002.27.35.01.1	16W	2700K	35°	1722	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807002.27.35.01.0	16W	2700K	35°	1722	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.27.35.02.D	16W	2700K	35°	1722	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807002.27.55.02.0	16W	2700K	55°	1636	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.27.55.03.D	16W	2700K	55°	1636	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807002.27.55.03.1	16W	2700K	55°	1636	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807002.27.55.03.0	16W	2700K	55°	1636	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.27.55.01.0	16W	2700K	55°	1636	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.27.55.02.D	16W	2700K	55°	1636	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807002.27.55.02.1	16W	2700K	55°	1636	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807002.27.55.01.D	16W	2700K	55°	1636	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807002.27.55.01.1	16W	2700K	55°	1636	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807002.30.14.03.1	16W	3000K	14°	1900	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807002.30.14.03.0	16W	3000K	14°	1900	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.30.14.02.1	16W	3000K	14°	1900	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807002.30.14.02.0	16W	3000K	14°	1900	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.30.14.03.D	16W	3000K	14°	1900	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807002.30.14.01.0	16W	3000K	14°	1900	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.30.14.02.D	16W	3000K	14°	1900	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807002.30.14.01.D	16W	3000K	14°	1900	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807002.30.14.01.1	16W	3000K	14°	1900	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807002.30.35.03.0	16W	3000K	35°	1813	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.30.35.02.D	16W	3000K	35°	1813	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807002.30.35.02.1	16W	3000K	35°	1813	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807002.30.35.02.0	16W	3000K	35°	1813	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.30.35.03.D	16W	3000K	35°	1813	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807002.30.35.03.1	16W	3000K	35°	1813	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807002.30.35.01.0	16W	3000K	35°	1813	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.30.35.01.D	16W	3000K	35°	1813	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807002.30.35.01.1	16W	3000K	35°	1813	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807002.30.55.03.0	16W	3000K	55°	1722	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.30.55.02.0	16W	3000K	55°	1722	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.30.55.03.D	16W	3000K	55°	1722	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807002.30.55.03.1	16W	3000K	55°	1722	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807002.30.55.02.1	16W	3000K	55°	1722	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807002.30.55.01.0	16W	3000K	55°	1722	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.30.55.02.D	16W	3000K	55°	1722	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807002.30.55.01.1	16W	3000K	55°	1722	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807002.30.55.01.D	16W	3000K	55°	1722	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807002.40.14.02.0	16W	4000K	14°	2000	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.40.14.03.D	16W	4000K	14°	2000	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807002.40.14.03.1	16W	4000K	14°	2000	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807002.40.14.03.0	16W	4000K	14°	2000	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.40.14.02.1	16W	4000K	14°	2000	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807002.40.14.01.1	16W	4000K	14°	2000	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807002.40.14.01.0	16W	4000K	14°	2000	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.40.14.02.D	16W	4000K	14°	2000	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807002.40.14.01.D	16W	4000K	14°	2000	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807002.40.35.03.0	16W	4000K	35°	1900	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.40.35.03.D	16W	4000K	35°	1900	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807002.40.35.03.1	16W	4000K	35°	1900	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807002.40.35.02.1	16W	4000K	35°	1900	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807002.40.35.02.0	16W	4000K	35°	1900	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.40.35.01.1	16W	4000K	35°	1900	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807002.40.35.01.0	16W	4000K	35°	1900	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.40.35.02.D	16W	4000K	35°	1900	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807002.40.35.01.D	16W	4000K	35°	1900	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807002.40.55.03.1	16W	4000K	55°	1805	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807002.40.55.03.0	16W	4000K	55°	1805	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.40.55.03.D	16W	4000K	55°	1805	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807002.40.55.01.0	16W	4000K	55°	1805	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.40.55.02.D	16W	4000K	55°	1805	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807002.40.55.02.1	16W	4000K	55°	1805	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807002.40.55.02.0	16W	4000K	55°	1805	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807002.40.55.01.D	16W	4000K	55°	1805	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807002.40.55.01.1	16W	4000K	55°	1805	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet

807008

Ring Pole Medium Hp

view code and download

Technical features

Product code	watt	light source	Beam angle	LUMENS	finish	Dimming
807008.27.04.03.0	20W	2700K	4°	1948	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.27.04.02.1	20W	2700K	4°	1948	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807008.27.04.02.0	20W	2700K	4°	1948	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.27.04.03.D	20W	2700K	4°	1948	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807008.27.04.03.1	20W	2700K	4°	1948	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807008.27.04.02.D	20W	2700K	4°	1948	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807008.27.04.01.1	20W	2700K	4°	1948	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807008.27.04.01.0	20W	2700K	4°	1948	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.27.04.01.D	20W	2700K	4°	1948	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807008.27.10.02.0	20W	2700K	10°	1900	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.27.10.03.D	20W	2700K	10°	1900	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807008.27.10.03.1	20W	2700K	10°	1900	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807008.27.10.03.0	20W	2700K	10°	1900	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.27.10.02.D	20W	2700K	10°	1900	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807008.27.10.02.1	20W	2700K	10°	1900	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807008.27.10.01.D	20W	2700K	10°	1900	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807008.27.10.01.1	20W	2700K	10°	1900	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807008.27.10.01.0	20W	2700K	10°	1900	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.27.28.03.D	20W	2700K	28°	1853	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807008.27.28.03.1	20W	2700K	28°	1853	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807008.27.28.03.0	20W	2700K	28°	1853	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.27.28.02.D	20W	2700K	28°	1853	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807008.27.28.02.1	20W	2700K	28°	1853	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807008.27.28.02.0	20W	2700K	28°	1853	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.27.28.01.1	20W	2700K	28°	1853	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807008.27.28.01.0	20W	2700K	28°	1853	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.27.28.01.D	20W	2700K	28°	1853	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807008.27.55.03.1	20W	2700K	55°	1575	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807008.27.55.03.0	20W	2700K	55°	1575	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.27.55.02.0	20W	2700K	55°	1575	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.27.55.03.D	20W	2700K	55°	1575	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807008.27.55.01.0	20W	2700K	55°	1575	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.27.55.02.D	20W	2700K	55°	1575	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807008.27.55.02.1	20W	2700K	55°	1575	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807008.27.55.01.D	20W	2700K	55°	1575	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807008.27.55.01.1	20W	2700K	55°	1575	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807008.30.04.03.D	20W	3000K	4°	2050	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807008.30.04.03.1	20W	3000K	4°	2050	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807008.30.04.03.0	20W	3000K	4°	2050	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.30.04.01.1	20W	3000K	4°	2050	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807008.30.04.01.0	20W	3000K	4°	2050	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.30.04.02.D	20W	3000K	4°	2050	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807008.30.04.02.1	20W	3000K	4°	2050	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807008.30.04.02.0	20W	3000K	4°	2050	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.30.04.01.D	20W	3000K	4°	2050	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807008.30.10.03.1	20W	3000K	10°	2000	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807008.30.10.03.0	20W	3000K	10°	2000	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.30.10.03.D	20W	3000K	10°	2000	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807008.30.10.01.0	20W	3000K	10°	2000	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.30.10.02.D	20W	3000K	10°	2000	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807008.30.10.02.1	20W	3000K	10°	2000	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807008.30.10.02.0	20W	3000K	10°	2000	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.30.10.01.1	20W	3000K	10°	2000	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807008.30.10.01.D	20W	3000K	10°	2000	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807008.30.28.03.0	20W	3000K	28°	1950	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.30.28.03.D	20W	3000K	28°	1950	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807008.30.28.03.1	20W	3000K	28°	1950	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807008.30.28.02.0	20W	3000K	28°	1950	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.30.28.02.D	20W	3000K	28°	1950	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807008.30.28.02.1	20W	3000K	28°	1950	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807008.30.28.01.D	20W	3000K	28°	1950	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807008.30.28.01.1	20W	3000K	28°	1950	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807008.30.28.01.0	20W	3000K	28°	1950	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.30.55.02.1	20W	3000K	55°	1658	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807008.30.55.02.0	20W	3000K	55°	1658	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.30.55.03.D	20W	3000K	55°	1658	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807008.30.55.03.1	20W	3000K	55°	1658	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807008.30.55.03.0	20W	3000K	55°	1658	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.30.55.01.0	20W	3000K	55°	1658	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.30.55.02.D	20W	3000K	55°	1658	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807008.30.55.01.D	20W	3000K	55°	1658	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807008.30.55.01.1	20W	3000K	55°	1658	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807008.40.04.03.1	20W	4000K	4°	2100	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807008.40.04.03.0	20W	4000K	4°	2100	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.40.04.02.0	20W	4000K	4°	2100	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.40.04.03.D	20W	4000K	4°	2100	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807008.40.04.02.1	20W	4000K	4°	2100	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807008.40.04.01.D	20W	4000K	4°	2100	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807008.40.04.01.1	20W	4000K	4°	2100	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807008.40.04.01.0	20W	4000K	4°	2100	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.40.04.02.D	20W	4000K	4°	2100	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807008.40.10.03.0	20W	4000K	10°	2050	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.40.10.03.D	20W	4000K	10°	2050	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807008.40.10.03.1	20W	4000K	10°	2050	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807008.40.10.02.0	20W	4000K	10°	2050	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.40.10.01.0	20W	4000K	10°	2050	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.40.10.02.D	20W	4000K	10°	2050	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807008.40.10.02.1	20W	4000K	10°	2050	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807008.40.10.01.1	20W	4000K	10°	2050	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807008.40.10.01.D	20W	4000K	10°	2050	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807008.40.28.03.1	20W	4000K	28°	2000	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807008.40.28.03.0	20W	4000K	28°	2000	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.40.28.03.D	20W	4000K	28°	2000	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807008.40.28.01.0	20W	4000K	28°	2000	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.40.28.02.D	20W	4000K	28°	2000	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807008.40.28.02.1	20W	4000K	28°	2000	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807008.40.28.02.0	20W	4000K	28°	2000	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.40.28.01.D	20W	4000K	28°	2000	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807008.40.28.01.1	20W	4000K	28°	2000	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807008.40.55.03.0	20W	4000K	55°	1700	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.40.55.03.1	20W	4000K	55°	1700	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807008.40.55.02.D	20W	4000K	55°	1700	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807008.40.55.02.1	20W	4000K	55°	1700	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807008.40.55.02.0	20W	4000K	55°	1700	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807008.40.55.03.D	20W	4000K	55°	1700	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807008.40.55.01.D	20W	4000K	55°	1700	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807008.40.55.01.1	20W	4000K	55°	1700	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807008.40.55.01.0	20W	4000K	55°	1700	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet

Menu Image

TYPOLOGY

FOCUS ON

Menu Item

About us

Focus On

Ring Pole
Medium

Designed by
NAVA + AROSIO

Menu Image

TYPOLOGY

FOCUS ON

Menu Item

About us

Focus On

Ring PoleMedium

Designed by NAVA + AROSIO

Ring Pole
Medium

Designed by
NAVA + AROSIO
