Ring Pole
Maxi

807003-09

Designed by
NAVA + AROSIO

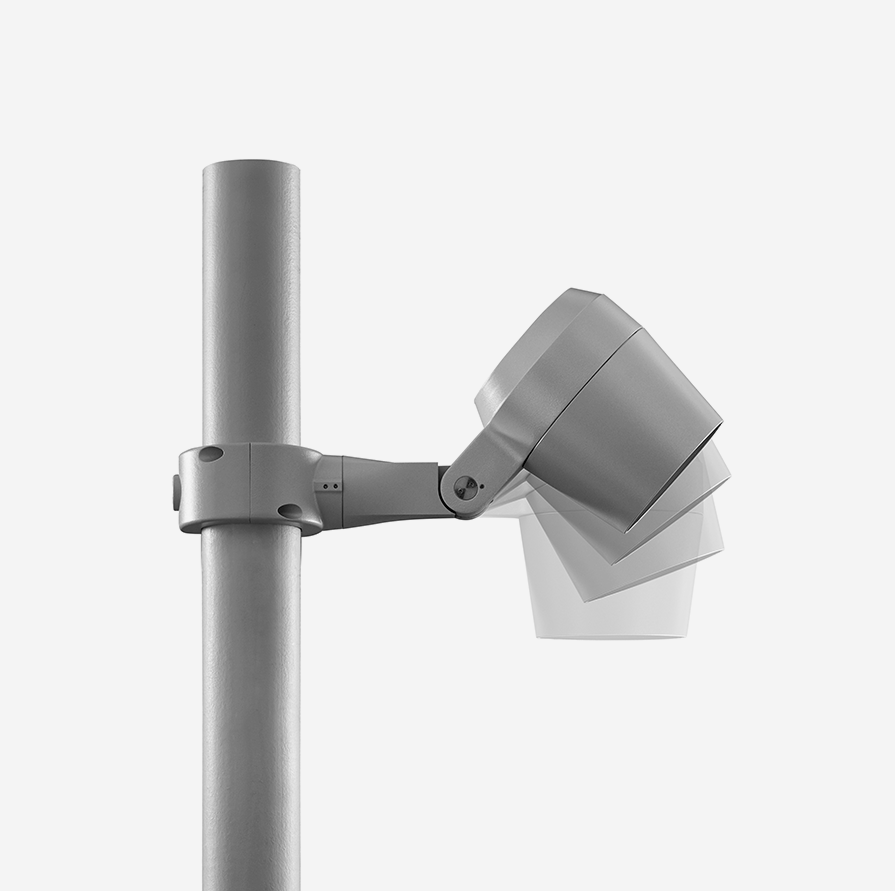

Floodlight for outdoor installation on a pole diam. 60 mm or 76 mm, with 355° swivel pole attachment and allowing horizontal adjustment of +90° / -40°. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium base and head, tempered safety glass, moulded silicone gaskets and o-rings, with screws in stainless steel. Swivel pole joint with graduated scale and mechanical aiming lock. Built-in LED driver, with 1 COB CREE “CXB 2540” LED. IP66 rating.

Product IMAGE

Technical drawing

807003

Ring Pole Maxi

view code and download

Technical features

Product code	watt	light source	Beam angle	LUMENS	finish	Dimming
807003.27.14.02.1	42W	2700K	14°	4703	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807003.27.14.02.0	42W	2700K	14°	4703	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.27.14.03.D	42W	2700K	14°	4703	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807003.27.14.03.1	42W	2700K	14°	4703	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807003.27.14.03.0	42W	2700K	14°	4703	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.27.14.01.1	42W	2700K	14°	4703	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807003.27.14.01.0	42W	2700K	14°	4703	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.27.14.02.D	42W	2700K	14°	4703	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807003.27.14.01.D	42W	2700K	14°	4703	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807003.27.35.02.0	42W	2700K	35°	4514	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.27.35.03.D	42W	2700K	35°	4514	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807003.27.35.03.1	42W	2700K	35°	4514	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807003.27.35.03.0	42W	2700K	35°	4514	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.27.35.02.1	42W	2700K	35°	4514	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807003.27.35.01.D	42W	2700K	35°	4514	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807003.27.35.01.1	42W	2700K	35°	4514	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807003.27.35.01.0	42W	2700K	35°	4514	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.27.35.02.D	42W	2700K	35°	4514	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807003.27.55.03.D	42W	2700K	55°	4332	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807003.27.55.03.1	42W	2700K	55°	4332	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807003.27.55.03.0	42W	2700K	55°	4332	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.27.55.02.1	42W	2700K	55°	4332	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807003.27.55.02.0	42W	2700K	55°	4332	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.27.55.01.1	42W	2700K	55°	4332	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807003.27.55.01.0	42W	2700K	55°	4332	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.27.55.02.D	42W	2700K	55°	4332	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807003.27.55.01.D	42W	2700K	55°	4332	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807003.30.14.03.0	42W	3000K	14°	4950	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.30.14.02.1	42W	3000K	14°	4950	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807003.30.14.02.0	42W	3000K	14°	4950	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.30.14.03.D	42W	3000K	14°	4950	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807003.30.14.03.1	42W	3000K	14°	4950	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807003.30.14.02.D	42W	3000K	14°	4950	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807003.30.14.01.D	42W	3000K	14°	4950	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807003.30.14.01.1	42W	3000K	14°	4950	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807003.30.14.01.0	42W	3000K	14°	4950	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.30.35.03.D	42W	3000K	35°	4752	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807003.30.35.03.1	42W	3000K	35°	4752	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807003.30.35.03.0	42W	3000K	35°	4752	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.30.35.02.1	42W	3000K	35°	4752	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807003.30.35.02.0	42W	3000K	35°	4752	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.30.35.01.1	42W	3000K	35°	4752	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807003.30.35.01.0	42W	3000K	35°	4752	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.30.35.02.D	42W	3000K	35°	4752	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807003.30.35.01.D	42W	3000K	35°	4752	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807003.30.55.03.1	42W	3000K	55°	4560	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807003.30.55.03.0	42W	3000K	55°	4560	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.30.55.02.0	42W	3000K	55°	4560	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.30.55.03.D	42W	3000K	55°	4560	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807003.30.55.02.D	42W	3000K	55°	4560	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807003.30.55.02.1	42W	3000K	55°	4560	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807003.30.55.01.D	42W	3000K	55°	4560	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807003.30.55.01.1	42W	3000K	55°	4560	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807003.30.55.01.0	42W	3000K	55°	4560	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.40.14.03.D	42W	4000K	14°	5265	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807003.40.14.03.1	42W	4000K	14°	5265	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807003.40.14.03.0	42W	4000K	14°	5265	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.40.14.02.1	42W	4000K	14°	5265	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807003.40.14.02.0	42W	4000K	14°	5265	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.40.14.01.1	42W	4000K	14°	5265	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807003.40.14.01.0	42W	4000K	14°	5265	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.40.14.02.D	42W	4000K	14°	5265	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807003.40.14.01.D	42W	4000K	14°	5265	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807003.40.35.03.1	42W	4000K	35°	5000	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807003.40.35.03.0	42W	4000K	35°	5000	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.40.35.02.0	42W	4000K	35°	5000	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.40.35.03.D	42W	4000K	35°	5000	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807003.40.35.01.0	42W	4000K	35°	5000	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.40.35.02.D	42W	4000K	35°	5000	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807003.40.35.02.1	42W	4000K	35°	5000	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807003.40.35.01.D	42W	4000K	35°	5000	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807003.40.35.01.1	42W	4000K	35°	5000	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807003.40.55.03.0	42W	4000K	55°	4770	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.40.55.02.0	42W	4000K	55°	4770	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807003.40.55.03.D	42W	4000K	55°	4770	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807003.40.55.03.1	42W	4000K	55°	4770	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807003.40.55.02.D	42W	4000K	55°	4770	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807003.40.55.02.1	42W	4000K	55°	4770	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807003.40.55.01.D	42W	4000K	55°	4770	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807003.40.55.01.1	42W	4000K	55°	4770	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807003.40.55.01.0	42W	4000K	55°	4770	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet

807009

Ring Pole Maxi Hp

view code and download

Technical features

Product code	watt	light source	Beam angle	LUMENS	finish	Dimming
807009.27.04.03.1	38W	2700K	4°	4085	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807009.27.04.03.0	38W	2700K	4°	4085	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.27.04.02.0	38W	2700K	4°	4085	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.27.04.03.D	38W	2700K	4°	4085	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807009.27.04.01.1	38W	2700K	4°	4085	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807009.27.04.01.0	38W	2700K	4°	4085	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.27.04.02.D	38W	2700K	4°	4085	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807009.27.04.02.1	38W	2700K	4°	4085	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807009.27.04.01.D	38W	2700K	4°	4085	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807009.27.10.03.0	38W	2700K	10°	4047	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.27.10.03.D	38W	2700K	10°	4047	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807009.27.10.03.1	38W	2700K	10°	4047	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807009.27.10.01.0	38W	2700K	10°	4047	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.27.10.02.D	38W	2700K	10°	4047	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807009.27.10.02.1	38W	2700K	10°	4047	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807009.27.10.02.0	38W	2700K	10°	4047	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.27.10.01.1	38W	2700K	10°	4047	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807009.27.10.01.D	38W	2700K	10°	4047	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807009.27.28.03.1	38W	2700K	28°	4000	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807009.27.28.03.0	38W	2700K	28°	4000	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.27.28.03.D	38W	2700K	28°	4000	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807009.27.28.02.1	38W	2700K	28°	4000	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807009.27.28.02.0	38W	2700K	28°	4000	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.27.28.02.D	38W	2700K	28°	4000	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807009.27.28.01.0	38W	2700K	28°	4000	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.27.28.01.D	38W	2700K	28°	4000	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807009.27.28.01.1	38W	2700K	28°	4000	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807009.27.55.03.0	38W	2700K	55°	3400	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.27.55.02.0	38W	2700K	55°	3400	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.27.55.03.D	38W	2700K	55°	3400	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807009.27.55.03.1	38W	2700K	55°	3400	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807009.27.55.02.D	38W	2700K	55°	3400	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807009.27.55.02.1	38W	2700K	55°	3400	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807009.27.55.01.D	38W	2700K	55°	3400	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807009.27.55.01.1	38W	2700K	55°	3400	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807009.27.55.01.0	38W	2700K	55°	3400	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.30.04.03.1	38W	3000K	4°	4300	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807009.30.04.03.0	38W	3000K	4°	4300	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.30.04.02.D	38W	3000K	4°	4300	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807009.30.04.02.1	38W	3000K	4°	4300	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807009.30.04.02.0	38W	3000K	4°	4300	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.30.04.03.D	38W	3000K	4°	4300	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807009.30.04.01.0	38W	3000K	4°	4300	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.30.04.01.1	38W	3000K	4°	4300	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807009.30.04.01.D	38W	3000K	4°	4300	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807009.30.10.03.0	38W	3000K	10°	4260	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.30.10.02.1	38W	3000K	10°	4260	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807009.30.10.02.0	38W	3000K	10°	4260	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.30.10.03.D	38W	3000K	10°	4260	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807009.30.10.03.1	38W	3000K	10°	4260	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807009.30.10.02.D	38W	3000K	10°	4260	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807009.30.10.01.D	38W	3000K	10°	4260	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807009.30.10.01.1	38W	3000K	10°	4260	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807009.30.10.01.0	38W	3000K	10°	4260	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.30.28.03.0	38W	3000K	28°	4210	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.30.28.02.0	38W	3000K	28°	4210	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.30.28.03.D	38W	3000K	28°	4210	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807009.30.28.03.1	38W	3000K	28°	4210	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807009.30.28.02.1	38W	3000K	28°	4210	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807009.30.28.01.0	38W	3000K	28°	4210	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.30.28.02.D	38W	3000K	28°	4210	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807009.30.28.01.D	38W	3000K	28°	4210	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807009.30.28.01.1	38W	3000K	28°	4210	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807009.30.55.03.D	38W	3000K	55°	3579	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807009.30.55.03.1	38W	3000K	55°	3579	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807009.30.55.03.0	38W	3000K	55°	3579	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.30.55.02.0	38W	3000K	55°	3579	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.30.55.01.0	38W	3000K	55°	3579	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.30.55.02.D	38W	3000K	55°	3579	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807009.30.55.02.1	38W	3000K	55°	3579	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807009.30.55.01.D	38W	3000K	55°	3579	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807009.30.55.01.1	38W	3000K	55°	3579	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807009.40.04.03.D	38W	4000K	4°	4400	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807009.40.04.03.1	38W	4000K	4°	4400	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807009.40.04.03.0	38W	4000K	4°	4400	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.40.04.02.1	38W	4000K	4°	4400	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807009.40.04.02.0	38W	4000K	4°	4400	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.40.04.01.1	38W	4000K	4°	4400	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807009.40.04.01.0	38W	4000K	4°	4400	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.40.04.02.D	38W	4000K	4°	4400	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807009.40.04.01.D	38W	4000K	4°	4400	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807009.40.10.03.0	38W	4000K	10°	4360	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.40.10.03.1	38W	4000K	10°	4360	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807009.40.10.03.D	38W	4000K	10°	4360	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807009.40.10.01.0	38W	4000K	10°	4360	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.40.10.02.D	38W	4000K	10°	4360	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807009.40.10.02.1	38W	4000K	10°	4360	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807009.40.10.02.0	38W	4000K	10°	4360	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.40.10.01.D	38W	4000K	10°	4360	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807009.40.10.01.1	38W	4000K	10°	4360	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807009.40.28.03.0	38W	4000K	28°	4310	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.40.28.03.D	38W	4000K	28°	4310	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807009.40.28.03.1	38W	4000K	28°	4310	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807009.40.28.02.0	38W	4000K	28°	4310	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.40.28.02.1	38W	4000K	28°	4310	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807009.40.28.02.D	38W	4000K	28°	4310	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807009.40.28.01.D	38W	4000K	28°	4310	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807009.40.28.01.1	38W	4000K	28°	4310	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet
807009.40.28.01.0	38W	4000K	28°	4310	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.40.55.03.0	38W	4000K	55°	3664	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.40.55.02.1	38W	4000K	55°	3664	RAL7016	1-10V
ltd file instructions 3D CAD Data Sheet
807009.40.55.02.0	38W	4000K	55°	3664	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.40.55.03.D	38W	4000K	55°	3664	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807009.40.55.03.1	38W	4000K	55°	3664	RAL9005	1-10V
ltd file instructions 3D CAD Data Sheet
807009.40.55.01.0	38W	4000K	55°	3664	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807009.40.55.02.D	38W	4000K	55°	3664	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807009.40.55.01.D	38W	4000K	55°	3664	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807009.40.55.01.1	38W	4000K	55°	3664	RAL9006	1-10V
ltd file instructions 3D CAD Data Sheet

Menu Image

TYPOLOGY

FOCUS ON

Menu Item

About us

Focus On

Ring Pole
Maxi

Designed by
NAVA + AROSIO

Menu Image

TYPOLOGY

FOCUS ON

Menu Item

About us

Focus On

Ring PoleMaxi

Designed by NAVA + AROSIO

Ring Pole
Maxi

Designed by
NAVA + AROSIO
