Ring Pole
Double Mega

807015-16

Designed by
NAVA + AROSIO

Floodlight for outdoor installation on a pole diam. 60 mm or 76 mm, with 355° swivel pole attachment and allowing horizontal adjustment of +90° / -40°.Phospho-chromatised and polyester powder coated die-cast copper-free aluminium base and head, tempered safety glass, moulded silicone gaskets and o-rings, with screws in stainless steel. Swivel pole joint with graduated scale and mechanical aiming lock. Built-in LED driver, with 1 COB CREE “CXB 3590” LED. IP66 rating.

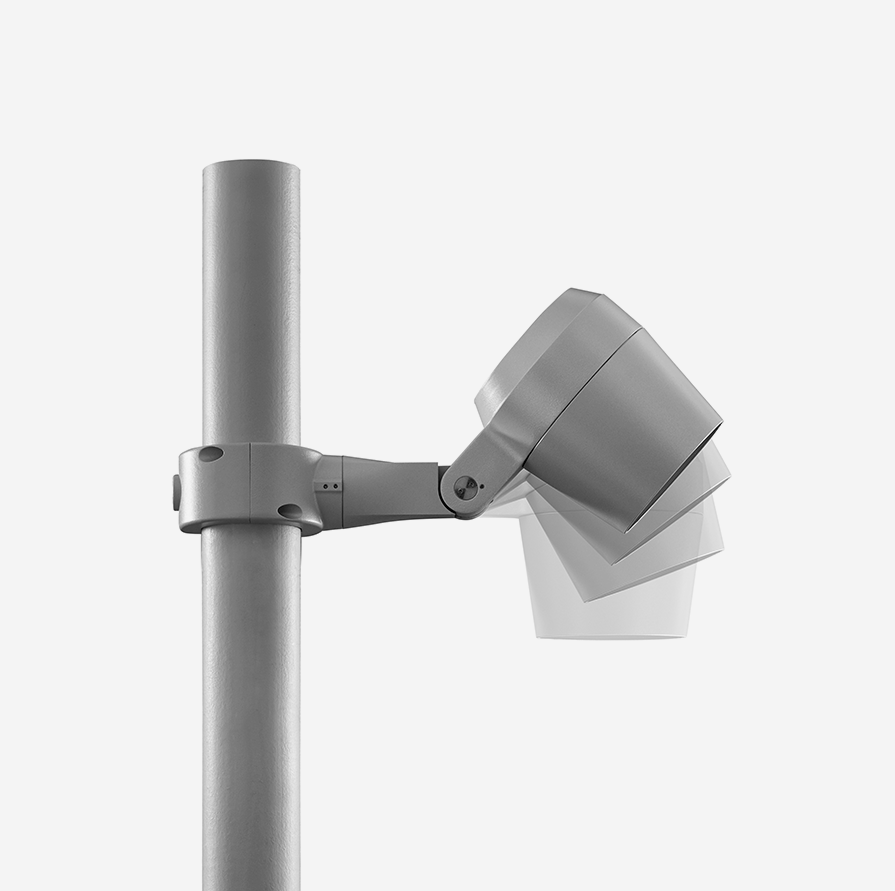

Product IMAGE

Technical drawing

807015

Ring Pole Double Mega Cob

view code and download

Technical features

Product code	watt	light source	Beam angle	LUMENS	finish	Dimming
807015.27.14.02.D	2x75W	2700K	14°	2 x 9519	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807015.27.14.02.0	2x75W	2700K	14°	2 x 9519	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807015.27.14.03.D	2x75W	2700K	14°	2 x 9519	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807015.27.14.03.0	2x75W	2700K	14°	2 x 9519	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807015.27.14.01.D	2x75W	2700K	14°	2 x 9519	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807015.27.14.01.0	2x75W	2700K	14°	2 x 9519	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807015.27.20.02.0	2x75W	2700K	20°	2 x 9595	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807015.27.20.03.D	2x75W	2700K	20°	2 x 9595	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807015.27.20.03.0	2x75W	2700K	20°	2 x 9595	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807015.27.20.01.D	2x75W	2700K	20°	2 x 9595	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807015.27.20.01.0	2x75W	2700K	20°	2 x 9595	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807015.27.20.02.D	2x75W	2700K	20°	2 x 9595	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807015.30.14.02.D	2x75W	3000K	14°	2 x 10020	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807015.30.14.02.0	2x75W	3000K	14°	2 x 10020	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807015.30.14.03.D	2x75W	3000K	14°	2 x 10020	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807015.30.14.03.0	2x75W	3000K	14°	2 x 10020	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807015.30.14.01.0	2x75W	3000K	14°	2 x 10020	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807015.30.14.01.D	2x75W	3000K	14°	2 x 10020	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807015.30.20.02.D	2x75W	3000K	20°	2 x 10100	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807015.30.20.02.0	2x75W	3000K	20°	2 x 10100	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807015.30.20.03.D	2x75W	3000K	20°	2 x 10100	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807015.30.20.03.0	2x75W	3000K	20°	2 x 10100	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807015.30.20.01.0	2x75W	3000K	20°	2 x 10100	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807015.30.20.01.D	2x75W	3000K	20°	2 x 10100	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807015.40.14.03.D	2x75W	4000K	14°	2 x 10120	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807015.40.14.03.0	2x75W	4000K	14°	2 x 10120	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807015.40.14.02.0	2x75W	4000K	14°	2 x 10120	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807015.40.14.01.D	2x75W	4000K	14°	2 x 10120	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807015.40.14.01.0	2x75W	4000K	14°	2 x 10120	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807015.40.14.02.D	2x75W	4000K	14°	2 x 10120	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807015.40.20.03.0	2x75W	4000K	20°	2 x 10200	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807015.40.20.02.D	2x75W	4000K	20°	2 x 10200	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807015.40.20.02.0	2x75W	4000K	20°	2 x 10200	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807015.40.20.03.D	2x75W	4000K	20°	2 x 10200	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807015.40.20.01.D	2x75W	4000K	20°	2 x 10200	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807015.40.20.01.0	2x75W	4000K	20°	2 x 10200	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet

807016

Ring Pole Double Mega Hp

view code and download

Technical features

Product code	watt	light source	Beam angle	LUMENS	finish	Dimming
807016.27.04.03.0	2x88W	2700K	4°	2 x 9025	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.27.04.02.0	2x88W	2700K	4°	2 x 9025	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.27.04.03.D	2x88W	2700K	4°	2 x 9025	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807016.27.04.01.D	2x88W	2700K	4°	2 x 9025	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807016.27.04.01.0	2x88W	2700K	4°	2 x 9025	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.27.04.02.D	2x88W	2700K	4°	2 x 9025	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807016.27.10.02.D	2x88W	2700K	10°	2 x 8978	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807016.27.10.02.0	2x88W	2700K	10°	2 x 8978	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.27.10.03.D	2x88W	2700K	10°	2 x 8978	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807016.27.10.03.0	2x88W	2700K	10°	2 x 8978	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.27.10.01.D	2x88W	2700K	10°	2 x 8978	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807016.27.10.01.0	2x88W	2700K	10°	2 x 8978	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.27.28.02.D	2x88W	2700K	28°	2 x 8911	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807016.27.28.02.0	2x88W	2700K	28°	2 x 8911	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.27.28.03.D	2x88W	2700K	28°	2 x 8911	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807016.27.28.03.0	2x88W	2700K	28°	2 x 8911	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.27.28.01.0	2x88W	2700K	28°	2 x 8911	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.27.28.01.D	2x88W	2700K	28°	2 x 8911	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807016.27.55.03.0	2x88W	2700K	55°	2 x 7574	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.27.55.03.D	2x88W	2700K	55°	2 x 7574	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807016.27.55.01.D	2x88W	2700K	55°	2 x 7574	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807016.27.55.01.0	2x88W	2700K	55°	2 x 7574	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.27.55.02.D	2x88W	2700K	55°	2 x 7574	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807016.27.55.02.0	2x88W	2700K	55°	2 x 7574	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.30.04.01.0	2x88W	3000K	4°	2 x 9500	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.30.04.02.D	2x88W	3000K	4°	2 x 9500	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807016.30.04.02.0	2x88W	3000K	4°	2 x 9500	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.30.04.03.D	2x88W	3000K	4°	2 x 9500	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807016.30.04.03.0	2x88W	3000K	4°	2 x 9500	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.30.04.01.D	2x88W	3000K	4°	2 x 9500	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807016.30.10.03.0	2x88W	3000K	10°	2 x 9450	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.30.10.01.D	2x88W	3000K	10°	2 x 9450	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807016.30.10.01.0	2x88W	3000K	10°	2 x 9450	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.30.10.02.D	2x88W	3000K	10°	2 x 9450	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807016.30.10.02.0	2x88W	3000K	10°	2 x 9450	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.30.10.03.D	2x88W	3000K	10°	2 x 9450	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807016.30.28.03.0	2x88W	3000K	28°	2 x 9380	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.30.28.03.D	2x88W	3000K	28°	2 x 9380	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807016.30.28.01.D	2x88W	3000K	28°	2 x 9380	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807016.30.28.01.0	2x88W	3000K	28°	2 x 9380	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.30.28.02.D	2x88W	3000K	28°	2 x 9380	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807016.30.28.02.0	2x88W	3000K	28°	2 x 9380	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.30.55.02.0	2x88W	3000K	55°	2 x 7973	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.30.55.03.D	2x88W	3000K	55°	2 x 7973	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807016.30.55.03.0	2x88W	3000K	55°	2 x 7973	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.30.55.01.D	2x88W	3000K	55°	2 x 7973	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807016.30.55.01.0	2x88W	3000K	55°	2 x 7973	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.30.55.02.D	2x88W	3000K	55°	2 x 7973	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807016.40.04.02.D	2x88W	4000K	4°	2 x 9600	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807016.40.04.02.0	2x88W	4000K	4°	2 x 9600	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.40.04.03.D	2x88W	4000K	4°	2 x 9600	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807016.40.04.03.0	2x88W	4000K	4°	2 x 9600	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.40.04.01.0	2x88W	4000K	4°	2 x 9600	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.40.04.01.D	2x88W	4000K	4°	2 x 9600	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807016.40.10.02.0	2x88W	4000K	10°	2 x 9550	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.40.10.03.D	2x88W	4000K	10°	2 x 9550	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807016.40.10.03.0	2x88W	4000K	10°	2 x 9550	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.40.10.01.0	2x88W	4000K	10°	2 x 9550	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.40.10.02.D	2x88W	4000K	10°	2 x 9550	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807016.40.10.01.D	2x88W	4000K	10°	2 x 9550	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807016.40.28.03.0	2x88W	4000K	28°	2 x 9480	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.40.28.01.D	2x88W	4000K	28°	2 x 9480	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807016.40.28.01.0	2x88W	4000K	28°	2 x 9480	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.40.28.02.D	2x88W	4000K	28°	2 x 9480	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807016.40.28.02.0	2x88W	4000K	28°	2 x 9480	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.40.28.03.D	2x88W	4000K	28°	2 x 9480	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807016.40.55.03.0	2x88W	4000K	55°	2 x 8058	RAL9005	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.40.55.03.D	2x88W	4000K	55°	2 x 8058	RAL9005	DALI
ltd file instructions 3D CAD Data Sheet
807016.40.55.02.D	2x88W	4000K	55°	2 x 8058	RAL7016	DALI
ltd file instructions 3D CAD Data Sheet
807016.40.55.02.0	2x88W	4000K	55°	2 x 8058	RAL7016	ON/OFF
ltd file instructions 3D CAD Data Sheet
807016.40.55.01.D	2x88W	4000K	55°	2 x 8058	RAL9006	DALI
ltd file instructions 3D CAD Data Sheet
807016.40.55.01.0	2x88W	4000K	55°	2 x 8058	RAL9006	ON/OFF
ltd file instructions 3D CAD Data Sheet

Menu Image

TYPOLOGY

FOCUS ON

Menu Item

About us

Focus On

Ring Pole
Double Mega

Designed by
NAVA + AROSIO

Menu Image

TYPOLOGY

FOCUS ON

Menu Item

About us

Focus On

Ring PoleDouble Mega

Designed by NAVA + AROSIO

Ring Pole
Double Mega

Designed by
NAVA + AROSIO
