Round pole-top mounted luminaire for outdoor installation on a pole diam. 60 mm (or 76 mm using pole adapter). Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, polycarbonate diffuser, moulded silicone gasket and stainless steel screws Built-in LED driver 220-240V 50-60Hz, with 50 x Lumileds / Luxeon DS207 LED. IP66 rating.

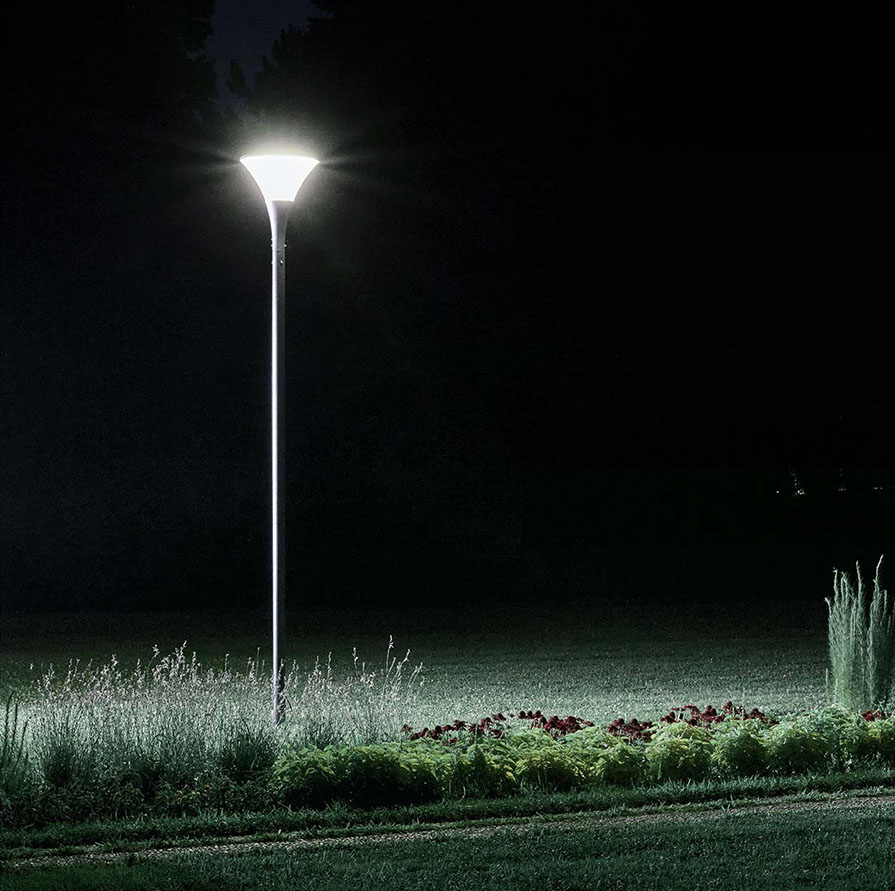

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 809001.27.AL.03.0 | 25W | 2700K | 360° | 1960 |
RAL9005 |
ON/OFF | ||
| 809001.27.AL.03.1 | 25W | 2700K | 360° | 1960 |
RAL9005 |
1-10V | ||
| 809001.27.AL.03.D | 25W | 2700K | 360° | 1960 |
RAL9005 |
DALI | ||
| 809001.27.AL.02.0 | 25W | 2700K | 360° | 1960 |
RAL7016 |
ON/OFF | ||
| 809001.27.AL.02.1 | 25W | 2700K | 360° | 1960 |
RAL7016 |
1-10V | ||
| 809001.27.AL.02.D | 25W | 2700K | 360° | 1960 |
RAL7016 |
DALI | ||
| 809001.27.AL.01.0 | 25W | 2700K | 360° | 1960 |
RAL9006 |
ON/OFF | ||
| 809001.27.AL.01.1 | 25W | 2700K | 360° | 1960 |
RAL9006 |
1-10V | ||
| 809001.27.AL.01.D | 25W | 2700K | 360° | 1960 |
RAL9006 |
DALI | ||
| 809001.30.AL.03.0 | 25W | 3000K | 360° | 2063 |
RAL9005 |
ON/OFF | ||
| 809001.30.AL.03.1 | 25W | 3000K | 360° | 2063 |
RAL9005 |
1-10V | ||
| 809001.30.AL.03.D | 25W | 3000K | 360° | 2063 |
RAL9005 |
DALI | ||
| 809001.30.AL.02.0 | 25W | 3000K | 360° | 2063 |
RAL7016 |
ON/OFF | ||
| 809001.30.AL.02.1 | 25W | 3000K | 360° | 2063 |
RAL7016 |
1-10V | ||
| 809001.30.AL.02.D | 25W | 3000K | 360° | 2063 |
RAL7016 |
DALI | ||
| 809001.30.AL.01.0 | 25W | 3000K | 360° | 2063 |
RAL9006 |
ON/OFF | ||
| 809001.30.AL.01.1 | 25W | 3000K | 360° | 2063 |
RAL9006 |
1-10V | ||
| 809001.30.AL.01.D | 25W | 3000K | 360° | 2063 |
RAL9006 |
DALI | ||
| 809001.40.AL.03.0 | 25W | 4000K | 360° | 2160 |
RAL9005 |
ON/OFF | ||
| 809001.40.AL.03.1 | 25W | 4000K | 360° | 2160 |
RAL9005 |
1-10V | ||
| 809001.40.AL.03.D | 25W | 4000K | 360° | 2160 |
RAL9005 |
DALI | ||
| 809001.40.AL.02.0 | 25W | 4000K | 360° | 2160 |
RAL7016 |
ON/OFF | ||
| 809001.40.AL.02.1 | 25W | 4000K | 360° | 2160 |
RAL7016 |
1-10V | ||
| 809001.40.AL.02.D | 25W | 4000K | 360° | 2160 |
RAL7016 |
DALI | ||
| 809001.40.AL.01.0 | 25W | 4000K | 360° | 2160 |
RAL9006 |
ON/OFF | ||
| 809001.40.AL.01.1 | 25W | 4000K | 360° | 2160 |
RAL9006 |
1-10V | ||
| 809001.40.AL.01.D | 25W | 4000K | 360° | 2160 |
RAL9006 |
DALI | ||
