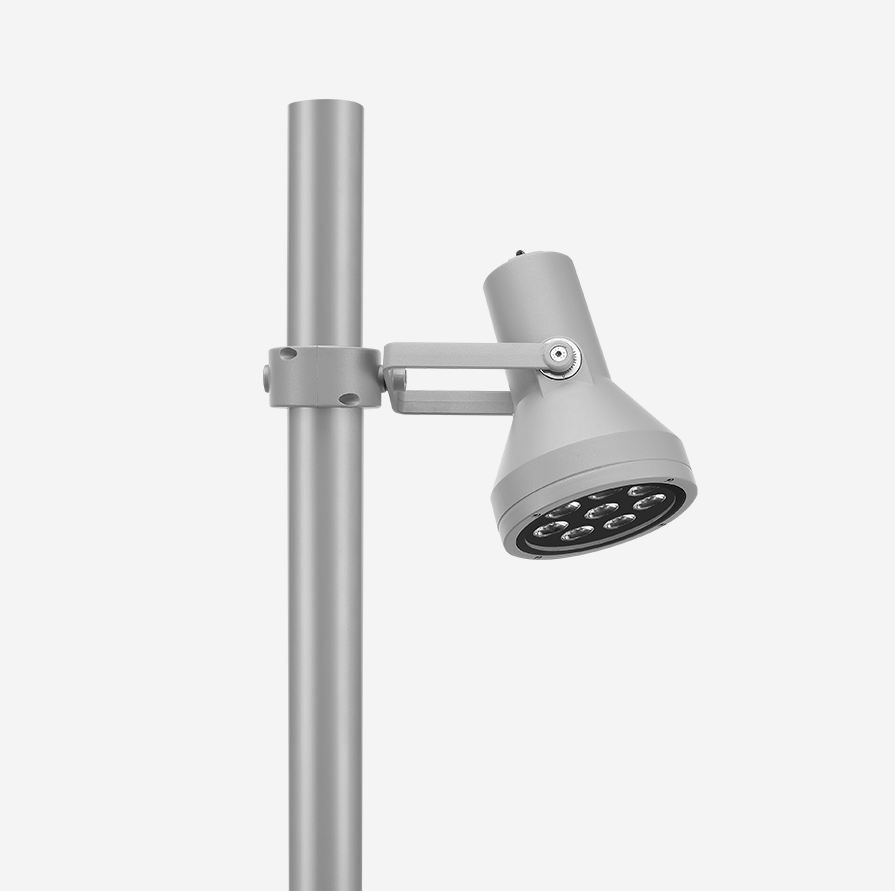

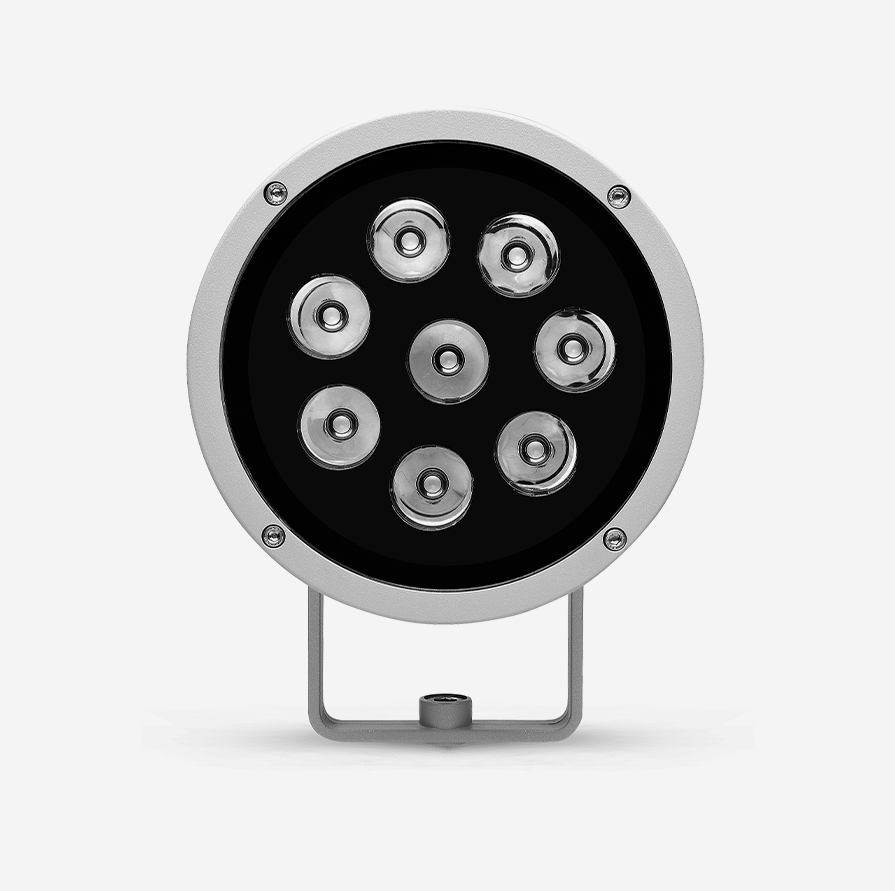

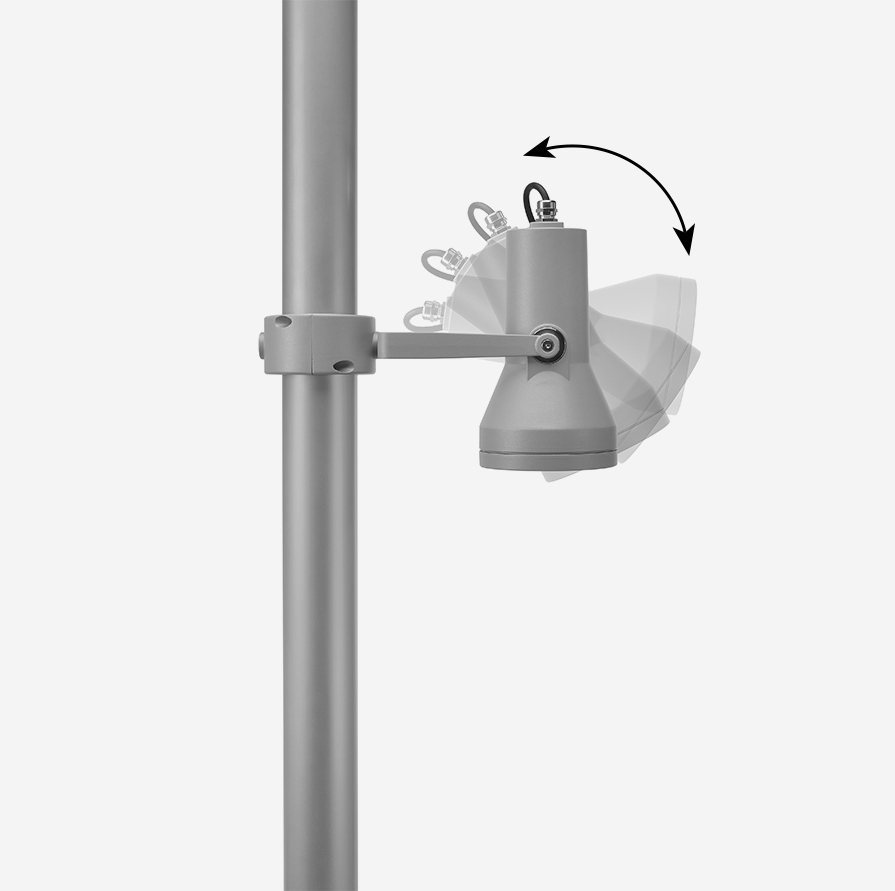

Round pole-mounted floodlight for outdoor installation on a pole diam. 60 mm or 76 mm. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, tempered safety glass, moulded silicone gasket and stainless steel screws. Clamp for pole diam 60 mm or 76 mm included. Built-in LED driver 220-240V 50-60Hz, with 8 CREE XP-G3 high-power LED. IP65 rating.
Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 805003.27.10.03.0 | 12W | 2700K | 10° | 1094 |
RAL9005 |
ON/OFF | ||
| 805003.27.10.02.D | 12W | 2700K | 10° | 1094 |
RAL7016 |
DALI | ||
| 805003.27.10.02.1 | 12W | 2700K | 10° | 1094 |
RAL7016 |
1-10V | ||
| 805003.27.10.02.0 | 12W | 2700K | 10° | 1094 |
RAL7016 |
ON/OFF | ||
| 805003.27.10.03.D | 12W | 2700K | 10° | 1094 |
RAL9005 |
DALI | ||
| 805003.27.10.03.1 | 12W | 2700K | 10° | 1094 |
RAL9005 |
1-10V | ||
| 805003.27.10.01.1 | 12W | 2700K | 10° | 1094 |
RAL9006 |
1-10V | ||
| 805003.27.10.01.0 | 12W | 2700K | 10° | 1094 |
RAL9006 |
ON/OFF | ||
| 805003.27.10.01.D | 12W | 2700K | 10° | 1094 |
RAL9006 |
DALI | ||
| 805003.27.30.03.D | 12W | 2700K | 30° | 1040 |
RAL9005 |
DALI | ||
| 805003.27.30.03.1 | 12W | 2700K | 30° | 1040 |
RAL9005 |
1-10V | ||
| 805003.27.30.03.0 | 12W | 2700K | 30° | 1040 |
RAL9005 |
ON/OFF | ||
| 805003.27.30.02.1 | 12W | 2700K | 30° | 1040 |
RAL7016 |
1-10V | ||
| 805003.27.30.02.0 | 12W | 2700K | 30° | 1040 |
RAL7016 |
ON/OFF | ||
| 805003.27.30.01.1 | 12W | 2700K | 30° | 1040 |
RAL9006 |
1-10V | ||
| 805003.27.30.01.0 | 12W | 2700K | 30° | 1040 |
RAL9006 |
ON/OFF | ||
| 805003.27.30.02.D | 12W | 2700K | 30° | 1040 |
RAL7016 |
DALI | ||
| 805003.27.30.01.D | 12W | 2700K | 30° | 1040 |
RAL9006 |
DALI | ||
| 805003.27.45.03.0 | 12W | 2700K | 45° | 988 |
RAL9005 |
ON/OFF | ||
| 805003.27.45.02.0 | 12W | 2700K | 45° | 988 |
RAL7016 |
ON/OFF | ||
| 805003.27.45.03.D | 12W | 2700K | 45° | 988 |
RAL9005 |
DALI | ||
| 805003.27.45.03.1 | 12W | 2700K | 45° | 988 |
RAL9005 |
1-10V | ||
| 805003.27.45.01.1 | 12W | 2700K | 45° | 988 |
RAL9006 |
1-10V | ||
| 805003.27.45.01.0 | 12W | 2700K | 45° | 988 |
RAL9006 |
ON/OFF | ||
| 805003.27.45.02.D | 12W | 2700K | 45° | 988 |
RAL7016 |
DALI | ||
| 805003.27.45.02.1 | 12W | 2700K | 45° | 988 |
RAL7016 |
1-10V | ||
| 805003.27.45.01.D | 12W | 2700K | 45° | 988 |
RAL9006 |
DALI | ||
| 805003.30.10.03.1 | 12W | 3000K | 10° | 1152 |
RAL9005 |
1-10V | ||
| 805003.30.10.03.0 | 12W | 3000K | 10° | 1152 |
RAL9005 |
ON/OFF | ||
| 805003.30.10.01.0 | 12W | 3000K | 10° | 1152 |
RAL9006 |
ON/OFF | ||
| 805003.30.10.02.D | 12W | 3000K | 10° | 1152 |
RAL7016 |
DALI | ||
| 805003.30.10.02.1 | 12W | 3000K | 10° | 1152 |
RAL7016 |
1-10V | ||
| 805003.30.10.02.0 | 12W | 3000K | 10° | 1152 |
RAL7016 |
ON/OFF | ||
| 805003.30.10.03.D | 12W | 3000K | 10° | 1152 |
RAL9005 |
DALI | ||
| 805003.30.10.01.D | 12W | 3000K | 10° | 1152 |
RAL9006 |
DALI | ||
| 805003.30.10.01.1 | 12W | 3000K | 10° | 1152 |
RAL9006 |
1-10V | ||
| 805003.30.30.03.0 | 12W | 3000K | 30° | 1095 |
RAL9005 |
ON/OFF | ||
| 805003.30.30.02.1 | 12W | 3000K | 30° | 1095 |
RAL7016 |
1-10V | ||
| 805003.30.30.02.0 | 12W | 3000K | 30° | 1095 |
RAL7016 |
ON/OFF | ||
| 805003.30.30.03.D | 12W | 3000K | 30° | 1095 |
RAL9005 |
DALI | ||
| 805003.30.30.03.1 | 12W | 3000K | 30° | 1095 |
RAL9005 |
1-10V | ||
| 805003.30.30.02.D | 12W | 3000K | 30° | 1095 |
RAL7016 |
DALI | ||
| 805003.30.30.01.D | 12W | 3000K | 30° | 1095 |
RAL9006 |
DALI | ||
| 805003.30.30.01.1 | 12W | 3000K | 30° | 1095 |
RAL9006 |
1-10V | ||
| 805003.30.30.01.0 | 12W | 3000K | 30° | 1095 |
RAL9006 |
ON/OFF | ||
| 805003.30.45.02.0 | 12W | 3000K | 45° | 1040 |
RAL7016 |
ON/OFF | ||
| 805003.30.45.03.D | 12W | 3000K | 45° | 1040 |
RAL9005 |
DALI | ||
| 805003.30.45.03.1 | 12W | 3000K | 45° | 1040 |
RAL9005 |
1-10V | ||
| 805003.30.45.03.0 | 12W | 3000K | 45° | 1040 |
RAL9005 |
ON/OFF | ||
| 805003.30.45.02.1 | 12W | 3000K | 45° | 1040 |
RAL7016 |
1-10V | ||
| 805003.30.45.01.D | 12W | 3000K | 45° | 1040 |
RAL9006 |
DALI | ||
| 805003.30.45.01.1 | 12W | 3000K | 45° | 1040 |
RAL9006 |
1-10V | ||
| 805003.30.45.01.0 | 12W | 3000K | 45° | 1040 |
RAL9006 |
ON/OFF | ||
| 805003.30.45.02.D | 12W | 3000K | 45° | 1040 |
RAL7016 |
DALI | ||
| 805003.40.10.02.0 | 12W | 4000K | 10° | 1200 |
RAL7016 |
ON/OFF | ||
| 805003.40.10.03.D | 12W | 4000K | 10° | 1200 |
RAL9005 |
DALI | ||
| 805003.40.10.03.1 | 12W | 4000K | 10° | 1200 |
RAL9005 |
1-10V | ||
| 805003.40.10.03.0 | 12W | 4000K | 10° | 1200 |
RAL9005 |
ON/OFF | ||
| 805003.40.10.02.1 | 12W | 4000K | 10° | 1200 |
RAL7016 |
1-10V | ||
| 805003.40.10.01.D | 12W | 4000K | 10° | 1200 |
RAL9006 |
DALI | ||
| 805003.40.10.01.1 | 12W | 4000K | 10° | 1200 |
RAL9006 |
1-10V | ||
| 805003.40.10.01.0 | 12W | 4000K | 10° | 1200 |
RAL9006 |
ON/OFF | ||
| 805003.40.10.02.D | 12W | 4000K | 10° | 1200 |
RAL7016 |
DALI | ||
| 805003.40.30.03.0 | 12W | 4000K | 30° | 1140 |
RAL9005 |
ON/OFF | ||
| 805003.40.30.03.D | 12W | 4000K | 30° | 1140 |
RAL9005 |
DALI | ||
| 805003.40.30.03.1 | 12W | 4000K | 30° | 1140 |
RAL9005 |
1-10V | ||
| 805003.40.30.02.0 | 12W | 4000K | 30° | 1140 |
RAL7016 |
ON/OFF | ||
| 805003.40.30.01.1 | 12W | 4000K | 30° | 1140 |
RAL9006 |
1-10V | ||
| 805003.40.30.01.0 | 12W | 4000K | 30° | 1140 |
RAL9006 |
ON/OFF | ||
| 805003.40.30.02.D | 12W | 4000K | 30° | 1140 |
RAL7016 |
DALI | ||
| 805003.40.30.02.1 | 12W | 4000K | 30° | 1140 |
RAL7016 |
1-10V | ||
| 805003.40.30.01.D | 12W | 4000K | 30° | 1140 |
RAL9006 |
DALI | ||
| 805003.40.45.03.1 | 12W | 4000K | 45° | 1083 |
RAL9005 |
1-10V | ||
| 805003.40.45.03.0 | 12W | 4000K | 45° | 1083 |
RAL9005 |
ON/OFF | ||
| 805003.40.45.01.0 | 12W | 4000K | 45° | 1083 |
RAL9006 |
ON/OFF | ||
| 805003.40.45.02.D | 12W | 4000K | 45° | 1083 |
RAL7016 |
DALI | ||
| 805003.40.45.02.1 | 12W | 4000K | 45° | 1083 |
RAL7016 |
1-10V | ||
| 805003.40.45.02.0 | 12W | 4000K | 45° | 1083 |
RAL7016 |
ON/OFF | ||
| 805003.40.45.03.D | 12W | 4000K | 45° | 1083 |
RAL9005 |
DALI | ||
| 805003.40.45.01.D | 12W | 4000K | 45° | 1083 |
RAL9006 |
DALI | ||
| 805003.40.45.01.1 | 12W | 4000K | 45° | 1083 |
RAL9006 |
1-10V | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 805004.27.35.03.0 | 36W | 2700K | 35° | 2945 |
RAL9005 |
ON/OFF | ||
| 805004.27.35.03.1 | 36W | 2700K | 35° | 2945 |
RAL9005 |
1-10V | ||
| 805004.27.35.02.D | 36W | 2700K | 35° | 2945 |
RAL7016 |
DALI | ||
| 805004.27.35.02.1 | 36W | 2700K | 35° | 2945 |
RAL7016 |
1-10V | ||
| 805004.27.35.02.0 | 36W | 2700K | 35° | 2945 |
RAL7016 |
ON/OFF | ||
| 805004.27.35.03.D | 36W | 2700K | 35° | 2945 |
RAL9005 |
DALI | ||
| 805004.27.35.01.0 | 36W | 2700K | 35° | 2945 |
RAL9006 |
ON/OFF | ||
| 805004.27.35.01.D | 36W | 2700K | 35° | 2945 |
RAL9006 |
DALI | ||
| 805004.27.35.01.1 | 36W | 2700K | 35° | 2945 |
RAL9006 |
1-10V | ||
| 805004.30.35.03.0 | 36W | 3000K | 35° | 3100 |
RAL9005 |
ON/OFF | ||
| 805004.30.35.03.D | 36W | 3000K | 35° | 3100 |
RAL9005 |
DALI | ||
| 805004.30.35.03.1 | 36W | 3000K | 35° | 3100 |
RAL9005 |
1-10V | ||
| 805004.30.35.02.D | 36W | 3000K | 35° | 3100 |
RAL7016 |
DALI | ||
| 805004.30.35.02.1 | 36W | 3000K | 35° | 3100 |
RAL7016 |
1-10V | ||
| 805004.30.35.02.0 | 36W | 3000K | 35° | 3100 |
RAL7016 |
ON/OFF | ||
| 805004.30.35.01.1 | 36W | 3000K | 35° | 3100 |
RAL9006 |
1-10V | ||
| 805004.30.35.01.0 | 36W | 3000K | 35° | 3100 |
RAL9006 |
ON/OFF | ||
| 805004.30.35.01.D | 36W | 3000K | 35° | 3100 |
RAL9006 |
DALI | ||
