Round pole-mounted floodlight for outdoor installation on a pole diam. 60 mm or 76 mm. Phosphochromatised and polyester powder coated die-cast copper-free aluminium body, tempered safety glass, moulded silicone gasket and stainless steel screws. Clamp for pole diam 60 mm or 76 mm included. Built-in LED driver 220-240V 50-60Hz, with 1 CREE CXB 2530 COB LED. IP65 rating.

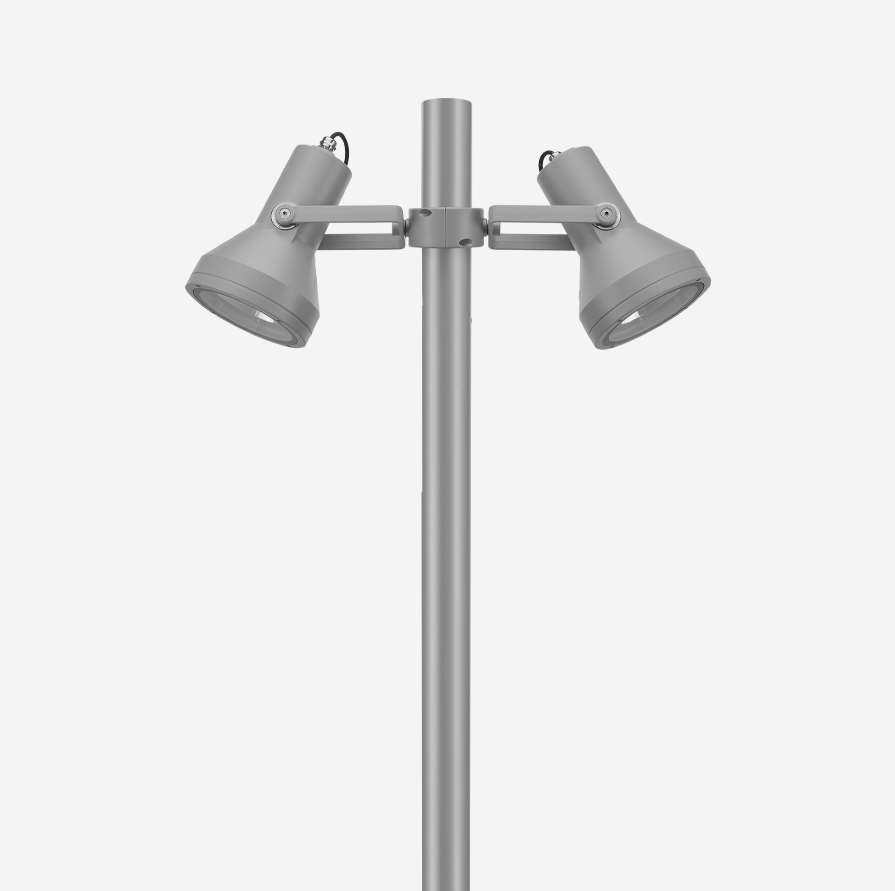

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 805008.27.35.03.1 | 2x36W | 2700K | 35° | available on request |
RAL9005 |
1-10V | ||
| 805008.27.35.03.0 | 2x36W | 2700K | 35° | available on request |
RAL9005 |
ON/OFF | ||
| 805008.27.35.02.0 | 2x36W | 2700K | 35° | available on request |
RAL7016 |
ON/OFF | ||
| 805008.27.35.03.D | 2x36W | 2700K | 35° | available on request |
RAL9005 |
DALI | ||
| 805008.27.35.01.1 | 2x36W | 2700K | 35° | available on request |
RAL9006 |
1-10V | ||
| 805008.27.35.01.0 | 2x36W | 2700K | 35° | available on request |
RAL9006 |
ON/OFF | ||
| 805008.27.35.02.D | 2x36W | 2700K | 35° | available on request |
RAL7016 |
DALI | ||
| 805008.27.35.02.1 | 2x36W | 2700K | 35° | available on request |
RAL7016 |
1-10V | ||
| 805008.27.35.01.D | 2x36W | 2700K | 35° | available on request |
RAL9006 |
DALI | ||
| 805008.30.35.03.1 | 2x36W | 3000K | 35° | 2 x 3100 |
RAL9005 |
1-10V | ||
| 805008.30.35.03.0 | 2x36W | 3000K | 35° | 2 x 3100 |
RAL9005 |
ON/OFF | ||
| 805008.30.35.02.1 | 2x36W | 3000K | 35° | 2 x 3100 |
RAL7016 |
1-10V | ||
| 805008.30.35.02.0 | 2x36W | 3000K | 35° | 2 x 3100 |
RAL7016 |
ON/OFF | ||
| 805008.30.35.03.D | 2x36W | 3000K | 35° | 2 x 3100 |
RAL9005 |
DALI | ||
| 805008.30.35.02.D | 2x36W | 3000K | 35° | 2 x 3100 |
RAL7016 |
DALI | ||
| 805008.30.35.01.D | 2x36W | 3000K | 35° | 2 x 3100 |
RAL9006 |
DALI | ||
| 805008.30.35.01.1 | 2x36W | 3000K | 35° | 2 x 3100 |
RAL9006 |
1-10V | ||
| 805008.30.35.01.0 | 2x36W | 3000K | 35° | 2 x 3100 |
RAL9006 |
ON/OFF | ||
