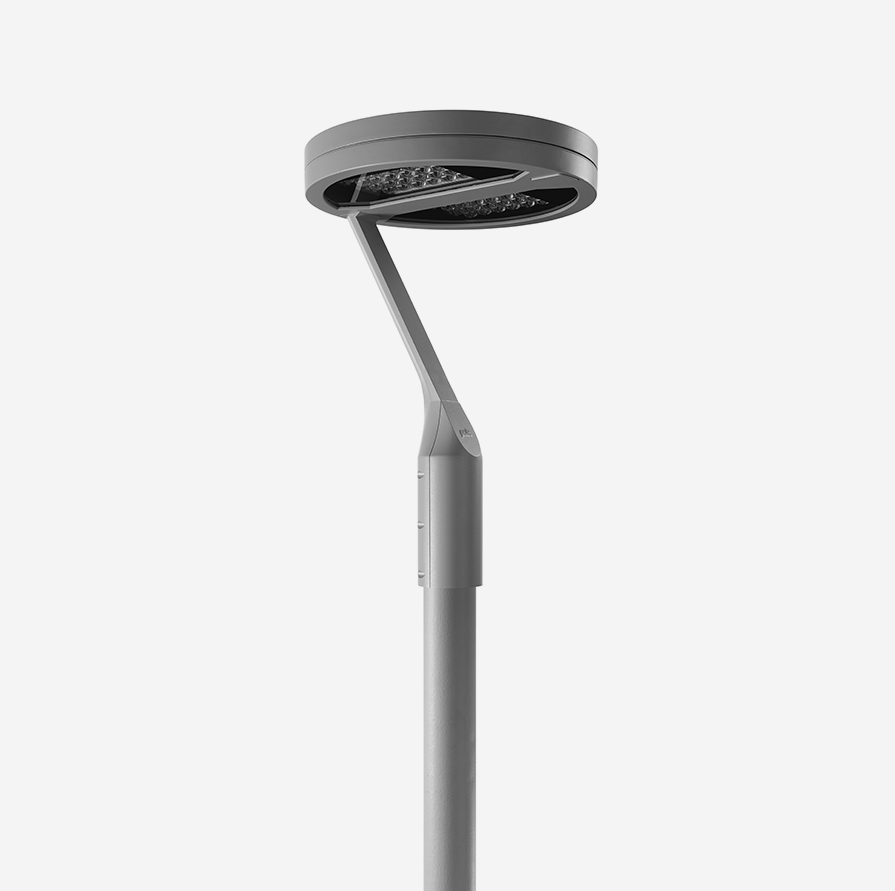

Round pole-top mounted luminaire for outdoor installation on a pole diam. 60 mm, single supporting arm, with downward light distribution. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, tempered safety glass, moulded silicone gasket and stainless steel screws. Built-in LED driver/s, with number of LEDs from 24 to 48 CREE XP-G3 LED. IP66 rating.

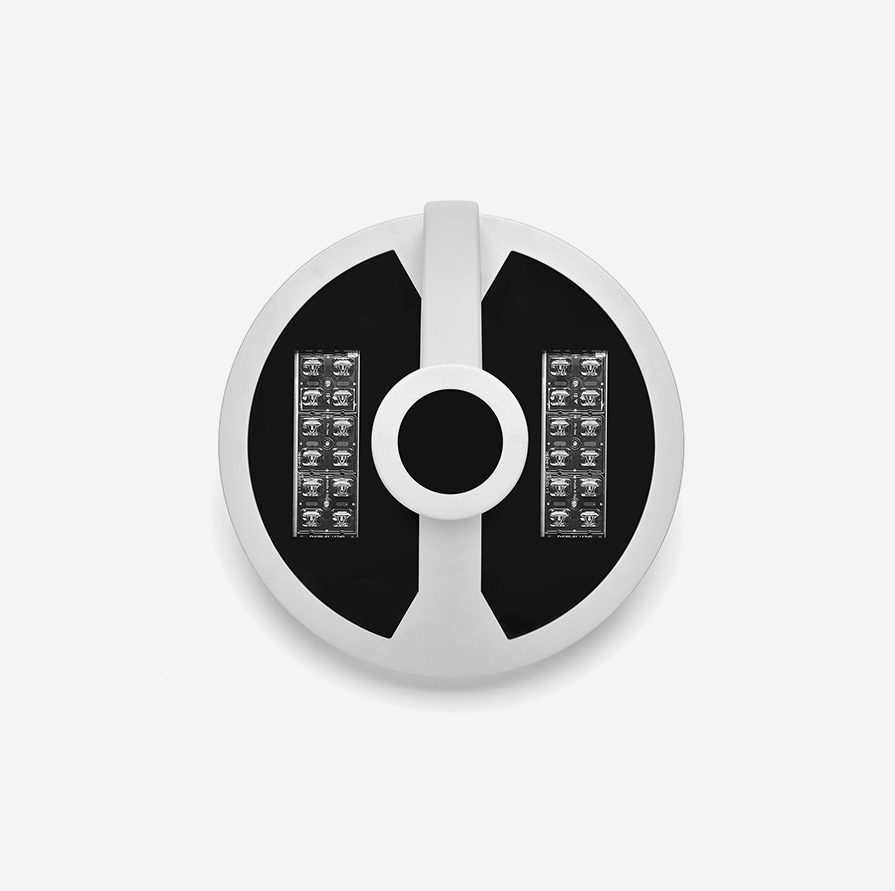

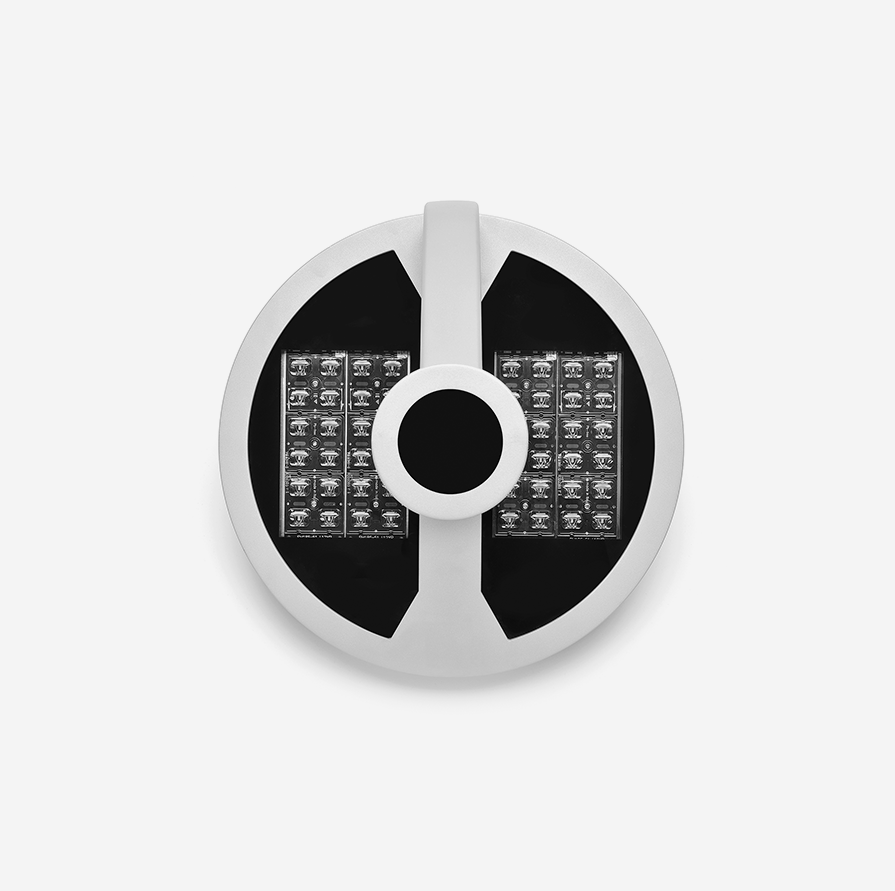

Product IMAGE
Technical drawing
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 802001.30.RT.01.0 | 36W | 3000K | rotosymmetrical | 3456 |
RAL9006 |
ON/OFF | ||
| 802001.30.RT.01.1 | 36W | 3000K | rotosymmetrical | 3456 |
RAL9006 |
1-10V | ||
| 802001.30.RT.01.D | 36W | 3000K | rotosymmetrical | 3456 |
RAL9006 |
DALI | ||
| 802001.30.RT.02.0 | 36W | 3000K | rotosymmetrical | 3456 |
RAL7016 |
ON/OFF | ||
| 802001.30.RT.02.1 | 36W | 3000K | rotosymmetrical | 3456 |
RAL7016 |
1-10V | ||
| 802001.30.RT.02.D | 36W | 3000K | rotosymmetrical | 3456 |
RAL7016 |
DALI | ||
| 802001.30.RT.03.0 | 36W | 3000K | rotosymmetrical | 3456 |
RAL9005 |
ON/OFF | ||
| 802001.30.RT.03.1 | 36W | 3000K | rotosymmetrical | 3456 |
RAL9005 |
1-10V | ||
| 802001.30.RT.03.D | 36W | 3000K | rotosymmetrical | 3456 |
RAL9005 |
DALI | ||
| 802001.30.CP.01.0 | 36W | 3000K | cycle-route pedestrian | 3456 |
RAL9006 |
ON/OFF | ||
| 802001.30.CP.01.1 | 36W | 3000K | cycle-route pedestrian | 3456 |
RAL9006 |
1-10V | ||
| 802001.30.CP.01.D | 36W | 3000K | cycle-route pedestrian | 3456 |
RAL9006 |
DALI | ||
| 802001.30.CP.02.0 | 36W | 3000K | cycle-route pedestrian | 3456 |
RAL7016 |
ON/OFF | ||
| 802001.30.CP.02.1 | 36W | 3000K | cycle-route pedestrian | 3456 |
RAL7016 |
1-10V | ||
| 802001.30.CP.02.D | 36W | 3000K | cycle-route pedestrian | 3456 |
RAL7016 |
DALI | ||
| 802001.30.CP.03.0 | 36W | 3000K | cycle-route pedestrian | 3456 |
RAL9005 |
ON/OFF | ||
| 802001.30.CP.03.1 | 36W | 3000K | cycle-route pedestrian | 3456 |
RAL9005 |
1-10V | ||
| 802001.30.CP.03.D | 36W | 3000K | cycle-route pedestrian | 3456 |
RAL9005 |
DALI | ||
| 802001.30.ST.01.0 | 36W | 3000K | street | 3456 |
RAL9006 |
ON/OFF | ||
| 802001.30.ST.01.1 | 36W | 3000K | street | 3456 |
RAL9006 |
1-10V | ||
| 802001.30.ST.01.D | 36W | 3000K | street | 3456 |
RAL9006 |
DALI | ||
| 802001.30.ST.02.0 | 36W | 3000K | street | 3456 |
RAL7016 |
ON/OFF | ||
| 802001.30.ST.02.1 | 36W | 3000K | street | 3456 |
RAL7016 |
1-10V | ||
| 802001.30.ST.02.D | 36W | 3000K | street | 3456 |
RAL7016 |
DALI | ||
| 802001.30.ST.03.0 | 36W | 3000K | street | 3456 |
RAL9005 |
ON/OFF | ||
| 802001.30.ST.03.1 | 36W | 3000K | street | 3456 |
RAL9005 |
1-10V | ||
| 802001.30.ST.03.D | 36W | 3000K | street | 3456 |
RAL9005 |
DALI | ||
| 802001.40.RT.01.0 | 36W | 4000K | rotosymmetrical | 3600 |
RAL9006 |
ON/OFF | ||
| 802001.40.RT.01.1 | 36W | 4000K | rotosymmetrical | 3600 |
RAL9006 |
1-10V | ||
| 802001.40.RT.01.D | 36W | 4000K | rotosymmetrical | 3600 |
RAL9006 |
DALI | ||
| 802001.40.RT.02.0 | 36W | 4000K | rotosymmetrical | 3600 |
RAL7016 |
ON/OFF | ||
| 802001.40.RT.02.1 | 36W | 4000K | rotosymmetrical | 3600 |
RAL7016 |
1-10V | ||
| 802001.40.RT.02.D | 36W | 4000K | rotosymmetrical | 3600 |
RAL7016 |
DALI | ||
| 802001.40.RT.03.0 | 36W | 4000K | rotosymmetrical | 3600 |
RAL9005 |
ON/OFF | ||
| 802001.40.RT.03.1 | 36W | 4000K | rotosymmetrical | 3600 |
RAL9005 |
1-10V | ||
| 802001.40.RT.03.D | 36W | 4000K | rotosymmetrical | 3600 |
RAL9005 |
DALI | ||
| 802001.40.CP.01.0 | 36W | 4000K | cycle-route pedestrian | 3600 |
RAL9006 |
ON/OFF | ||
| 802001.40.CP.01.1 | 36W | 4000K | cycle-route pedestrian | 3600 |
RAL9006 |
1-10V | ||
| 802001.40.CP.01.D | 36W | 4000K | cycle-route pedestrian | 3600 |
RAL9006 |
DALI | ||
| 802001.40.CP.02.0 | 36W | 4000K | cycle-route pedestrian | 3600 |
RAL7016 |
ON/OFF | ||
| 802001.40.CP.02.1 | 36W | 4000K | cycle-route pedestrian | 3600 |
RAL7016 |
1-10V | ||
| 802001.40.CP.02.D | 36W | 4000K | cycle-route pedestrian | 3600 |
RAL7016 |
DALI | ||
| 802001.40.CP.03.0 | 36W | 4000K | cycle-route pedestrian | 3600 |
RAL9005 |
ON/OFF | ||
| 802001.40.CP.03.1 | 36W | 4000K | cycle-route pedestrian | 3600 |
RAL9005 |
1-10V | ||
| 802001.40.CP.03.D | 36W | 4000K | cycle-route pedestrian | 3600 |
RAL9005 |
DALI | ||
| 802001.40.ST.01.0 | 36W | 4000K | street | 3600 |
RAL9006 |
ON/OFF | ||
| 802001.40.ST.01.1 | 36W | 4000K | street | 3600 |
RAL9006 |
1-10V | ||
| 802001.40.ST.01.D | 36W | 4000K | street | 3600 |
RAL9006 |
DALI | ||
| 802001.40.ST.02.0 | 36W | 4000K | street | 3600 |
RAL7016 |
ON/OFF | ||
| 802001.40.ST.02.1 | 36W | 4000K | street | 3600 |
RAL7016 |
1-10V | ||
| 802001.40.ST.02.D | 36W | 4000K | street | 3600 |
RAL7016 |
DALI | ||
| 802001.40.ST.03.0 | 36W | 4000K | street | 3600 |
RAL9005 |
ON/OFF | ||
| 802001.40.ST.03.1 | 36W | 4000K | street | 3600 |
RAL9005 |
1-10V | ||
| 802001.40.ST.03.D | 36W | 4000K | street | 3600 |
RAL9005 |
DALI | ||
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 802002.30.RT.01.0 | 72W | 3000K | rotosymmetrical | 6912 |
RAL9006 |
ON/OFF | ||
| 802002.30.RT.01.1 | 72W | 3000K | rotosymmetrical | 6912 |
RAL9006 |
1-10V | ||
| 802002.30.RT.01.D | 72W | 3000K | rotosymmetrical | 6912 |
RAL9006 |
DALI | ||
| 802002.30.RT.02.0 | 72W | 3000K | rotosymmetrical | 6912 |
RAL7016 |
ON/OFF | ||
| 802002.30.RT.02.1 | 72W | 3000K | rotosymmetrical | 6912 |
RAL7016 |
1-10V | ||
| 802002.30.RT.02.D | 72W | 3000K | rotosymmetrical | 6912 |
RAL7016 |
DALI | ||
| 802002.30.RT.03.0 | 72W | 3000K | rotosymmetrical | 6912 |
RAL9005 |
ON/OFF | ||
| 802002.30.RT.03.1 | 72W | 3000K | rotosymmetrical | 6912 |
RAL9005 |
1-10V | ||
| 802002.30.RT.03.D | 72W | 3000K | rotosymmetrical | 6912 |
RAL9005 |
DALI | ||
| 802002.30.CP.01.0 | 72W | 3000K | cycle-route pedestrian | 6912 |
RAL9006 |
ON/OFF | ||
| 802002.30.CP.01.1 | 72W | 3000K | cycle-route pedestrian | 6912 |
RAL9006 |
1-10V | ||
| 802002.30.CP.01.D | 72W | 3000K | cycle-route pedestrian | 6912 |
RAL9006 |
DALI | ||
| 802002.30.CP.02.0 | 72W | 3000K | cycle-route pedestrian | 6912 |
RAL7016 |
ON/OFF | ||
| 802002.30.CP.02.1 | 72W | 3000K | cycle-route pedestrian | 6912 |
RAL7016 |
1-10V | ||
| 802002.30.CP.02.D | 72W | 3000K | cycle-route pedestrian | 6912 |
RAL7016 |
DALI | ||
| 802002.30.CP.03.0 | 72W | 3000K | cycle-route pedestrian | 6912 |
RAL9005 |
ON/OFF | ||
| 802002.30.CP.03.1 | 72W | 3000K | cycle-route pedestrian | 6912 |
RAL9005 |
1-10V | ||
| 802002.30.CP.03.D | 72W | 3000K | cycle-route pedestrian | 6912 |
RAL9005 |
DALI | ||
| 802002.30.ST.01.0 | 72W | 3000K | street | 6912 |
RAL9006 |
ON/OFF | ||
| 802002.30.ST.01.1 | 72W | 3000K | street | 6912 |
RAL9006 |
1-10V | ||
| 802002.30.ST.01.D | 72W | 3000K | street | 6912 |
RAL9006 |
DALI | ||
| 802002.30.ST.02.0 | 72W | 3000K | street | 6912 |
RAL7016 |
ON/OFF | ||
| 802002.30.ST.02.1 | 72W | 3000K | street | 6912 |
RAL7016 |
1-10V | ||
| 802002.30.ST.02.D | 72W | 3000K | street | 6912 |
RAL7016 |
DALI | ||
| 802002.30.ST.03.0 | 72W | 3000K | street | 6912 |
RAL9005 |
ON/OFF | ||
| 802002.30.ST.03.1 | 72W | 3000K | street | 6912 |
RAL9005 |
1-10V | ||
| 802002.30.ST.03.D | 72W | 3000K | street | 6912 |
RAL9005 |
DALI | ||
| 802002.40.RT.01.0 | 72W | 4000K | rotosymmetrical | 7200 |
RAL9006 |
ON/OFF | ||
| 802002.40.RT.01.1 | 72W | 4000K | rotosymmetrical | 7200 |
RAL9006 |
1-10V | ||
| 802002.40.RT.01.D | 72W | 4000K | rotosymmetrical | 7200 |
RAL9006 |
DALI | ||
| 802002.40.RT.02.0 | 72W | 4000K | rotosymmetrical | 7200 |
RAL7016 |
ON/OFF | ||
| 802002.40.RT.02.1 | 72W | 4000K | rotosymmetrical | 7200 |
RAL7016 |
1-10V | ||
| 802002.40.RT.02.D | 72W | 4000K | rotosymmetrical | 7200 |
RAL7016 |
DALI | ||
| 802002.40.RT.03.0 | 72W | 4000K | rotosymmetrical | 7200 |
RAL9005 |
ON/OFF | ||
| 802002.40.RT.03.1 | 72W | 4000K | rotosymmetrical | 7200 |
RAL9005 |
1-10V | ||
| 802002.40.RT.03.D | 72W | 4000K | rotosymmetrical | 7200 |
RAL9005 |
DALI | ||
| 802002.40.CP.01.0 | 72W | 4000K | cycle-route pedestrian | 7200 |
RAL9006 |
ON/OFF | ||
| 802002.40.CP.01.1 | 72W | 4000K | cycle-route pedestrian | 7200 |
RAL9006 |
1-10V | ||
| 802002.40.CP.01.D | 72W | 4000K | cycle-route pedestrian | 7200 |
RAL9006 |
DALI | ||
| 802002.40.CP.02.0 | 72W | 4000K | cycle-route pedestrian | 7200 |
RAL7016 |
ON/OFF | ||
| 802002.40.CP.02.1 | 72W | 4000K | cycle-route pedestrian | 7200 |
RAL7016 |
1-10V | ||
| 802002.40.CP.02.D | 72W | 4000K | cycle-route pedestrian | 7200 |
RAL7016 |
DALI | ||
| 802002.40.CP.03.0 | 72W | 4000K | cycle-route pedestrian | 7200 |
RAL9005 |
ON/OFF | ||
| 802002.40.CP.03.1 | 72W | 4000K | cycle-route pedestrian | 7200 |
RAL9005 |
1-10V | ||
| 802002.40.CP.03.D | 72W | 4000K | cycle-route pedestrian | 7200 |
RAL9005 |
DALI | ||
| 802002.40.ST.01.0 | 72W | 4000K | street | 7200 |
RAL9006 |
ON/OFF | ||
| 802002.40.ST.01.1 | 72W | 4000K | street | 7200 |
RAL9006 |
1-10V | ||
| 802002.40.ST.01.D | 72W | 4000K | street | 7200 |
RAL9006 |
DALI | ||
| 802002.40.ST.02.0 | 72W | 4000K | street | 7200 |
RAL7016 |
ON/OFF | ||
| 802002.40.ST.02.1 | 72W | 4000K | street | 7200 |
RAL7016 |
1-10V | ||
| 802002.40.ST.02.D | 72W | 4000K | street | 7200 |
RAL7016 |
DALI | ||
| 802002.40.ST.03.0 | 72W | 4000K | street | 7200 |
RAL9005 |
ON/OFF | ||
| 802002.40.ST.03.1 | 72W | 4000K | street | 7200 |
RAL9005 |
1-10V | ||
| 802002.40.ST.03.D | 72W | 4000K | street | 7200 |
RAL9005 |
DALI | ||
