Hydroflex Underwater
Top
4000

306004

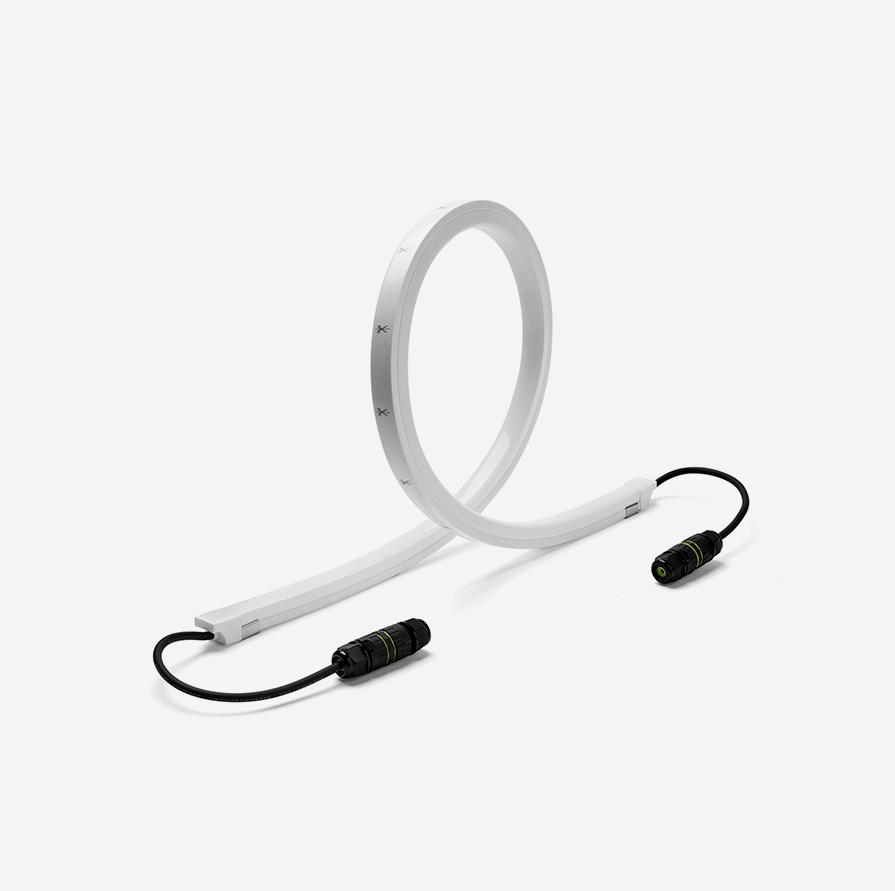

(straight or bended), underwater installation version; surface mounted version through installation accessories to be ordered separately. LED circuit completely encapsulated with UV and hightemperatures resistant Polyurethane sheath, with white (outside) and milky finish (over light emission), dot free and homogeneous light emission surface. Double power cable with male/female connectors included, suitable for in-line installation. Remote driver 24V DC needed. With nr. 140 low-power SMD3014 Lumileds LED. IP68 rating.

Wattage
40W
CCT
3000K
Beam Angle
diffused
Lumens
3000
Finish
NO FINISH
IP Rating
IP68
Coating
Polyester powder coating with phosphocromating pre-finish
Light source
low-power SMD3014 Lumileds LED
Screws
Stainless steel
Transformer
24V DC remote driver needed
Power cable
Supplied with Male/Female connectors for in-line installation

REMOTE DRIVER SELECTION

Meanwell	LPV-60-24	constant voltage 24V DC	60W	IP67	1
Meanwell	LPV-100-24	constant voltage 24V DC	100W	IP67	min 1 - max 2

Integrated Accessories

306004.30.DF.00.0. _ _

Built-in accessories to be requested when ordering
example 306004.30.DF.00.0.HC

.00

NO ACCESSORY

No accessory

Accessories not included

Accessories to be ordered separately

AC034

MOUNTING CLIP FOR HYDROFLEX TOP

Mounting clip for Hydroflex Top, realized in Stainless steel, clip to be applied every 40 cm, to secure with screws. Ideal for bended installation on a wall or ceiling.

AC035

ALUMINUM LINEAR PROFILE (AC035)

1.000 mm Linear profile for Hydroflex Top, realized in Anodized aluminum.
